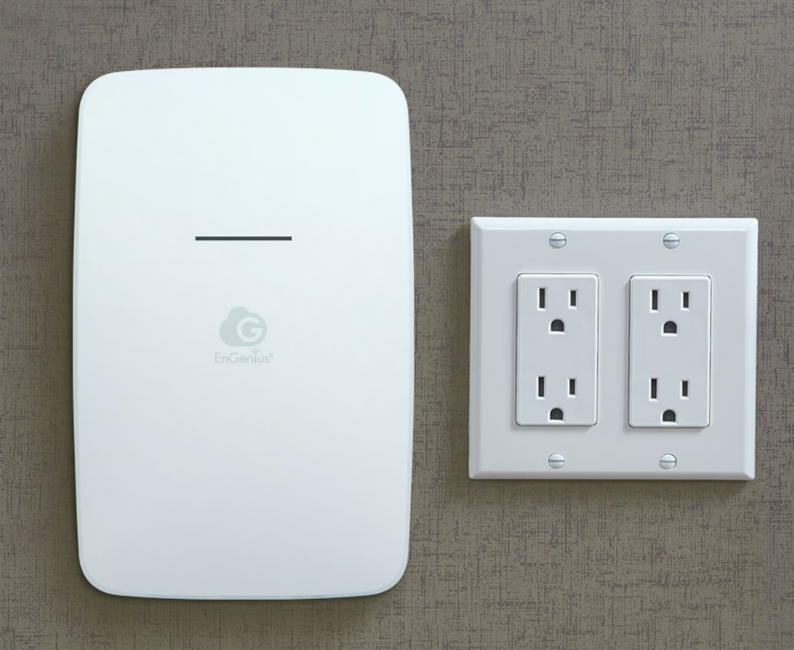

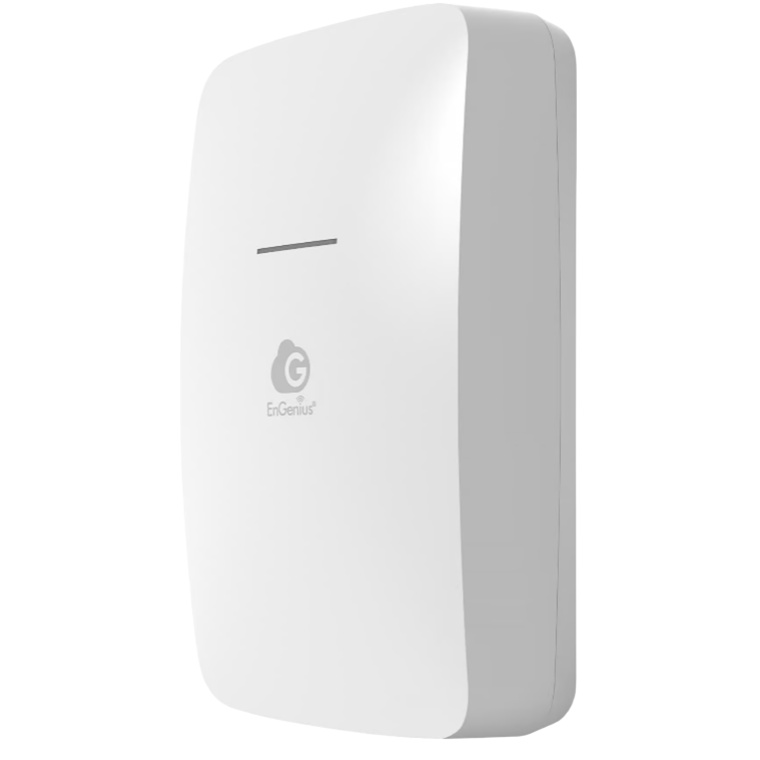

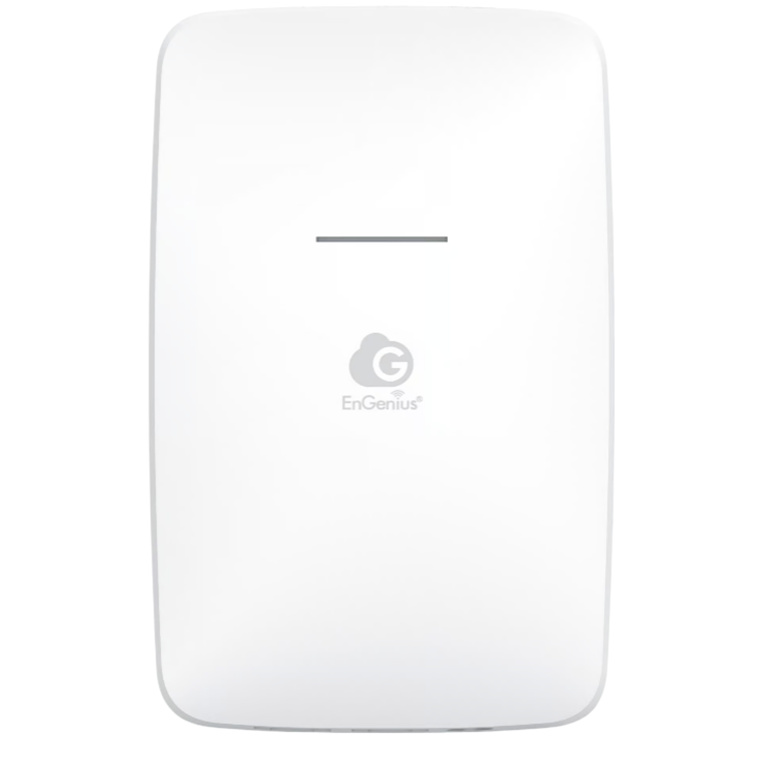

EnGenius ECW115 Cloud-Managed 802.11ac Wall Plate Mounted Access Point

Standards

IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac Wave 2 on 5 GHz

Antenna

2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

LED Indicators

1 x Power
1 x Cloud Connecting
1 x Multi-Color LED

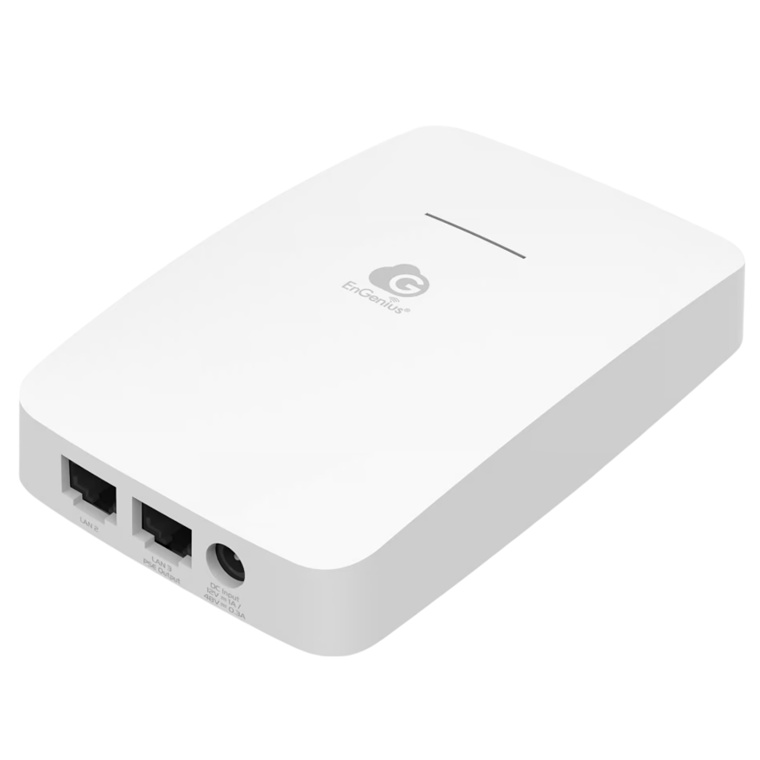

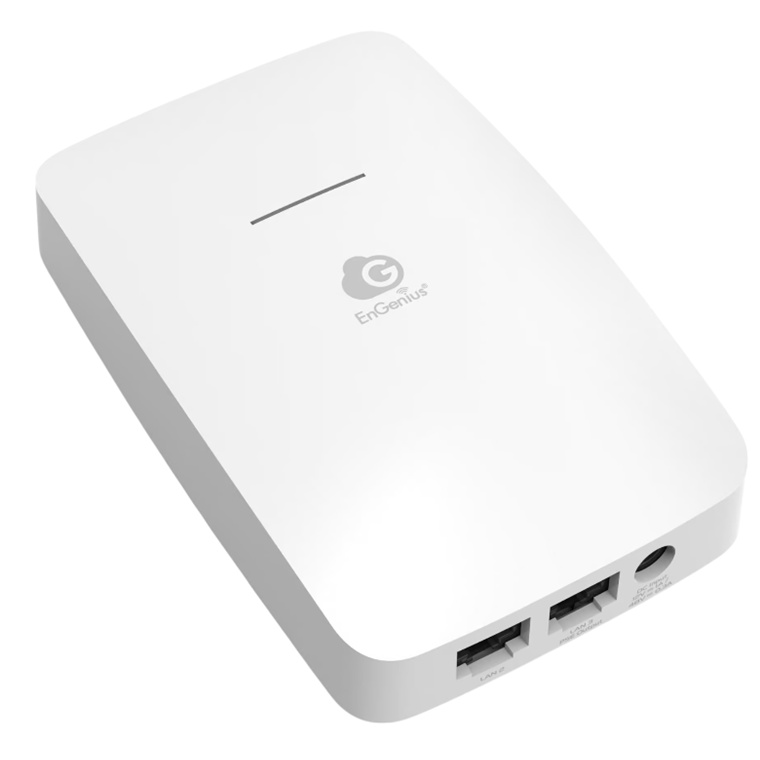

Physical Interface

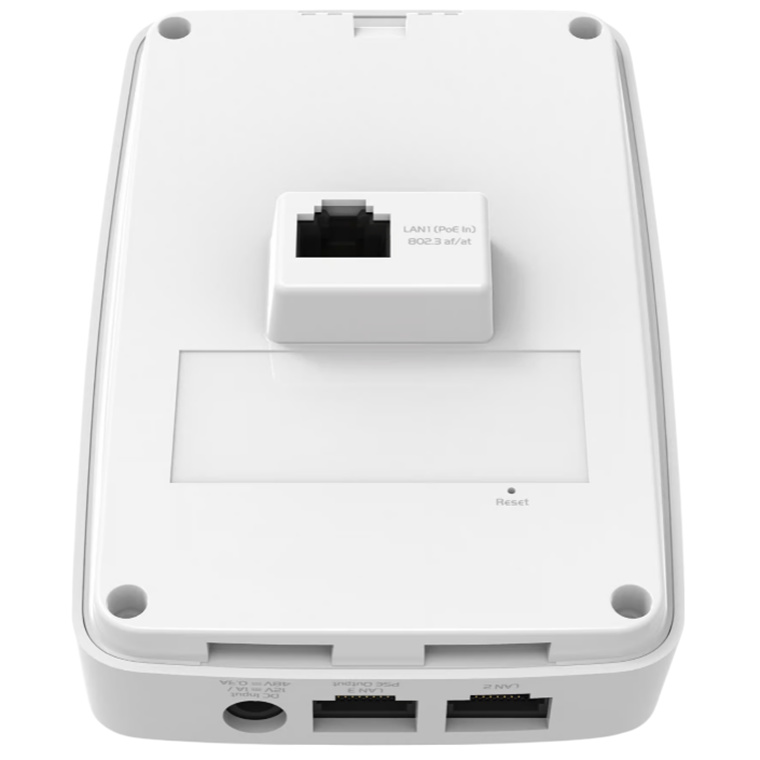

1 x 10/100/1000 BASE-T, RJ-45 Ethernet Uplink Port (back plate)
2 x 10/100/1000 BASE-T, RJ-45 Ethernet Switched Ports (client ports)
Port 1 (PSE) 802.3af PoE (requires 802.3at power source)
1 x DC Jack
1 x Reset Button

Power Source

Power-over-Ethernet: 802.3at Input
IEEE 802.11e Compliant Source
12VDC /1A Power Adapter

Maximum Power Consumption

12W

Wireless & Radio Specifications Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
Manage Mode: AP, AP Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2472 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 17 dBm on 2.4 GHz
Up to 17 dBm on 5 GHz

SU-MIMO

Two (2) spatial streams Single User SU-MIMO for up to 400 Mbps wireless data
rate with VHT40 bandwidth to a 2x2 wireless client device under the 2.4GHz
radio. Two (2) spatial stream Single User SU-MIMO for up to 867 Mbps wireless
data rate with VHT80 to a 2x2 wireless device under the 5GHz radio.

MU-MIMO

Two (2) Spatial Streams MU-MIMO up to 867 Mbps wireless data rate for
transmitting to two (2) streams MU-MIMO capable wireless devices under
5GHz simultaneously.

Supported Data Rates (Mbps)

2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when
enabling 256-QAM uner HT40)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2×2 MIMO with 2 Streams

Channelization

802.11ac Supports Very High Throughput (VHT)-VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)-HT 20/40 MHz
802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio-VHT
40 MHz (256-QAM)
802.11n/ac Packet Aggregation: AMPDU, ASPDU

Supported Modulation

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Multiple BSSID

8 SSIDs on both 2.4GHz and 5GHz radios.

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

Wireless Security

OWE
WPA2 Personal
WPA3 Personal (SAE) - WPA3 Only
WPA3/WPA2 Personal Mixed
WPA2 Enterprise
WPA3 Enterprise Suite B
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation

Environment & Physical Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

Weight: .80 lbs. (.363 Kg)
Length: 3.5" (90 mm)
Width: 5.5" (140 mm)
Height: 1.6" (40 mm)
