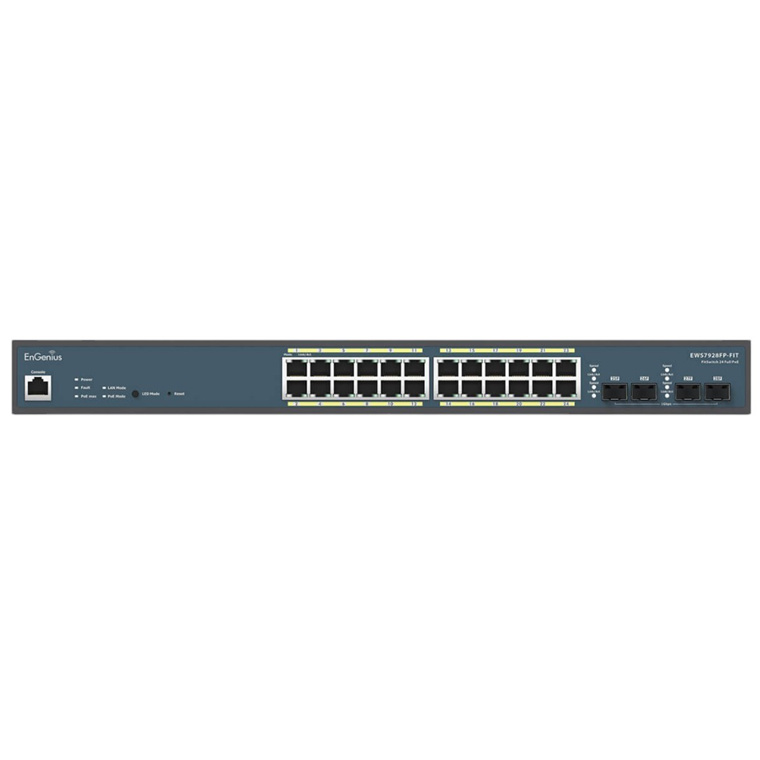

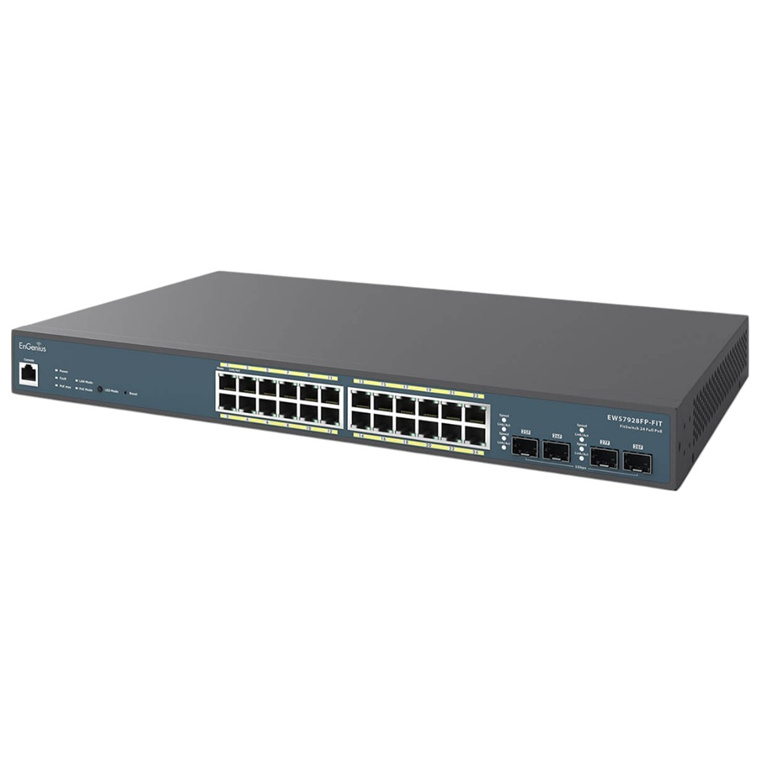

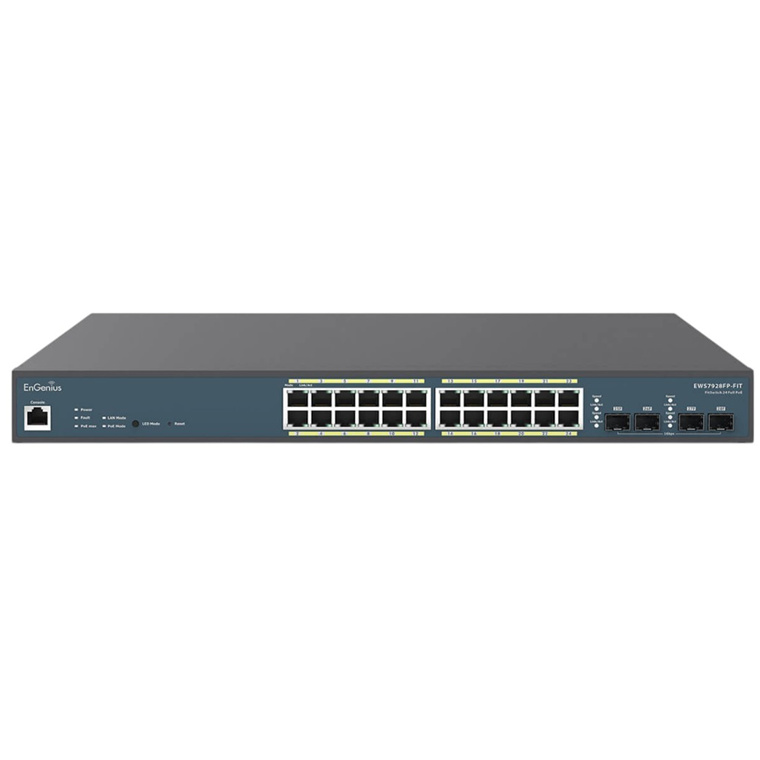

EnGenius EWS7928FP-FIT EnGenius Fit 410W Gigabit PoE+ 24 Port Switch
Out of stock
Features
EnGenius Fit Layer 2+ Switch, EWS7928FP-FIT, is a high-performance switch that supports zero-touch provisioning and centralized cloud management. Its robust security features ensure protection against network threats, while its Voice-VLAN feature is optimized for quality voice and video traffic.
- 24x GE PoE+ ports for high-speed connections
- 4x SFP uplink ports for bandwidth-intensive applications
- 24x 802.3 at/af PoE+ ports with 410W PoE budget
- Zero touch provisioning, centralized cloud management and visualized monitoring
- Hybrid cloud switch supports flexible management options such as EnGenius FitXpress (cloud-managed), FitController (on-premises), or standalone
- Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
- Optimized for quality voice and video traffic with Voice-VLAN feature
Easy Onboarding
Easy Monitoring
Versatile Applications
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
EnGenius EWS7928FP-FIT EnGenius Fit 410W Gigabit PoE+ 24 Port Switch
- Brand: EnGenius
- MPN: EWS7928FP-FIT
- Part #: NETEGN0290
Product URL: https://www.pbtech.com/pacific/product/NETEGN0290/EnGenius-EWS7928FP-FIT-EnGenius-Fit-410W-Gigabit-P
Features
EnGenius Fit Layer 2+ Switch, EWS7928FP-FIT, is a high-performance switch that supports zero-touch provisioning and centralized cloud management. Its robust security features ensure protection against network threats, while its Voice-VLAN feature is optimized for quality voice and video traffic.
- 24x GE PoE+ ports for high-speed connections
- 4x SFP uplink ports for bandwidth-intensive applications
- 24x 802.3 at/af PoE+ ports with 410W PoE budget
- Zero touch provisioning, centralized cloud management and visualized monitoring
- Hybrid cloud switch supports flexible management options such as EnGenius FitXpress (cloud-managed), FitController (on-premises), or standalone
- Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
- Optimized for quality voice and video traffic with Voice-VLAN feature
Easy Onboarding
Easy Monitoring
Versatile Applications
Specifications
General Information
Brand
EnGenius
Manufacturer Part Number
EWS7928FP-FIT
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Port - Gigabit Ethernet Ports
24x GE Ports
Network Port - SFP Ports
4x SFP
Switching Capacity
56Gbps
SDRAM
256MB
Flash Memory
32MB
PoE Capable Ports
Ports 1-24
Total PoE Budget
410W
Power Source
100 to 240 VAC, 50/60Hz
Physical Interface
System Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Port Indicators
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
L2 Features
Network Management
EnGenius FITCloud
FITCON
Local Web GUI
MAC Address Table
8K
Jumbo frame size
9K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS-number of Priority Queues Supported
Queue 8
QoS Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate
Certificate/Key Import
SNMP
SNMP v1/v2c/v3 Support
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filitering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
L3 Features
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Wireless Management Features
Deployment Options
Stand-Alone (Individually Managed)
FitXpress
FitController
Environmental & Physical
Temperature Range
Operating: 32°F to 122°F (0°C to50°C)
Humidity (Non-Condensing)
Operating: 5% - 95%
Dimensions & Weight
Weight
8.5 lbs. (3.9 kg)
Width
17.32" (440 mm)
Length
10.23" (260 mm)
Height
1.73" (44 mm)
