HyperLink Technologies LP-27 AL-CAT6W Cat6 Lightning Protector

PB Tech price

NZD $ 56 .52

$ 56 .52

HyperLink Technologies LP-27 AL-CAT6W Cat6 Lightning Protector

Brand: HyperLink
MPN: LP-27
Part #: NETEHPL1048
UPC:

PB Tech price

NZD $ 56 .52

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 11 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HyperLink
MPN: LP-27
Part #: NETEHPL1048
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

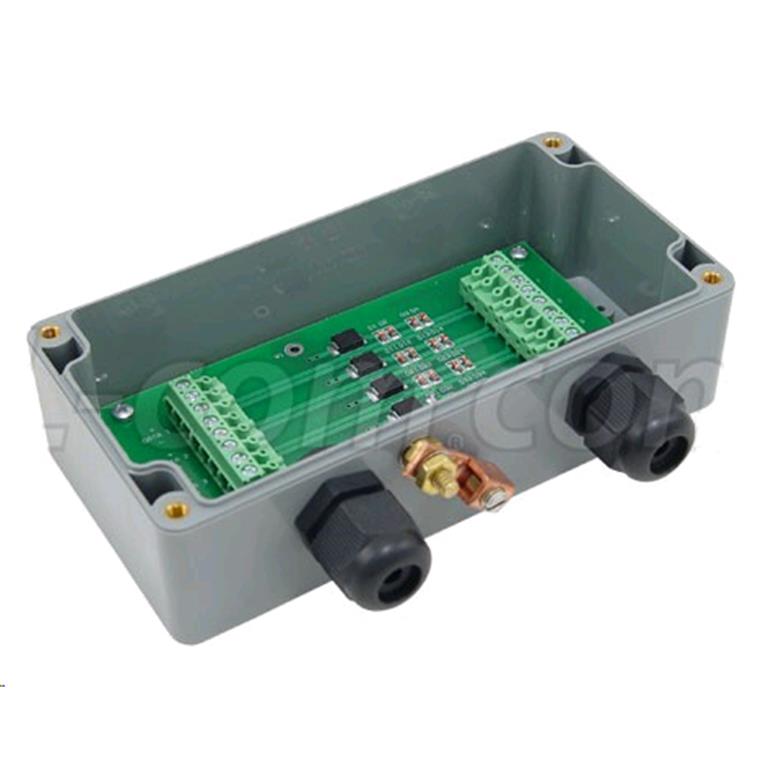

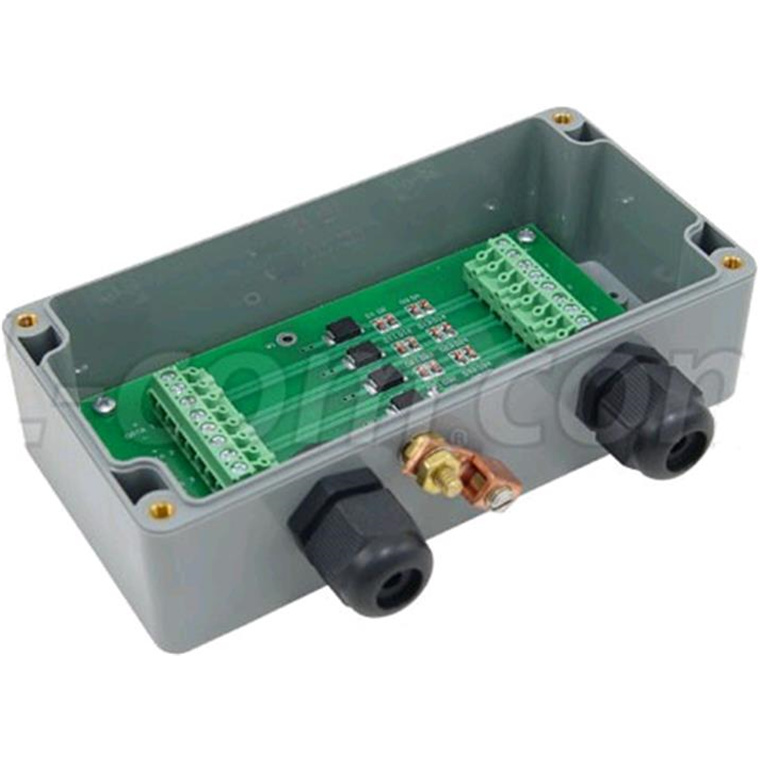

The AL-CAT6W Lightning Protector provides superior lightning and surge protection with improved frequency response for both indoor and outdoor 10/100/1000 Gigabit Ethernet networks. The unit meets or exceeds CAT6 performance for the four data pairs. The design uses high frequency transmission line layout techniques to maintain an optimum 100 ohms balanced impedance in the signal path. These techniques and the use of Ultra-Low Capacitance Protection Arrays provide superior high frequency response and improved return loss for the data pairs. In addition, the unit is compatible with 802.3af Power-over-Ethernet (PoE) devices. Integral to the design is protection for the two Ethernet data pairs and the PoE DC power feed. This unit supports normal and reverse polarity PoE. This CAT6 Lightning Protector is compatible with Wireless Access Points, Access Servers and Outdoor Routers, with or without Power-over-Ethernet (PoE) functionality. When using Motorola®/Orthogon equipment, the AL-CAT6W is an ideal alternative to Transtector® protectors. This unit features a weatherproof ABS enclosure with gasketed cover and concealed mounting holes. Removable Terminal Strips are provided on the input and output for convenience. To ease installation, the terminal strips can be removed. A ground clamp provides a tie point for earth ground. For maximum protection from lightning on long cable runs, two units can be used, one at each end of the cable.

- CAT6, CAT5e and CAT5 compatible
- 10/100/1000 Base-T Gigabit Ethernet protection
- Power-Over-Ethernet (PoE) compatible
- Gasketed cover, concealed mounting holes & ground clamp provided on outside of enclosure
- Cisco Reverse Polarity PoE and Motorola/Orthogon compatible

Specifications

Connector Type 1
Terminal Block

Connector Type 2
Terminal Block

PoE Clamping Voltage
58V

PoE Mode Support
802.3af

Manufacturer Part No:

LP-27

Brand:

HyperLink

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

NETEHPL1048

Product Model:

Warranty: 12 months *
