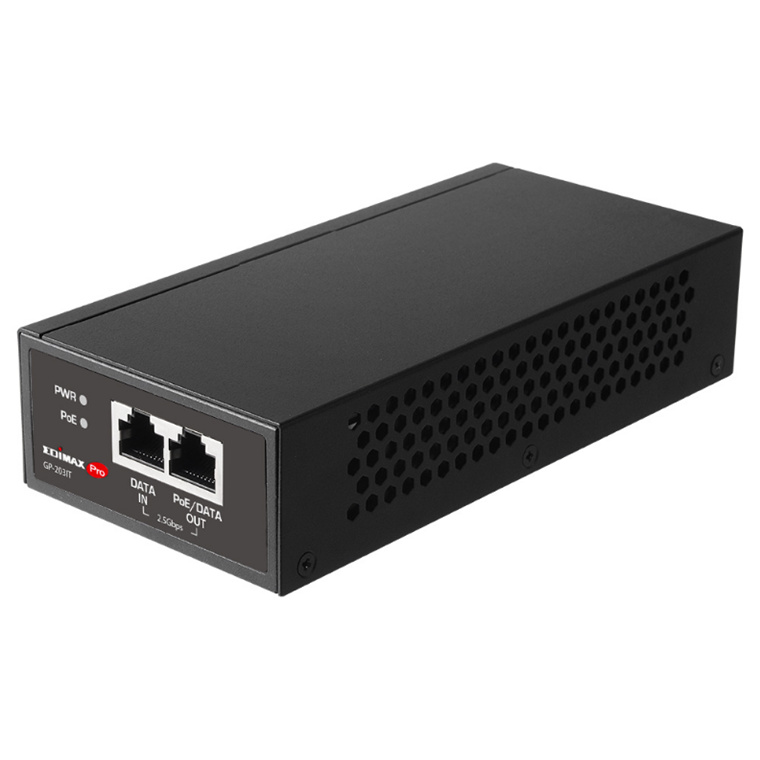

Edimax GP-203IT IEEE 802.3bt 2.5 Gigabit PoE++ Injector 90W
- Brand: Edimax
- MPN: GP-203IT
- Part #: NETLEDM5150
- UPC:4717964705150

Product URL: https://www.pbtech.com/pacific/product/NETLEDM5150/Edimax-GP-203IT-IEEE-8023bt-25-Gigabit-PoE-Injecto
Features
The Edimax GP-203IT is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 90W based on the IEEE 802.3bt standard and the data that comes from a non-PoE switch or router are merged together and then transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play GP203IT 2.5Gigabit PoE++ injector preserves your investment in hardware upgrade without the need for spending on extra PoE switches and deploying power cables.
- Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet (PoE) Standards
- Adds PoE capability to a non-PoE Ethernet switch or router
- 2.5 Gigabit LAN ports provide high-speed connectivity
- Supplies PoE output 95W to ensure Powered Device (PD) is able to be powered up to 90W
- PoE short circuit protection to safeguard network devices
- Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable
- Reduces installation and equipment costs
- Easy plug-and-play desktop or wall-mounted installation
Specifications
HARDWARE
Ports
1 x RJ-45 10/100/1000/2500Base-T data input port
1 x RJ-45 10/100/1000/2500Base-T data/PoE output port
LED Indicators
PWR: System AC Power
PoE: PoE Power Supply Status

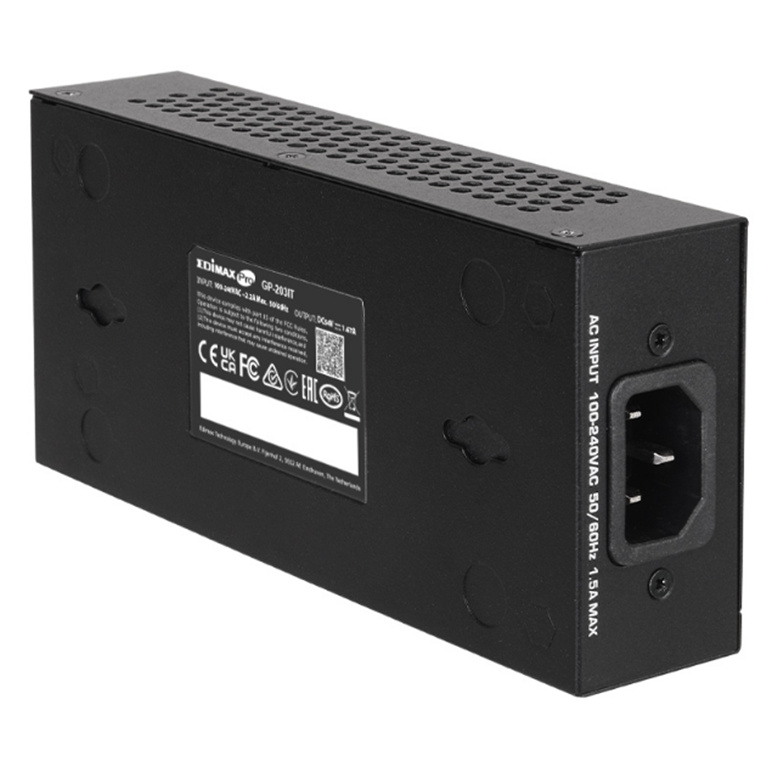

Power Input
100-240V AC, 50-60Hz, 1.5A
Power Consumption
95W (Max.)
Mounting
Wall-mount
Housing
Metal
Fan
Fanless
Dimension
73(W) x 154(D) x 36(H)mm
(2.87 (W) x 6.06 (D) x 1.41 (H) inches)
Weight
601g (1.32lb)
POWER OVER ETHERNET
Standard
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
IEEE 802.3bt (PoE++)
Power Budget
90 Watt
Pin Assignment
Pins 3, 6, 4, 5 (+), Pins 1, 2, 7,8 (-)
Output Power Voltage: 54V DC
Short Circuit Protection
Yes
Over Circuit Protection
Yes
PoE PD Auto Detection
Yes
OTHERS
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3an 2.5GBase-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3bt 4-Pair Power over Ethernet Type 4 (PoE++)
Environmental Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -4~158°F (-20~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Certification
CE, FCC, BSMI
