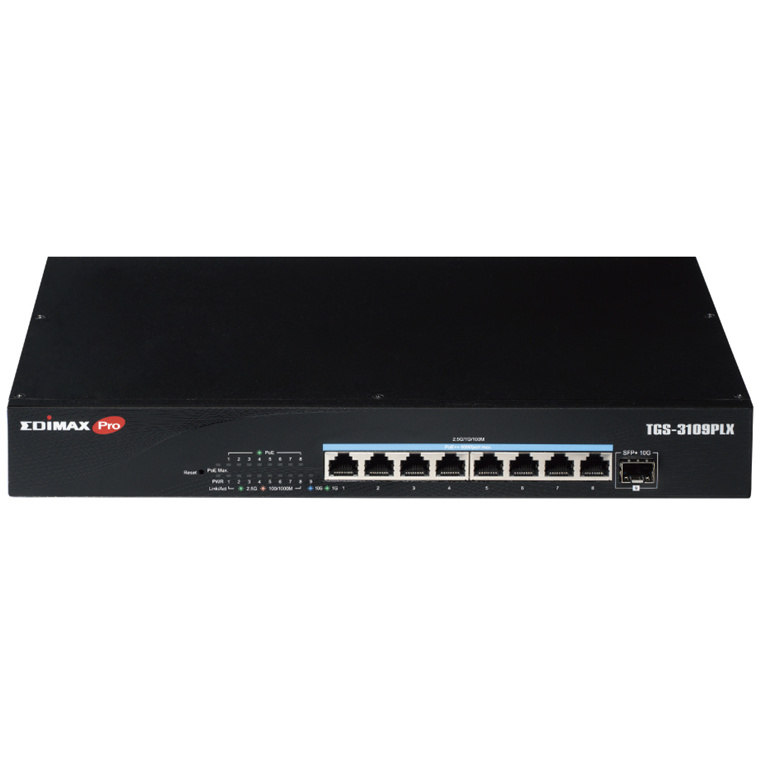

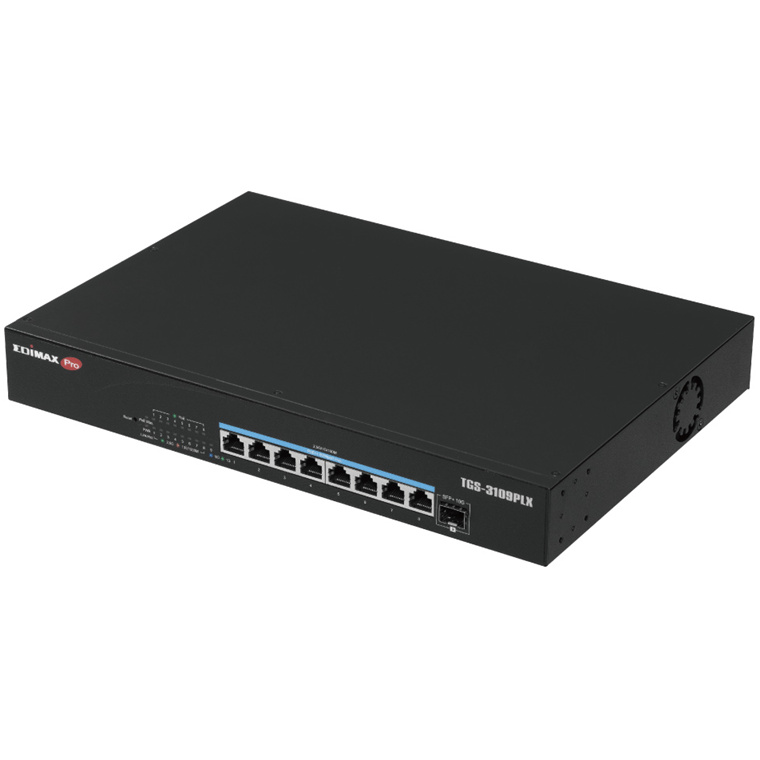

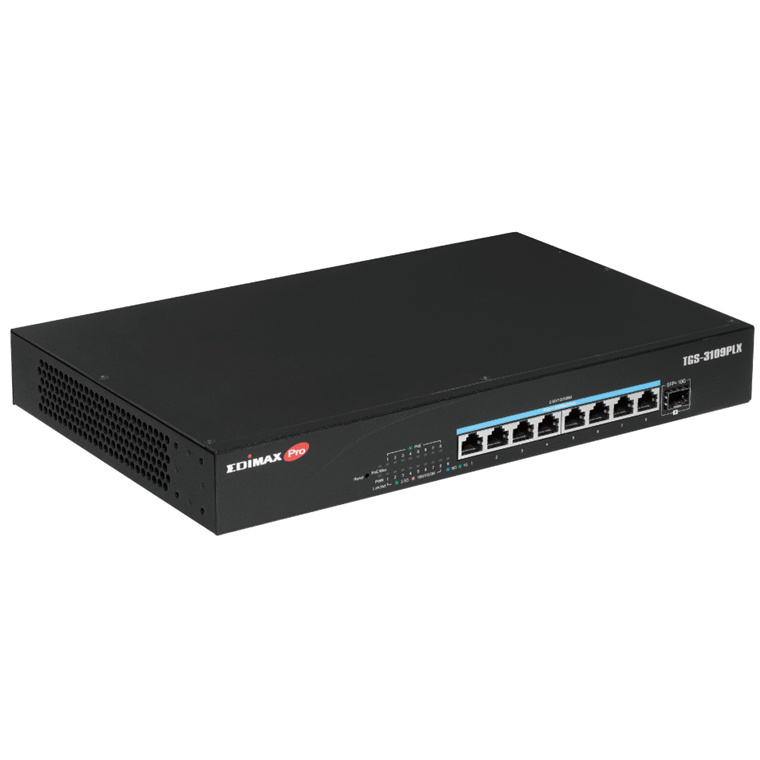

Edimax TGS-3109PLX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+ Port
Out of stock
Edimax TGS-3109PLX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+ Port
- Brand: Edimax
- MPN: TGS-3109PLX
- Part #: NETLEDM5358
- UPC: 4717964705358
- Brand: Edimax
- MPN: TGS-3109PLX
- Part #: NETLEDM5358
- UPC: 4717964705358
Features
The TGS-3109PLX is a web-smart switch with 8 2.5GbE PoE++ RJ45 and 1 10GbE SFP+ uplink port. Each PoE++ port can supply up to 90W power to PoE-enabled devices with up to a total 240W power budget per switch. It offers powerful and reliable network connectivity providing sufficient bandwidth and speed-demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs.
Tailored for IP cameras and far away network device applications, the EDIMAX-specific long-range mode allows for power and data transmission up to 200 meters at a guaranteed speed of 10Mbps, making it ideal for IP cameras and remote network devices.
The PoE also features auto-detection and power backfeed protection to efficiently provide power and avoid damaging PoE ports at the same time. With smart features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention, the TGS-3109PLX provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.
- 8 x 2.5GbE 90W PoE++ Multi-Gigabit RJ45 ports and 1 10GbE SFP+ port
- IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 240W) for powering PoE-enabled devices
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- Guaranteed PoE long distance to 200 meters
- Auto-detection of powered devices (PD) and power consumption levels
- No need to upgrade on the cabling infrastructure, double the network bandwidth by leveraging existing CAT5E cabling infrastructure
- Power backfeed protection to avoid damaging the PoE ports
- Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
- Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame
- Rack-mount design, rack-mount kit included
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax TGS-3109PLX 8 Port 2.5GbE PoE++ Web Smart Switch with 1x 10GbE SFP+ Port
- Brand: Edimax
- MPN: TGS-3109PLX
- Part #: NETLEDM5358
- UPC:4717964705358
Product URL: https://www.pbtech.com/pacific/product/NETLEDM5358/Edimax-TGS-3109PLX-8-Port-25GbE-PoE-Web-Smart-Swit
Features
The TGS-3109PLX is a web-smart switch with 8 2.5GbE PoE++ RJ45 and 1 10GbE SFP+ uplink port. Each PoE++ port can supply up to 90W power to PoE-enabled devices with up to a total 240W power budget per switch. It offers powerful and reliable network connectivity providing sufficient bandwidth and speed-demanding applications such as data transferring, backup, video conferencing, IP surveillance, and Wi-Fi 6/6E/7 APs.
Tailored for IP cameras and far away network device applications, the EDIMAX-specific long-range mode allows for power and data transmission up to 200 meters at a guaranteed speed of 10Mbps, making it ideal for IP cameras and remote network devices.
The PoE also features auto-detection and power backfeed protection to efficiently provide power and avoid damaging PoE ports at the same time. With smart features such as QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention, the TGS-3109PLX provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.
- 8 x 2.5GbE 90W PoE++ Multi-Gigabit RJ45 ports and 1 10GbE SFP+ port
- IEEE 802.3bt/at/af PoE++ compliant, up to 90W per port (total power budget: 240W) for powering PoE-enabled devices
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- Guaranteed PoE long distance to 200 meters
- Auto-detection of powered devices (PD) and power consumption levels
- No need to upgrade on the cabling infrastructure, double the network bandwidth by leveraging existing CAT5E cabling infrastructure
- Power backfeed protection to avoid damaging the PoE ports
- Supports smart management features including QoS, 802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
- Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame
- Rack-mount design, rack-mount kit included
Specifications
HARDWARE
Ports
8 x RJ45 2.5Base-T 2.5 Gigabit PoE++ Ports
1 x SFP+ 10GBase-X 10 Gigabit Uplink Port
Buttons
Reset Button
LED Indicators
PoE Max.: PoE Power Budget Alert
PWR: System Power Status
Link/Act: Connection and Transmission Status (Port 1-8 RJ45, Port 9 SFP+)
PoE: PoE Status
Power Input

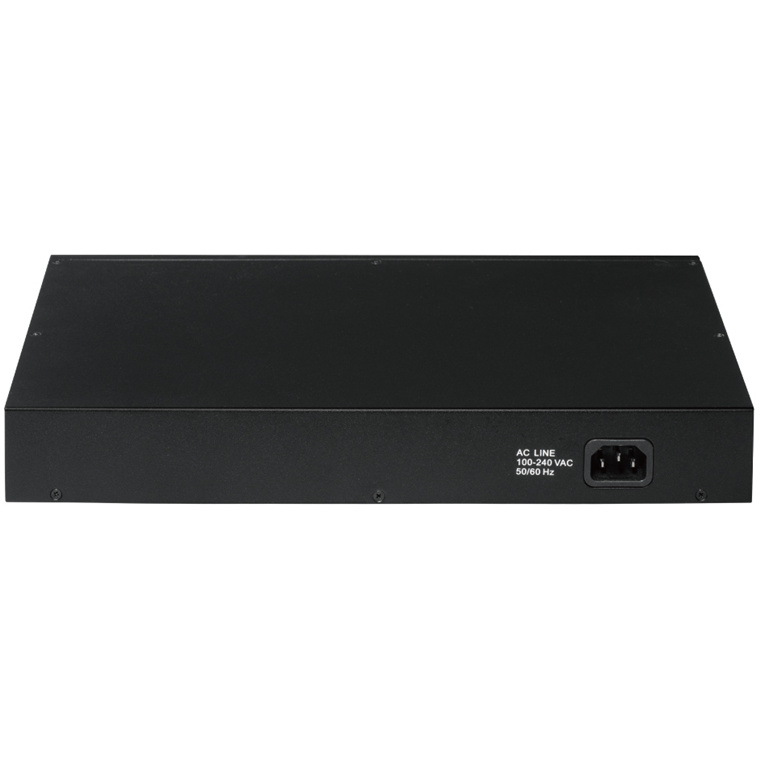

100-240V AC, 50-60 Hz, Internal Power Supply
Total Power Budget
240W
Mounting
Desktop / Rack-mount (Rack-mount kit included)
Housing
Metal
Fan
1 x Fan with Intelligent Thermal Controller
Dimensions
330 (W) x 230 (D) x 44 (H) mm
(12.99 (W) x 9.06 (D) x 1.73 (H) inches)
Weight
2.39kg (5.27lb)
PERFORMANCE
Switching Capacity / Backplane
60Gbps
Forwarding Rates
Max. 44.64Mpps (64-byte package size)
MAC Address Table
4K
Jumbo Frames
12KB
Packet Buffer
8.1Mb
POWER OVER ETHERNET
Standard
IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+), IEEE 802.3af (PoE)
Power Output
Up to 90W per Port
Pin Assignment
IEEE 802.3at/af: Alternative A (Pin 1,2/3,6)
IEEE 802.3bt: Alternative A & B (Pin 1,2/3,6 & Pin 4,5/7,8)
Management
PoE Status, PoE On/Off
Long Range
Guaranteed PoE long distance to 200 meters (656 feet) at 10Mbps
Backfeed Protection
Built-in
SMART FEATURES
Quality of Service (QoS)
Port-based QoS
IEEE802.1p QoS
4 Priority Queues
Scheduling Algorithms
VLAN
Up to 10 VLANs
802.1Q Tag-based VLAN
Port Trunking
IEEE 802.3ad LACP Trunk-Static Trunk
IGMP Snooping
IGMP v1/v2/v3 Snooping
Block unknown multicast traffic
Multicast Groups: 128
Port Mirroring
Port Mirroring Traffic Direction:
Both (Ingress and Egress)
Ingress
Egress
Security
Broadcast Storm Control
Management
User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Loop Detection/Prevention
OTHERS
Standard
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3bz 2.5GBase-T 2.5G Ethernet
IEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over Fiber
IEEE 802.3ae 10GBase-X Gigabit Ethernet over Fiber
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3bt Power over Ethernet (PoE++)
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
Environmental Condition
Tempertatue:
Operating: 0 ~ 40? (32~104°F)
Storage: -40 ~ 70? (-40~158°F)
Humidity:
Operating: 10 ~ 90% (Non-condensing)
Storage: 10 ~ 90% (Non-condensing)
Certifications
FCC, CE
