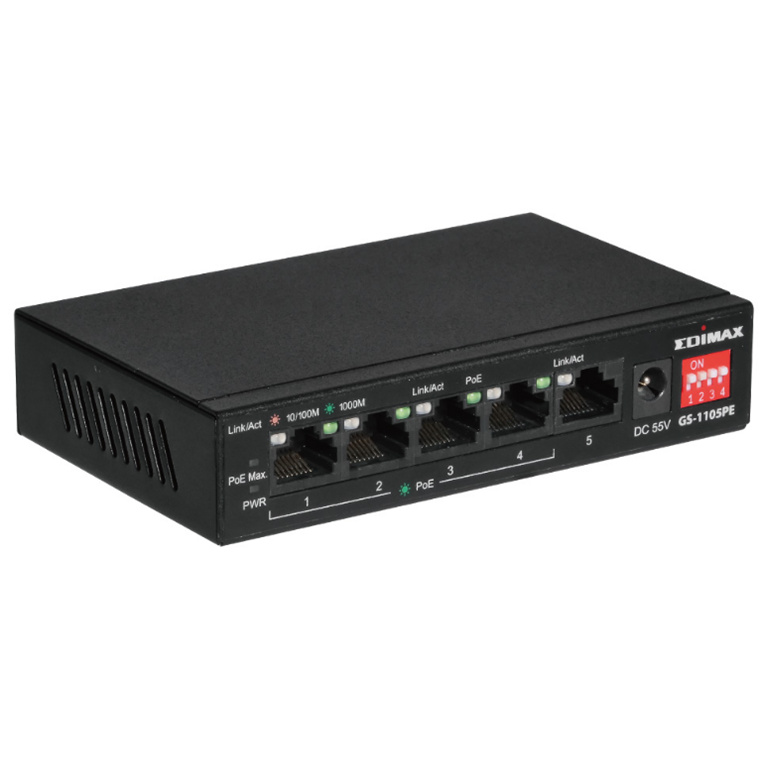

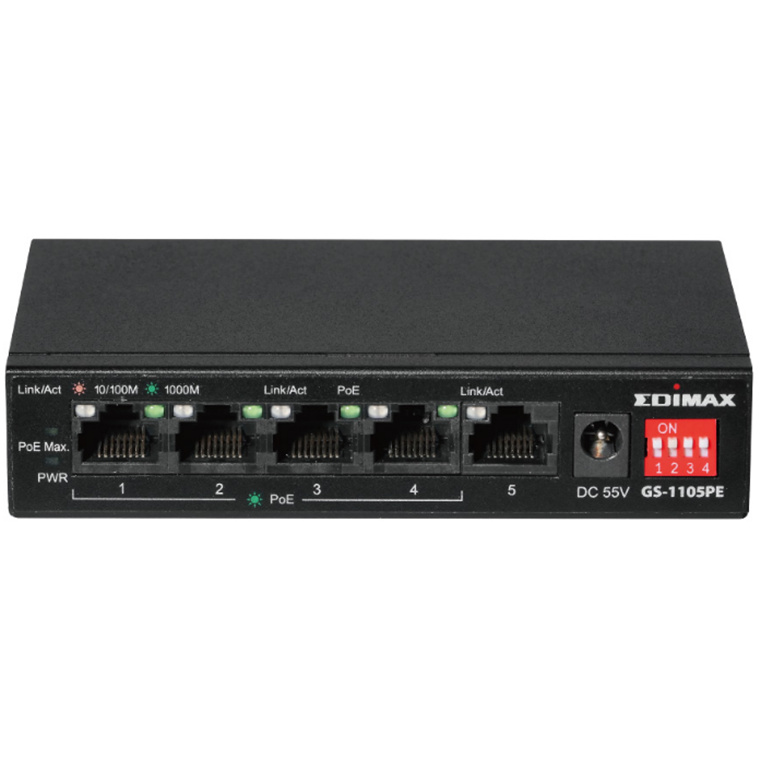

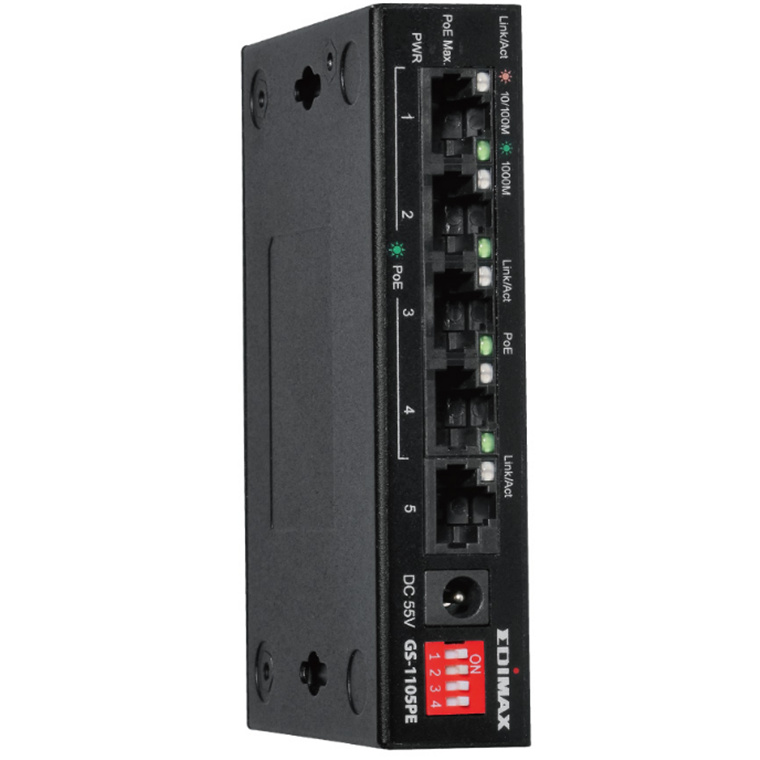

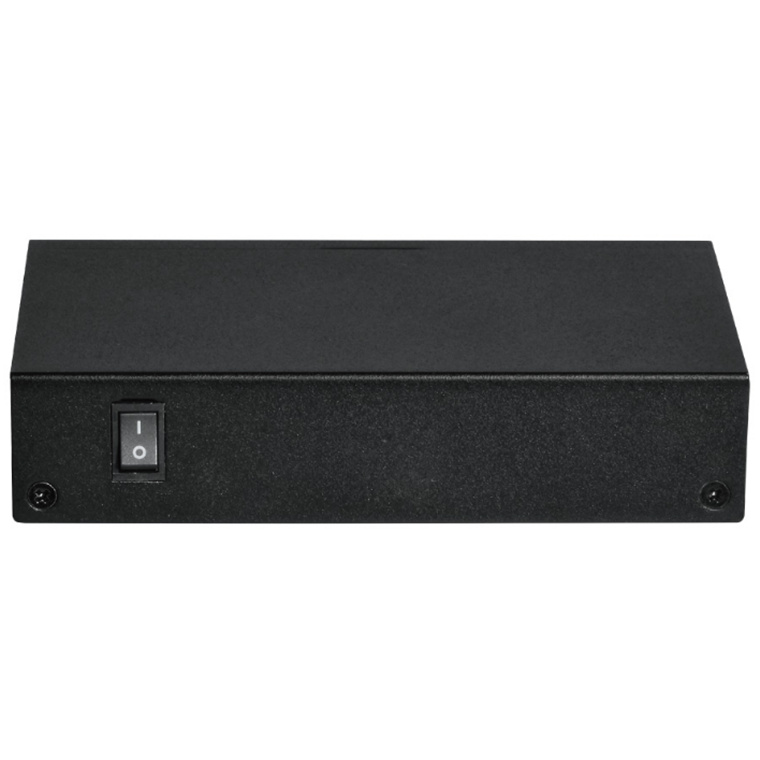

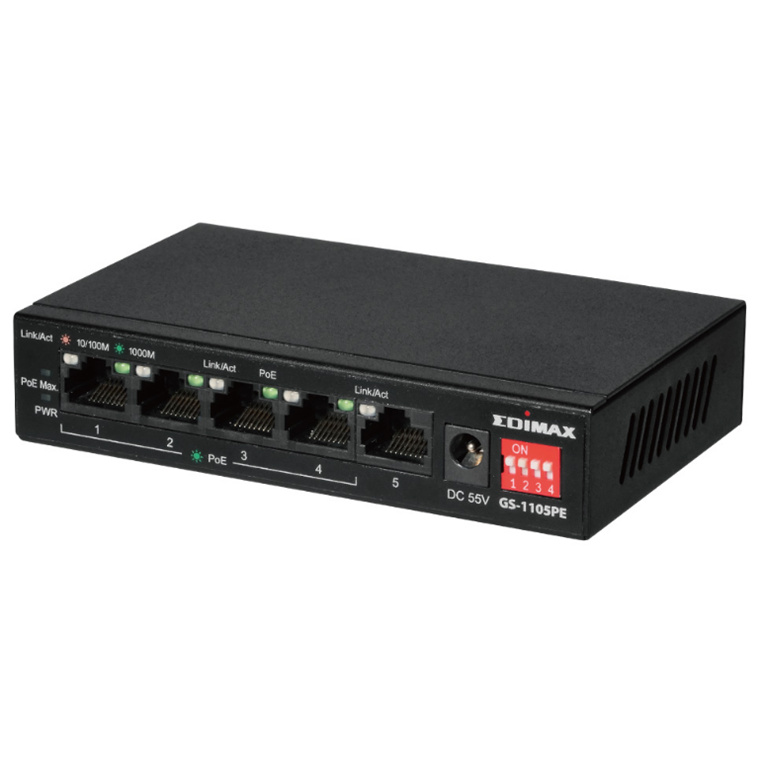

Edimax GS-1105PE 5 Port 10/100/1000 Gigabit Ethernet with 4x PoE+ Ports and DIP Switch
Edimax GS-1105PE 5 Port 10/100/1000 Gigabit Ethernet with 4x PoE+ Ports and DIP Switch
- Brand: Edimax
- MPN: GS-1105PE
- Part #: NETLEDM5426
- UPC: 4717964705426
- Brand: Edimax
- MPN: GS-1105PE
- Part #: NETLEDM5426
- UPC: 4717964705426
Features
The Edimax GS-1105PE is a Long Range 5-Port Gigabit PoE+ Switch designed for using at home, or small and medium sized network environments. With 4 DIP switches, the PoE port can be manually set for ON-OFF control to extend the PoE delivery distance to 200 meters or further, and also support port-based VLAN and QoS functions.
It easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernetenabled devices such as computers, printers and network attached storage (NAS). The device's compact size, fanless and wall-mount metal casing design make it an ideal solution for expanding home and small business networks.
- Gigabit High Speed PoE+: Equipped with 5 Gigabit ports, including 4 PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 60W)
- PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
- Port-based VLAN: Port isolated ports to prevent multicast or broadcast storms
- Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
- PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid damage by incorrect power sending
- Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
- Plug-and-Play, Flexible Network Deployment & Energy Efficient
- Quiet Fanless, Compact, Durable Metal Casing
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax GS-1105PE 5 Port 10/100/1000 Gigabit Ethernet with 4x PoE+ Ports and DIP Switch
- Brand: Edimax
- MPN: GS-1105PE
- Part #: NETLEDM5426
- UPC:4717964705426
Product URL: https://www.pbtech.com/pacific/product/NETLEDM5426/Edimax-GS-1105PE-5-Port-101001000-Gigabit-Ethernet
Features
The Edimax GS-1105PE is a Long Range 5-Port Gigabit PoE+ Switch designed for using at home, or small and medium sized network environments. With 4 DIP switches, the PoE port can be manually set for ON-OFF control to extend the PoE delivery distance to 200 meters or further, and also support port-based VLAN and QoS functions.
It easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernetenabled devices such as computers, printers and network attached storage (NAS). The device's compact size, fanless and wall-mount metal casing design make it an ideal solution for expanding home and small business networks.
- Gigabit High Speed PoE+: Equipped with 5 Gigabit ports, including 4 PoE+ ports, IEEE 802.3af/at PoE compliant, supports up to 30W per PoE port (total power budget: 60W)
- PoE Long Range Extension: Guaranteed PoE transmit distance to 200 meters at speed of 10Mbps
- Port-based VLAN: Port isolated ports to prevent multicast or broadcast storms
- Hardware QoS: Easy DIP switch setup QoS, supports 802.1p, for video & voice traffic priority
- PoE Auto Detection: Auto detect PoE and non-PoE devices to avoid damage by incorrect power sending
- Power Backfeed Protection: Equipped with power backfeed protection to avoid damaging the PoE ports
- Plug-and-Play, Flexible Network Deployment & Energy Efficient
- Quiet Fanless, Compact, Durable Metal Casing
Specifications
HARDWARE
Ports
4 x RJ-45 10/100/1000Base-T PoE+ Ports
1 x RJ-45 10/100/1000Base-T Ports
LED Indicators
PoE Max.: PoE Power Budget Alert
PWR: System Power Status
Link/Act: Connection and Transmission Status (Left LED, Port 1-5)
PoE: PoE Status (Right LED, Port 1-4)
DIP Switch
PoE Extend, VLAN, QoS
Power Input
External Power Supply (DC 55V/1.3A)
Towal Power Supply
72W
Mounting
Desktop / Wall-mount
Housing
Metal
Fan
Fanless
Dimensions
121(W) x 75(D) x 26(H) mm
(4.76 (W) x 2.95 (D) x 1.02 (H) inches)
Weight
240g (0.53lb)
PERFORMANCE
Switching Capacity / Backplane
10Gbps
Forwarding Rates
Max. 7.44Mpps
MAC Address Table
2K
Jumbo Frames
9KB
Packet Buffer
1Mb
POWER OVER ETHERNET
Standard
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output
Up to 30W per port
Pin Assignment
1/2(+), 3/6(-) End-Span (mode A)
PoE Power Budget
60W
Long Range
DIP switch ON to support PoE with long range to 200 meters at 10Mbps
Backfeed Protection
Built-in
OTHERS
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs (VLANs)
IEEE 802.3az Energy Efficient Ethernet
Environmental Condition
Tempertatue:
Operating: 0 ~ 40? (32~104°F)
Storage: -40 ~ 70? (-40~158°F)
Humidity:
Operating: 10 ~ 90% (Non-condensing)
Storage: 5 ~ 90% (Non-condensing)
Certifications
FCC, CE, LVD, BSMI
