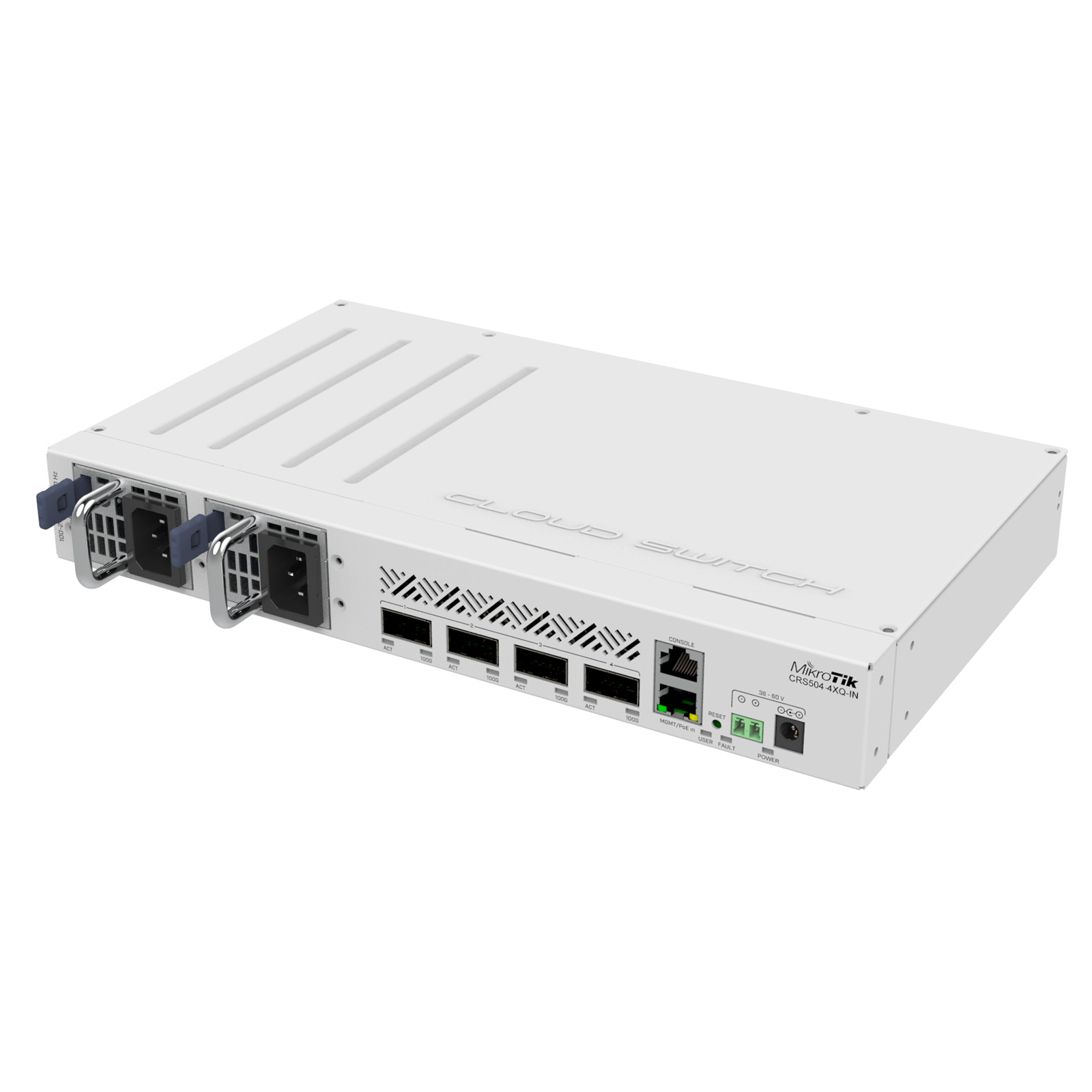

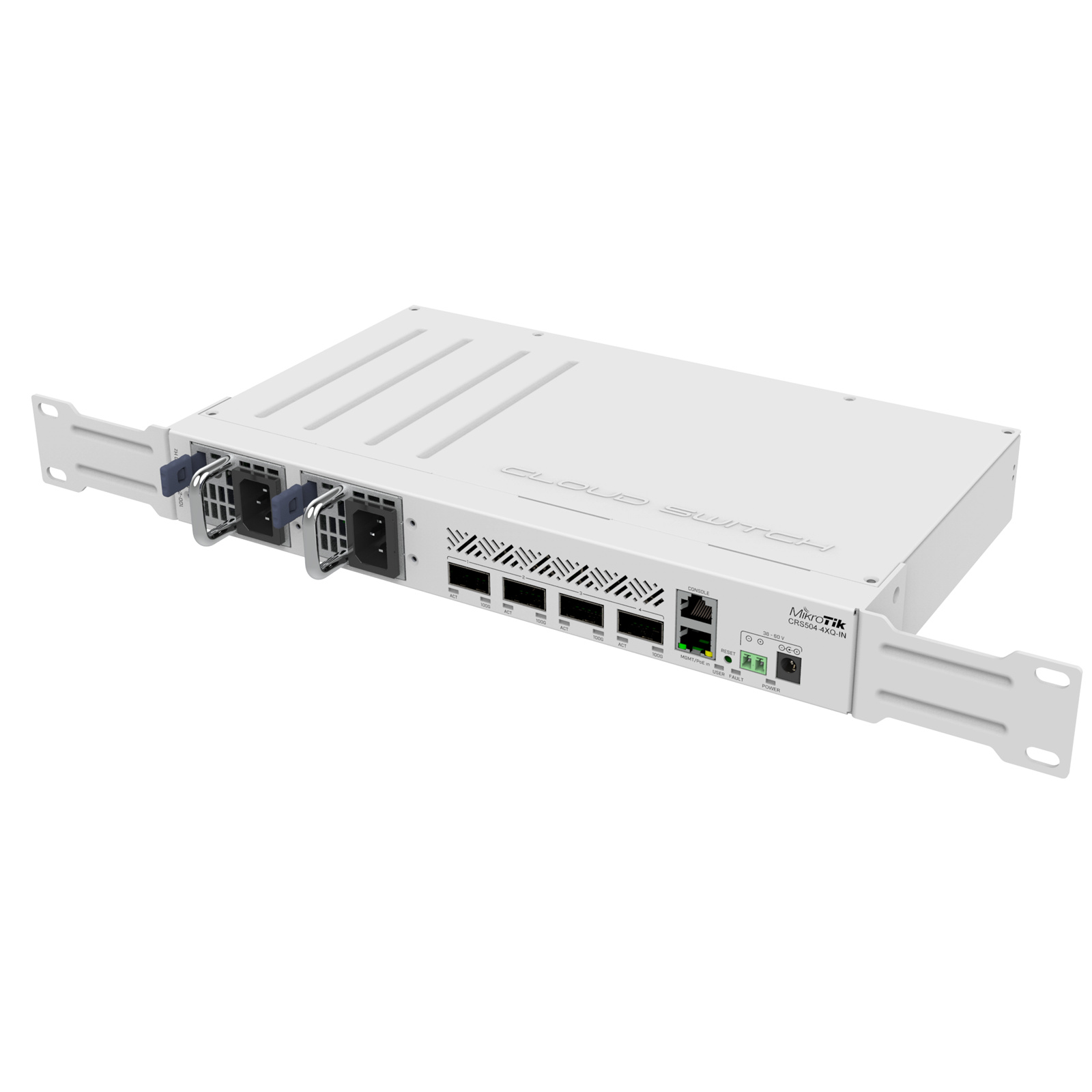

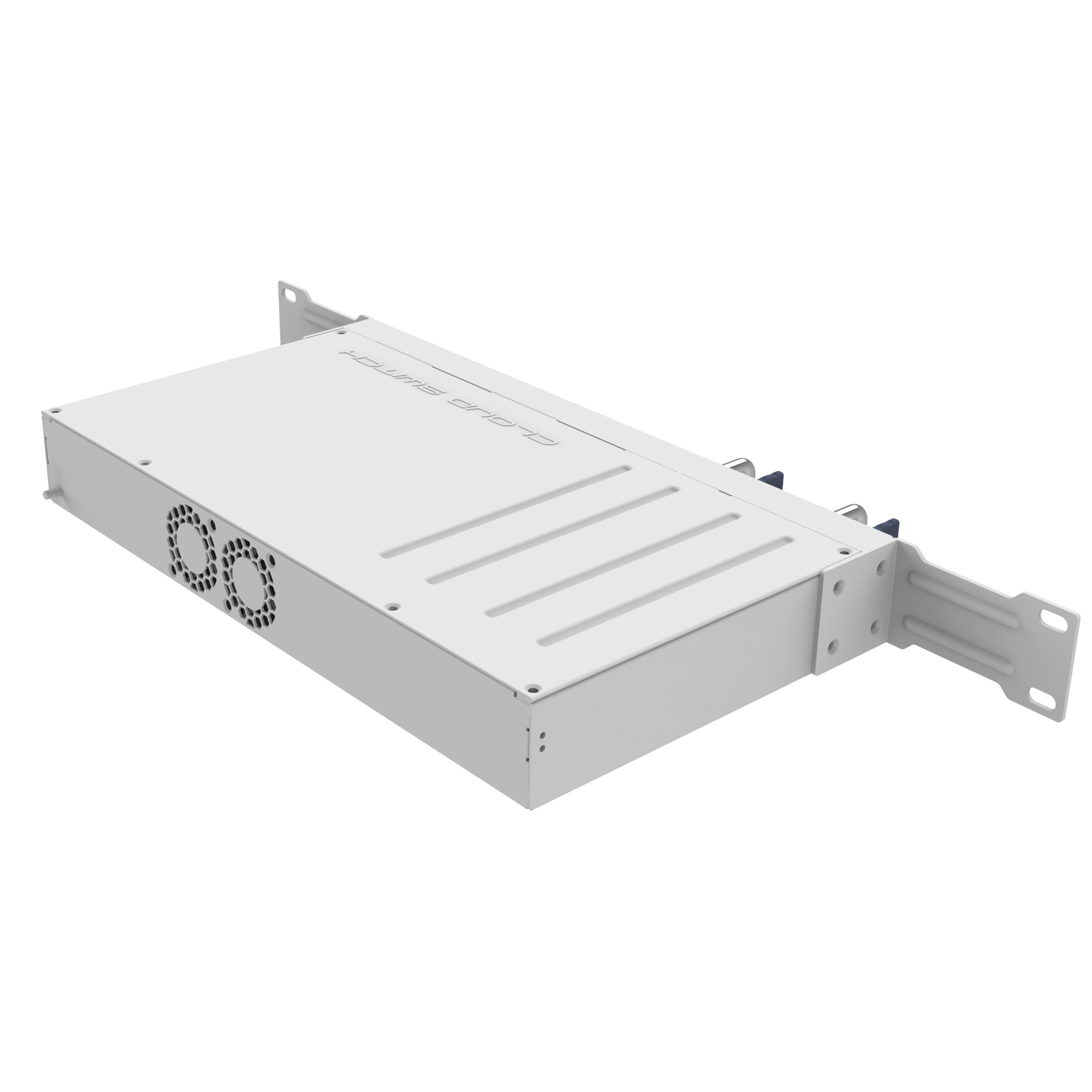

MikroTik CRS504-4XQ-IN 4 Port 100G QSFP28 Fibre Switch

PB Tech price

NZD $ 1,338 .26

$ 1,338 .26

MikroTik CRS504-4XQ-IN 4 Port 100G QSFP28 Fibre Switch

Brand: MikroTik
MPN: CRS504-4XQ-IN
Part #: NETMKT1411
UPC:

PB Tech price

NZD $ 1,338 .26

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: MikroTik
MPN: CRS504-4XQ-IN
Part #: NETMKT1411
UPC:

Be the first to review this product

10 Gigabit

10 Gigabit Ports

4 Ports

Form Factor

Desktop

Management Level

Not Specified

Number of Ports

6 Ports

PoE Ports

Not Specified

PoE Budget

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

MikroTik CRS504-4XQ-IN 4 Port 100G QSFP28 Switch. The CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. Obviously, there is an Ethernet port for management purposes as well.

This switch has been used for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

- 16x25 Gigabit marvell prestera switch chip
- Multiple powering options: PoE-in, DC jack, 2-pin terminal
- Dual hot-swap power supplies
- Compatible with 40G, 25G, 10G, and 1G fiber connections
- 4x 100 Gigabit QSFP28 ports
- Uses 25W of power

Specifications

Brand

MikroTik

MPN

CRS504-4XQ-IN

CPU Architecture

MIPSBE

CPU

QCA9531

CPU core count

CPU nominal frequency

650 MHz

Dimensions

320 x 185 x 44 mm

RouterOS license

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

Storage type

FLASH

10/100 Ethernet ports

Number of 100G QSFP28 ports

Serial console port

RJ45

Number of AC inputs

AC input range

100-240 (47-63Hz)

Number of DC inputs

3 (DC jack, PoE-IN, 2-pin terminal)

DC jack input Voltage

36-57 V

2-pin terminal input Voltage

36-57 V

Max power consumption

41 W

Max power consumption without attachments

25 W

Cooling type

PoE in

802.3 bt

PoE in input Voltage

43-57 V

CPU temperature monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes

MTBF

Approximately 200,000 hours at 25°C

Tested ambient temperature

-40°C to 70°C

Manufacturer Part No:

CRS504-4XQ-IN

Brand:

MikroTik

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

NETMKT1411

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
