MikroTik L11UG-5HaxD L11UG-5HaxD High Power 5 GHz CPE or AP with Wi-Fi 6 RouterBoard dual-coreARMCPU, PoE-in, Gigabit Ethernet and RouterOS v7

PB Tech price

NZD $ 147 .83

$ 147 .83

MikroTik L11UG-5HaxD L11UG-5HaxD High Power 5 GHz CPE or AP with Wi-Fi 6 RouterBoard dual-coreARMCPU, PoE-in, Gigabit Ethernet and RouterOS v7

Brand: MikroTik
MPN: L11UG-5HaxD
Part #: NETMKT1483
UPC:

PB Tech price

NZD $ 147 .83

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 09 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: MikroTik
MPN: L11UG-5HaxD
Part #: NETMKT1483
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

MikroTik L11UG-5HaxD High Power 5 GHz CPE or AP with Wi-Fi 6 RouterBoard dual-core ARM CPU, PoE-in, Gigabit Ethernet and RouterOS v7. MMCX connectors allow creating versatile omnidirectional access points and powerful point-to-point links.

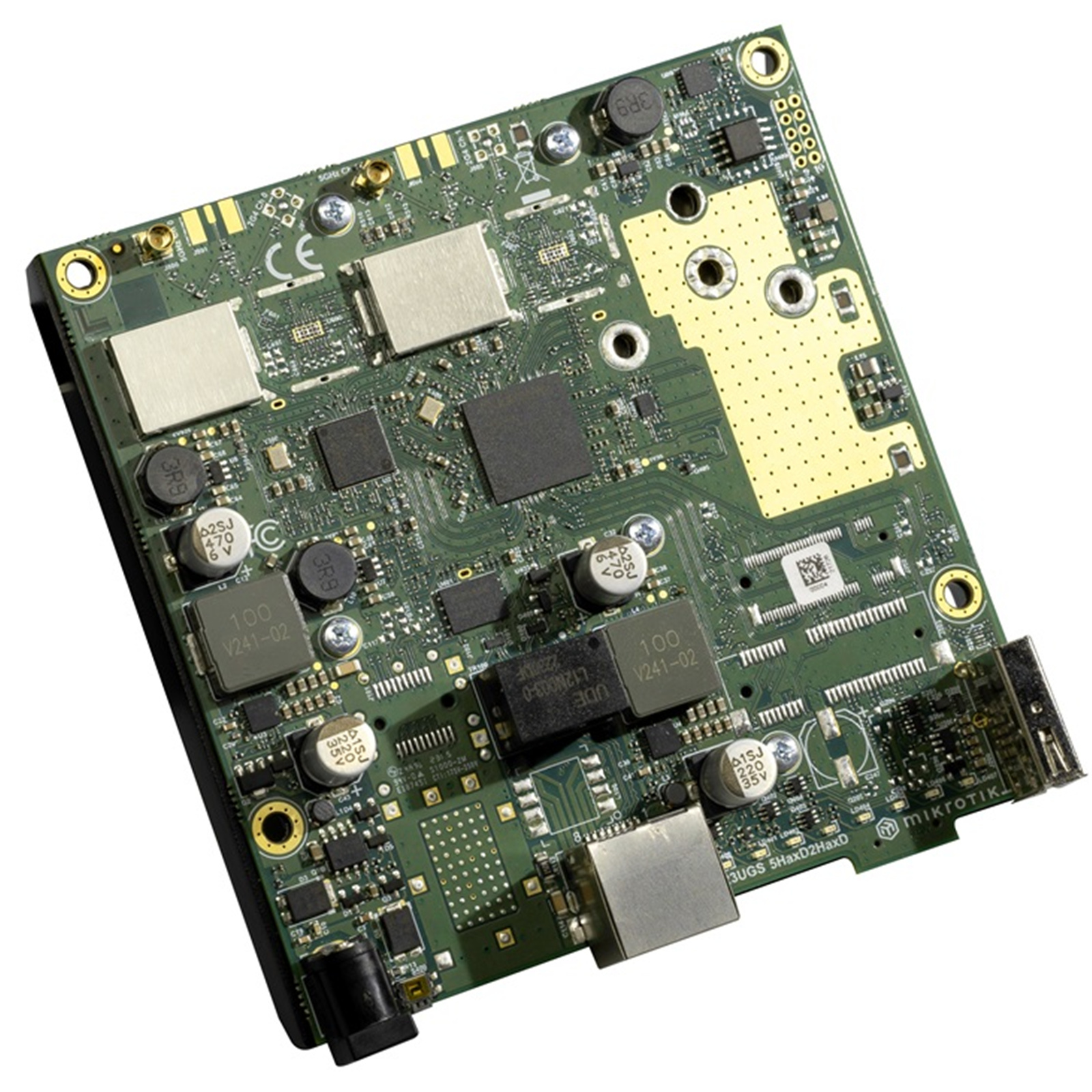

This tiny board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

The powerful Wi-Fi 6 radio with MMCX connectors enables further customization: add a HGO-antenna-OUT and you've got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!

You can integrate L11UG-5HaxD in a variety of setups, such as vending machines, ATM's, ticket stations, and more, but for a standalone build you might want to order one of our aluminum cases. The same ones you would use for RB411, 911, 912 and 922, so they are reusable

Specifications

MPN

L11UG-5HaxD

Wireless 5 GHz Max data rate

2400 Mbit/s

Wireless 5 GHz number of chains

Wireless 5 GHz standards

802.11a/n/ac/ax

Wireless 5 GHz chip model

QCN-6102

Wireless 5 GHz generation

Wi-Fi 6

Max TX power

28dBm

Max RX Sensitivity

-96

Architecture

ARM

CPU

IPQ-5010

CPU core count

CPU nominal frequency

800 MHz

RouterOS license

Operating System

RouterOS v7

Size of RAM

256 MB

Storage size

128 MB

Storage type

NAND

10/100/1000 Ethernet ports

Number of USB ports

USB Power Reset

Yes

USB slot type

USB type A

Max USB current (A)

1.5

Number of DC inputs

2 (DC jack, PoE-IN

DC jack input Voltage

12-28 V

Max power consumption

15 W

Max power consumption without attachments

6 W

Cooling type

Passive

PoE in

Passive PoE

PoE in input Voltage

18-28 V

PCB temperature monitor

Yes

Voltage Monitor

Yes

Beeper

Yes

MTBF

Approximately 100'000 hours at 25C

Tested ambient temperature

-40°C to 70°C

Certification

CE, FCC, IC, EAC, ROHS

Manufacturer Part No:

L11UG-5HaxD

Brand:

MikroTik

Product Type:

UPC

Product Family:

Shipping Weight:

2 kg

PB Part No:

NETMKT1483

Product Model:

Warranty: 12 months *
