MikroTik RDS2216-2XG-4S+4XS-2XQ ROSE Enterprise Data Server with 100G QSFP28 Ports
- Brand: MikroTik
- MPN: RDS2216-2XG-4S+4XS-2XQ
- Part #: NETMKT1516
Product URL: https://www.pbtech.com/pacific/product/NETMKT1516/MikroTik-RDS2216-2XG-4S4XS-2XQ-ROSE-Enterprise-Dat
Features
ROSE Data server (RDS)
RDS is a high-performance, all-in-one storage, 100G networking, and container platform designed for enterprise environments. Featuring 20 U.2 NVMe storage slots and a special RouterOS Edition for Storage & Compute (ROSE).
Stop relying on the cloud. Own your infrastructure.
Third parties control your data. Should they? Your business, your files, your future - handed over to external providers with unclear policies and unknown risks. Introducing the Rose Data Server (RDS2216) - a high-performance, all-in-one storage, networking, and container platform designed for enterprise environments. Secure, scalable, and under your control.

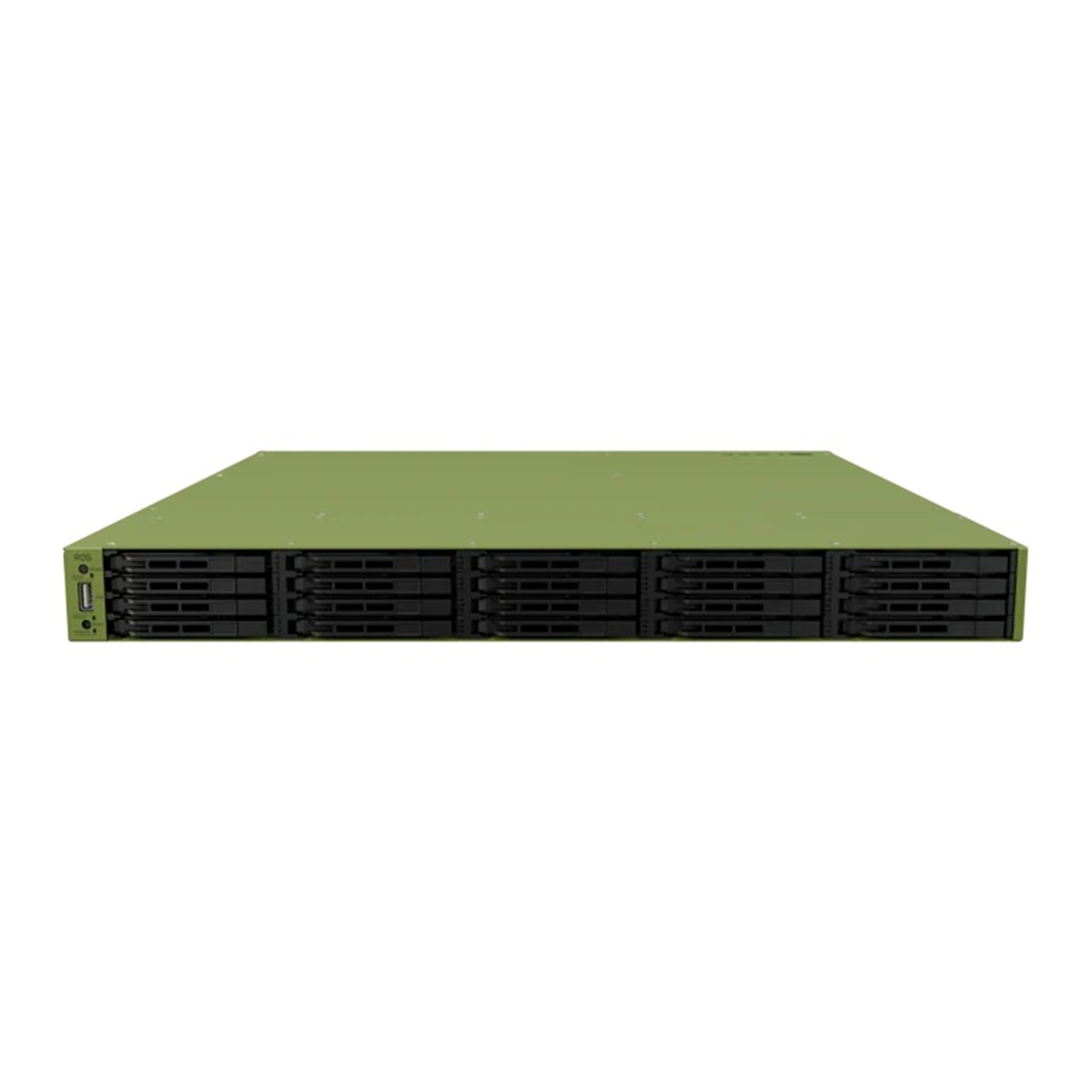

20 x U.2 NVMe's
Ultra-fast, high-density storage for demanding workloads.

100G high-speed networking
2× 100G QSFP28 ports, 4× 25G SFP28 ports, 4× 10G SFP+ ports, 2× 10G Ethernet ports, and an extra SFF-8644 interface for flexible connectivity.

16-core 2 GHz ARM CPU + 32GB DDR4 RAM
High-performance processing for networking, storage, and virtualization.

Massive energy savings
Cut power consumption and heat output while maintaining high performance - an ecofriendly solution for data-heavy environments.

Runs Router OS
The most flexible, modular networking OS. Supports advanced storage capabilities, including exporting block devices over NVMe-TCP, encryption layers, and modular storage configurations for scalable infrastructure. No subscriptions. No paywalls.

Includes dual hot-swappable power supplies
Ensuring uninterrupted operation and quick replacement without unnecessary downtime.

Container-ready
Run MinIO, Nextcloud, Shinobi, Frigate, and other OCI compliant containers with ease. Two USB ports have been added for additional devices and further adaptability.
One Device. Endless Possibilities.
It's a breakthrough in flexible networking and storage for the most demanding enterprise environments. Reliable 100-Gigabit connectivity. Ultra-fast NVMe storage support. Containers. Enterprise-grade performance.
Specifications
MPN
RDS2216-2XG-4S+4XS-2XQ
Architecture
ARM 64bit
CPU
AL73400
CPU core count
16
CPU nominal frequency
2000 MHz
CPU Threads count
16
Switch chip model
98DX4310
Dimensions
476 x 443 x 44 mm
RouterOS license
6
Operating System
RouterOS v7 (Special ROSE edition)
Size of RAM
32 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-20°C to 50°C
Powering
Number of AC inputs
2
AC input range
100-240
Frequency (Hz)
50-60
Max power consumption
286 W
Max power consumption without attachments
105 W
Cooling type
10 fans
Ethernet
10/100/1000 Ethernet ports
1
Number of 1G/2.5G/5G/10G Ethernet ports
2
Fiber
SFP+ ports
4
Number of 25G SFP28 ports
4
Number of 100G QSFP28 ports
2
Peripherals
Serial console port
RJ45
Number of USB ports
2
USB Power Reset
Yes
USB slot type
USB 3.0 type A
Max USB current (A)
1
Number of M.2 slots
2
Other
CPU temperature monitor
Yes
PCB temperature monitor
Yes
Voltage Monitor
Yes
Mode button
Yes
Certification & Approvals
Certification
CE, EAC, ROHS
IP
20
