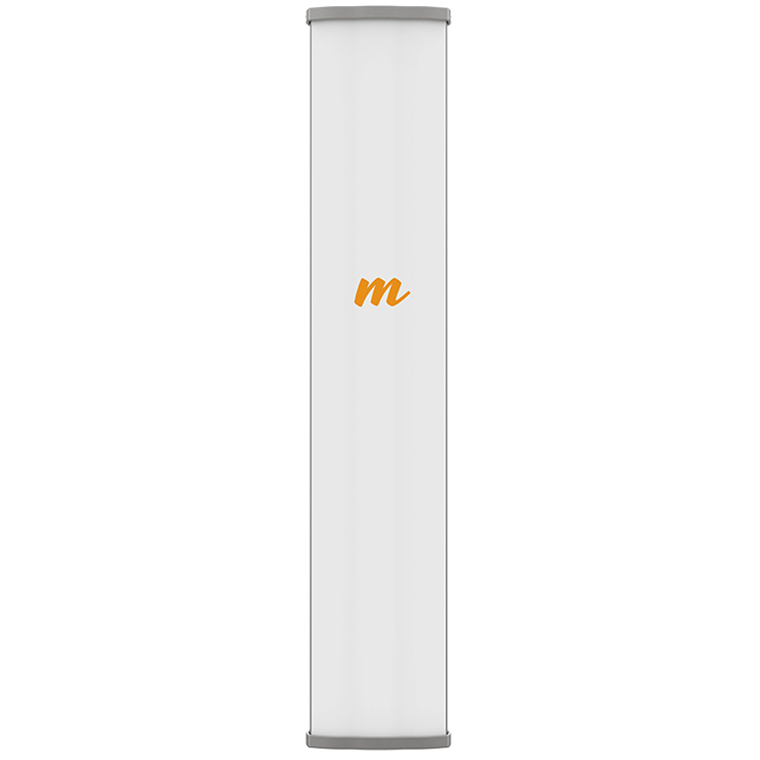

Mimosa 5GHz 4x4 4.9-6.4 GHz 45 Deg Sector Antenna
- Brand: Mimosa
- MPN: N5-45X4
- Part #: NETMMS690064

Product URL: https://www.pbtech.com/pacific/product/NETMMS690064/Mimosa-5GHz-4x4-49-64-GHz-45-Deg-Sector-Antenna
Features
Industry's Highest Performing Sector Antennas
The Mimosa N5-45x4 antenna, delivers all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. This 4.9-6.4 GHz, 45-degree sector antenna is custom-engineered for a variety of multipoint applications.
Disruptive Sector Antenna
All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.
No Sidelobes
Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes.
Industry's Highest Front-to-Back Ratio
With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.
Beamformed High Gain
The N5-45x4, paired exclusively with Mimosa's 4x4 MIMO A5c access point, achieves +3 dB of beamforming gain in both downlink and uplink.
Specifications
Model
N5-45X4
Gain
22 dBi (+3 dBi from beamforming)
Polarization
Dual-slant 45°
Azimuth Beamwidth
(4 dB): 42°
Elevation Beamwidth
(3 db): 9°
Electrical Downtilt
2°
Front-to-Back Ratio (min)
43 dB
Cross-Polar Isolation
>30 dB
Port-to-Port Isolation
>10 dB
RF Connectors
4 N-type female (includes two 1 meter LMR 240 Type-N to Type-N cables)
Impedance
50 Ohm
Max Input Power
30 dBm
Enclosure Characteristics
Outdoor, UV stabilized, engineered polymer
