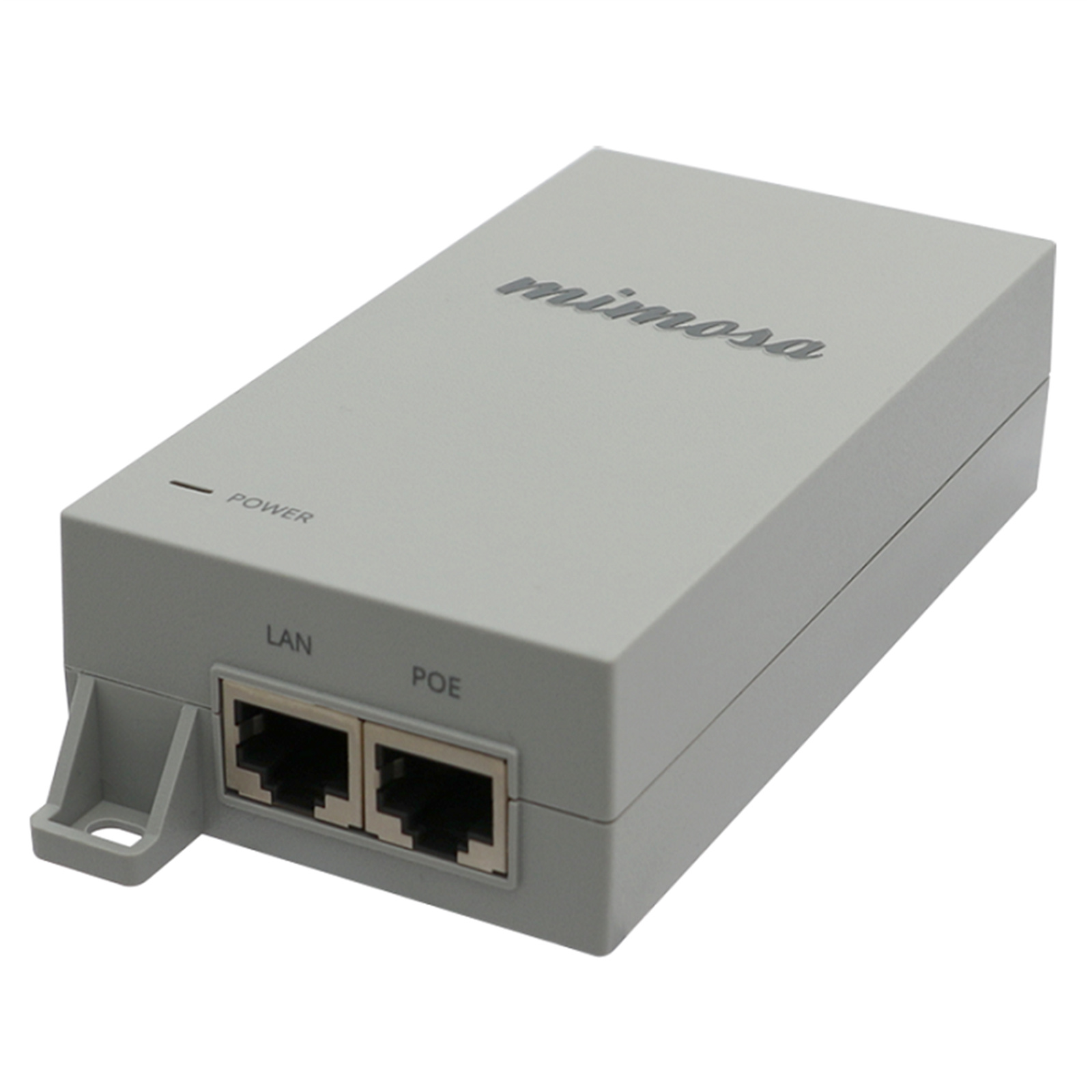

Mimosa POE-50V Passive PoE Injector for Mimosa B5x

PB Tech price

NZD $ 42 .61

$ 42 .61

Mimosa POE-50V Passive PoE Injector for Mimosa B5x

Brand: Mimosa
MPN: POE-50V
Part #: NETMMS690071
UPC: 815647020119

PB Tech price

NZD $ 42 .61

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 15 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Mimosa
MPN: POE-50V
Part #: NETMMS690071
UPC: 815647020119

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Mimosa POE-50V Passive PoE Injector for Mimosa Radios. Mimosa's wide range of Power over Ethernet (PoE) solutions are designed for a clean installation in any environment. Supporting many county specific plugs and power options, Mimosa's PoE is the ideal power solution for your wireless installations.

Specifications

Dimensions

138 mm x 62 mm x 35 mm

Weight

0.24 kg (8.8 oz)

Color

Grey

Gigabit LAN

Yes, (2) RJ-45

Output Voltage

50 V === 1.2A

Max Current Load

1.2A (60 W)

Pinout

PIN 1/2 and 4/5: +50 V; PIN 3/6 and 7/8: GND

Input Voltage

100-240 VAC ~ 50/60 Hz; Max 1.5A

Input Current

1.5A @ 115 VAC; 1.0A @ 230 VAC

Input Frequency

47-63 Hz

Max In-Rush Current

150A

Ripple Voltage

200 mV

Protection

Over Current; Over Voltage

Efficiency

88+% - Level VI

RJ-45 Type

Metal-Shielded

AC Connector

IEC-320 C6 (3 Pin Clover Inlet) (Not Included)

Operation Indicator

1 LED (blue)

Operating Temperature

-25deg C to +50deg C

Operating Humidity

5% to 95% non-condensing

Storage Temperature

-30deg C to +70deg C

Manufacturer Part No:

POE-50V

Brand:

Mimosa

Product Type:

UPC

815647020119

Product Family:

Shipping Weight:

0.3 kg

PB Part No:

NETMMS690071

Product Model:

Warranty: 12 months *
