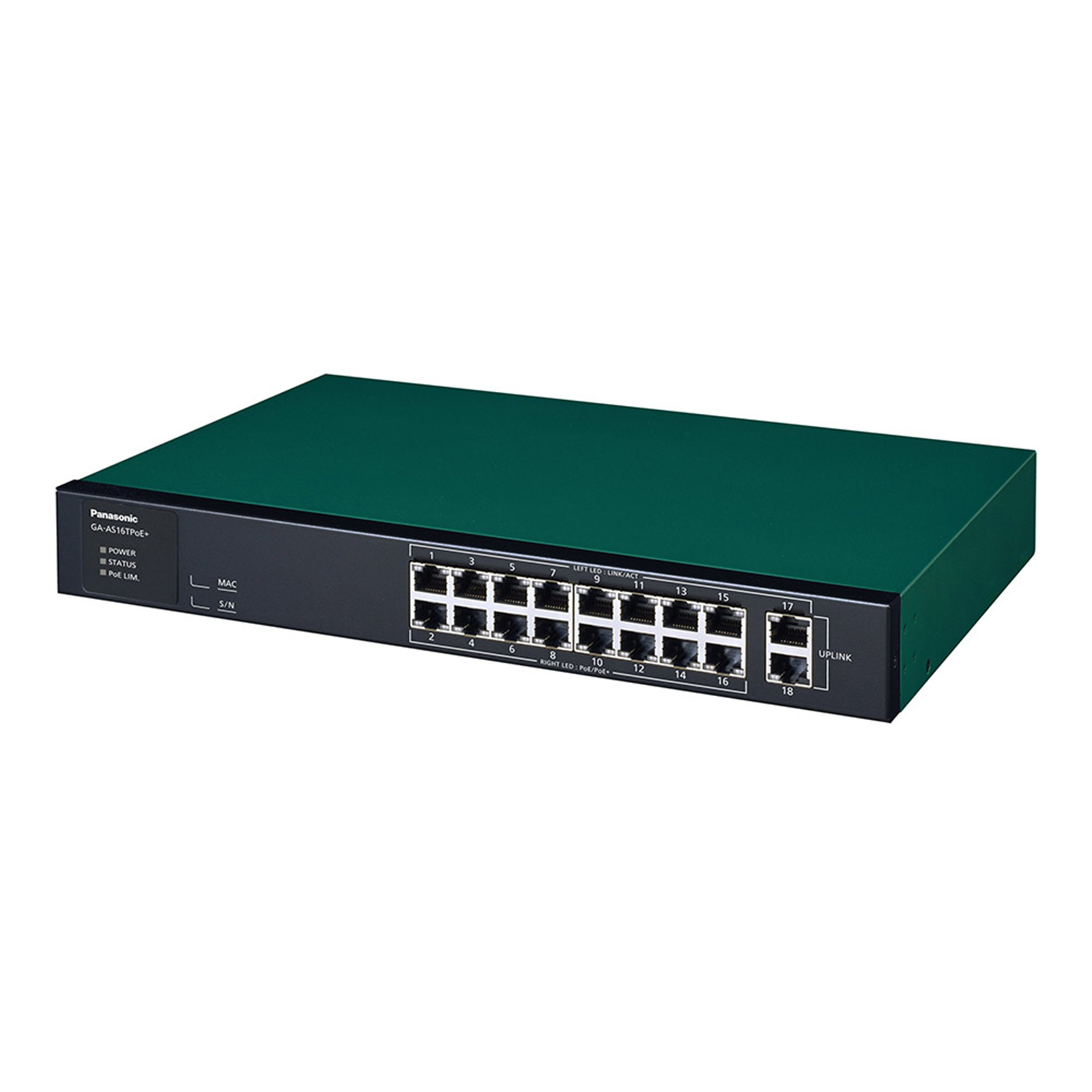

Panasonic PN25168-NZ GA-AS 16Port PoE+ 112Watts
- Brand: Panasonic
- MPN: PN25168-NZ
- Part #: NETPAN1003
Product URL: https://www.pbtech.com/pacific/product/NETPAN1003/Panasonic-PN25168-NZ-GA-AS-16Port-PoE-112Watts
Features
GA-AS16TPoE+ has 18 ports which are 10BASE-T/100BASE-TX/1000BASE-Tcompatible ports.
Ports 1 to 16 (twisted pair ports) support IEEE802.3at PoE power supply functions.
- Ports 1 to 18 (twisted pair ports) are 10BASE-T/100BASE-TX/1000BASE-Tcorresponding to auto-negotiation.
- The twisted pair ports 1 to 16 can supply power conforming with IEEE802.3at. They can supply a maximum of 30 W of power per port, and the device total can supply a maximum of 112 W of power.
- All of the twisted pair ports are equipped with straight/cross cable automatic detection functions. Straight cables can be used to make interconnections without distinctions between the terminals and network devices having to be made. (The factory default is for ports 1 to 16 to have MDI-X be fixed.)
- Equipped with IEEE802.3az (LPI) compatible Energy Efficient Ethernet functions (hereinafter EEE), and if data is transmitted when linked up, the energy efficient state will be moved to, whereas each port can suppress power consumption.
- Automatically detects the connection states via the equipped energy efficiency mode, and suppresses power consumption to required levels.
- VLAN function allows free grouping of up to 256 VLANs.
- The IEEE802.1p compatible QoS function is supported.
- Has an Internet Mansion function, which ensures security between each door.
- The Ethernet Switch settings can be configured via a web browser. Since the IP address is not set when the Ethernet Switch is shipped from the factory, it can be changed by connecting the computer and the Ethernet Switch which have the ZEQUO assist Plus that is on the CD-ROM installed on them with the twisted pair cables.
Specifications
Model No.
PN25168-NZ
Rated/Environmental Conditions
Power supply
AC100-240V, 50/60Hz, 2.0A (with a built-in power supply)
Power consumption
Normally, Max.141W (15.8W when not supplying power), Min.8.0W
Operating environment
Temperature: 0 - 40°C
Humidity: 20 - 80%RH (no condensation)
If the supply power for the entire device is going to be used at 80W or less, corresponds to 0 to 50?
Storage environment
Temperature: -20 - 70°C
Humidity: 10 - 90%RH (no condensation)
EMC compliance
CISPR 32 Class A, EN 55032 Class A
AS/NZS CISPR32 Class A
VCCI Class A
EN 61000-3-2, EN 61000-3-3
EN 55024
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Safety compliance
IEC 62368-1
EN 62368-1
Environment compliance
RoHS compliant
Form
Form and materials/colors
Dimensions :44mm(Height)×330mm(Width)×230mm(Depth) (Excluding protruding sections)
Case material :SECC
Color : Main unit: Green 03, Front face: Black 03, Face plate label: Black 04
Mass(Weight)
2,800g
Interface
Twisted pair port 1-16 :RJ45 connector *1
Transmitting and receiving network system :
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
Energy Efficient Ethernet :IEEE802.3az (LPI) *2
Transmission speed :10/100Mbps full/half duplex, 1000Mbps full duplex,
Compatible cable :Twisted pair cable (At least equivalent to EIA/TIA568 category 5e)
If there is Category 3 cable used in a connection, the communication at a speed of 10Mbps can not be established.
You must use category 5e or higher crossover cable.
Maximum transmission distance :100m
Auto-Negotiation :Communication speed and full/half duplex are automatically recognized.
The setting can be fixed to 10Mbps, 100Mbps, 1000Mbps and full duplex or half duplex.
Up to 112 W of power can be supplied to ports 1 to 16 in total. (Maximum power supplied to a port: 30.0W)
1 Automatically detects the connection states via the equipped Power Saving Mode, and suppresses power consumption to required levels.
Factory default : Half
2 Port 1-16 equipped with IEEE802.3az (LPI) compatible Energy Efficient Ethernet functions(hereinafter EEE), and if data is transmitted when linked up, the energy efficient state will be moved to, whereas each port can suppress power consumption. Factory default : Enable
Switching mode
Switching method
Store and Forward
Switching capacity
36.0Gbps
Packet transfer capability
Non-blocking
Max 14,880pps/port(10Mbps)
Max 148,800pps/port(100Mbps)
Max 1,488,000pps/port(1000Mbps)
MAC Address table
Max 8K entry/unit
Buffer memory
512K Byte/unit
Flow control
half-duplex Back pressure full-duplex IEEE802.3x
Aging timeout
10to 1,000,000 sec.
