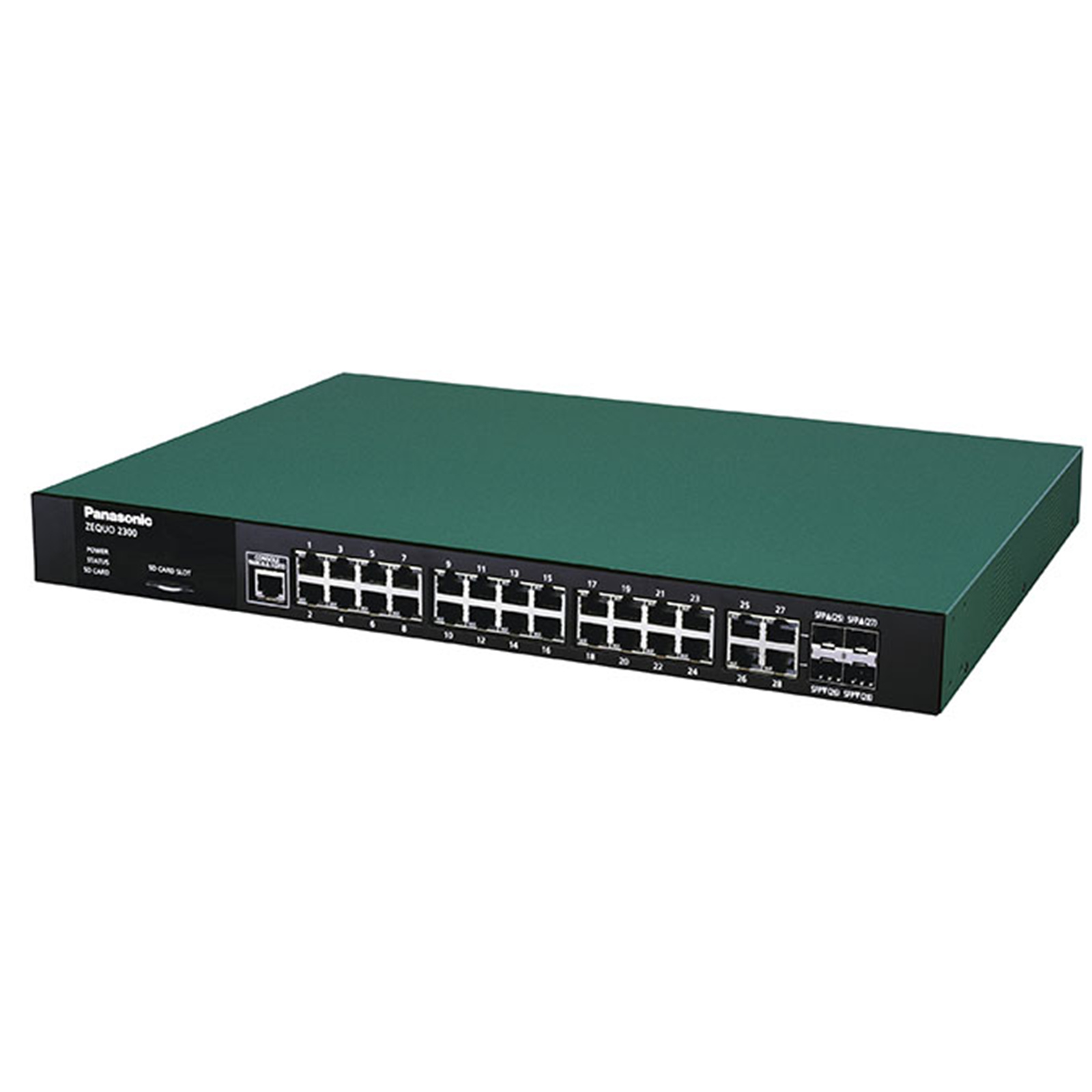

Panasonic PN26241K-NZ ZEQUO 2300 28 Port Advanced Layer 2 Switch

PB Tech price
PB Tech price
NZD $ 1,665 .22
$ 1,665 .22
$1,665.22  +GST
$1,665.22

Panasonic PN26241K-NZ ZEQUO 2300 28 Port Advanced Layer 2 Switch

  • Brand: Panasonic
  • MPN: PN26241K-NZ
  • Part #: NETPAN1014
  • UPC:
PB Tech price
NZD $ 1,665 .22 $ 1,665 .22
In stock at Supplier
Delivery: Order now and it ships on 17 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,665.22  +GST
$1,665.22
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Panasonic
  • MPN: PN26241K-NZ
  • Part #: NETPAN1014
  • UPC:

10 Gigabit

N/A

10 Gigabit Ports

N/A

Form Factor

Not Specified

Management Level

Managed L2

Number of Ports

28 Ports

PoE

No

PoE Ports

N/A

PoE Budget

N/A

View full specs
Returns & Warranty Bulk Quote Print Page

Features

The ZEQUO 2300 is a Layer 2 all giga Ethernet Switch equipped with management functions that has 28 10/100/1000BASE-T ports and 4 SFP expansion ports.

- Ports 1 to 28 are 10BASE-T/100BASE-TX/1000BASE-T ports corresponding to auto negotiation. Also their speed and communication mode can be switched by configuration. However, ports 25 to 28 do not support half-duplex mode.
- Ports 25 to 28 are SFP+ extension slots. These ports and the 1000BASE-T twisted pair cable ports cannot be used simultaneously.
- Settings and firmware can be changed and saved by using an SD card.
- All twisted pair ports support straight/cross cable auto sensing function. Simply connect devices with straight cables, whether it is a terminal or a network device. (To prevent loop - failures, ports 1 to 24 are fixed to MDI-X at factory default settings.)
- The connection status for each port is detected by the power saving mode, and it can suppress the power consumption to required volumes when not linked up. (Factory default: disabled)
- Due to the loop detection/shutoff function, a port where loop has occurred can be automatically shut off to prevent loop failures. When a port is shut off and recovered automatically, SNMP trap can be sent to notify the incident to the administrator. Moreover, the port with a loop can be identified by loop notification on the LEDs on the main unit and referring the history of loop on the setting screen.
- The IEEE802.1p compatible QoS function is supported.
- Equipped with energy efficient Ethernet (EEE) conforming to IEEE802.3az (LPI). When there is no data transmission at link up, the energy-saving state automatically starts so that power consumption can be reduced on each port.
- Supports triple authentication that can simultaneously wait on IEEE802.1X authentication, MAC authentication, and WEB authentication via one port, and an authentication network which is matched to the kinds of connection terminals can be constructed.
- Equipped with step authentication functions, and can prevent illegal access of the terminals.
- The Ring Redundant Protocol (RRP) is supported, allowing to make a redundant net-work via ring topology.

Specifications

Model No.

PN26241K-NZ

Rated/Environmental Conditions

Power supply

AC100-240V, 50/60Hz, 0.6A (with a built-in power supply)

Power consumption

Normally, Max.22.4W, Min.11.6W

Operating environment

Temperature: 0 - 50°C
Humidity: 20 - 80%RH (no condensation)

Storage environment

Temperature: -20 - 70°C
Humidity: 10 - 90%RH (no condensation)

EMC compliance

CISPR 32 Class A
EN 55032 Class A
AS/NZS CISPR32 Class A
VCCI Class A
EN 61000-3-2, EN 61000-3-3
EN 55024
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11

Safety compliance

IEC 62368-1
EN 62368-1

Environment compliance

RoHS compliant

Form

Form and materials/colors

Dimensions : 44mm(Height)×440mm(Width)×312mm(Depth) (Excluding protruding sections)
Case material : Main unit: SECC, Front face: PC/ABS, Face plate: PC
Color : Main unit: Green 03, Front face: Black 02, Face plate label: Black 01

Mass(Weight)

3,900 g

Interface

Twisted pair port 1-24 : RJ45 connector (*1)

Transmitting and receiving network system :
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Energy Efficient Ethernet (*2) : IEEE802.3az (LPI)
Transmission speed : 10/100Mbps full/half duplex, 1000Mbps full duplex.
Compatible cable : Twisted pair cable (At least equivalent to EIA/TIA568 category 5e)
Maximum transmission distance : 100m
Auto-Negotiation : Communication speed and full/half duplex are automatically recognized.
The setting can be fixed to 10Mbps, 100Mbps and full duplex or half duplex.

Twisted pair port 25-28 : RJ45 connector

Transmitting and receiving network system :
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
Transmission speed : 10/100/1000Mbps full duplex,
Compatible cable : Twisted pair cable (At least equivalent to EIA/TIA568 category 5e)
Maximum transmission distance : 100m
Auto-Negotiation : Communication speed and full/half duplex are automatically recognized.
The setting can be fixed to 10Mbps, 100Mbps and full duplex.
*1 Embedded power saving mode detects the connection status automatically and saves power consumption to minimum.
*2 Energy Efficient Ethernet (EEE) conforming to IEEE802.3az (LPI). When there is no data transmission at link up, the energy-saving state automatically starts so that power consumption can be reduced on each port.

SFP+ extension slot 25-28

Transmitting and receiving network system: IEEE802.3z 1000BASE-X
* Select either of RJ45 or SFP for use SFF-8472(DMI:Diagnostic Monitoring Interface)

Switching mode

Switching method

Store and Forward

Switching capacity

56.0Gbps

Packet transfer capability

Non-blocking
Max. 1,488,000pps/port(1000Mbps)
Max. 148,800pps/port(100Mbps)
Max. 14,880pps/port(10Mbps)

MAC Address table

Max. 16K entry/unit

Buffer memory

2.0M Bytes/unit

Flow control

half-duplex Back pressure
full-duplex IEEE802.3x

Aging timeout

10 to 1,000,000 sec. (Default: 300 sec.)

Jumbo frame supported

9KB

Transmittable frames

EAP,BPDU,LACP

HOL Blocking Prevention

Supported

Terminal emulator connection

Console port

RJ45 connector 1 port

Transmission mode

RS-232C(ITU-TS V.24)

Emulation mode

VT100

Communication configuration

9,600bps, 8bit, None Parity control,
Stop bit 1 bit

SD card slot

SD card slot

1

Standard

SD/SDHC

Size

128MBytes to 32GBytes

Manufacturer Part No:
PN26241K-NZ
Brand:
Panasonic
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
NETPAN1014
Product Model:
PN26241K-NZ
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
