Panasonic PN28080I-NZ EGI series 8 port High Temp non-PoE
- Brand: Panasonic
- MPN: PN28080I-NZ
- Part #: NETPAN1016
Product URL: https://www.pbtech.com/pacific/product/NETPAN1016/Panasonic-PN28080I-NZ-EGI-series-8-port-High-Temp
Features

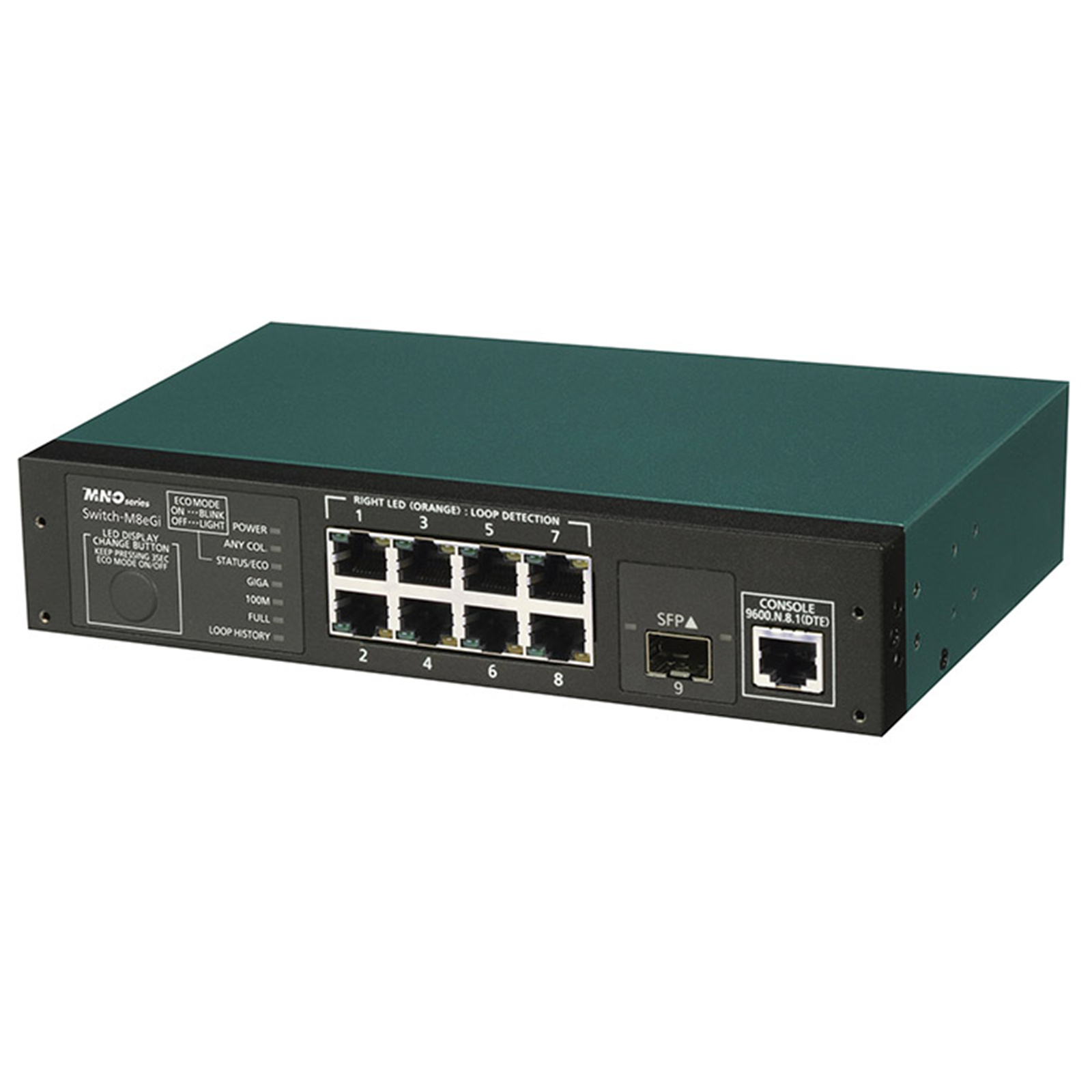

Switch-M8eGi is an all Giga bit Ethernet Switch with management function having 8 ports of 10/100/1000BASE-T and SFP extension slot.
- Has wire speed layer 2 switching functions.
- Ports 1 to 8 are auto negotiation-ready 10/100/1000BASE-T ports. Their speed and communication mode can be changed by configuration. Port 9 can be exclusively used as an SFP extension slot.
- All twisted pair ports support straight/cross cable auto sensing function. Simply connect devices with straight cables, whether it is a terminal or a network device.(This function does not work if the port communication configuration is set at Fixed or Link Aggregation. Ports 1 to 8 are set at MDI-X. (default))
- Due to the loop detection/shutoff function, a port where loop has occurred can be automatically shut off to prevent loop failures. When a port is shut off and recovered automatically, SNMP trap will be sent to notify the incident to the administrator. Moreover, the port with a loop can be identified by loop notification on the LEDs on the main unit and referring to the history of loop on the setting screen.
- Has a loop detection history function, which notifies when a loop occurs with the corresponding LED and enables a network administrator to identify the looped port after the loop is removed.
- Fanless design solves noise problem or fan failure.
- Power consumption can be reduced by switching off the port LEDs (left) via the ECO mode LED functions.
- The IEEE802.1p compatible QoS function is supported.
- Has an Internet Mansion function, which ensures security between each door.
- Has a port grouping function, which groups ports that are allowed to communicate with one another to limit communications between different groups.
- Equipped with energy efficient Ethernet (EEE) conforming to IEEE802.3az(LPI). When there is no data transmission at link up, the energy-saving state automatically starts so that power consumption can be reduced on each port. Factory default : Disable
- Embedded power saving mode detects the connection status automatically and saves power consumption to minimum. Factory default : Disable
- VLAN function allows free grouping of up to 256 VLANs
- IEEE802.1Q VLAN tagging is supported, and a maximum of 256 VLANs can be registered.
- The IEEE802.1X compatible user authentication function (EAP-MD5/TLS/PEAP) is supported.
- Each single port supports IEEE 802.1X, Web, and MAC authentication protocols, eliminating the need for individually setting the ports' authentication parameters.
- Supports ZEQUO assist Plus. Processes from introduction to maintenance can be performed easily.
Specifications
Model No.
PN28080i-NZ
Rated/Environmental Conditions
Power supply
AC100-240V, 50/60Hz, 0.5A (with a built-in power supply)
Power consumption
Normally, Max. : 6.2W, Min. : 2.4W
Operating environment
Temperature: 0 - 60°C
Humidity: 20 - 80%RH (no condensation)
Storage environment
Temperature: -20 - 70°C
Humidity: 10 - 90%RH (no condensation)
EMC compliance
CISPR 32 Class A
EN 55022 Class A
AS/NZS CISPR32 Class A
VCCI Class A
EN 61000-3-2, EN 61000-3-3
CISPR 24
EN 55024
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,
IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Safety compliance
IEC 60950-1
EN 60950-1
Environment compliance
RoHS compliant
Form
Form and materials/colors
Dimensions :44mm(Height)×210mm(Width)×130mm(Depth)(Excluding protruding sections)
Case material :SECC
Color : Main unit: Green 03, Front face: Black 03, Face plate label: Black 04
Mass(Weight)
1,100g
Hardware
Interface
Twisted pair port 1-8 :RJ45 connector (*1)
Switching mode
Switching method :Store and Forward
Switching capacity :18Gbps
Packet transfer capability :Non-blocking
Max. 1,488,000pps/port(1000Mbps)
Max. 148,800pps/port(100Mbps)
Max. 14,880pps/port(10Mbps)
MAC Address table :Max. 8K entry/unit
Buffer memory :512K Bytes/unit
Flow control :half-duplex Back pressure full-duplex IEEE802.3x
Aging timeout :10 to 100,000 sec. (Default: 300 sec.)
Jumbo frame supported :9KB
Transmittable frames :EAP, BPDU
HOL Blocking Prevention :Support
Terminal emulator connection
Console port :RJ45 connector 1 port
Transmission mode :RS-232C(ITU-TS V.24)
Emulation mode :VT100
Communication configuration :9,600bps, 8bit, None Parity control, Stop bit 1 bit
