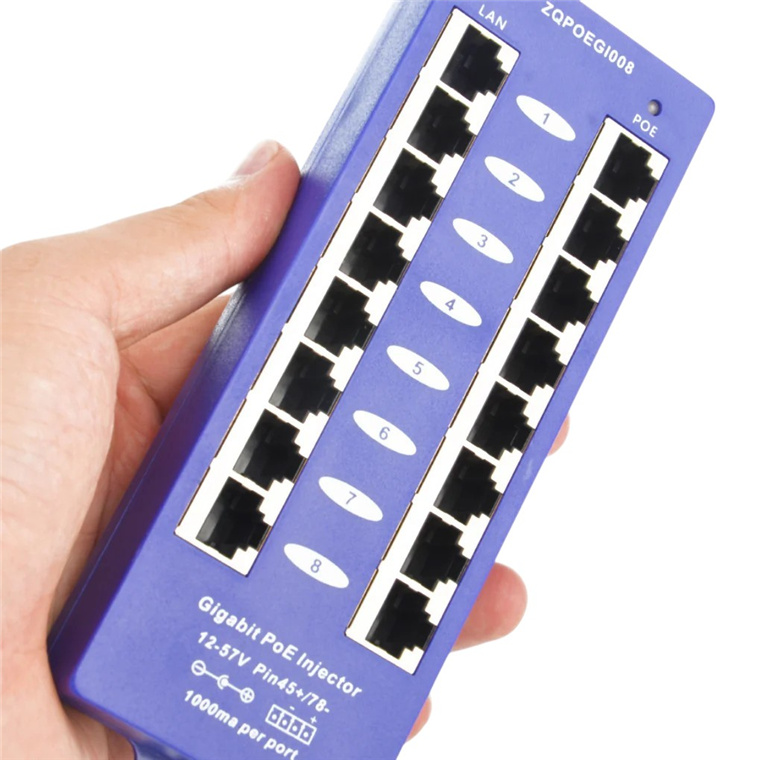

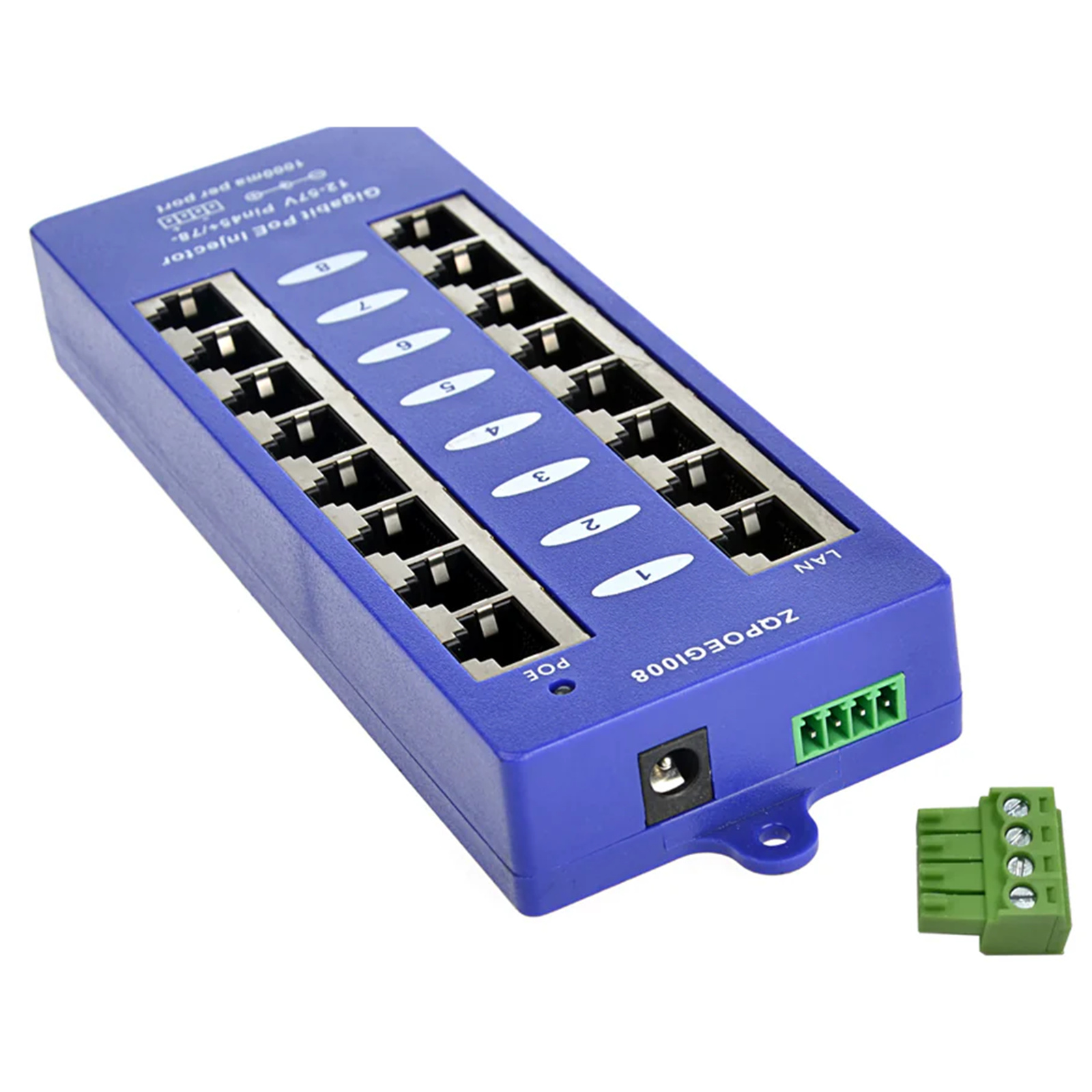

PoE World GPOE-8B 8 Port Shielded Gigabit Passive Mode B Power over Ethernet injector
- Brand: PoE World
- MPN: GPOE-8B
- Part #: NETPEW1017

Product URL: https://www.pbtech.com/pacific/product/NETPEW1017/PoE-World-GPOE-8B-8-Port-Shielded-Gigabit-Passive
Features
PoE World 8 Port Shielded Gigabit Passive Mode B Power over Ethernet injector. Simplify installations with a multi-port midspan injector. Power up to eight IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. A Passive PoE injector always delivers the same voltage as its power source.
- Wall mountable
- Use with any non-PoE switch
- RJ45 (2) jacks with data + power out
- RJ45 (2) jacks for data to the switch
- Each port is limited to 650 ma
- Gigabit speed
- 2.1mm x 5.5mm DC plug
- Mode B input pins: 4&5 (+) and 7&8 (-)
- Quiet operation - no fan or cooling required
Specifications
Brand
PoE World
Data Rate
10/100/1000Mbps
PoE Output Voltage
12 - 57V DC
Max Power Input
120 Watt
PoE Mode B Input Pins
4&5 (+) and 7&8 (-)
Protection
1000 mA automatic resettable fuse on each port
DC Input Interface
2.1mm x 5.5mm DC plug socket and Phoenix DC connector
LED Status Indicator
Green standard polarity, Red for Reverse polarity
Wall Mount
Stackable
Operating Temperature
0°C - 65°C
Certification
UL, CE and FCC approved
