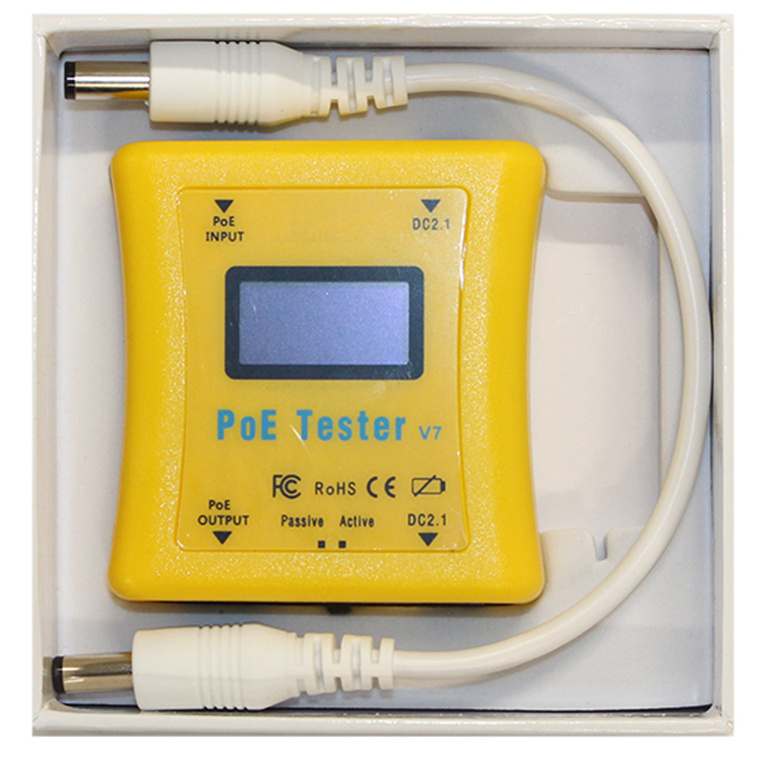

PoE World PoE-TesterV7 Universal PoE Tester V7 with Display
- Brand: PoE World
- MPN: PoE-TesterV7
- Part #: NETPEW1020

Product URL: https://www.pbtech.com/pacific/product/NETPEW1020/PoE-World-PoE-TesterV7-Universal-PoE-Tester-V7-wit
Features
This device reports the type of PoE that is on an Ethernet cable via OLED display, with this device you can quickly find out what PoE method is available along with the approximate voltage, pinout and polarity. It can also be placed inline for constant monitoring on a cable.
You can use it with passive injectors, 802.3af, 802.3at, 802.3bt with 568A, 568B standards or reverse PoE polarity. Mode A and Mode B PoE is supported. If you are far from the PoE switch or injector - this convenient device will show if a port has power.
- Data passes without modification thru the tester
- An RF transformer separates the power and data from all 4 pairs on the input, measures the values and re-inserts power onto the output data
- Measure power without interruption of data
- Works with managed or unmanaged Ethernet switches, or injectors
- Works with midspan or endspan PoE systems
Specifications
DC Power Input
2.1mm DC Barrel
Dimensions
6.5x6x2 cm
Display Range (DC Input)
3.5 to 57 volts, 0 to 5 Amps
Display Range (POE Input)
12 to 57 volts, 0 to 1500 mA
Display Type
LCD
Operating Humidity
5% to 90 %
Operating Temperature Range
-10°C to 60°C
PoE Method
Passive (simulted 802.3af)
PoE Standard
802.3af/at
PoE Standards Supported
Passive, 802.3af, 802.3at
DC Adapter Cable
2.1mm x 5.5mm DC (Male to Male)
802.3af Voltage Range
44 to 56 volts, 2% accuracy
Mode A/B Passive Voltage Range
4 to 56 volts, 2% accuracy
DC Connector Voltage Range
3.5 to 57 volts, 2% accuracy
PoE Amps Measured
0 to 1500 ma, 2% accuracy
DC Amps Measured
0 to 5 amps, 2% accuracy
