Panorama 4G/5G 4x4 MiMo Antenna Desk/Window/Wall Mount

PB Tech price

NZD $ 193 .91

$ 193 .91

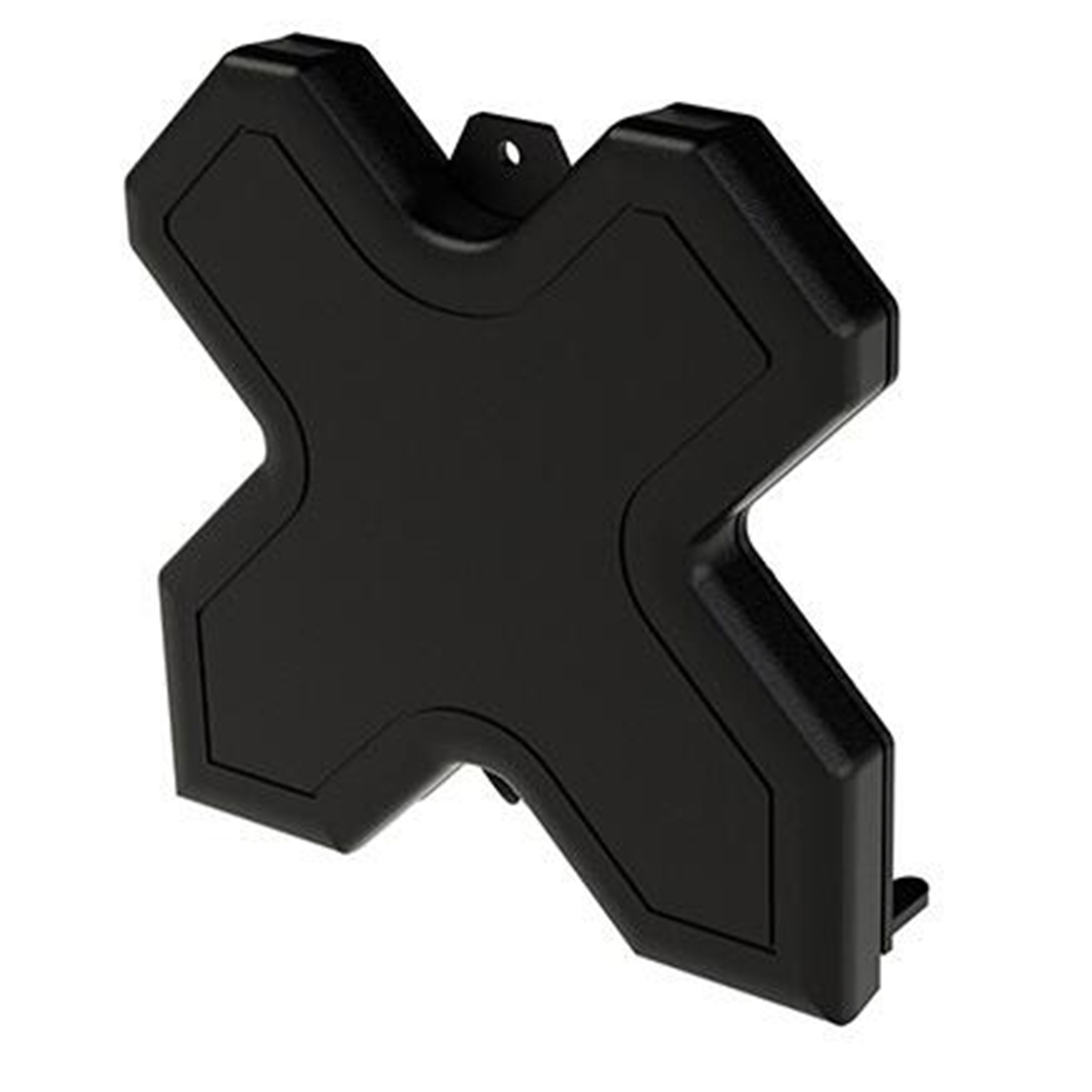

Panorama 4G/5G 4x4 MiMo Antenna Desk/Window/Wall Mount

Brand: Panorama
MPN: DMM4-6-60-2SP
Part #: NETPNM0002
UPC:

PB Tech price

NZD $ 193 .91

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 09 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Panorama
MPN: DMM4-6-60-2SP
Part #: NETPNM0002
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The DMM4 portable antenna is an innovative antenna design which provides 4x4 MiMo function for 4G/5G with fallback to 3G/2G

It is a cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.

This antenna is a future proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra wide band elements for 617-960/1710- 6000MHz in a single housing, the DMM4 provides a 4x4 MiMo function. It can also provide 2x 2x2 MiMo function for a router with dual modems, each requiring a 2x2 antenna system.

The DMM4 is highly portable and features desk mount feet which fold out for use, and flat for transport. A suction window mount enables the user to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided.

The DMM4-6-60-2SP antenna is supplied with two twinned 2m (6') length coaxial cables, with 4 x SMA connectors.

Product Features

- 4G/5G CAT18/20 LTE ready with fallback to 2G/3G
- Desk, window and wall mountable design
- Lightweight portable plug-and-play solution

Performance Features

- 4G/5G CAT18/20 LTE Ready
- 4x4 MiMo
- Up to 5dBi peak gain
- Multiple mounting options
- Integrated coax with connector terminations

Benefits

- Lightweight and easy to use
- Unique X design for efficient 4x4 MiMo performance
- Cost effective 4G/5G LTE antenna

Applications

- Failover
- Retail & commerce
- Travel

Specifications

Mechanical Data

LTE Frequencies

617-960/1710-6000MHz

Typical VSWR

<2.5:1

Peak Gain (dBi)

LTE MiMo

4x4

Max Input Power (W)

Pattern

Hybrid

Ground Plane Independent

Yes

Mounting Data

Available Colours

Black

Length (mm)

185

Height (mm)

184

Operating Temperature

-40° / +80°C (-40° /180°F)

Mounting Type

Desk Mount; Screw Mount; Window Mount

Manufacturer Part No:

DMM4-6-60-2SP

Brand:

Panorama

Product Type:

UPC

Product Family:

Shipping Weight:

1.2 kg

PB Part No:

NETPNM0002

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
