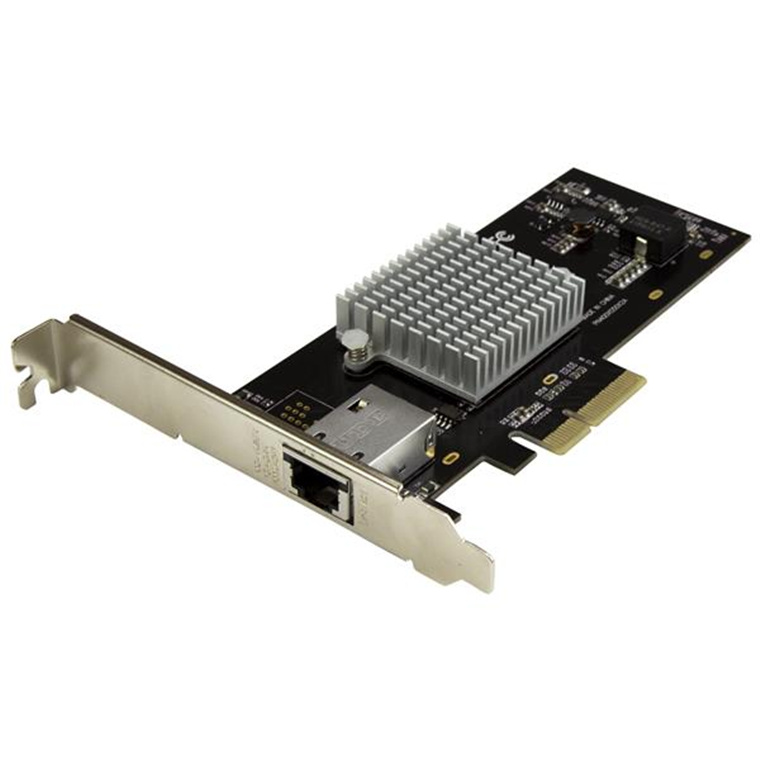

Here's a powerful and cost-effective solution for upgrading your server or workstation to 10 Gigabit Ethernet networking over copper. This PCI Express 10G NIC lets you add an Ethernet port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G 1G and 100Mbps.
Reliable, high-performance connectivity
This 10G network card utilizes the Intel® X550-AT chipset, delivering the power, performance and enhanced capabilities you need for dependable network connections. Compliant with IEEE 802.3u/ab/an standards, the 1-port 10G card delivers a dependable way to upgrade or replace your existing network port, providing throughput capability of up to 10Gbps in each direction (20Gbps total). It connects easily through a single, four-lane (x4 or higher) PCI Express slot.
The Intel X550-AT chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support. The Intel chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation. It also lets you take advantage of advanced features such as VLAN tagging, up to 15K jumbo frame support and Auto MDIX.
Specifications
Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Intel - X550AT Industry Standards IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T) NBASE-T PCI Express Rev 2.0 IEEE 802.1Q VLAN Tagging IEEE 802.3x Full Duplex Flow Control Interface RJ45 (10 Gigabit Ethernet) Port Style Integrated on Card Ports 1 Auto MDIX Yes Compatible Networks 10 Gbps/5G/2.5G/1G/100 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 10 Gbps Promiscuous Mode Yes Supported Protocols IEEE 802.3x (Flow Control Support) IEEE 802.1Q (VLAN tagging) Connector(s) Connector Type(s) 1 - PCI Express x4 Male Internal Ports 1 - RJ-45 Female
OS Compatibility Windows® 7, 8, 8.1, 10 (64-bit only) Windows Server® 2008 R2, 2012, 2012 R2 (64-bit only), 2016 Linux 2.4.x to 4.11.x LTS Versions Only ESXi 5.1/5.5/6.0
Warranty:
24 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
