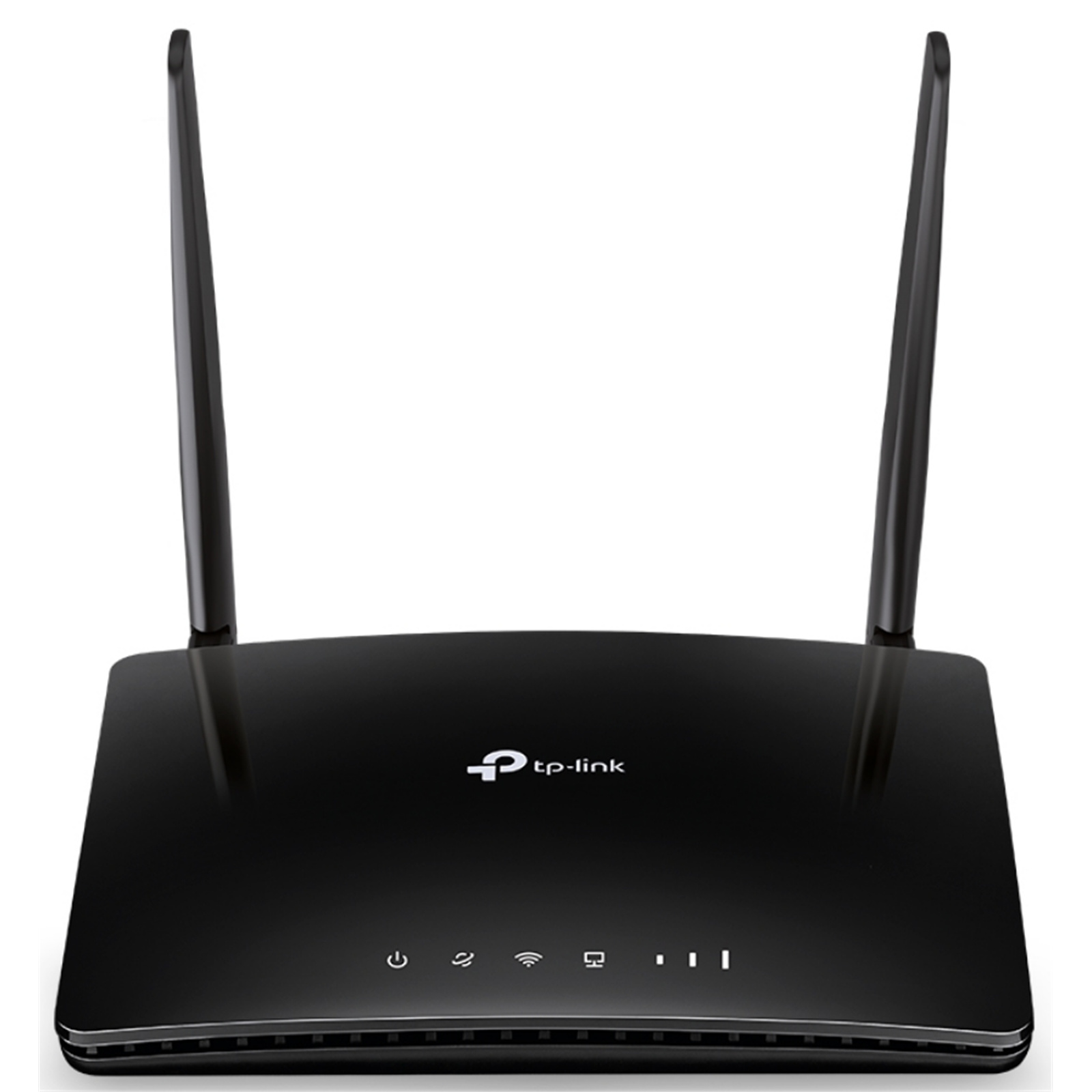

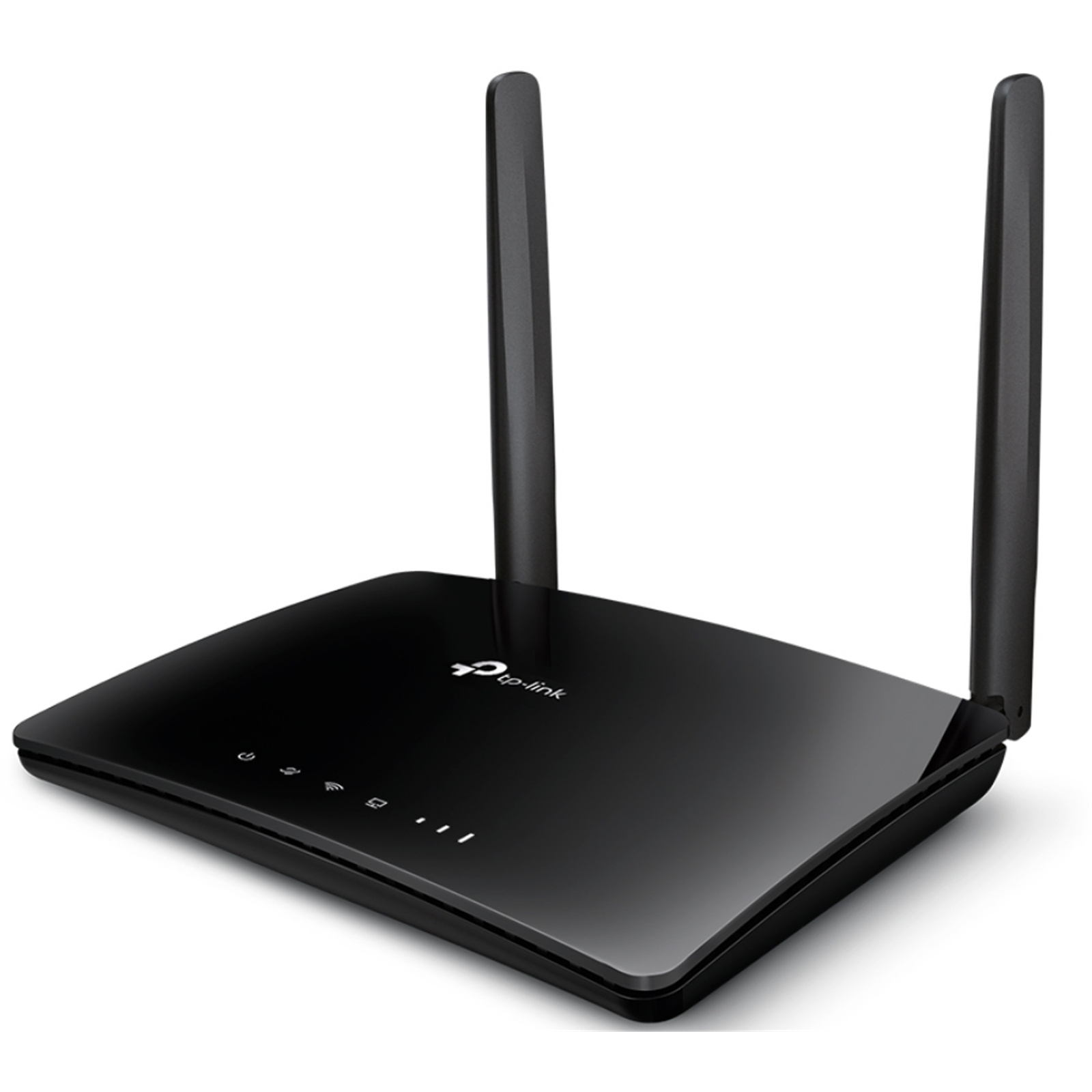

TP-Link Archer MR202 4G LTE CAT4 AC750 WiFi 5 Router
1GbE x4 / Nano-SIM Slot / SMA x2 for External Cellular Antenna
Out of stock
TP-Link Archer MR202 4G LTE CAT4 AC750 WiFi 5 Router
1GbE x4 / Nano-SIM Slot / SMA x2 for External Cellular Antenna
- Brand: TP-Link
- MPN: Archer MR202
- Part #: NETTPL202750
- UPC:
- Brand: TP-Link
- MPN: Archer MR202
- Part #: NETTPL202750
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
AC750 Wireless Dual Band 4G LTE Router
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage
- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network with the Archer MR202, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.
Got SIM Card? Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR202. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Internet Access for up to 64 Devices Simultaneously
The Archer MR202 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.
Wi-Fi Where You Need It
The Archer MR202 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR202 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR202 has you covered.
Support TP-Link OneMesh™
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
Available WAN Connection
The WAN/LAN port enables Archer MR202 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Management
Set up the Archer MR202 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular 4G / 5G Routers
TP-Link Archer MR6400 4G LTE CAT4 N300 WiFi 4 Router 1GbE x4 /...
NETGEAR LM1200 4G LTE Modem CAT4 - 2x TS9
TP-Link Archer MR600 4G LTE CAT6 AC1200 WiFi 5 Router 1GbE x4 /...
TP-Link M7350 4G LTE CAT4 N300 WiFi 4 Mobile WiFi Hotspot 2100mAh...
D-Link DWR-933M (AX600) 4G+ LTE CAT6 WiFi 6 Mobile Router 3000mAh...
TP-Link Archer MR202 4G LTE CAT4 AC750 WiFi 5 Router 1GbE x4 / Nano-SIM Slot / SMA x2 for External Cellular Antenna
- Brand: TP-Link
- MPN: Archer MR202
- Part #: NETTPL202750
Product URL: https://www.pbtech.com/pacific/product/NETTPL202750/TP-Link-Archer-MR202-4G-LTE-CAT4-AC750-WiFi-5-Rout
Features
AC750 Wireless Dual Band 4G LTE Router
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage
- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network with the Archer MR202, which allows you to share network with multiple devices so you can enjoy uninterrupted HD movies, rapid file downloads that won't freeze up. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.
Got SIM Card? Then Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR202. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Internet Access for up to 64 Devices Simultaneously
The Archer MR202 can easily share a 3G/4G connection with up to 64 wireless devices like tablets, laptops and mobile phones at the same time. It can also provide internet access for desktop computers via the LAN ports.
Wi-Fi Where You Need It
The Archer MR202 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR202 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR202 has you covered.
Support TP-Link OneMesh™
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
Available WAN Connection
The WAN/LAN port enables Archer MR202 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Management
Set up the Archer MR202 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control from any Android or iOS device. Control your home network whenever and wherever you are.
Specifications

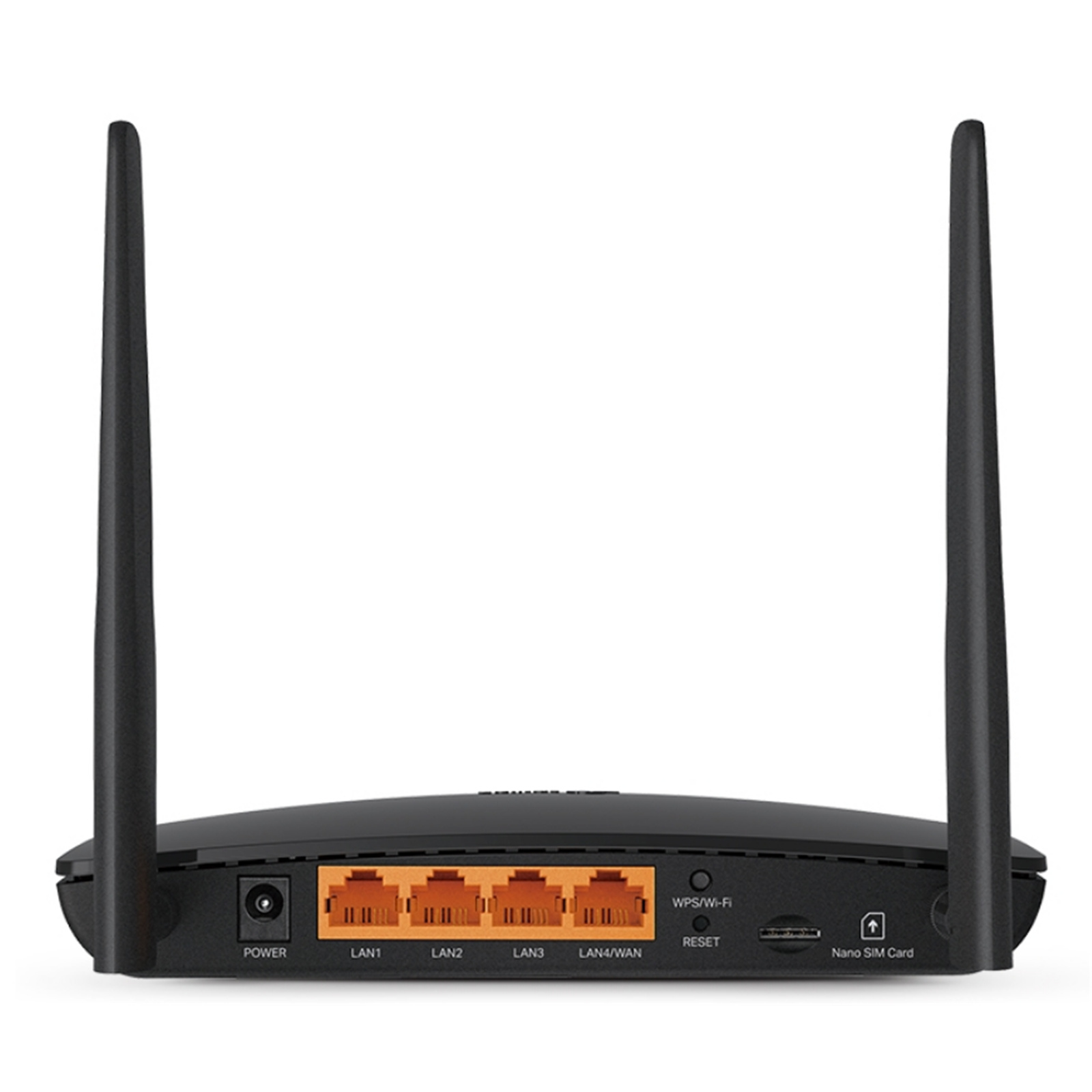

HARDWARE FEATURES
Interface
3× 10/100Mbps LAN Ports
1× 10/100Mbps LAN/WAN Port
1× Nano SIM Card Slot
2× External SMA-F Antenna Interface
Button
WPS/Wi-Fi Button,Reset Button
External Power Supply
12V/1A
Dimensions ( W x D x H )
6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)
Antenna
2 Detachable External 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 GHz and 5 GHz
Signal Rate
300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
Reception Sensitivity
5 GHz:
11a 54M: -78 dBm
11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm
11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm
11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm
2.4 GHz:
11g 54M: -74 dBm
11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm
11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm
Transmit Power < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN Failover
Yes
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURES
Quality of Service
Prioritizes network traffic by device or application
Operating Modes
3G/4G Router, Wireless Router
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management
Access Control, Local Management, Remote Management, reboot schedule
DHCP
Server, DHCP Client List, Address Reservation
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, NO-IP, TP-Link DDNS
Firewall Security
DoS, SPI Firewall, IP and MAC Address Binding
Protocols
Supports IPv4 and IPv6
Guest Network
2.4GHz guest network x 1, 5GHz guest network x 1
VPN Server
PPTP VPN, OpenVPN
OTHERS
Certification
CE, RoHS
Package Contents
AC750 Wireless Dual Band 4G LTE Router Archer MR202
RJ45 Ethernet Cable
1.5m Power Adapter
Quick Installation Guide
System Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Nano SIM Card
Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
