EAP Controller Software enables administrators to easily manage hundreds of EAPs
Supports passive PoE for convenient installation up to 100meters
Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats
Specifications
HARDWARE FEATURES
Interface

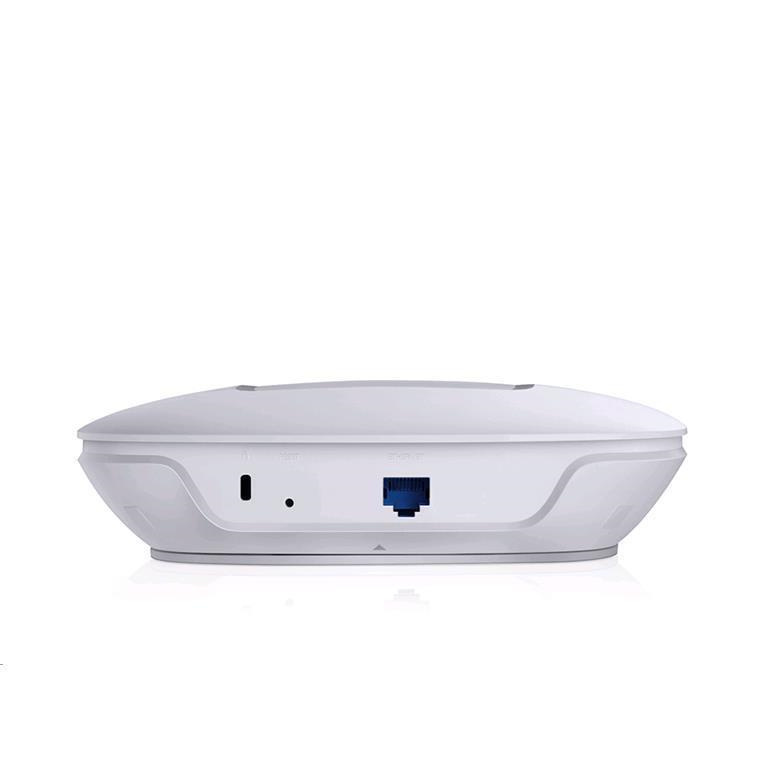

Fast Ethernet (RJ-45) Port *1(Support Passive PoE)
Button
Reset
Power Supply
24VDC / 1A Passive PoE Supply
Power Consumption
7.7W
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )
7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna Type
Internal 2* 3dBi Omni
Mounting
Ceiling /Wall Mounting (Kits included)
Physical Security Lock
Kensington Lock Slot
Watch Dog
Yes
WIRELESS FEATURES
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless Functions
Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power
CE: <20dBm FCC: <26dBm
MANAGEMENT
EAP Controller Software
Yes
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1,v2c
System Logging Local/Remote Syslog
Local/Remote Syslog
Telnet
Yes
Web-based Management
HTTP/HTTPS
OTHERS
Certification
CE, FCC, RoHS
Package Contents
300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Resource CD Installation Guide
Warranty:
36 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
