TP-Link TL-WR3002X (AX3000) Dual-Band Wi-Fi 6 Portable Travel Router
1GbE x 2
TP-Link TL-WR3002X (AX3000) Dual-Band Wi-Fi 6 Portable Travel Router
1GbE x 2
- Brand: TP-Link
- MPN: TL-WR3002X
- Part #: NETTPL3002
- UPC:
- Brand: TP-Link
- MPN: TL-WR3002X
- Part #: NETTPL3002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular WiFi 6 Routers





TP-Link TL-WR3002X (AX3000) Dual-Band Wi-Fi 6 Portable Travel Router 1GbE x 2
- Brand: TP-Link
- MPN: TL-WR3002X
- Part #: NETTPL3002

Product URL: https://www.pbtech.com/pacific/product/NETTPL3002/TP-Link-TL-WR3002X-AX3000-Dual-Band-Wi-Fi-6-Portab
Features
AX3000 Wi-Fi 6 Portable Router
- AX3000 Dual-Band Wi-Fi 6 Travel Router: Merging Wi-Fi 6 Technology, TL-WR3002X delivers fast wireless speed (2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz) for uninterrupted video streaming, downloading, and online gaming all at the same time.†‡
- 2.5G Multi-Gig Connectivity: 1× 2.5 Gbps WAN port + 1× Gigabit LAN port offer high-speed data transmissions.?

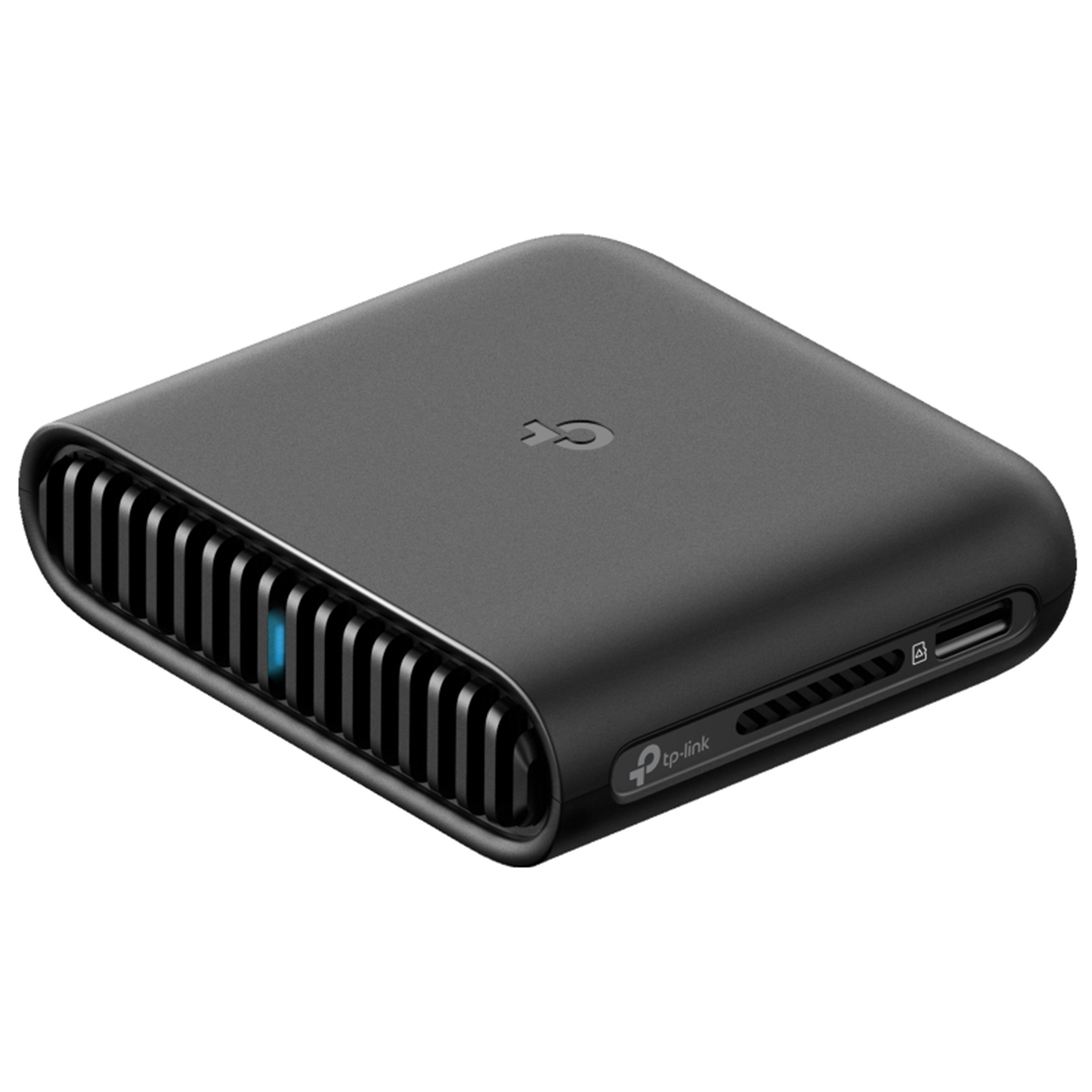

- Portable and Durable Design: TL-WR3002X is a pocket-sized travel router compactly designed for your next trip or adventure. Its small size is designed for travel-friendly storage.
- Enjoy Reliable Network Anywhere: Supporting multiple modes (Router / USB Tethering / 3G-4G USB Modem / Hotspot / Access Point / Range Extender / Client), TL-WR3002X allows you to create Wi-Fi in various scenarios at home, hotel rooms or on the road. **
- Easily Access Your Files From Anywhere: By plugging an external USB hard disc or a TF card into the router, you can easily share files between connected devices.
- 24/7 Secure Surfing with VPN Encryption: Supporting OpenVPN and WireGuard®, TL-WR3002X can keep your network private and secure from anywhere in the world, whether you're working remotely abroad, or browsing on the public WiFi.
- Power It with a Power Bank: With a Type-C interface, you can flexibly turn it into a mobile router with a power bank.*
Wi-Fi That Goes Anywhere
The TL-WR3002X has multiple functional modes to get you connected no matter where you are. It also includes several features to keep you up and running.
A Private Network on Public Wi-Fi
Connect the TL-WR3002X to public wi-fi and create a private network for all your devices.
Tether to Your Travel Router For Internet Anywhere
Tether your smartphone or 3G/4G/5G modem to the TL-WR3002X via USB and share your cellular data plan across all your devices
Turn a Wired Connection into your Own Wi-Fi Network
Plug the TL-WR3002X into an available ethernet port to create a Wi-Fi network with internet access for all your devices.
No Power? No Problem!
If the power is out or there are no power outlets around, you can power the TL-WR3002X with a portable power bank plugged into the USB-C port.
Easily Access your Files From Anywhere
Plug in an external hard drive to the USB 3.0 port or insert a microSD card into the router's TF card slot to easily share your files between connected devices.
Manage Your Travel Router with the Tether app
Manage all aspects of setting up and using the TL-3002X with the Tether app for iOS or android. in one simple step, effortlessly complete captive portal authentication to get your router online.
Wi-Fi 6 Speeds Anywhere You Want Them
The TL-WR3002X delivers the speed and performance you need in a travel-ready size that goes wherever you do.
24/7 Secure Surfing with VPN Encryption
VPN Clients and Server Supported
Supporting OpenVPN, WireGuard®, PPTP, and L2TP VPN protocols, TL-WR3002X maintains your network's privacy and security, whether working remotely or using public WiFi. It can simultaneously run a VPN and regular internet connection, offering protection and flexibility.
Specifications
WIRELESS
Standards and Protocols
Wi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ac/ax 2.4 GHz
WiFi Speeds
AX3000
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Capacity
High Dual-Band
Allocate devices to different bands for optimal performance
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth
Working Modes
Router Mode
USB Tethering Mode
3G/4G USB Modem Mode
Hotspot Mode (WISP Mode)
Access Point Mode
Range Extender Mode
Client Mode
SECURITY
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
- OpenVPN Server
- PPTP VPN Server
- L2TP VPN Server
- Wireguard VPN Serve
VPN Client
- Open VPN Client
- PPTP VPN Client
- L2TP VPN Client
- Wireguard VPN Client
WiFi Encryption
WPA2-PSK
WPA3-Personal
WPA/WPA2-Enterprise
HARDWARE

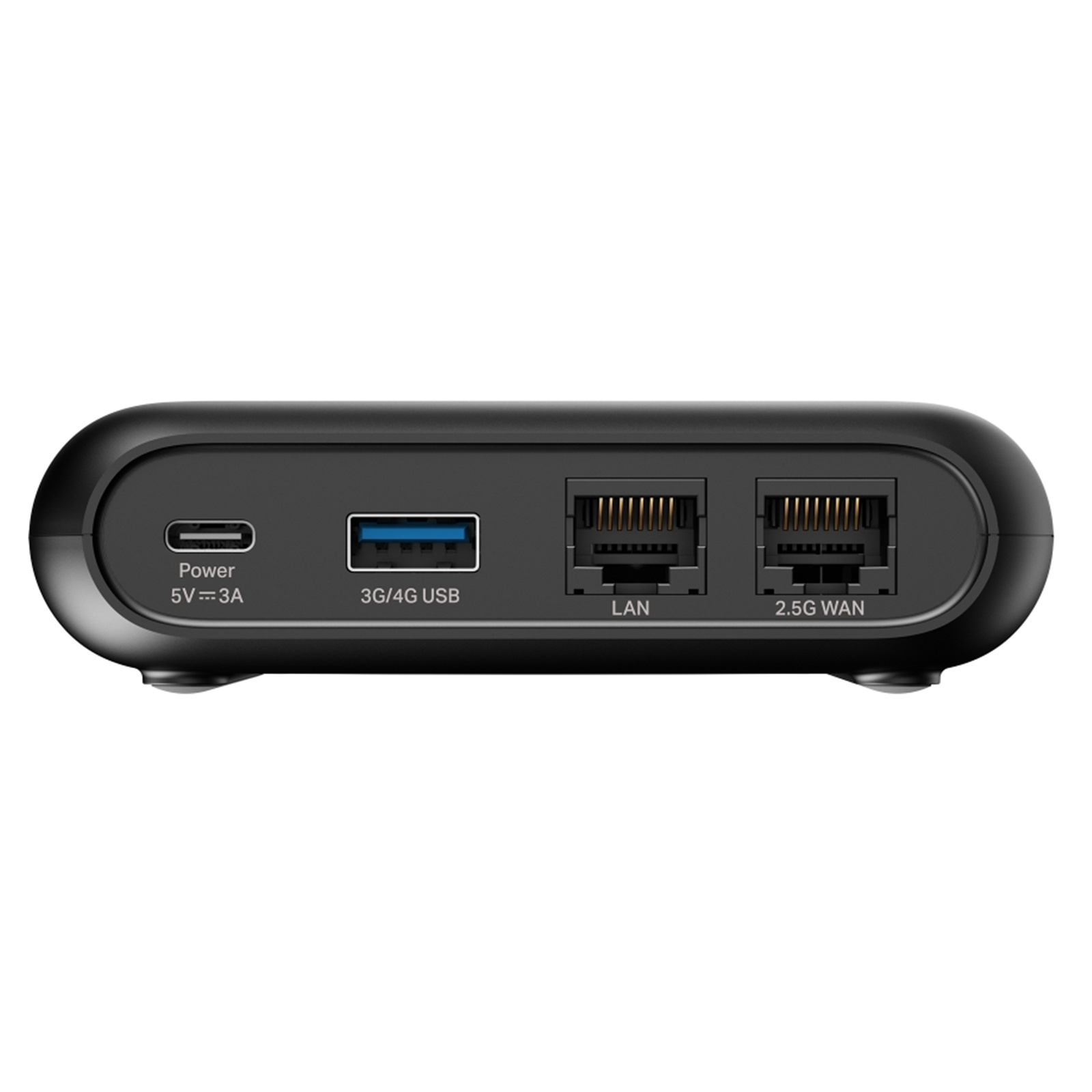

Ethernet Ports
2.5× Gigabit WAN Port
1× Gigabit LAN Port
USB Support
1× USB 3.0 Port
Buttons
WPS/Reset Button
ECO Switch
Power
5V/3A,External DC power adapter
SOFTWARE FEATURES
Quality of Service
QoS by Device
WAN Type
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Management Features
Tether App
Webpage
DHCP
DHCP Server
DHCP Client List
Address Reservation
Protocols
IPv4
IPv6
OTHER
Certifications
FCC, CE
Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity
2.4GHz
11b 1M:-96dBm
11n HT20M MCS7:-73dBm
11n HT40M MCS7:-70dBm
5GHz
11a 6M:-93dBm
11ax HE20M MCS11:-63dBm
11ax HE40M MCS11:-60dBm
11ax HE80M MCS11:-59dBm
PHYSICAL
Dimensions (W×D×H)
4.1 × 3.6 × 1.2 in
(105 × 91.3 × 30 mm)
Package Content
TL-WR3002X
Power Adapter
RJ45 Ethernet Cable
USB Cable
Quick Installation Guide
Wi-Fi Info card
