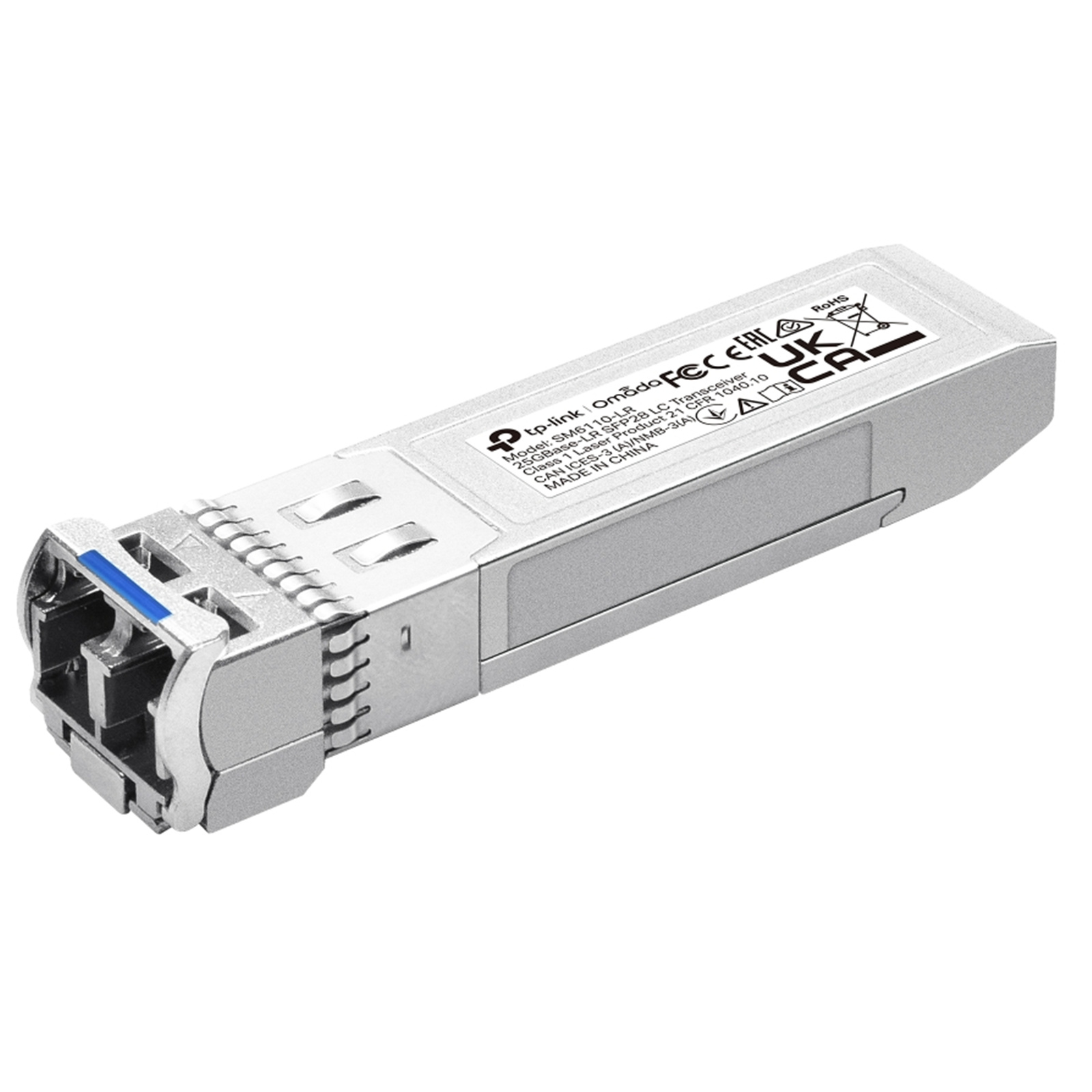

TP-Link SM6110-LR 25GBase-LR SFP28 LC Transceiver - Single-mode SFP+/SFP28 LC - Hot-Pluggable with maximum flexibility

Brand: TP-Link
MPN: SM6110-LR
Part #: NETTPL6110
UPC:

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: TP-Link
MPN: SM6110-LR
Part #: NETTPL6110
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

- Single-mode SFP+/SFP28 LC Transceiver

- Hot-Pluggable with maximum flexibility

- Supports Digital Diagnostic Monitoring (DDM)

- Low Power Consumption no more than 1.2 W

- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)

- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

Specifications

PACKAGE CONTENTS

Package Contents

- SM6110-LR
- Installation Guide

HARDWARE FEATURES

DDM

Yes

SFP-MSA

Yes

Hot Swappable

Yes

Dimensions ( W x D x H )

2.24*0.55*0.47 in (57*14*12 mm)

Transceiver

Standards and Protocols

- IEEE 802.3ae, 802.3cc
- SFF-8402, SFF-8431, SFF-8432, SFF-8472
- eCPRI, CPRI
- TCP/IP

Wavelength

1310 nm

Power Supply

3.3V

Fiber Type

9/125um Single-Mode

Max. Cable Length

10 km

Support Data Rate

Dual Rate 25.78 Gbps and 10.31 Gbps

Connector

Duplex LC/UPC

Regulatory Compliance

CE, FCC, RoHS

Environment

- Operating Temperature: 0°C to 70°C (32°F to 158°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Operating Humidity: 10% to 90% RH, Non-Condensing
- Storage Humidity: 5% to 90% RH, Non-Condensing

Manufacturer Part No:

SM6110-LR

Brand:

TP-Link

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

NETTPL6110

Product Model:

SM6110-LR

Warranty: Not applicable
