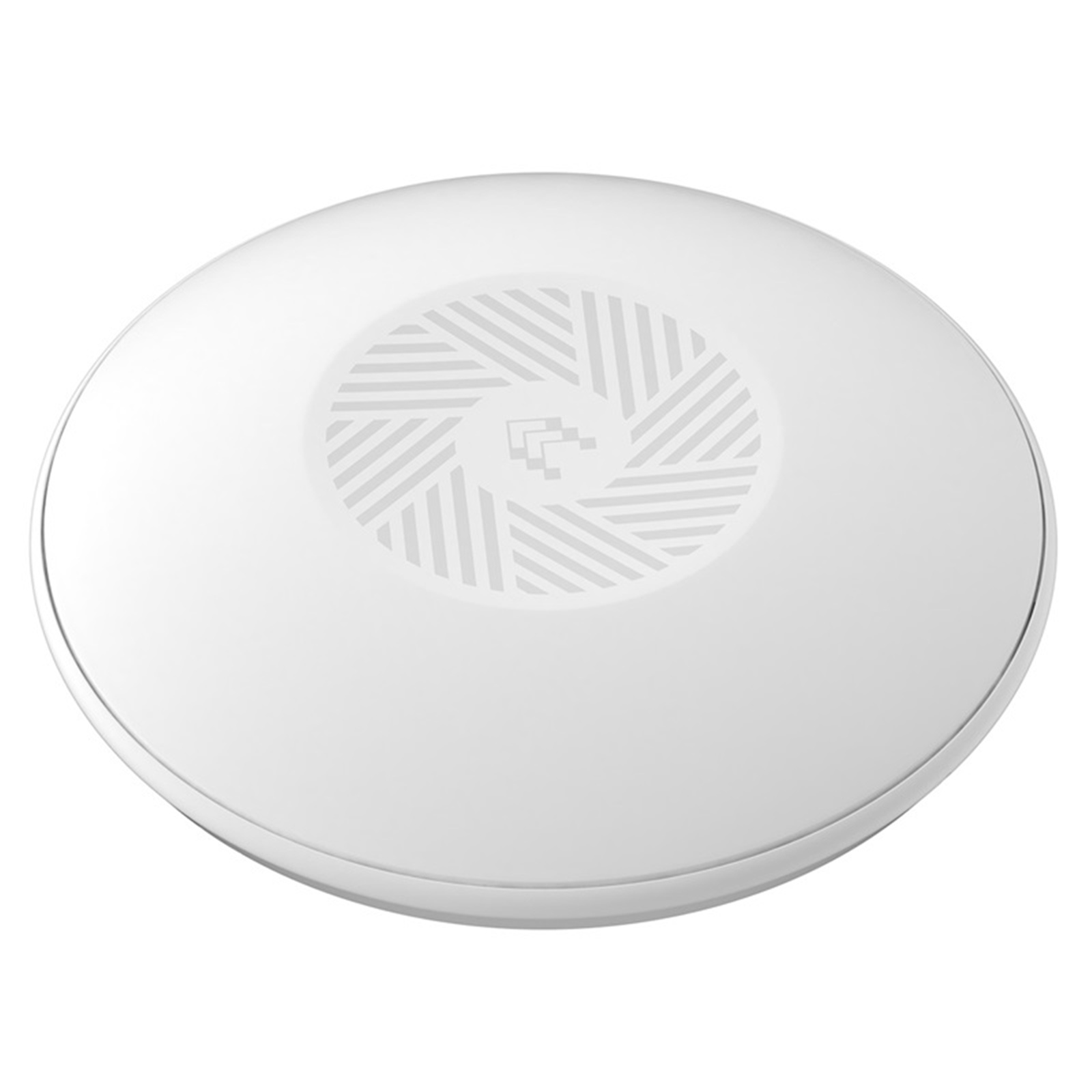

Teltonika TAP200 Wave-2 802.11ac Dual Band Wi-Fi 5 Access Point
- Brand: Teltonika
- MPN: TAP200
- Part #: NETTTK1018

Product URL: https://www.pbtech.com/pacific/product/NETTTK1018/Teltonika-TAP200-Wave-2-80211ac-Dual-Band-Wi-Fi-5
Features
The Teltonika TAP200 Wave-2 802.11ac 2 x 2 Dual Band Wi-Fi 5 Access Point. Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.
- Wave-2 802.11 b/g/n/ac Dual Band Wi-Fi
- Supporting speeds of up to 1000 Mbps and PoE-in functionality
- UV-stabilised housing for lasting colour with a mounting bracket for quick setup
- Free RMS Management access for 24 months
Specifications
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi security
WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, isolate clients
SSID/ESSID
ESSID stealth mode (Hide SSID)
Wi-Fi users
Up to 100 simultaneous connections
Wireless mesh/roaming
Fast roaming (802.11r)
Wireless MAC filter
Whitelist, blacklist
Wireless QR code generator
Once scanned, a user will automatically enter your network without needing to input login information
Ethernet
1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SNMP
Authentication
SSH key based, HTTPS, CLI, IP & Login attempts block
VLAN
Tag-based VLAN separation
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
CPU
MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
RAM
256 MB, DDR3
FLASH storage
16MB, SPI NOR Flash
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients' needs.
Input voltage range
44.0 - 57.0 V
PoE standards
802.3af PoE Class 1
Power consumption
Idle: 4 W / Max: 5.5W
Antennas
2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
Reset
Reboot/User default reset/Factory reset button
Casing material
UV stabilized plastic
Dimensions
Ø 158 mm x 30 mm
Weight
190 g
Mounting options
AP Mounting Bracket (for ceiling mount)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
