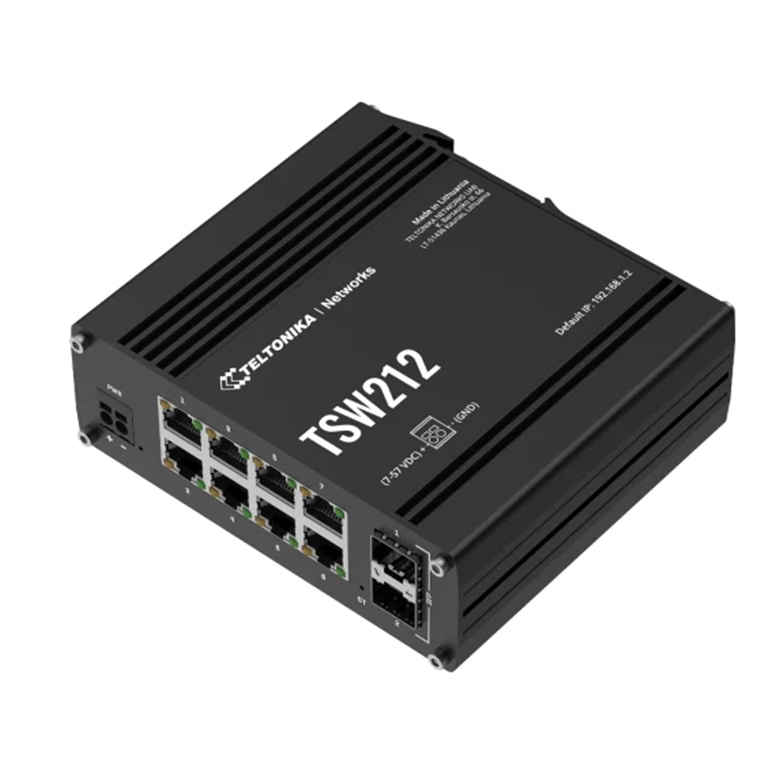

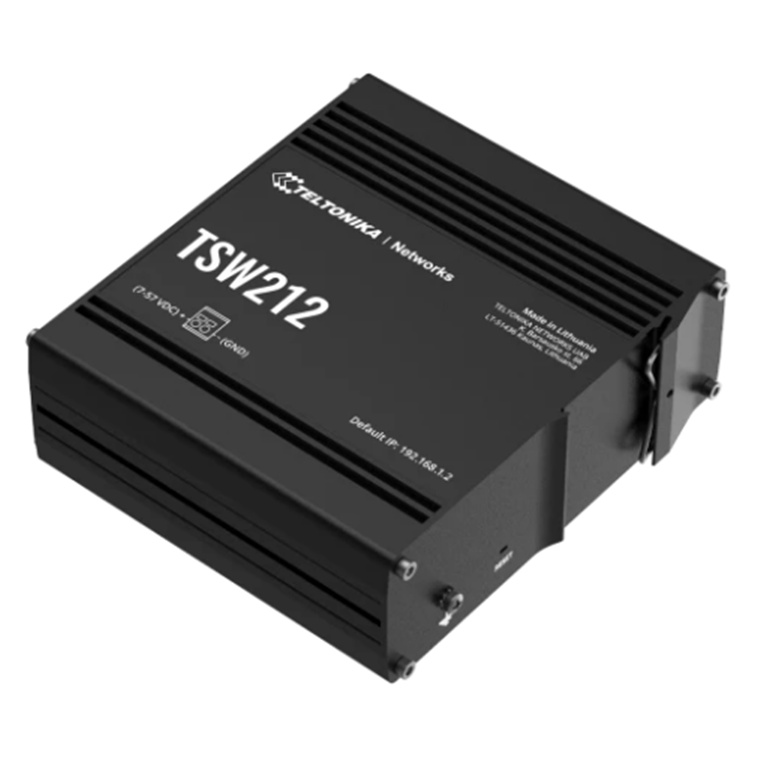

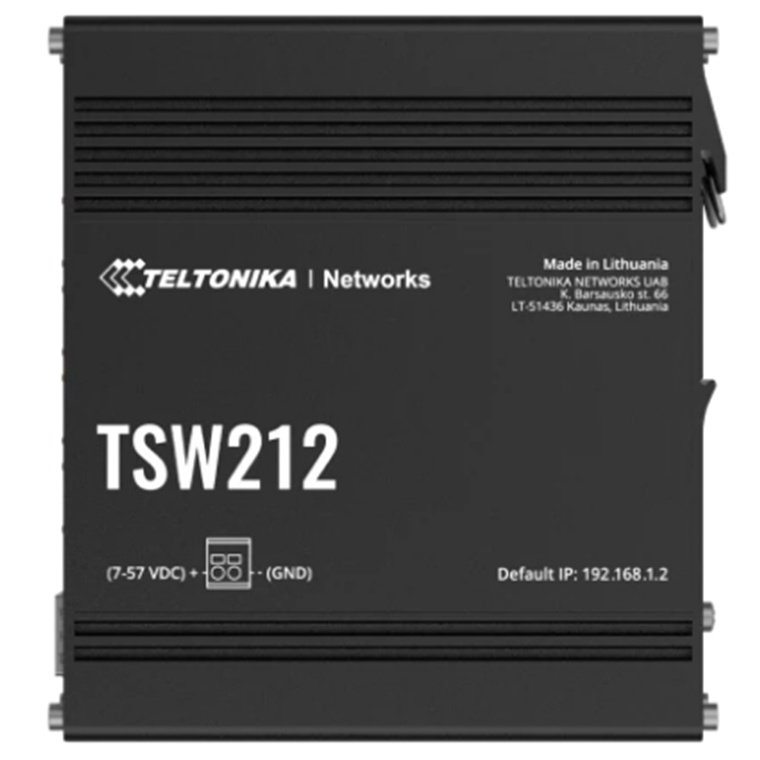

Teltonika TSW212 10-Port Managed Ethernet Switch 8x GigE 2x SFP

PB Tech price

NZD $ 212 .42

$ 212 .42

Teltonika TSW212 10-Port Managed Ethernet Switch 8x GigE 2x SFP

Brand: Teltonika
MPN: TSW212
Part #: NETTTK1021
UPC:

PB Tech price

NZD $ 212 .42

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Teltonika
MPN: TSW212
Part #: NETTTK1021
UPC:

Be the first to review this product

10 Gigabit

10 Gigabit Ports

Form Factor

Desktop

Management Level

Managed L2

Number of Ports

10 Ports

PoE Ports

PoE Budget

View full specs

Returns & Warranty Bulk Quote Print Page

Features

TSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations - all with effortless installation thanks to an integrated DIN rail mount.

- L2 with additional L3 features for advanced management capabilities
- Supports Profinet for automated data processing alongside other protocols, like EtherNet IP and MRP
- 8 x Gigabit Ethernet ports and 2 x SFP ports for fibre optic communication
- Teltonika Networks OS for switches, intuitively designed for infinite configurations
- Configure via RMS

Specifications

Hardware

RAM

128MB, DDR3

Flash storage

16MB serial flash

Powering options

2-pin industrial DC power socket, 7 - 57 VDC

Power consumption

Idle: < 2.5 W / Max: 6 W

Status LEDs

1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

Ethernet

8 x RJ45 ports, 10/100/1000 Mbps

SFP

2 x SFP ports

Ingress protection rating

IP30

Operating temperature

-40°C to 75°C

Dimensions (W x H x D)

132 x 44.2 x 122.2 mm

Weight

615 g

Mounting options

Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

Performance

Bandwidth (Non-blocking)

20 Gbps

Packet buffer

512 KB

MAC address table size

8K entries

Jumbo frame support

10000 bytes

Services

Supported services

EtherNet/IP, PROFINET (class B), SNMP V2, V3, LLDP, Network Management

Network

MRP

MRP client role, MRP manager role

L2 features

Loop protection, Forwarding table, VLAN, STP/RSTP

DHCP

DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards

Port Settings

Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring

L3 Features

Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QOS

Port priority, DSCP priority, 802.1p priority, TOS

Scheduling method

SP/WFQ/WRR

Bandwidth control

Rate limiting, storm control

Manufacturer Part No:

TSW212

Brand:

Teltonika

Product Type:

UPC

Product Family:

Shipping Weight:

10 kg

PB Part No:

NETTTK1021

Product Model:

Warranty: 12 months *
