Teltonika TRB160 4G LTE CAT 6 IoT GATEWAY

PB Tech price
PB Tech price
NZD $ 326 .53
$ 326 .53
$326.53  +GST
$326.53

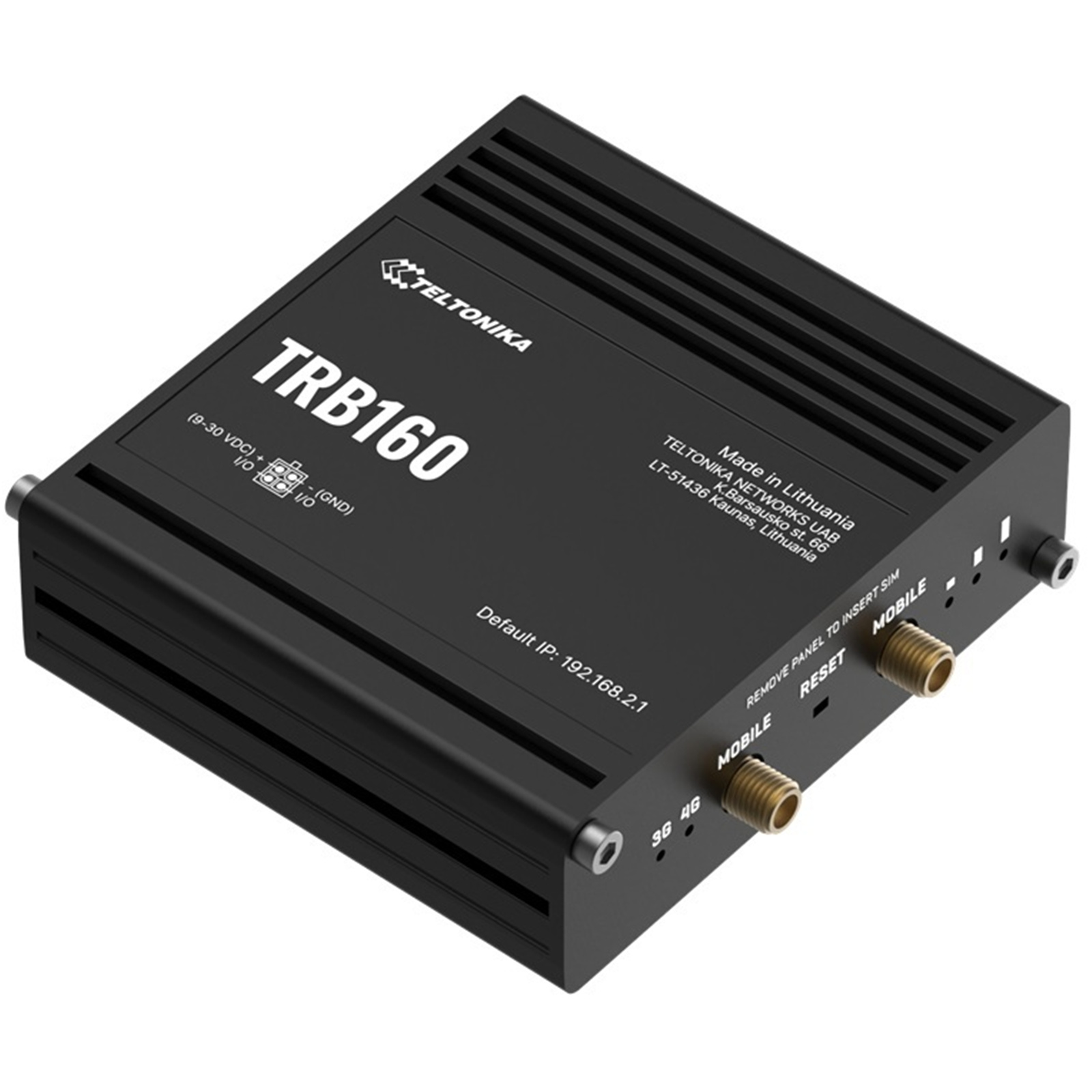

Teltonika TRB160 4G LTE CAT 6 IoT GATEWAY

Ultra-Small, Lightweight, Energy-Efficient
  • Brand: Teltonika
  • MPN: TRB160
  • Part #: NETTTK1600
  • UPC:
PB Tech price
NZD $ 326 .53 $ 326 .53
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 08 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$326.53  +GST
$326.53
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Teltonika
  • MPN: TRB160
  • Part #: NETTTK1600
  • UPC:

Wireless Technology

N/A

Ethernet Ports Per Unit

1

USB Ports

Yes

Wireless Transmission Speed

N/A

WiFi Bands

N/A

Cellular Connectivity

4G (Single SIM)

HyperFibre Compatible

N/A

Coverage Area

N/A

View full specs
Returns & Warranty Bulk Quote Print Page

Features

The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.

LTE CAT 6

Cellular speeds of up to 300 Mbps with carrier aggregation

USB Type-C

For simultaneous powering and network data provision

PROTOCOLS

OPC UA, Modbus, Data to Server, MQTT, DNP3, DLMS, and more

COMPACTNESS

Small size, easy installation

Specifications

Mobile module

4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

3GPP Release

Release 12

Status

Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD

Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list

Operator black/white list (by country or separate operators)

Multiple PDN

Possibility to use different PDNs for multiple network access and services

Band management

Band lock, Used band status display

SIM PIN code management

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN

Auto APN

Bridge

Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

Router assigns its mobile WAN IP address to another device on LAN

Ethernet

1 x ETH port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Routing Static

routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall

Port forward, traffic rules, custom rules, TTL target customisation

DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT

MQTT Broker, MQTT publisher

SNMP

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

JSON-RPC

Management API over HTTP/HTTPS

CPU

Qualcomm, 1.2 Ghz, ARM Cortex-A7

RAM

128 MB

FLASH storage

256 MB

I/O's

2 x Configurable I/O pins on 4-pin power connector

Status LEDs

2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED

SIM

1 x Internal SIM slot (Mini SIM - 2FF), 1.8 V/3 V, eSIM (Optional)

Power

1 x 4-pin power connector, 1 x USB Type-C

Antennas

2 x SMA for Mobile

Reset

Reboot/User default reset/Factory reset button

Other

1 x Virtual network interface via USB Type-C (For power and network data)

Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

83 x 25 x 74.2 mm

Weight

172 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Manufacturer Part No:
TRB160
Brand:
Teltonika
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
NETTTK1600
Product Model:
TRB160
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
