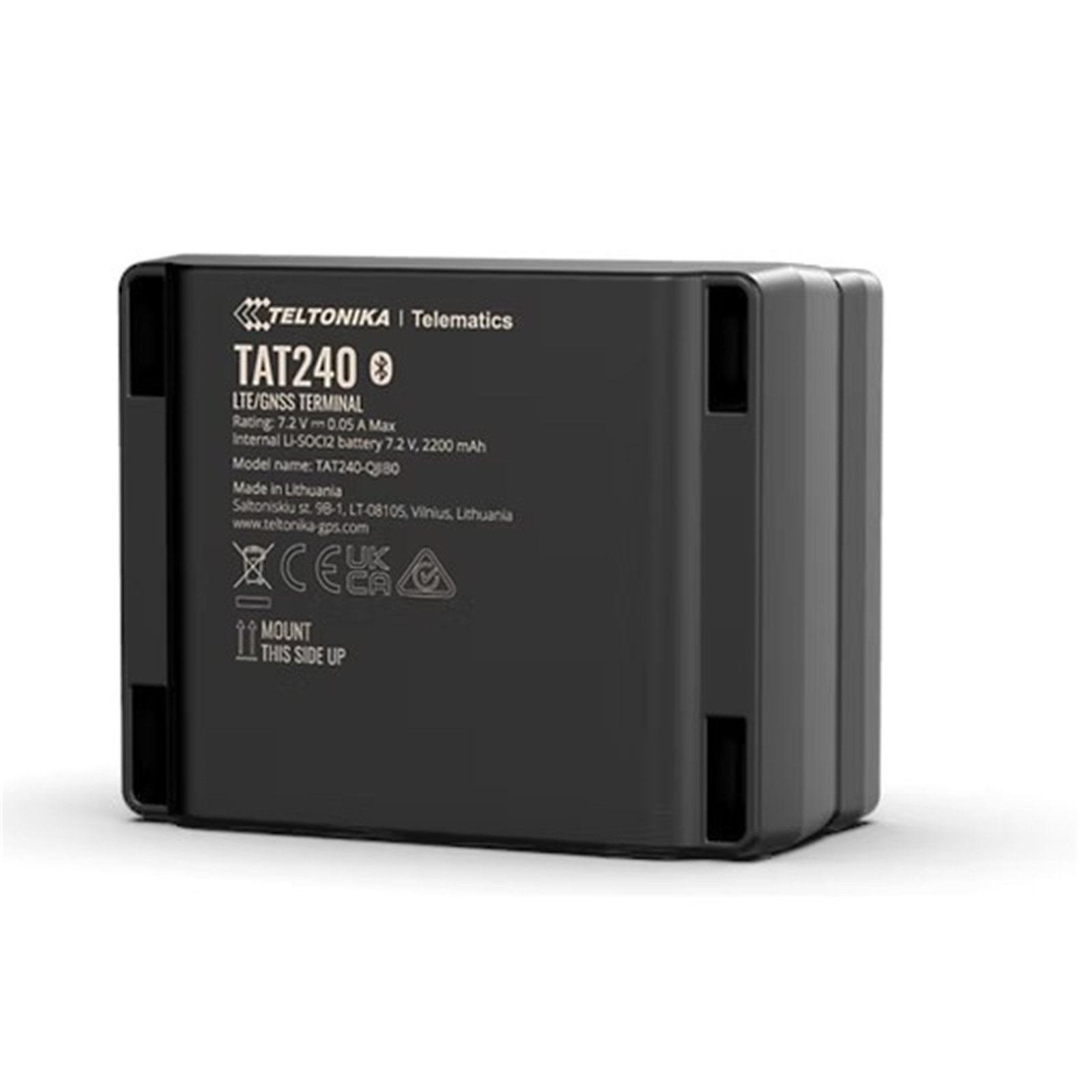

Teltonika TAT240 Tamper-proof Asset tracker with 4G LTE Cat 1 Connectivity
- Brand: Teltonika
- MPN: TAT240
- Part #: NETTTK2401

Product URL: https://www.pbtech.com/pacific/product/NETTTK2401/Teltonika-TAT240-Tamper-proof-Asset-tracker-with-4
Features
The TAT240 is a tamper-proof, 4G LTE (CAT1), 3G/2G fallback, GNSS, Bluetooth® device for asset tracking and maximum protection against thefts of containers, and trailers, as well as it could be used in a wide range of applications from valuable goods to tools tracking. The tamper detection feature of TAT240 ensures significantly improved protection of the assets.
- Waterproof and dust resistant for outdoor integrations (IP68)
- Tamper Detection
- Easy Magnetic Mounting
- Define your own data sending frequency based on whether your assets are moving
Tamper alerts for maximum safety
Reliable magnetic tamper detection ensures the topmost safety of your assets.
Movement-based periodic reports
Define your own data sending frequency based on whether your assets are moving.
Easy magnetic mounting
Attach the device firmly and effortlessly with the included magnetic mounting holder.
Backup tracking the easy way
Ideal to be used as a backup tracker - easy to hide anywhere in a vehicle thanks to a compact size, while sleep mode protects against detecting tracker by thieves.
Specifications
Product Code
TAT240 (TAT240R6BP01)
Name
TAT240-QKIB0: Quectel EG915U-LA with Teltonika TM2500
Technology
LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE
Region
EU, MEA, APAC
GNSS
L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS,* Optional modes available with custom firmware applications, for more information contact your sales manager.
GNSS Receiver
33 tracking channels, 99 acquisition channels
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
4G LTE bands
TAT240-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
Data transfer
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL), GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power
Class 4 for GSM850/900: 33±2dBM, Class 1 for GSM1800/1900: 30±2dBM, Class 3 for LTE-FDD: 23±2dBM
Data support
SMS (TEXT), Network protocols (TCP,UDP,TLS, EGTS, MQTT**)
Internal battery
Extremely low self-discharge Li-SOCl2 swappable, non-rechargeable battery, 7,2V 2200mAh
Battery life
Up to 5 years (when used as a backup tracker only via Bluetooth®)*, Up to 4 years (1 LBS - cell towers report per day)*, Up to 3 years (1 GNSS report per day)*
Bluetooth
4.0 + LE
Supported BLE peripherals
EYE Sensors, EYE Beacons (recovery mode only), Universal Bluetooth® LE sensors support
Dimensions
78 x 63 x 28 mm (L x W x H)
Weight
115 g (with 2 cells battery)
Operating temperature (with battery)
-35 °C to +75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP68
Battery discharge temperature
-60 °C to +85 °C
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
1 status LED light
SIM
Micro-SIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Enhanced tamper detection, accelerometer wake up, GNSS, Bluetooth® sensor support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor
Sleep modes
Single custom sleep mode
Configuration and firmware update
FOTA WEB, Teltonika Configurator (USB)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Regulatory
CE/RED, E-Mark, RCM, UKCA, RoHS, CITC, TRA
