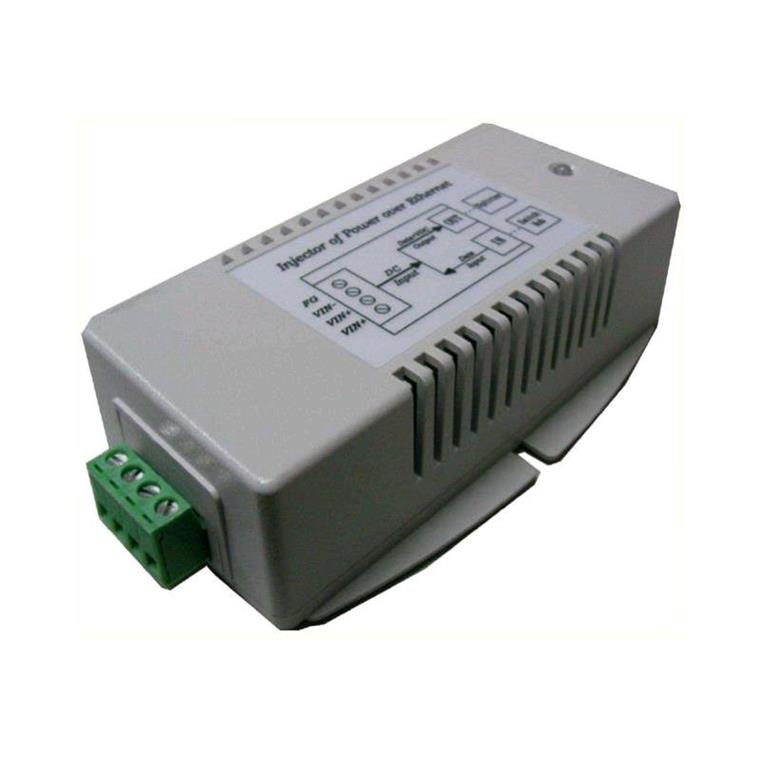

Tycon Systems TP-DCDC-2456GD-VHP Tycon 18-36VDC In, 56VDC 802.3at Out Gigabit DC to DC Converter

PB Tech price

NZD $ 303 .48

$ 303 .48

Tycon Systems TP-DCDC-2456GD-VHP Tycon 18-36VDC In, 56VDC 802.3at Out Gigabit DC to DC Converter

Brand: Tycon Systems
MPN: TP-DCDC-2456GD-VHP
Part #: NETTYC1021
UPC:

PB Tech price

NZD $ 303 .48

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 16 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Tycon Systems
MPN: TP-DCDC-2456GD-VHP
Part #: NETTYC1021
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The Tycon Power TP-DCDC-2456GD-VHP is a special very high power DC to DC converter / POE inserter designed and qualified for use with Axis Q6035-E outdoor PTZ security cameras. The DCDC converter supplies 35W per POE channel. One POE channel is using pins 4,5,7,8 and the other POE channel utilizes pins 1,2,3,6. By splitting the power onto separate POE channels, the device can achieve 70W total supplied power to the end device. The TP-DCDC-2456GD-VHP has separate LED indicators for indicating which 802.3at channel is being used by the client. The RIGHT LED indicates POE Channel 1 and the LEFT LED indicates POE Channel 2. The TP-DCDC-2456GD-VHP has been qualified by Axis to be used with their Q6035-e series of PTZ cameras. The unit can be used with any 802.3at device as it will supply 35W to any 802.3at POE channel detected. If two channels are detected on the client then 70W power will be supplied. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

- Input Voltage 24VDC
- 2 Channel 802.3at 56VDC POE Output
- High Power to 70W (35W per POE Channel)
- Dual DC Inputs for connecting 2 power sources
- Gigabit Data Throughput
- Low self consumption power (<2W)
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- High Temperature Operation
- Applications: 24VDC Remote Power Systems, Axis Q6035-e PTZ Surveillance Cameras, 802.3at High Power Applications

Specifications

DC Input Voltage
18VDC to 36VDC

DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)

DC Output Voltage
56VDC (802.3at)

Data in & Data/POE Output Connector
RJ45 (Shielded)

Output Current (max)
0.625A per POE channel = 1.25A Total

Output Power (max)
35W per POE channel = 70W Total

Self Consumption Power
2W

Dimensions
Length
125 mm
Width
75 mm
Height
38 mm

Manufacturer Part No:

TP-DCDC-2456GD-VHP

Brand:

Tycon Systems

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

NETTYC1021

Product Model:

Warranty: 12 months *
