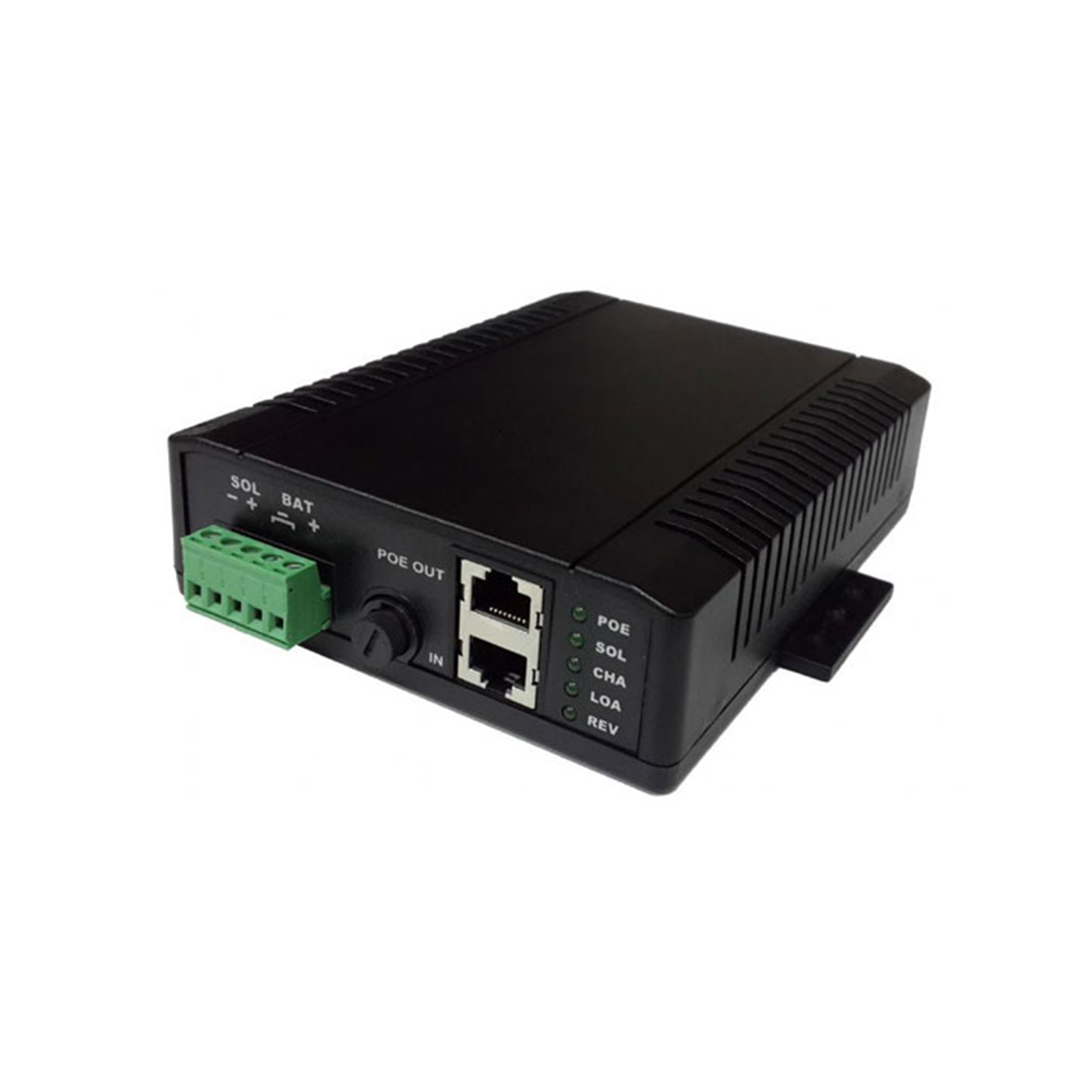

Tycon Systems Tycon Power Systems TP-SCPOE-1248

Brand: Tycon Systems
MPN: TP-SCPOE-1248
Part #: NETTYC1043
UPC:

PB Tech price

NZD $ 217 .39

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 11 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Tycon Systems
MPN: TP-SCPOE-1248
Part #: NETTYC1043
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Tycon Power Systems 12V in 48V out PoE/Solar Charge Control. Now with 30W POE Output on most models! Tycon Power Systems unique POE/Solar charge controllers (TP-SCPOE-xxx) with built-in POE Inserter have dual inputs to charge batteries from a POE source and also a secondary source like solar panels in order to provide redundancy and insure 100% uptime for critical applications. They have a built in POE inserter and the 12V model has integral DC to DC converter that delivers 12V, 18V, 24V or 48V at the POE port. They have full electronic protections for short circuit, reverse current, over-voltage, over-charge and over-discharge. They control the battery charging current to prevent battery damage from overcharging. The built-in over-discharge protection and low self consumption ensures the battery is not over-discharged, which greatly increases the life of the batteries. The load is turned off when 12V battery voltage reaches 11V and turns back on automatically when battery voltage reaches 12V. Likewise with a 24V battery system the 24V model turns off the load when battery voltage is 20V and turns back on when battery voltage reaches 22V. Solar and Battery Connections are via 4 screw terminals for wire size up to 12AWG. POE Input and Output is via 2 RJ45 shielded connectors. There is a secondary voltage output connector on the back with 5 screw terminals for connecting other electronics to the controller using up to 12AWG wire. The controllers are externally fused with a standard replaceable fuse.

Key Features

- Controller gives priority to solar panel input so grid electricity consumption is reduced when solar panel is outputting power sufficient to charge the batteries
- Great for use with Ubiquiti, Cambium, Ligowave and MikroTik RouterBOARD long range wireless access points
- 5 LED indicators to give a quick visual status if current is being supplied by a POE source or solar panel, if battery is charging, If load output is turned on and a warning if battery is connected with reverse polarity

Specifications

Manufacturer's Product Code

TP-SCPOE-1248

Solar Input Voltage

15V - 36Vmax @ 10A max

POE Input Voltage

18V - 57Vmax @ 2.6A max

Battery Voltage

12V

POE Output

48V @ 0.625A

Secondary Output

12V @ 1.5A max

Charge Voltage

14.6 +/- 0.3V

Maintenance Voltage

13.5 +/-0.3V

Over Discharge Voltage

Output OFF: 11.0 +/-0.3V, Output ON: 12.0 +/-0.3V

Self Consumption

< 0.5W

Max Wire Size

12 AWG

Dimensions

159 x 118 x 40mm

Manufacturer Part No:

TP-SCPOE-1248

Brand:

Tycon Systems

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

NETTYC1043

Product Model:

Warranty: 12 months *
