UbiBot PT100-3M-R-Audio Industrial Grade Temperature Probe for GS1 3 Metres

PB Tech price

NZD $ 70 .43

$ 70 .43

UbiBot PT100-3M-R-Audio Industrial Grade Temperature Probe for GS1 3 Metres

Brand: UbiBot
MPN: PT100-3M-R-Audio
Part #: NETUBB1015
UPC:

PB Tech price

NZD $ 70 .43

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 16 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: UbiBot
MPN: PT100-3M-R-Audio
Part #: NETUBB1015
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

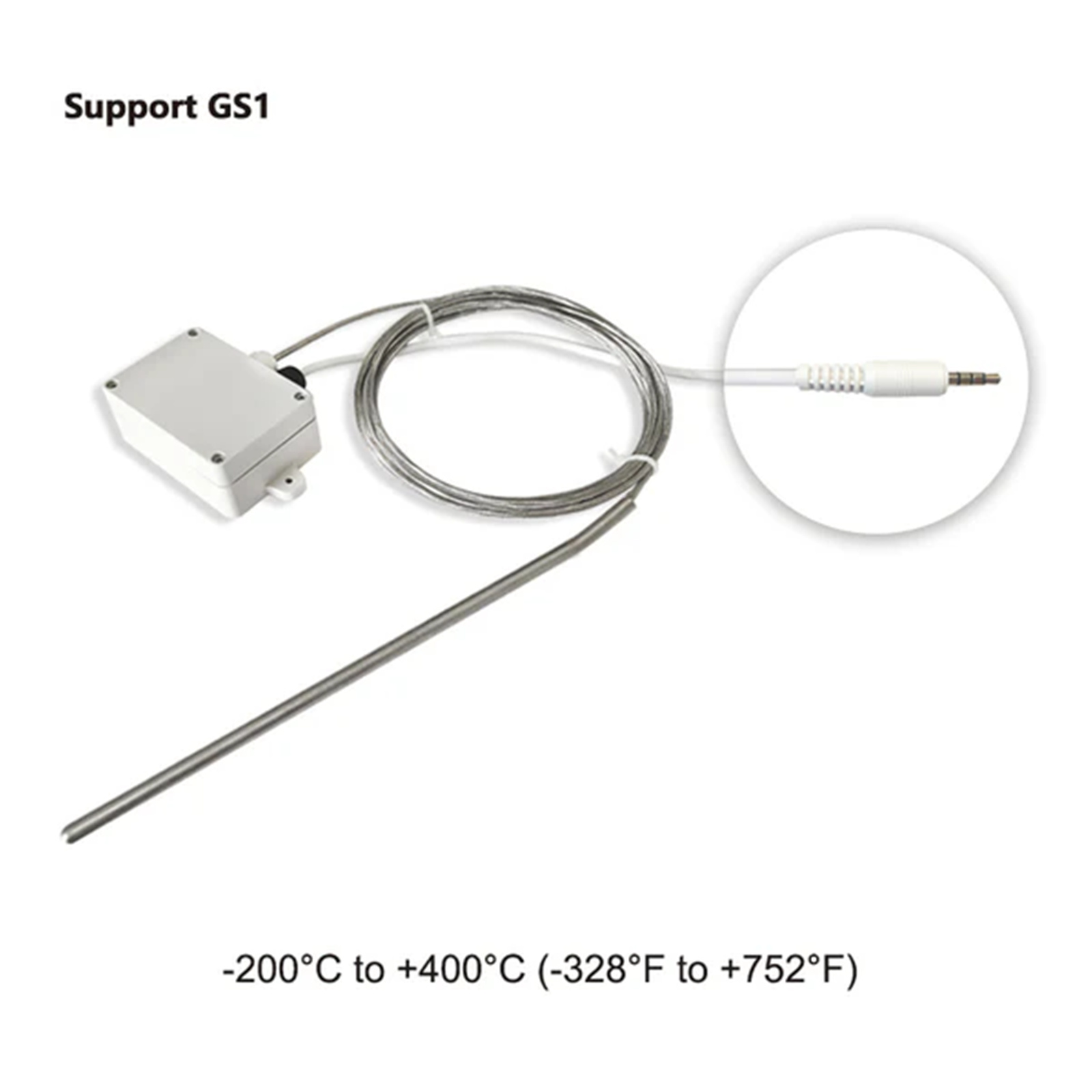

Ubibot Industrial Grade Temperature Probe for GS1 3 Metres - Audio Connector

The PT100 probe is made of specially treated platinum wire wrapped around the inner surface of the probe. Compared with the general axial thermal resistance, it can reflect the actual temperature of the measured object quickly and accurately. The butt cock line is made of high temperature zone shielded fiberglass material, with a temperature range of up to 200 degrees Celsius. PT100 adopts the chip imported from Germany with high stability, and adopts a more stable three-wire connection mode to ensure the accuracy of temperature measurement and anti-interference ability of the system. The probe shell is made of 304 stainless steel, which has good resistance to acid and alkali corrosion. The shell is completely wrapped and can reach IP68 waterproof grade, which means the probe can be continuously measured in water.

Widely used in chemical plants, power plants, oil refineries, cold storage, sewage treatment plants, steel plants, food plants and other industrial temperature measurement sites.

- RS485 Interface
- High precision, wide range, good consistency
- Super stability and anti-interference
- Wide voltage input,DC5-12V
- Standard MODBUS RTU protocol

Note

1. Do not directly place the transmitter in a high temperature environment.
2. It is prohibited to place the transmitter in the environment of steam, water mist, water curtain or condensation for a long time.
3. The temperature tolerance of the probe butt cock line is 200?. Exceeding this temperature will lead to the failure of normal temperature measurement and even permanent damage.
4. Once the waterproof box of transmitter is opened, it will not be returned or replaced.

Specifications

Model

PT100-3M-R-Audio

Working Voltage

DC5V~DC12V

Output Interface

3.5mm Audio

Compatible with

For GS1

Communication Methods

RS485

Communication Protocol

MODBUS RTU

Communication Address

1-255(can be customized)

Baud Rate

300 bit/s,600 bit/s, 1200 bit/s, 2400 bit/s, 4800 bit/s, 9600 bit/s, 19200bit/s,38400bit/s,43000 bit/s, 56000 bit/s, 57600 bit/s,115200 bit/s(can be customized)

Standby Current

=20mA

Dimensions

85x33x60mm

Measuring Range

-200~400?

Measuring Accuracy

±(2%+1?)

Probe Length

200mm

Probe Diameter

Lead Length

3 meters

Buttcock Line Temperature Range

-30~200?

Manufacturer Part No:

PT100-3M-R-Audio

Brand:

UbiBot

Product Type:

UPC

Product Family:

Shipping Weight:

0.7 kg

PB Part No:

NETUBB1015

Product Model:

PT100-3M-R-Audio

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
