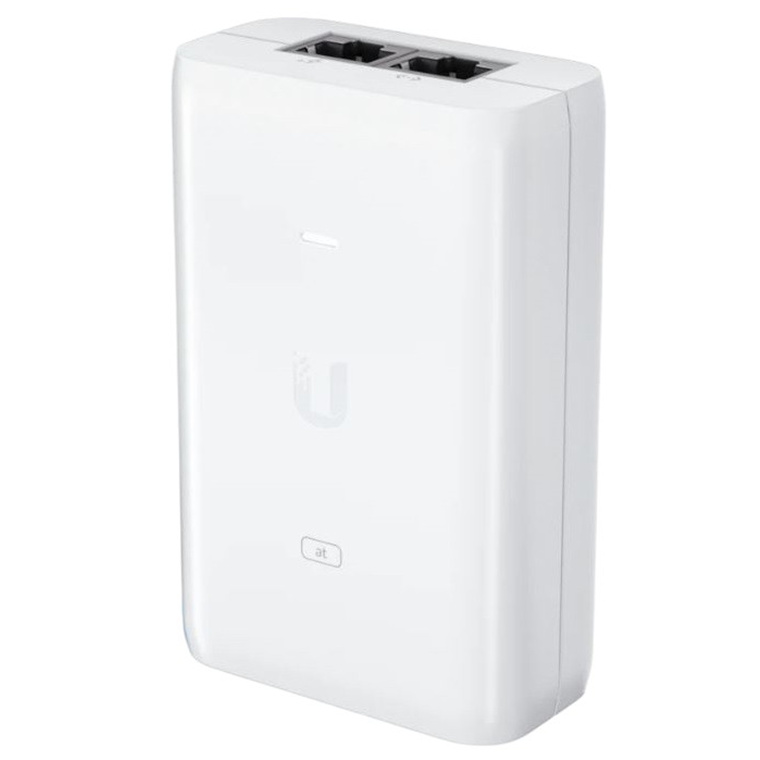

Ubiquiti U-PoE+ 30W Gigabit PoE Adapter (48V DC / 0.65A)
- Brand: Ubiquiti
- MPN: U-PoE-PLUS
- Part #: NETUBI10913

Product URL: https://www.pbtech.com/pacific/product/NETUBI10913/Ubiquiti-U-PoE-30W-Gigabit-PoE-Adapter-48V-DC--065
Features
Ubiquiti 802.3at Gigabit PoE Injector 48VDC 30W. The U-PoE+ is a PoE+ injector designed to power 802.3at compatible devices. Capable of delivering 30W of PoE+ power, the U-PoE+ can be used to power any U6 Access Point (U6-LR, U6-Lite, U6-Pro), while also protecting against electrical surges.
- Provides up to 30W of PoE+ (802.3at) power
- Compatible with the next generation of U6 Access points
- Surge protection and Clamping protection
- AC cable with earth ground
Specifications
Dimensions
93 x 62 x 35 mm
Weight
156 g
Output Voltage
48VDC @ 0.65A
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
Yes
Reset Button
No
Rated Voltage
100-240VAC @ 50/60Hz
Input Current
0.75A @ 90VAC
Inrush Current
<100A Peak @ 230VAC, 26°C
Efficiency
87%
Output Ripple
1% Max.
Switching Frequency
70 kHz Max.
Line Regulation
<= 3%
Load Regulation
<= 5%
2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature
0 to 40°C (32°F to 104°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Operating Humidity
35 to 90% Noncondensing
AC Connector
IEC-320 C6
Data IN / POE
RJ45 Shielded Socket
Surge Protection
Difference and Common Mode
Clamping Protection
11V Data, 60V Power
Max. Surge Discharge
1500A (8/20 µs) Power
Peak Pulse Current
36A (10/1000 µs) Data
Shunt Capacitance
<5 pF data
Response Time
<1 ns
Certifications
CE, FCC, IC, UL
