Ubiquiti airMax RocketDish Antenna RD-5G30, 5GHz, 30dBi
- Brand: Ubiquiti
- MPN: ANT-118
- Part #: NETUBI1097

Product URL: https://www.pbtech.com/pacific/product/NETUBI1097/Ubiquiti-airMax-RocketDish-Antenna-RD-5G30-5GHz-30
Features

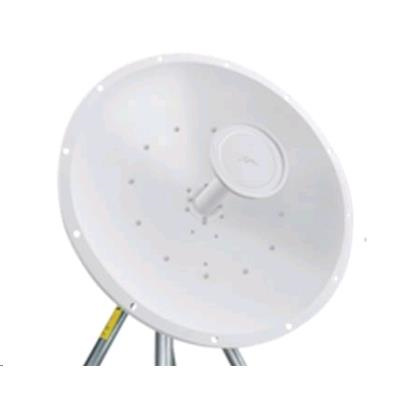

Ubiquiti ANT-118 30dBi 5GHz Dual Polarity AirMax RocketDish Antenna
RocketDish is a Carrier Class Dish Antenna that was designed to seamlessly integrate with Rocket M radios (sold separately).Rocket M combines the "brains" in one robust unit; pair Rocket M with RocketDish to create powerful 2x2 MIMO PtP bridging applications.
This seamless integration gives network architects unparalleled flexibility and convenience. The Ubiquiti Rocket M radios and AirMax Base Station/Rocket Antennas have been designed to seamlessly work together.
Installing Rocket M on AirMax Base Station/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Dual Polarity Antennas. Ubiquiti Dual Polarised antennas also work perfectly with MikroTik 802.11n NV2 long range wireless radio cards as well. Always seal all outdoor coax cable connections with coax seal tape.
Specifications
RD-5G-30
Frequency Range
5.1-5.8 GHz
Gain
30 dBi
Polarisation
Dual-Linear
Cross Polarisation
35 dB min
Max VSWR
1.4:1
Vertical Beamwidth
5 deg. (6 dB)
Horizontal Beamwidth
5 deg. (3 dB)
Connector Type
(2) RP-SMA Female
Dimensions
648 mm diameter
Wind Loading
120 mph
Pole Mount Diameter
38 - 100mm
