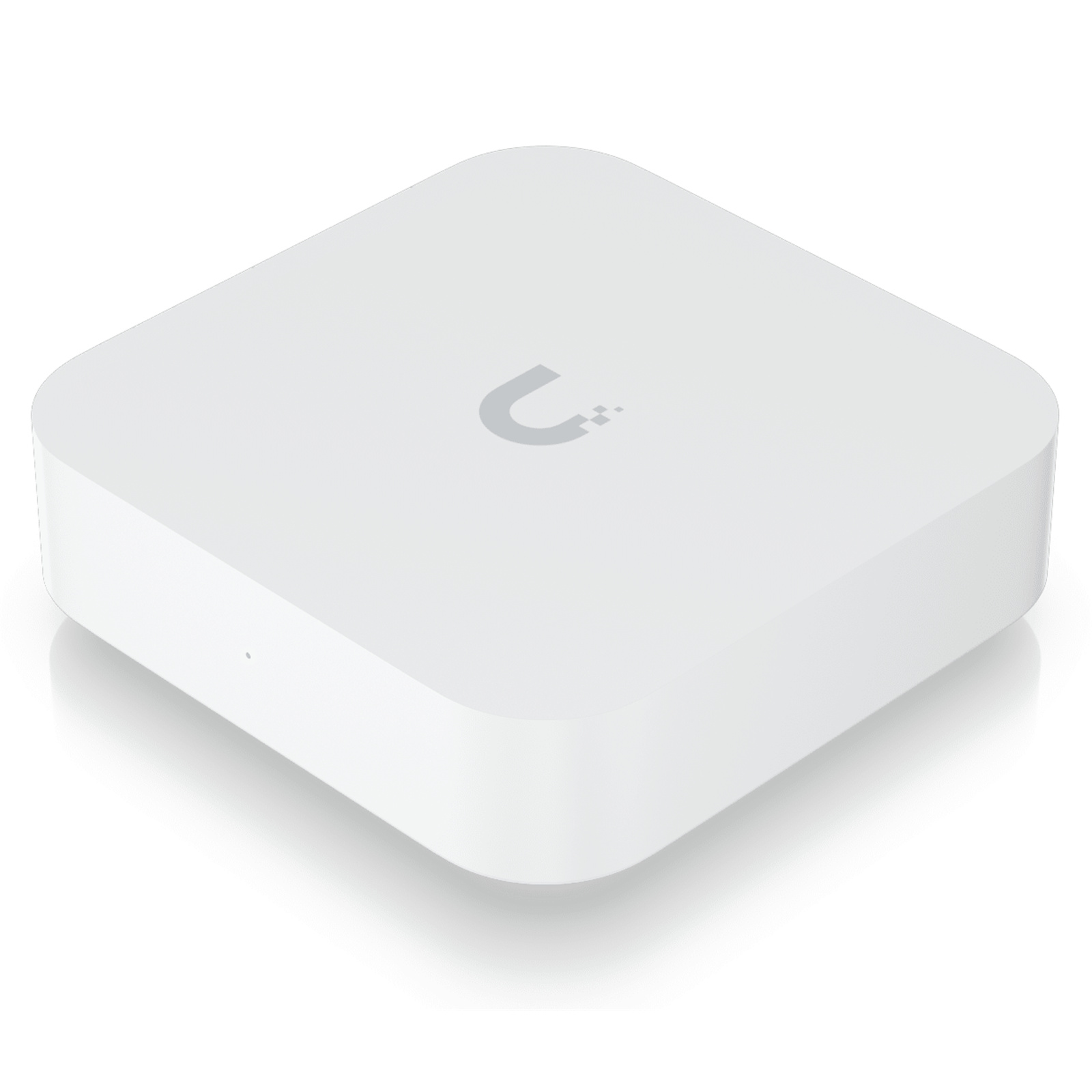

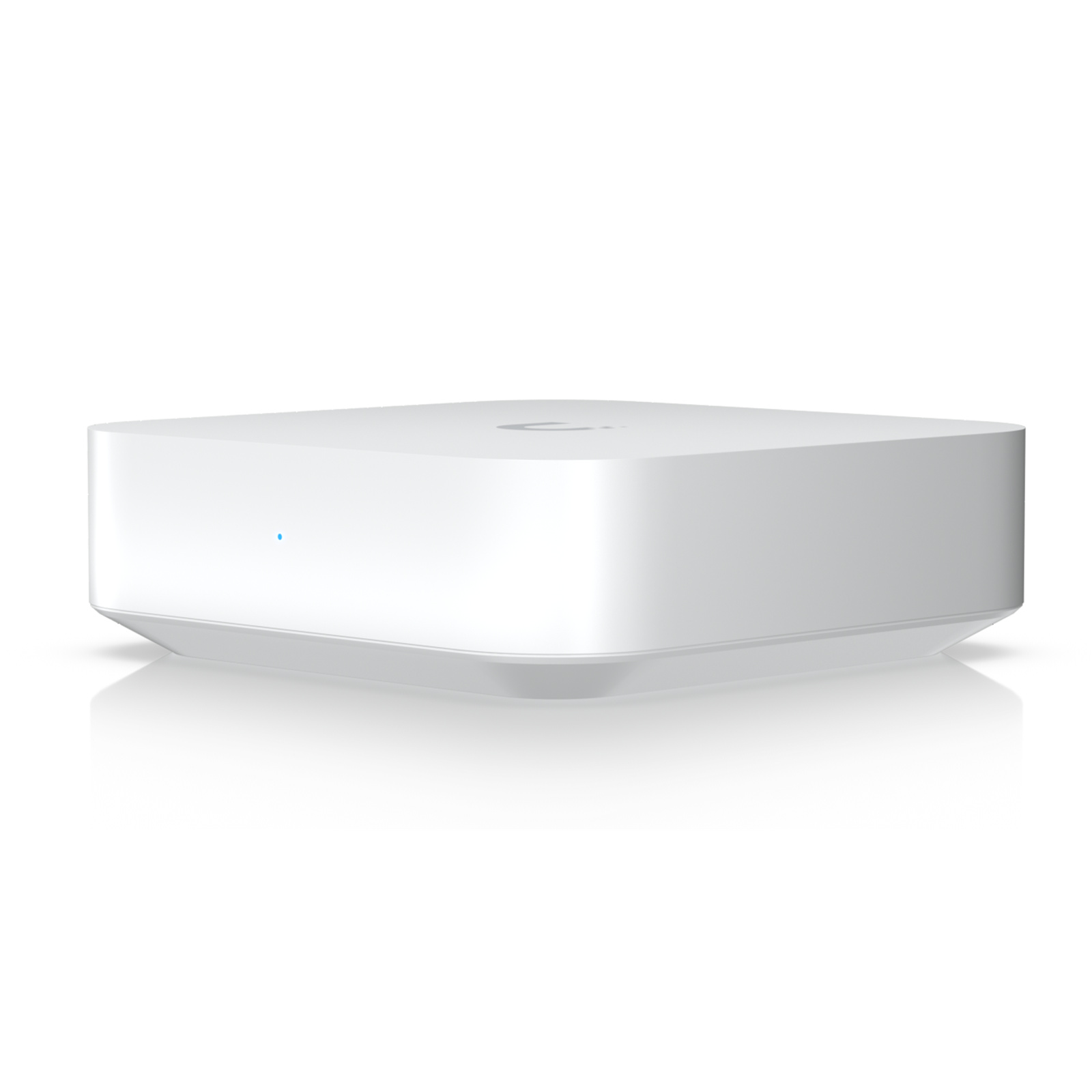

Ubiquiti UniFi (UXG-Lite) Gateway Lite
1GbE x2
Ubiquiti UniFi (UXG-Lite) Gateway Lite
1GbE x2
- Brand: Ubiquiti
- MPN: UXG-Lite
- Part #: NETUBI2206
- UPC: 810084692042
What PB Tech customers are saying about this product...
See More Reviews"This is an ideal little gateway router firewall combo unit which is simple to set up and fits easily into any Unifi network. It only has two ports, each 1Gbps rated - one for WAN a ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wired Routers





Ubiquiti UniFi (UXG-Lite) Gateway Lite 1GbE x2
- Brand: Ubiquiti
- MPN: UXG-Lite
- Part #: NETUBI2206
- UPC:810084692042

Product URL: https://www.pbtech.com/pacific/product/NETUBI2206/Ubiquiti-UniFi-UXG-Lite-Gateway-Lite-1GbE-x2
Features
A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
- Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- (1) GbE WAN port
- (1) GbE LAN port
- Compact footprint
- USB-C powered (adapter included)
- Managed with UniFi Network 8.0.7 and later
Specifications
Mechanical
Dimensions
98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
Weight
320 g (11.3 oz)
Enclosure material
Polycarbonate
Hardware
Processor
Dual-core ARM® Cortex®-A53 at 1 GHz
Memory information
1 GB DDR3L
Management interface
Ethernet
Bluetooth 5.1
Networking interface
LAN:
(1) GbE RJ45 port
WAN:
(1) GbE RJ45 port
Power method
USB type C (5V/3A)
Supported voltage range
100-240V
Max. power consumption
3.83W
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support
Application Requirements
UniFi Network
Version 8.0.7 and later
