Ubiquiti UACC-ETH-SP-DIN 10 GbE PoE++ Wall/DIN Mountable Ethernet Surge Protection
Ubiquiti UACC-ETH-SP-DIN 10 GbE PoE++ Wall/DIN Mountable Ethernet Surge Protection
- Brand: Ubiquiti
- MPN: UACC-ETH-SP-DIN
- Part #: NETUBI22301
- UPC:
- Brand: Ubiquiti
- MPN: UACC-ETH-SP-DIN
- Part #: NETUBI22301
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Adapters





Ubiquiti UACC-ETH-SP-DIN 10 GbE PoE++ Wall/DIN Mountable Ethernet Surge Protection
- Brand: Ubiquiti
- MPN: UACC-ETH-SP-DIN
- Part #: NETUBI22301

Product URL: https://www.pbtech.com/pacific/product/NETUBI22301/Ubiquiti-UACC-ETH-SP-DIN-10-GbE-PoE-WallDIN-Mounta
Features

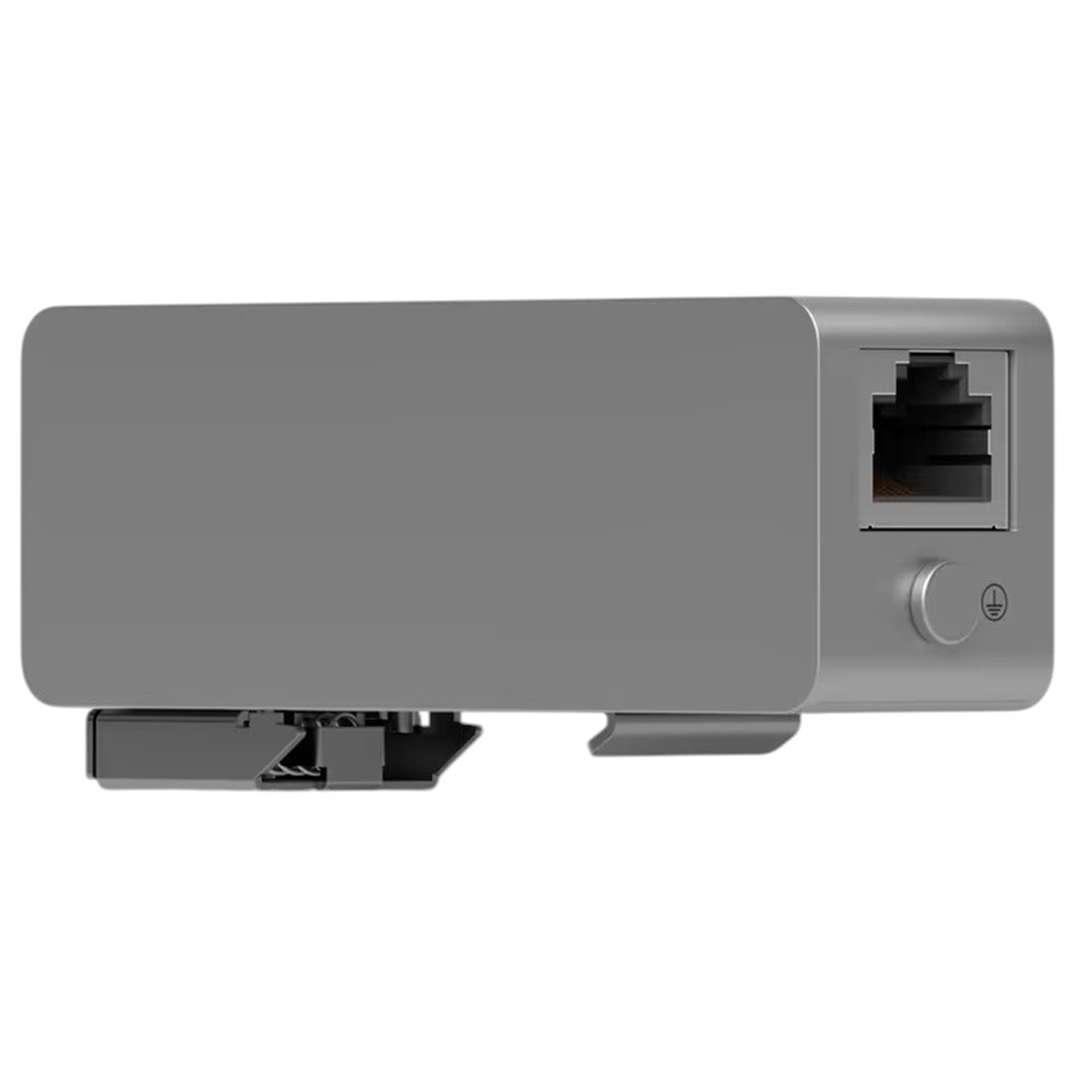

Ubiquiti Ethernet Surge Protection (UACC-ETH-SP-DIN). Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.
- Compatible with 10 GbE networks
- Supports up to PoE++ Passthrough
- 20kA Surge Discharge
- Wall/DIN rail mount
- Multiple grounding points
Specifications
Manufacturer's Code
UACC-ETH-SP-DIN
Dimensions
89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
Weight
74 g (2.6 oz)
Enclosure Material
Polycarbonate, SGCC steel
Networking Interface
(2) RJ45 female connectors
DC Spark-Over Voltage
90V @ 100V/s
Max. Impulse Spark-Over Voltage
600V @ 1kV/µs
Discharge Current
20kA
Insulation
Max. Resistance: 1G ohm @ 50V
Max. Capacitance
1.0 pF @ 1 MHz
Data Line Protection
Up to 10 Gbps
PoE Support
Yes (up to PoE++)
ESD/EMP Protection
Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature
-40° to +80° C (-40° to 176° F)
Ambient Operating Humidity
10 to 90% noncondensing
