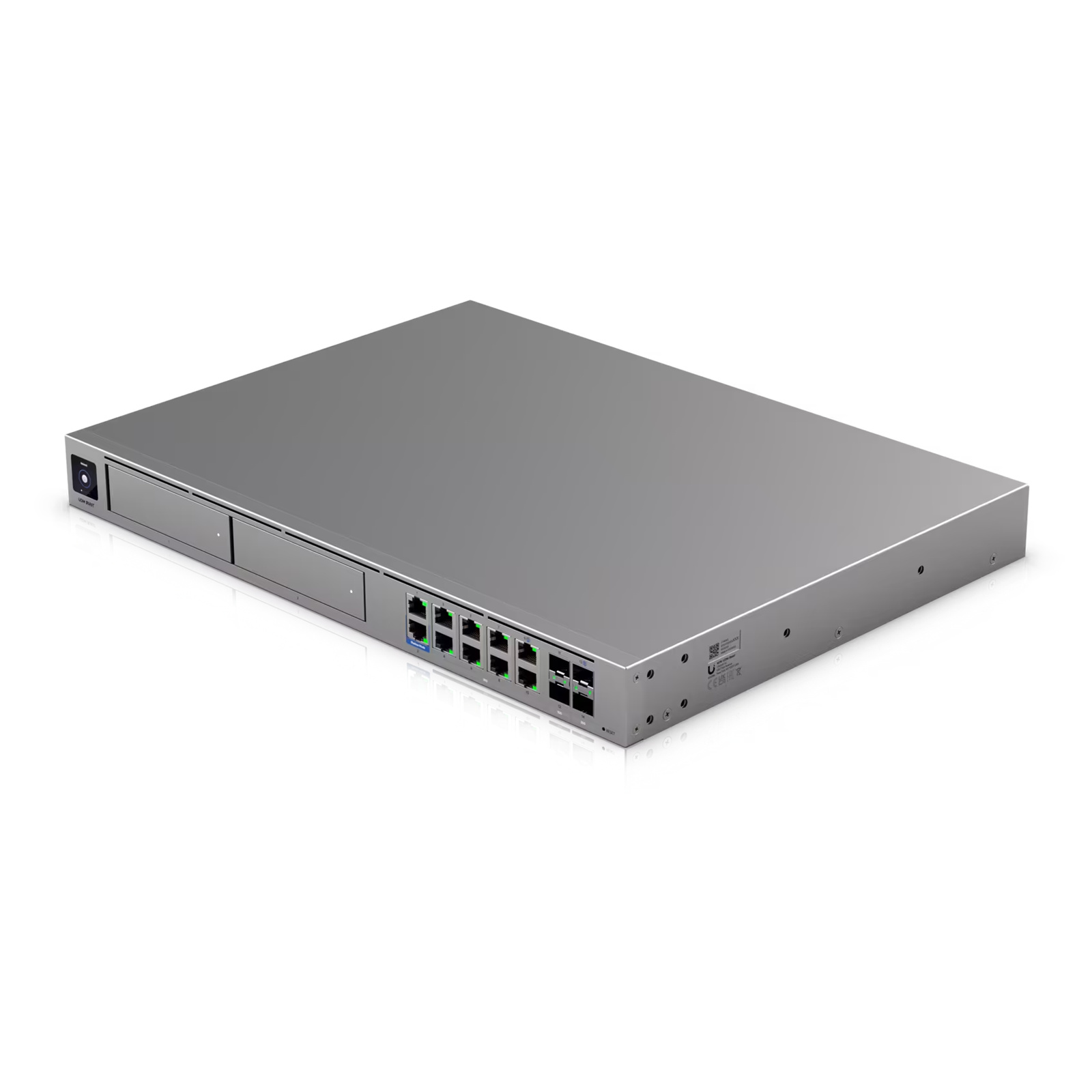

Ubiquiti UniFi Dream Machine Beast

25G SFP+ x2 / 10G SFP+ x2 /10GbE x8

PB Tech price

NZD $ 3,446 .51

$ 3,446 .51

Out of stock

Ubiquiti UniFi Dream Machine Beast

25G SFP+ x2 / 10G SFP+ x2 /10GbE x8

Brand: Ubiquiti
MPN: UDM-Beast
Part #: NETUBI2593
UPC:

PB Tech price

NZD $ 3,446 .51

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: UDM-Beast
Part #: NETUBI2593
UPC:

Be the first to review this product

Wireless Technology

N/A

Ethernet Ports Per Unit

USB Ports

Wireless Transmission Speed

N/A

WiFi Bands

N/A

Cellular Connectivity

N/A

HyperFibre Compatible

Not Specified

Coverage Area

N/A

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

Router I/O Ports

Deployment

In The Box

Specifications

General

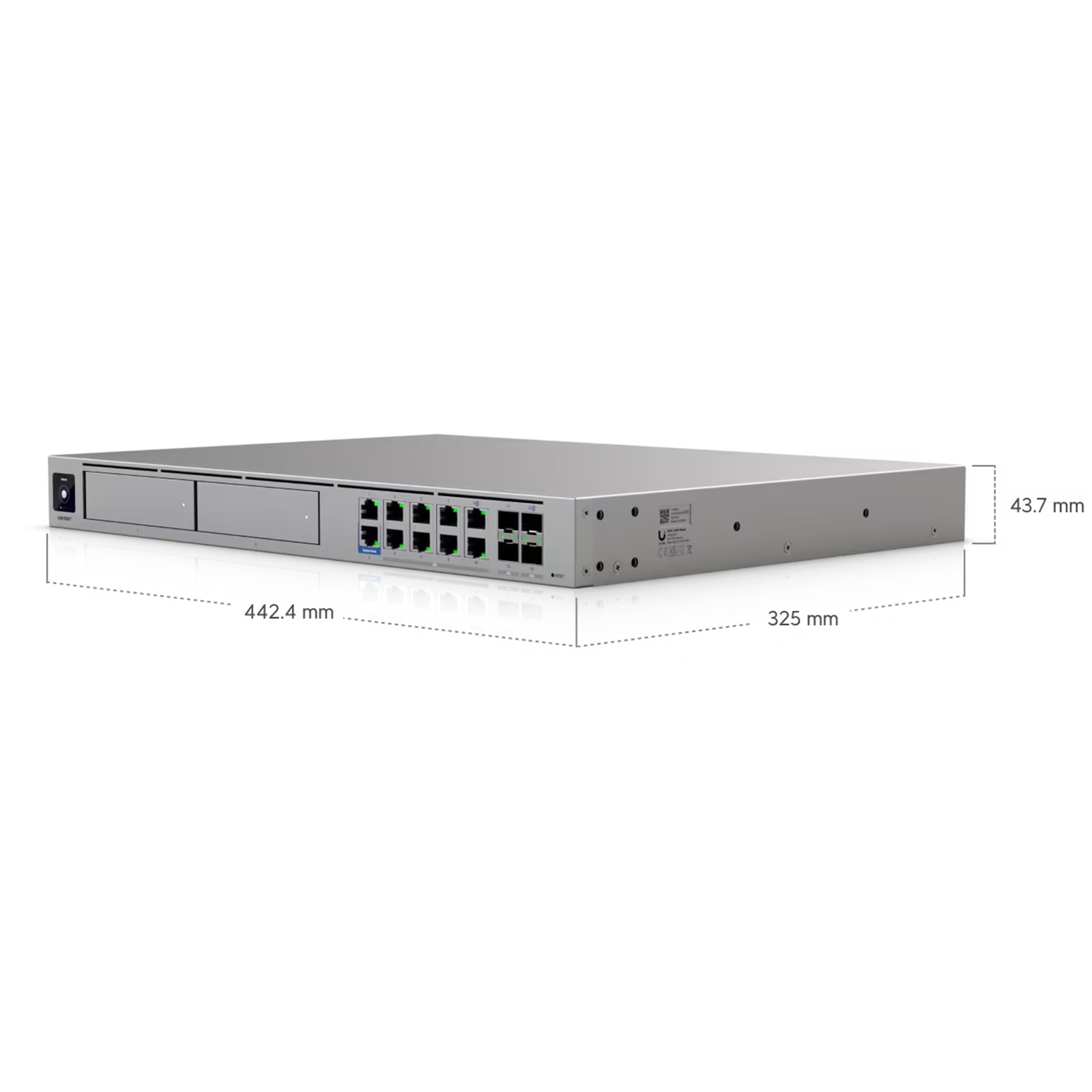

Dimensions

442.4 x 43.7 x 325 mm
(17.4 x 1.7 x 12.8")

UniFi Application Suite

Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes

Managed UniFi Devices

750+

Managed Cameras

(100) HD
(60) 2K
(40) 4K

Managed Access Hubs

200

Simultaneous Users Connected

7,500+

Max. WAN Port Count

Default WAN Ports

(1) 25G SFP28
(1) 10 GbE RJ45

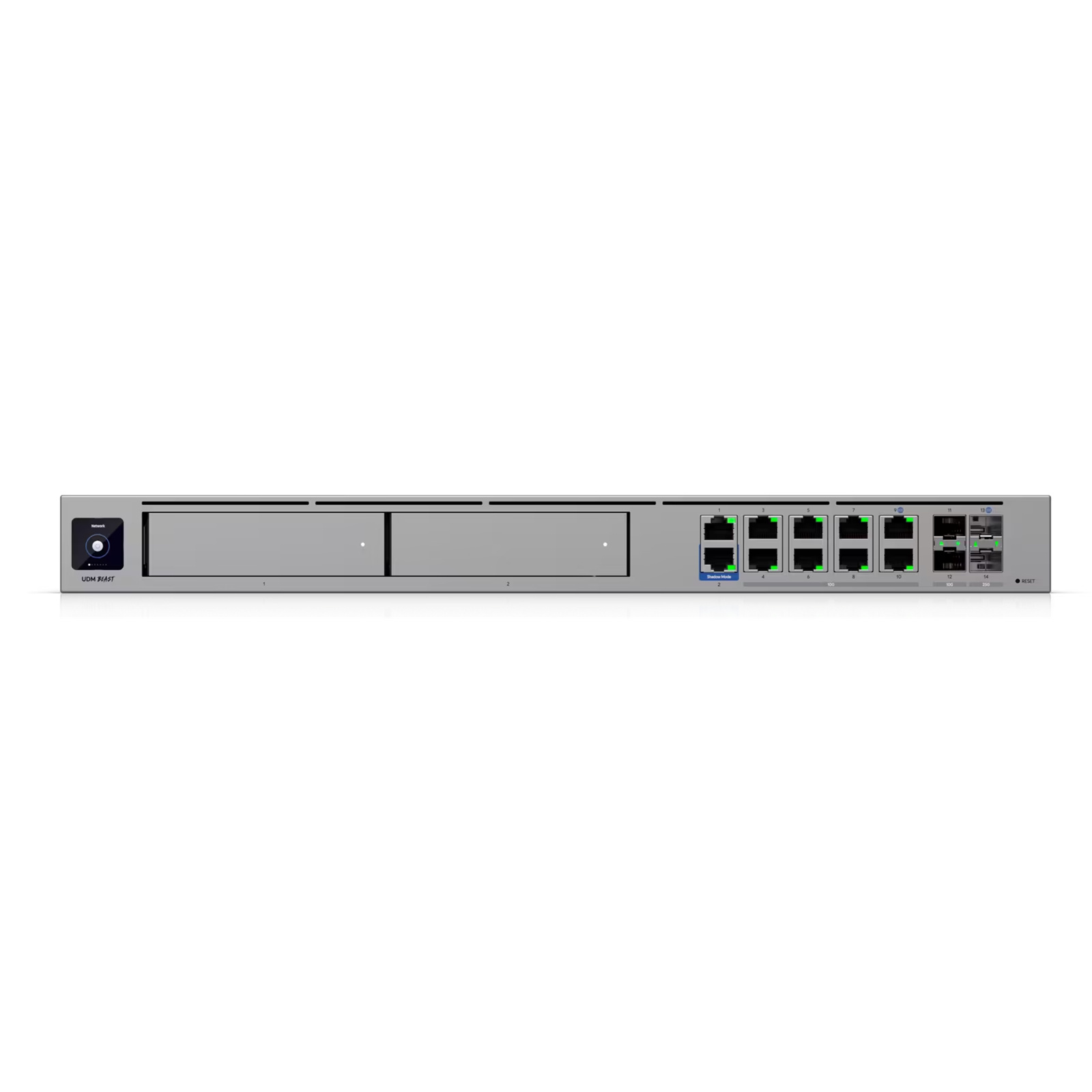

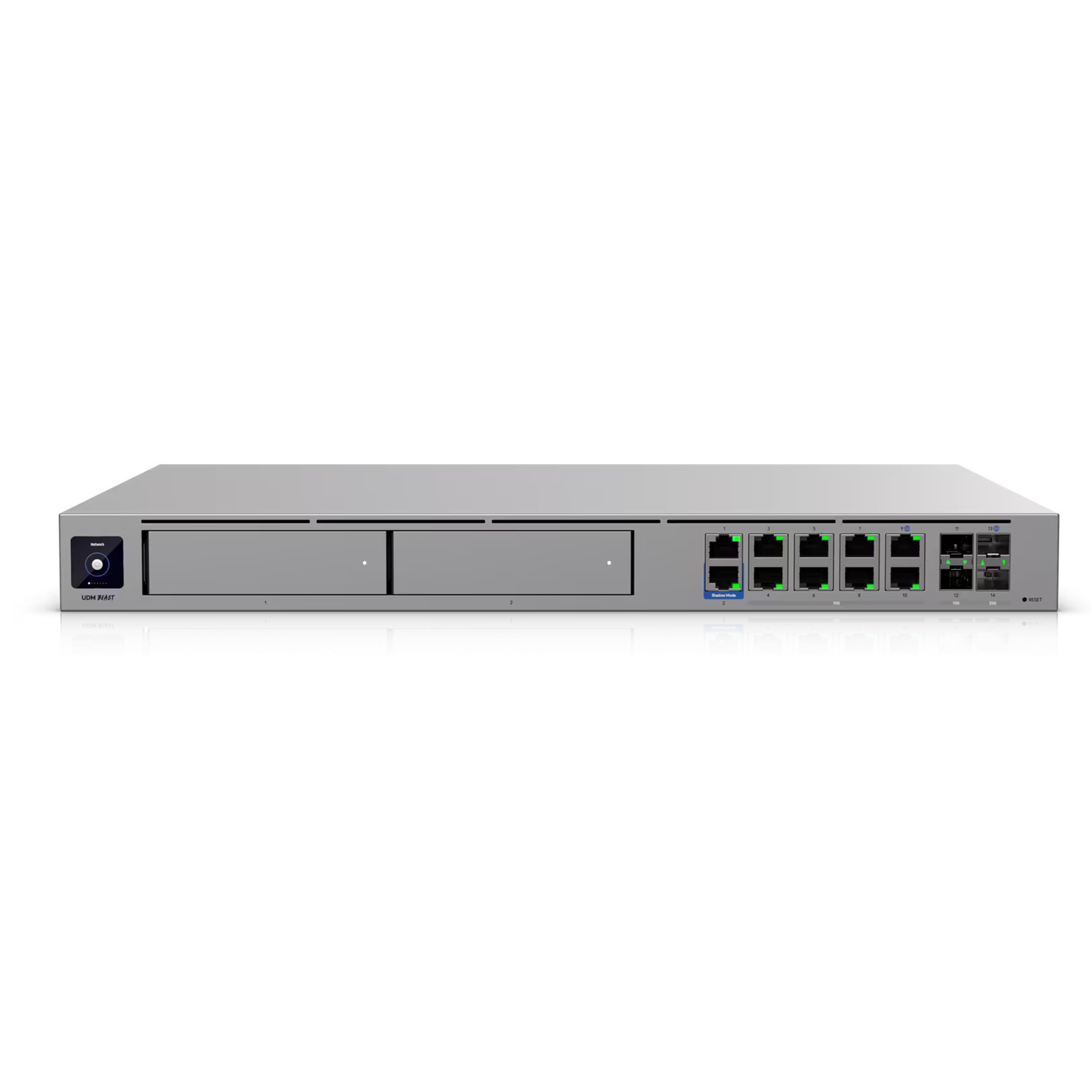

Port Layout

1 GbE RJ45: 2 (1G/100M/10M)
10 GbE RJ45: 8 (10G/5G/2.5G/1G/100M)
10G SFP+: 2 (10G/1G)
25G SFP28: 2 (25G/10G/1G)
Console: 1

IDS/IPS Throughput

25 Gbps

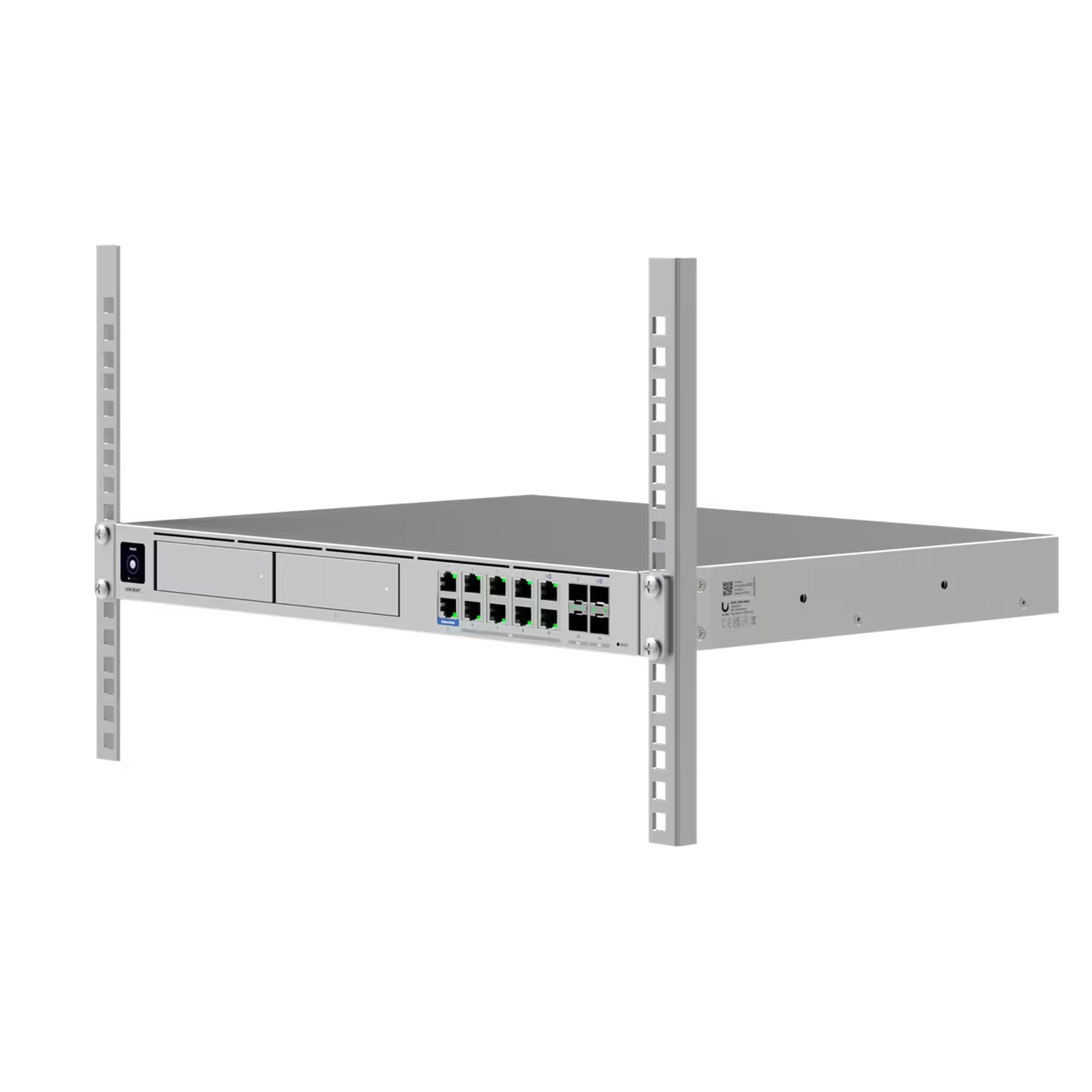

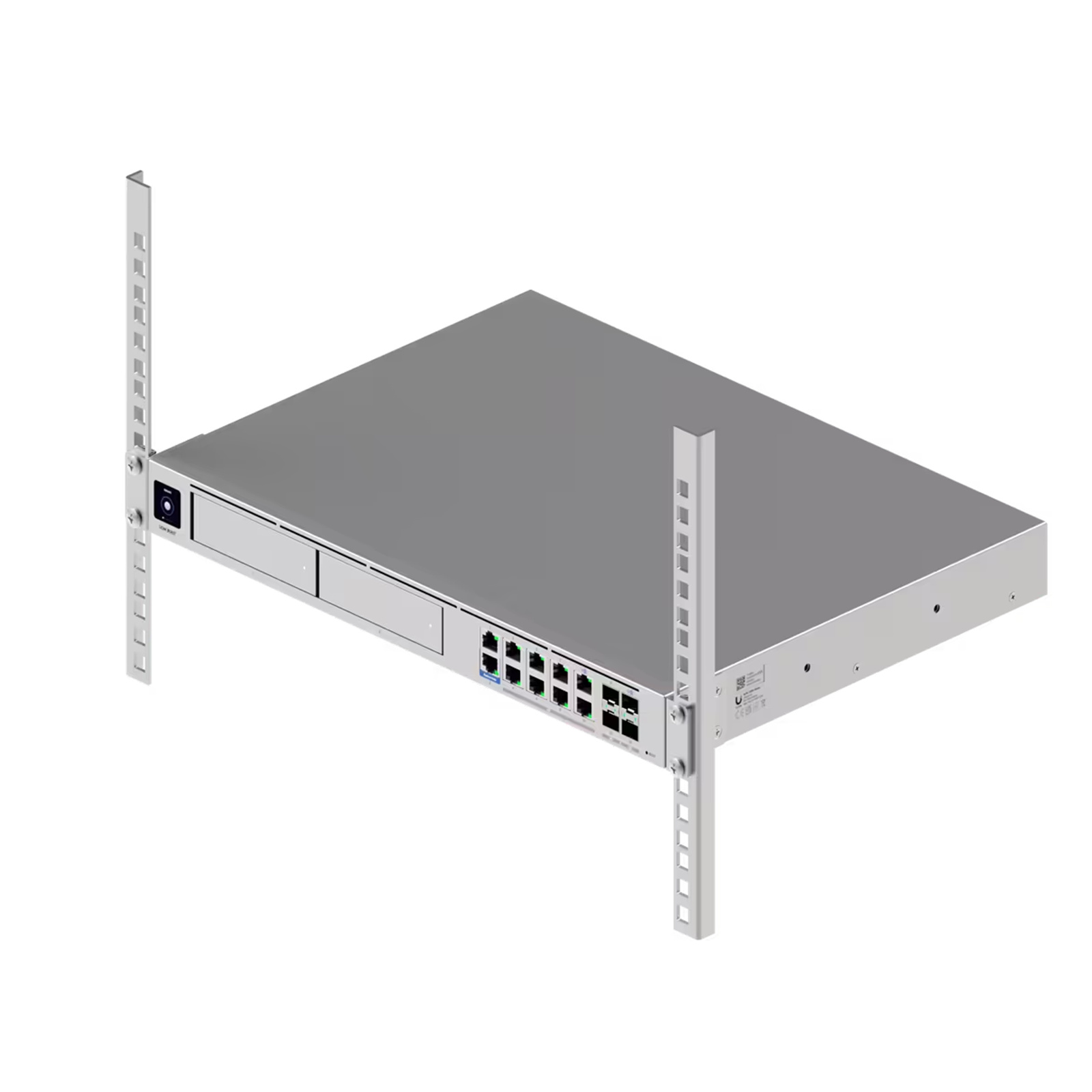

Form Factor

Rack mount (1U)

Redundancy

Shadow Mode (VRRP) Gateway Failover
DC Power Backup

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

55,000+ with CyberSecure

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic: Yes
IPsec: Yes
OpenVPN: Yes

VPN Server

Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes

VPN Client

OpenVPN: Yes
WireGuard: Yes

Networking

Multi-WAN Load Balancing

Yes

Shadow Mode (VRRP) High Availability

Yes

LACP Port Aggregation

Yes

Dynamic Routing

OSPF: Yes
BGP: Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

32,000

Policy-based WAN and VPN Routing

Yes

Customizable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

All Traffic Flows

Yes

Hardware

NVR Storage

(2) 3.5" NVR HDD bays
Built-in 128 GB SSD for Faster Experience

Max. Power Consumption

100W

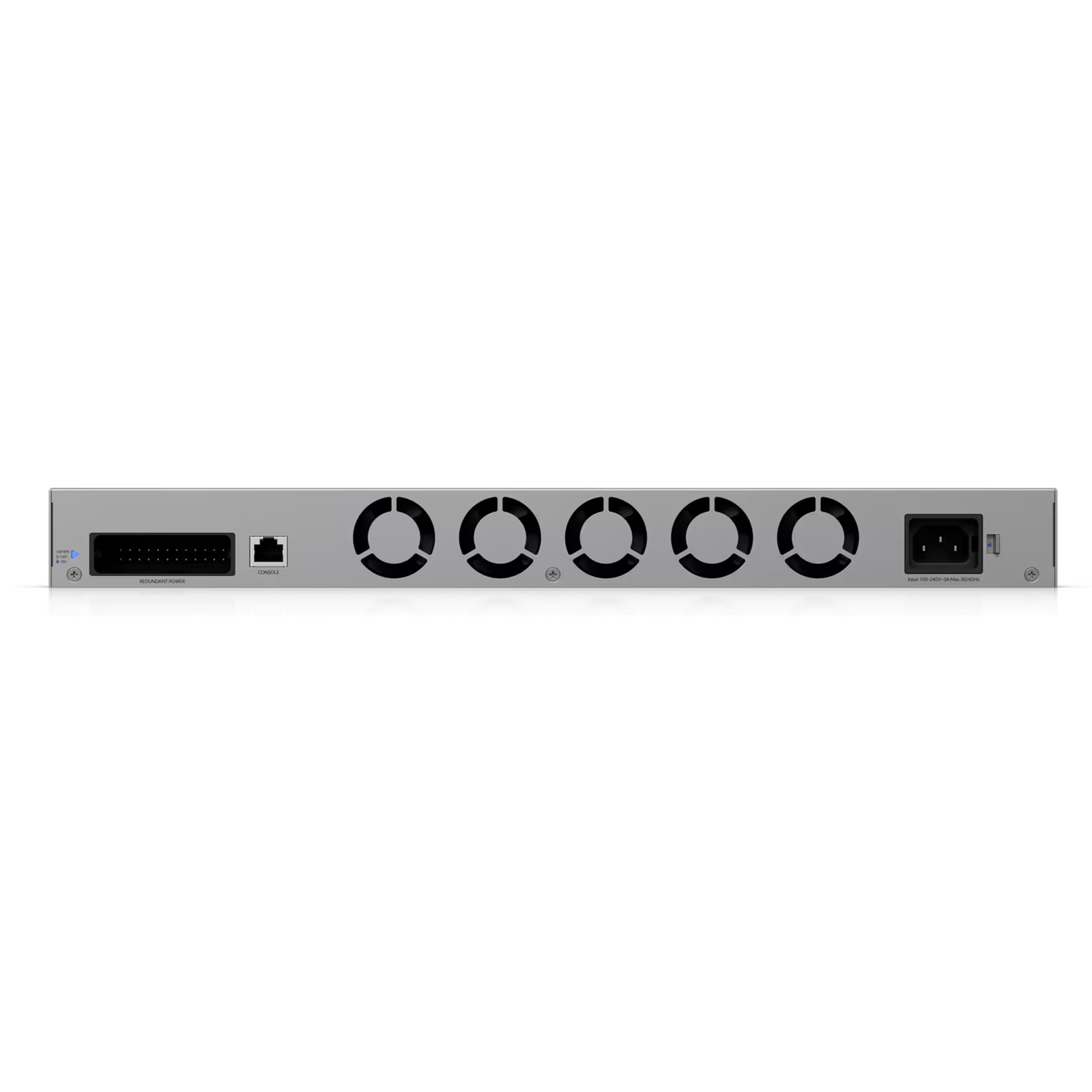

Power Method

(1) Universal AC input, 100-240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.05A

Power Supply

AC/DC, internal, 150W

Supported Voltage Range

100-240V AC

Heat Dissipation

342 BTU/hr

Processor

Octa-core ARM® v9 at 2.1 GHz

System Memory

16 GB

On-board Storage

Integrated 128 GB SSD

Weight

5.5 kg (12.13 lb)

Enclosure Material

Aluminium CNC, SGCC steel

Mount Material

SGCC steel

LCM Display

1.3" touchscreen

Management

Ethernet
Bluetooth

LEDs

Ethernet: Yes
SFP+: Yes
SFP28: Yes
RPS: Yes
HDD: Yes

Button

(1) Factory reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC

Software

Application Requirements

Mobile App
UniFi iOS™: Version 10.34.0 and later
UniFi Android™: Version 10.37.1 and later

Manufacturer Part No:

UDM-Beast

Brand:

Ubiquiti

Product Type:

UPC

Product Family:

UniFi

Shipping Weight:

5.2 kg

PB Part No:

NETUBI2593

Product Model:

Dream Machine Beast

Warranty: 12 months *
