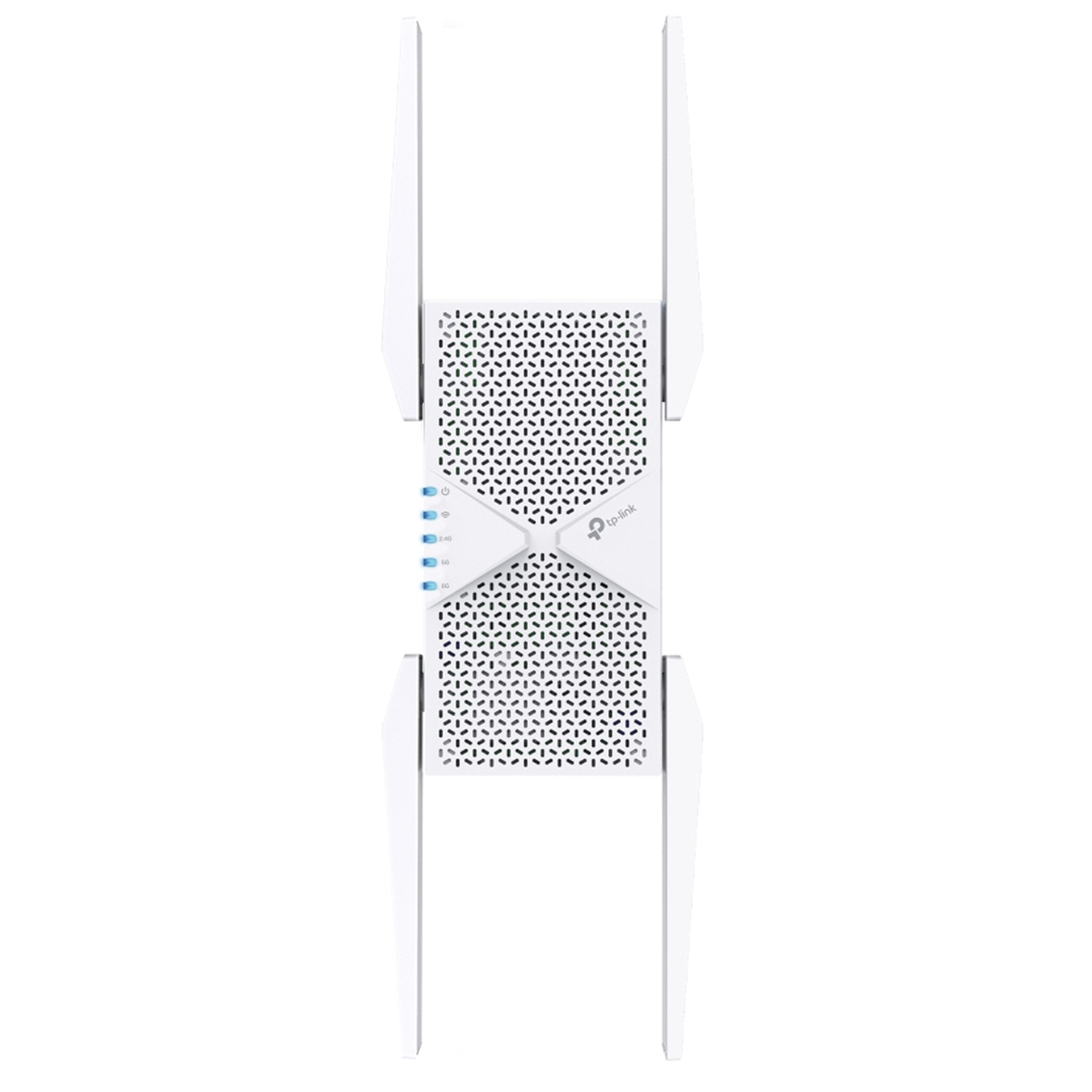

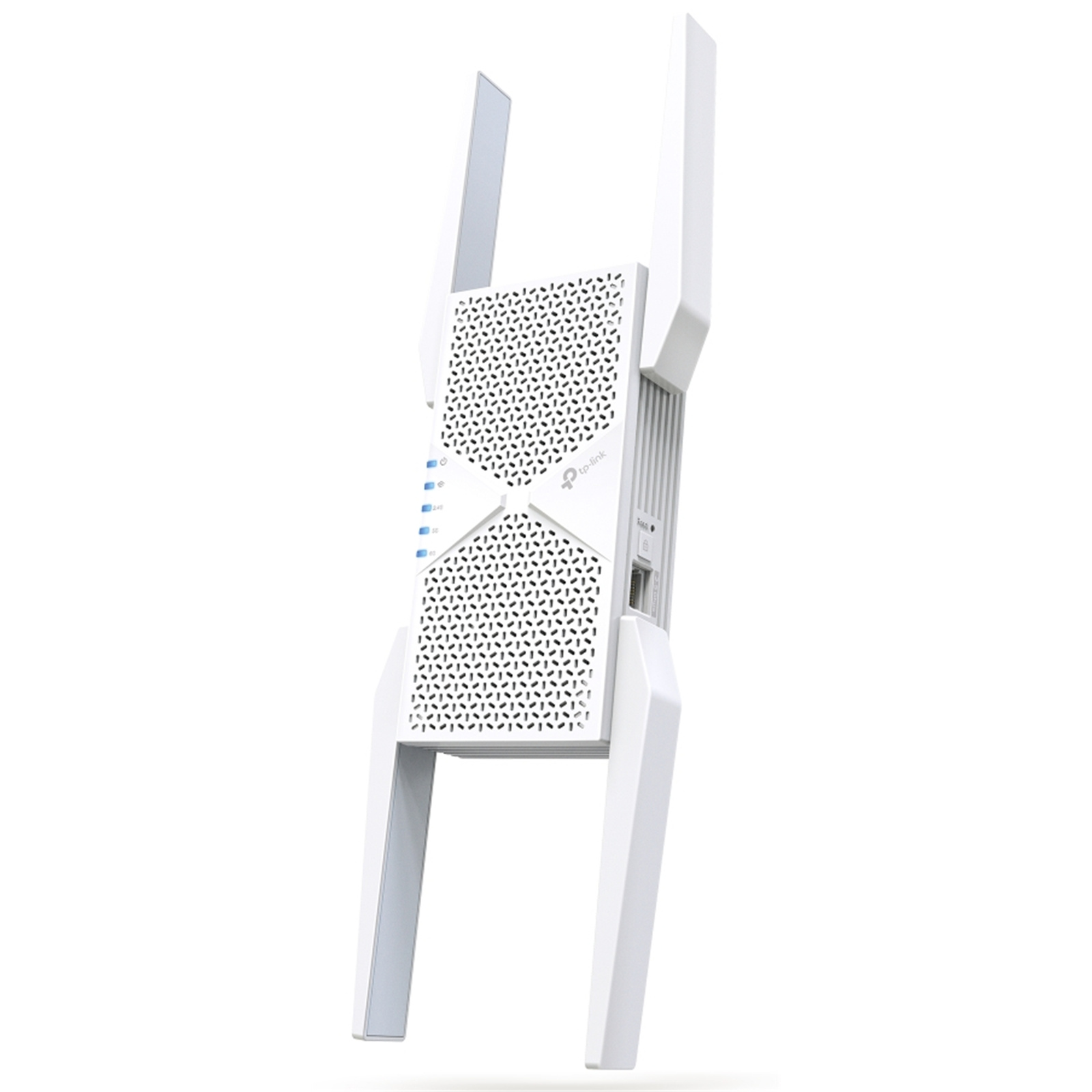

TP-Link RE655BE (BE9300) Tri-Band Wi-Fi 7 Range Extender 2.5GbE x1
TP-Link RE655BE (BE9300) Tri-Band Wi-Fi 7 Range Extender 2.5GbE x1
- Brand: TP-Link
- MPN: RE655BE
- Part #: NRETPL7655
- UPC:
- Brand: TP-Link
- MPN: RE655BE
- Part #: NRETPL7655
- UPC:
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Wireless Range Extenders





TP-Link RE655BE (BE9300) Tri-Band Wi-Fi 7 Range Extender 2.5GbE x1
- Brand: TP-Link
- MPN: RE655BE
- Part #: NRETPL7655

Product URL: https://www.pbtech.com/pacific/product/NRETPL7655/TP-Link-RE655BE-BE9300-Tri-Band-Wi-Fi-7-Range-Exte
Features
BE11000 Tri-Band Wi-Fi 7 Range Extender
- Lightning-Fast 10.8 Gbps Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.?
- 6 GHz Band: Provides a clearer band to prevent Wi-Fi interference and congestion.?
- 2.5G Multi-Gigabit Ethernet Port: 1× 2.5 Gbps port ensures max flexibility and boosted throughput.
- Maximized Coverage: Proprietary Wi-Fi optimization and 4× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*
- Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
- Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.***
WiFi 7 - WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
Lightning-Fast 10.8 Gbps Tri-Band WiFi with MLO
Experience a high-end Tri-Band WiFi 7 range extender with blazing-fast WiFi speeds up to 10.8 Gbps.† Now, every device in your home network will run at top performance. The exclusive 6 GHz band provides exceptional bandwidth and congestion-free channels exclusive to your devices.
The Power of 6G Band
The 6G band more than doubles the available spectrum, meaning no more competition over the airwaves. Experience blazing-fast speed WiFi thanks to the clean 6 GHz band and the added 320 MHz channels, eliminating interference from legacy devices.
Extend WiFi to Where You Need It Most
RE655BE wirelessly connects to your existing router and boosts more WiFi signals throughout your home. Its proprietary WiFi optimization and 4× optimally positioned antennas deliver more capacity, stronger and more reliable connections, and less interference.
EasyMesh - Flexibly Create Whole Home Mesh WiFi
RE655BE is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
Control at Your Fingertips
Set up and manage your WiFi, including TP-Link routers and range extenders, from your Android or iOS phone with the TP-Link Tether app.
Specifications
HARDWARE FEATURES
Ports
1× 2.5 Gbps LAN Port
Button
- WPS Button
- Reset Button
Input Power
100-240V~50/60Hz 0.5A
Power Consumption
23.5W
Dimensions ( W x D x H )
4.2 ×1.5 × 6.3 in. (107.2 × 39 × 161 mm)
Antenna
4 External Antennas
WIRELESS FEATURES
Wireless Standards
Wi-Fi 7
IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz
Frequency
- 6 GHz
- 5 GHz
- 2.4 GHz
Signal Rate
- 5764 Mbps at 6 GHz
- 4323 Mbps at 5 GHz
- 688 Mbps at 2.4 GHz
Working Modes
Range Extender/Access Point
Reception Sensitivity
6GHz:
11be HE20 MCS0:-95dBm, 11be HE20 MCS13:-60dBm
11be HE40 MCS0:-92dBm, 11be HE40 MCS13:-57dBm
11be HE80 MCS0:-88dBm, 11be HE80 MCS13:-53dBm
11be HE160 MCS0:-85dBm, 11be HE160 MCS13:-50dBm
11be HE320 MCS0:-81dBm, 11be HE160 MCS13:-46dBm
5GHz:
11be HE20 MCS0:-93dBm, 11be HE20 MCS13:-58dBm
11be HE40 MCS0:-89dBm, 11be HE40 MCS13:-54dBm
11be HE80 MCS0:-87dBm, 11be HE80 MCS13:-51dBm
11be HE160 MCS0:-85dBm, 11be HE160 MCS13:-49dBm
11be HE240 MCS0:-83dBm, 11be HE160 MCS13:-47dBm
2.4GHz:
11be HE20 MCS0:-97dBm, 11be HE20 MCS11:-64dBm
11be HE40 MCS0:-95dBm, 11be HE40 MCS11:-62dBm
Wireless Security
- WPA/WPA2-PSK encryptions
- WPA3
Advanced Functions
- Multi-Link Operation (MLO)
- 320 MHz Channel
- 4K-QAM
- Multi-RUs
Transmission Power
FCC:
- 2.4GHz < 30dBm
- 5GHz < 30dBm
- 6GHz < 30dBm
Mesh Technology
EasyMesh-Compatible
Wireless Function
- LED Control
- Access Control
- Power Schedule
- Wi-Fi Coverage
OTHERS
Certification
FCC, RoHS
Package Contents
- Wi-Fi 7 Range Extender RE655BE
- Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari
4.0, or other Java-enabled browser
Environment
- Operating Temperature: 0?~40? (32? ~104?)
- Storage Temperature: -40?~70? (-40? ~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
