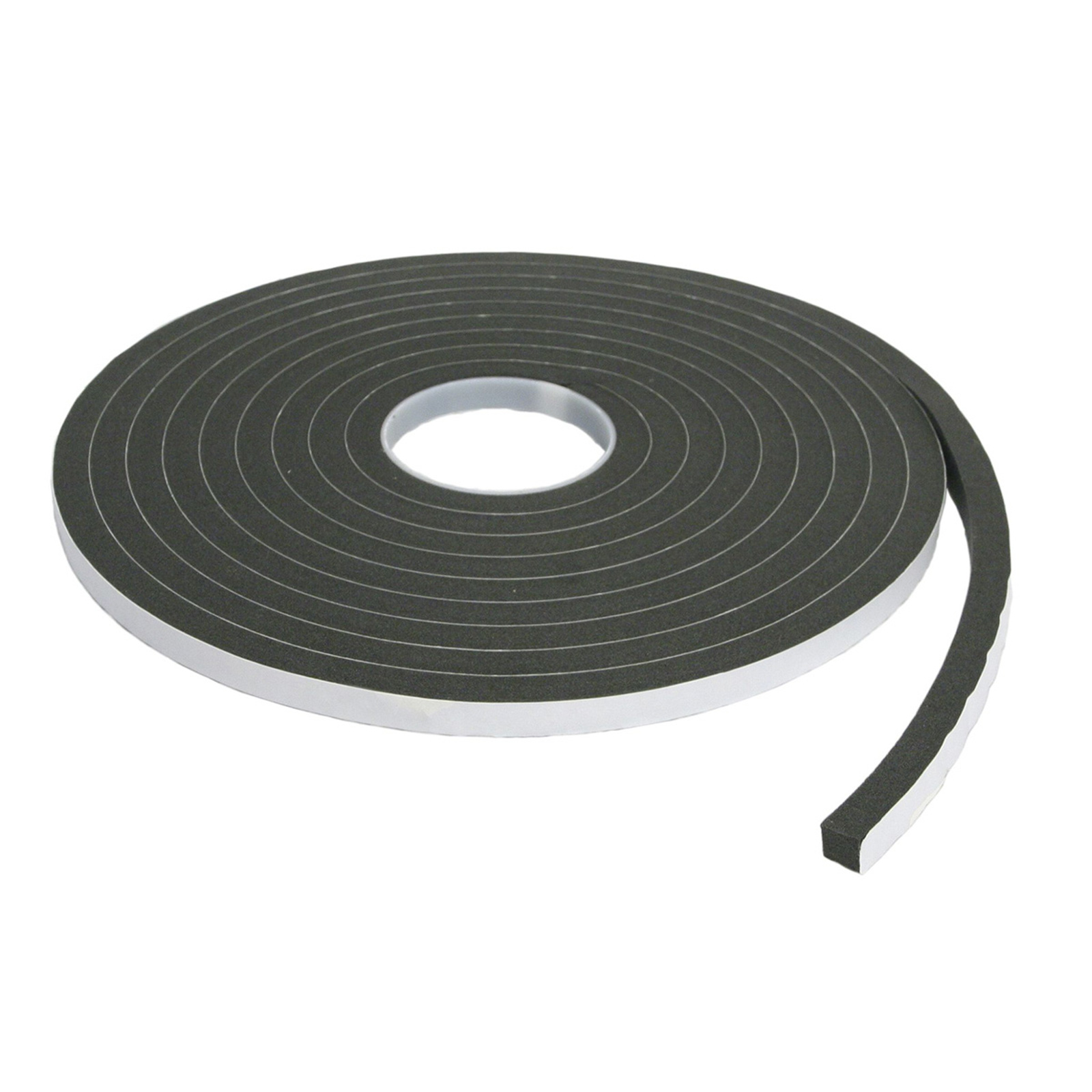

Inseal 3109 PKD

12mm Thickness - 21mm Width - 6m Length

PB Tech price

NZD $ 35 .65

$ 35 .65

Inseal 3109 PKD

12mm Thickness - 21mm Width - 6m Length

Brand: Inseal
MPN: 3109120021PKD
Part #: OFSISL907028
UPC:

PB Tech price

NZD $ 35 .65

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 11 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Inseal
MPN: 3109120021PKD
Part #: OFSISL907028
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Inseal 3109 is a soft closed cell foam coated on one side with an acrylic pressure sensitive adhesive. It has a removeable paper release liner on the other non-adhesive side. Inseal 3109 has a soft foam making it ideal for sealing between irregular or uneven surfaces, and has very easy compression. 3109 creates a consistent lasting bond. Inseal 3109 will act as a water-seal and air/dust seal when compressed. It is available in black.

- Good resistance to dilute acid and alkalis
- Very good UV light resistance
- Resistance to abrasion, corrosion and moisture
- Suitable for indoor and outdoor environments
- No known hazards associated with this product
- Clean edge finish

By hand direct from roll applying even pressure. Surface must be clean, dry and free from grease and dirt. Recommended cleaning agent is Propan-2-ol (IPA). Ensure compatibility of substrate with the solvent. Ideal bonding substrates are clean, dry, flat, smooth, dust-free and nonporous. Low temperatures may increase risk of condensation, reducing the tack of the product, and the life expectancy of the product will vary with temperature and humidity.

- Suitable for anti-rattle and anti-vibration applications
- Forms a compression watertight seal
- Forms a compression air/dust seal
- Cushioning and gap-filling of irregular surfaces
- For preventing electrolytic corrosion
- For anti-slip mounting

Specifications

Product Type

PKD Tape

Thickness

12mm

Width

21mm

Length

Shore Hardness "00" Scale

Compression Required To Effect Seal

30% minimum

Force To Compress By 30%

1.5 N/cm²

Compression Deflection After One Minute

1.0 N/cm²

10 Minute 180° Peel Adhesion

5 N/25mm

Tensile Strength

28 N/cm²

Elongation At Break

< 170%

Thermal Conductivity (K)

0.055 Wm^-1K^-1

Chemical Resistance

Good resistance to dilute acids and alkalis

UV Light Resistance

Very good

Service Temperature

-30°C to +70°C

Recommended Application Temperature

+10°C to +40°C

Adhesive

Acrylic

Manufacturer Part No:

3109120021PKD

Brand:

Inseal

Product Type:

PKD

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

OFSISL907028

Product Model:

3109

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
