Bixolon SRPF310II 3-inch Thermal POS Printer Black- F/E Ethernet, Serial, USB
- Brand: Bixolon
- MPN: SRP-F310IICOSK
- Part #: POSBXL0310

Product URL: https://www.pbtech.com/pacific/product/POSBXL0310/Bixolon-SRPF310II-3-inch-Thermal-POS-Printer-Black
Features

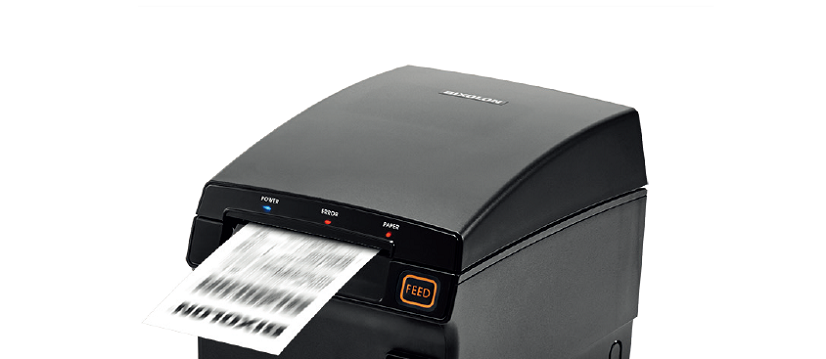

Bixolon SRP-F310II 3-inch Thermal POS Printer
The SRP-F310II 3-inch (80mm) thermal printer, offers a front exit, splash proof design, featuring BIXOLON's Liquid-Barrier™ technology and built-in power supply. Producing 180dpi or 300dpi printed media at an impressive 350mm/second makes it suitable for a number of applications in Retail, Hospitality, Healthcare, Warehousing and more.
Environmental Endurance

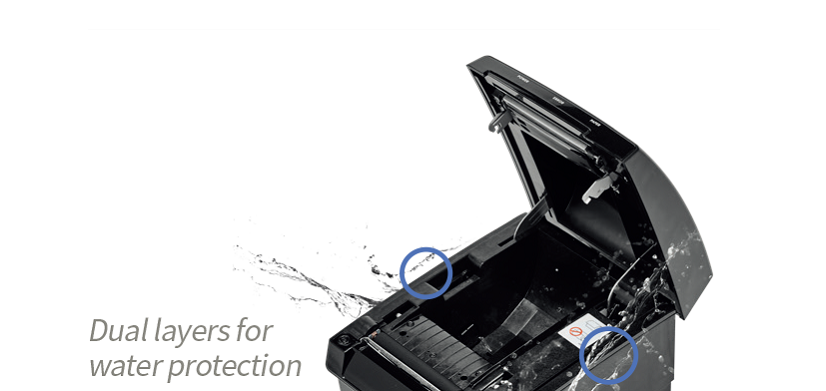

- Liquid-Barrier™ creates real waterproof and dustproof printing solution(IP12 certified)

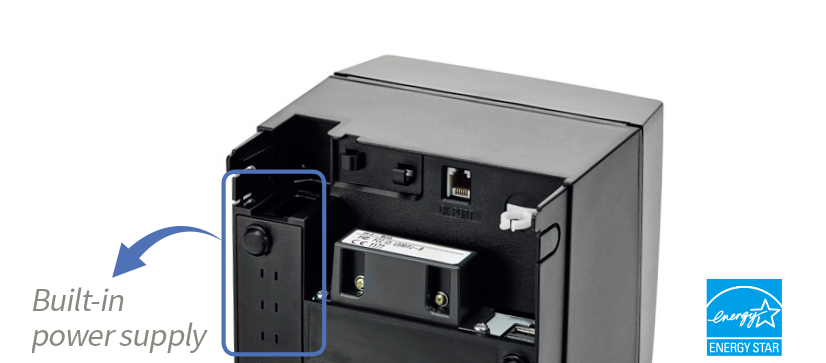

- Built-in power supply for space saving and water protection
Ensuring Business Continuity
- High reliability of 250 km TPH with its Auto Cutter guaranteed up to 3 million cuts
- Faster printing speed of up to 350 mm/sec,(29 % faster than SRP-F310)
- All in one Plus™ Interface (Built-in USB V2.0 + Ethernet) + Serial, Powered USB, Bluetooth or WLAN
Low TCO
- Paper save mode supported
- Eco-friendly low power consumption technology adopted
- Energy star certified
Specifications
Print Characteristics
Print Method
Direct Thermal (Front Exit)
Print Speed
Up to 350 mm/sec
Print Resolution
SRP-F310II: 180 dpi (512 dots)
Print Width
SRP-F310II: Up to 72 mm
Sensor
Paper End, Paper Near End, Cover Open
Media Characteristics
Media Type
Receipt
Media Width
80 mm
Optional 58 mm
Media Roll Diameter
Up to 105 mm
Media Thickness
0.05 to 0.08 mm
Supply Method
Easy Paper Loading
Physical Characteristics
Dimensions (WxLxH)
154 x 203 x 148 mm (6.06 x 7.99 x 5.82 inch)
Weight
2 kg (4.40 lbs.)
Electrical
EnergyStar® Certified,
External Power Supply Housed Internally
(Adapter 24 V/2.5 A, 50/60 Hz)
Drawer Port
2 ports (Via Y-Type Adapter)
Environment Characteristics
Temperature
Operating: 0 to 40? (32 to 104?)
Storage: -20 to 60? (-4 to 140?)
Humidity
Operating: 10 to 80% RH
Storage: 10 to 90% RH
Sealing
IP12
Software
Emulation
BXL/POS
Driver/Utility
Windows® Driver, OPOS/JPOS Driver, Linux/Mac® CUPS Driver, Virtual COM USB/Ethernet Driver, Utility Program, Network Auto Installer
Developer Tools
Android /iOS®/Windows SDK, Linux SDK Xamarin SDK, Web Print SDK, Cordova Plugin
Design & Print
mPrint App (Android, iOS)
MDM(Optional)
BIXOLON Profile Manager - XPM , XCM (Windows, Android)
Fonts/Graphics/Symbologies
Character Size
Font A: 12 x 24, Font B: 9 x 17,
Font C: 9 x 24, KOR, CHN, JPN: 24 x 24
Characters per Line
SRP-F310II: Font A: 42, Font B, C: 56, KOR, CHN, JPN: 21
Character Sets
Alphanumeric: 95
Extended Graphics: 128 x 35 page
International: 32
Barcode Symbologies
1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E
2D: Data Matrix, PDF417, QR Code
