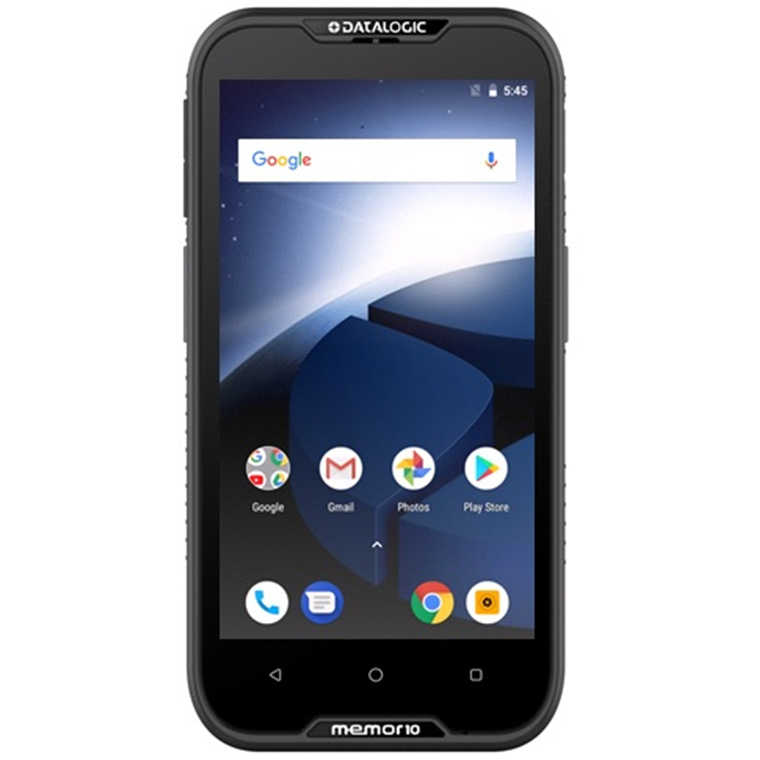

Datalogic Memor 10 Full Touch PDA, EMEA + ROW, Wi-Fi + LTE, Ultra-slim 2D Imager w Green Spot, Android v8.1 with GMS, Black

PB Tech price

NZD $ 885 .22

$ 885 .22

Datalogic Memor 10 Full Touch PDA, EMEA + ROW, Wi-Fi + LTE, Ultra-slim 2D Imager w Green Spot, Android v8.1 with GMS, Black

Brand: Datalogic
MPN: 944350001
Part #: POSDAT0930
UPC:

PB Tech price

NZD $ 885 .22

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 22 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Datalogic
MPN: 944350001
Part #: POSDAT0930
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The Memor 10 PDA brings the power and the performance of a smartphone and the user friendly experience of Android™ in a slim and compact device, fully-featured and Enterprise ready. It incorporates Datalogic's industry-first wireless charging system for ultra-reliable contactless charging, paired with a 1-pc swappable battery for the best operational advantage.

The Memor 10 PDA is provided with a state of the art octa-core platform, featuring Android 8.1 (Oreo) with GMS; such exciting specs led to the endorsement by Google, who validated the Memor 10 PDA as one of the first mobile computers within their 'Android Enterprise Recommended' program for rugged devices.

- Wireless charging for best in class reliability together with one pc swappable battery (unique)
- Fully state of the art platform: octa core processor with Android 8.1 and Google Mobile Services
- Advanced 2D ultra-slim imager with Datalogic's patented 'Green Spot' technology for visual good-read feedback
- Full suite of voice and data connectivity, features the latest 802.11ac and LTE-Advanced/4G+ for cellular
- Endorsed by Google for the 'Android Enterprise Recommended' program (one of the few devices to join this program from start)
- Secured by Datalogic Shield™ : regular/recurring security patches

MEMOR™ 10 - THE POWER OF A SMARTPHONE, DESIGNED FOR ENTERPRISE

If you are looking for the power and the performance of a smartphone but are concerned about the typical Enterprise challenges, the new Datalogic Memor 10 PDA is the perfect rugged device for you!

Memor 10 incorporates the latest smartphone technologies and the user friendly experience of Android™ in a slim and compact design, combined with high performance 1D/2D bar code scanning and industrial robustness for almost any indoor or outdoor environment.

TOP PERFORMANCE

The Memor 10 is powered by a superior octa-core platform clocked at 2 GHz for top performance with the most demanding applications, and features Android 8.1 (Oreo) with Google Mobile Services (GMS).

Moreover, the Memor 10 is one of the first rugged mobile computers to be validated by Google for the 'Android Enterprise Recommended' program for rugged devices.

WIRELESS CHARGING MEETS SWAPPABLE BATTERY

The Memor 10 incorporates Datalogic's industry-first wireless charging system for ultra-reliable contactless charging, thus eliminating the need for cleaning contacts on the device and docks. Moreover, Memor 10 offers a 1-piece swappable battery for the best operational advantage.

COMMUNICATIONS

The Memor 10 leverages a complete set of embedded wireless technologies for both indoor and outdoor applications: dual band Wi-Fi including the latest 802.11ac standard, Bluetooth® v4.2 with BLE for fast and ultra-low power connections, NFC for easy pairing, and particularly the cellular area voice and data connectivity, already leveraging the next generation of LTEAdvanced/4G+.

NOTE: The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

Specifications

PHYSICAL CHARACTERISTICS

Dimensions

15.5 x 7.8 x 1.87 cm / 6.1 x 3.07 x 0.73 in

Display

5 inch IPS HD resolution 720 x 1280;
LED backlight; Touch Screen: 5 points multi-touch capacitive panel with Dragontrail hardened glass

Keys

Physical Keys: 2 side scan keys; Power On/Off; Volume Up/Down; 3 user programmable Android™ keys

Weight

With Battery: 285.0 g / 10.0 oz

READING PERFORMANCE

Camera

Resolution: 13 megapixel; Illumination: User controllable
LED flash; Lens: Auto focus

Scan Engine

2D Ultra slim area imager (supports 1D / 2D codes);
Datalogic's 'Green Spot' for good-read feedback;
Depth of Field: 8.5 to 50 cm / 3.3 to 19.7 in depending on
bar code density and type;
Resolution: VGA (640 x 480 pixels);
Illumination: White LEDs; Aiming: 650nm VLD;
Field of View: 48°H x 34°V

Print Contrast (Minimum)

25%

Minimum Element Width

1D Linear: 0.0762 mm / 4 mils
PDF: 0.127 mm / 6.6 mils
Data Matrix: 0.195 mm / 7.5 mils

WIRELESS COMMUNICATIONS

Local Area Network (WLAN)

IEEE 802.11 a/b/g/n/ac and 802.11 k/r/v; Frequency range:
Country dependent, typically 2.4 GHz and 5 GHz bands

Personal Area Network (WPAN)

Bluetooth wireless technology v4.2 (Classic Bluetooth wireless technology and BLE)

NFC Communication

Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica

WWAN / Cellular

LTE-Advanced / 4G+; Cat 6
EMEA and ROW Configuration: GSM: Quad band;
CDMA: BC0; WCDMA: B1/5/8; FDD_LTE:B1/3/5/7/8/20/28;
TDD_LTE:B38/39/40/41
North America Configuration (PTCRB certified):
GSM: Quad band; CDMA: BC0/1; WCDMA: B1/2/4/5/8;
FDD_LTE:B2/4/5/7/12/13/17/25/26;
TDD_LTE:B38/39/40/41

Global Positioning System (GPS)

Integrated Assisted-GPS (A-GPS)
Supported Types: GPS, GLONASS, BeiDou

DECODING CAPABILITY

1D / Linear Codes

Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D Codes

Aztec Code, Data Matrix, HanXin Code, MaxiCode, MicroQR Code, QR Code, UPU FICS, USPS Intelligent Mail

Postal Codes

Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC)

Stacked Codes

Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional

ELECTRICAL

Battery

Replaceable battery pack with rechargeable Li-Ion batteries; 3.8v; 4,100 mAh (15.6 Watt-hours)

Wireless Charging

Qi Compliant; 10 Watt fast charging

ENVIRONMENTAL

Drop Resistance

Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested onto steel/concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test.

Tumbles

Withstands 1000 hits from 0.5 m / 1.6 ft and 250 hits from 1.0 m / 3.2 ft per IEC 600-2-32 with rubber boot; Withstands 600 hits from 0.5 m / 1.6 ft per IEC 600-2-32 without rubber boot

Particulate and Water Sealing

IP65

Chemical Resistance

Chemical cleanser and industrial oil resistant (both Standard and Healthcare models)

Healthcare Cleanable

Isopropyl Alcohol, Hydrogen Peroxide, Clorox® Bleach; applicable for both the device and cradles

Temperature

Operating: -20 to 50 ºC / -4 to 122 ºF
Storage/Transport: -30 to 70 ºC / -22 to 158 ºF

INTERFACES

Interfaces

High Speed USB 2.0 Host and Client with USB Type C connector

SENSORS

Vibration

Software programmable for duration and intensity

Accellerometer

3-Axis accelerometer to detect orientation

Gyroscope

Senses angular velocity

Ambient Light

Auto adjusts display backlight

Proximity

Auto deactivates display when close to face

SAFETY & REGULATORY

Agency Approvals

The product meets necessary safety and regulatory approvals for its intended use.

Environmental Compliance

Complies to EU RoHS

SOFTWARE

Applications

Datalogic's SoftSpot technology for configurable soft triggers; Supports Datalogic's Queue Busting app; Pre-licensed device and browser lockdown powered by 42Gears; Enterprise class PTT offered by Zello

Provisioning

Android Zero Touch enrollment and QR Code or NFC Bump provisioning

Configuration and Maintenance

Datalogic DXU for device configuration and firmware upgrade from PC

Development

Java and Xamarin SDK available

MDM

SOTI MobiControl, VMWare AirWatch, Wavelink Avalanche, 42Gears SureMDM

Terminal Emulation

StayLinked SmartTE, Wavelink Velocity

SYSTEM

Expansion Slots

Micro-SD card slot: Compatible with Micro SD-HC cards; Data transfer up to 48 Mbps; User-accessible; SIM SLOT MicroSIM Standard size

Memory

System RAM: 3 GB; eMMC Flash: 32 GB

Microprocessor

2 GHz Octa-core

Operating System

Android v8.1 with GMS

Real-Time Clock

Time and date stamping under software control

Manufacturer Part No:

944350001

Brand:

Datalogic

Product Type:

UPC

Product Family:

Shipping Weight:

2 kg

PB Part No:

POSDAT0930

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
