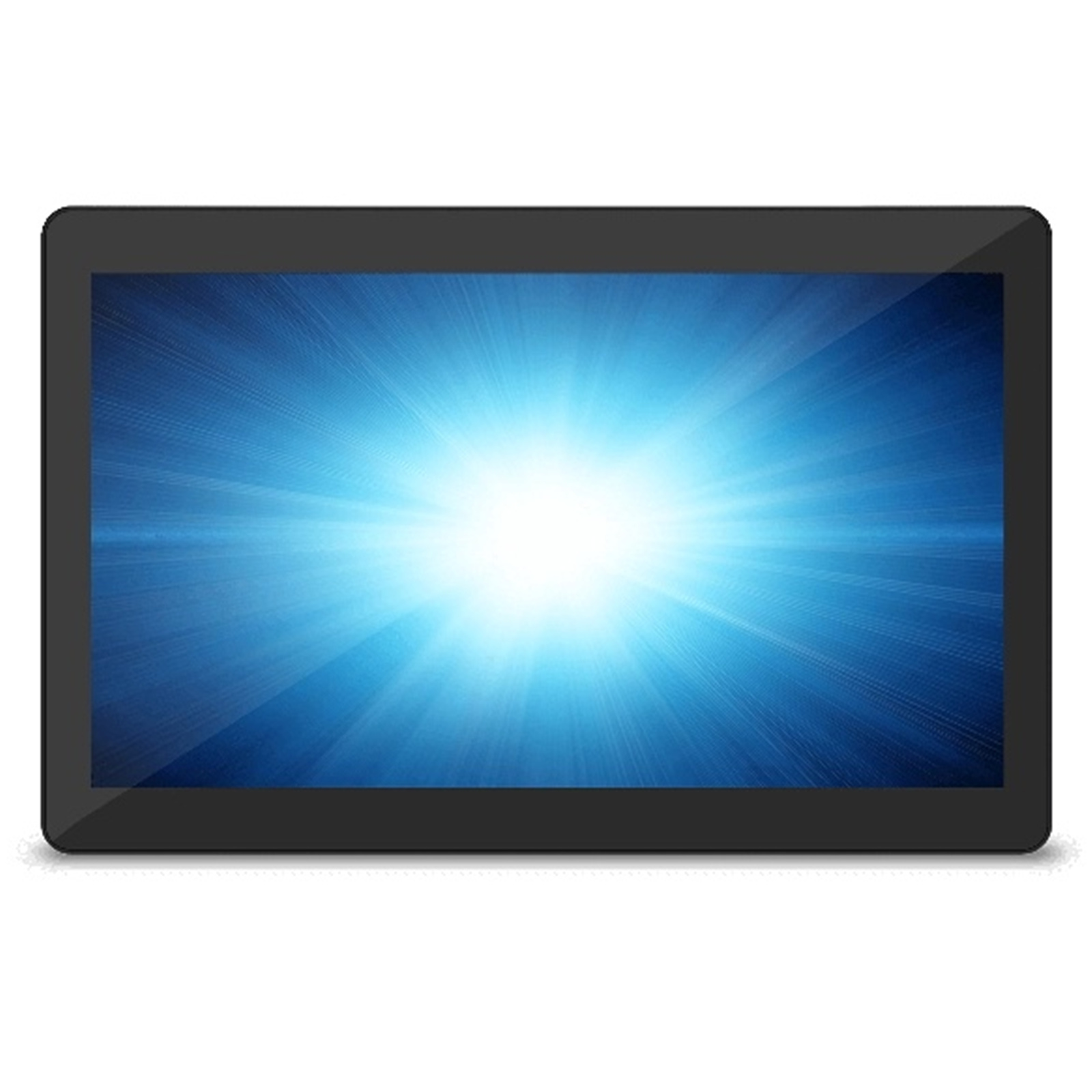

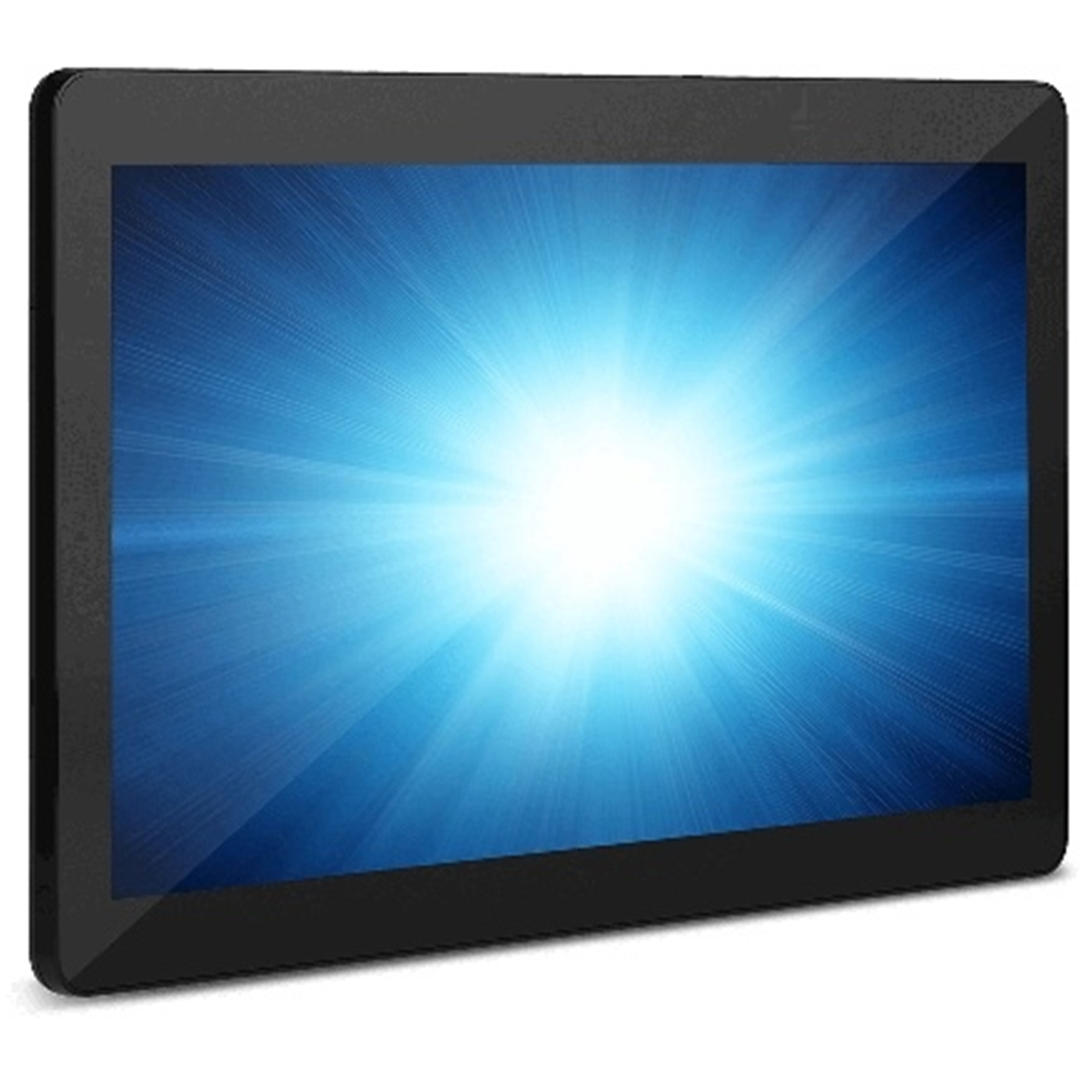

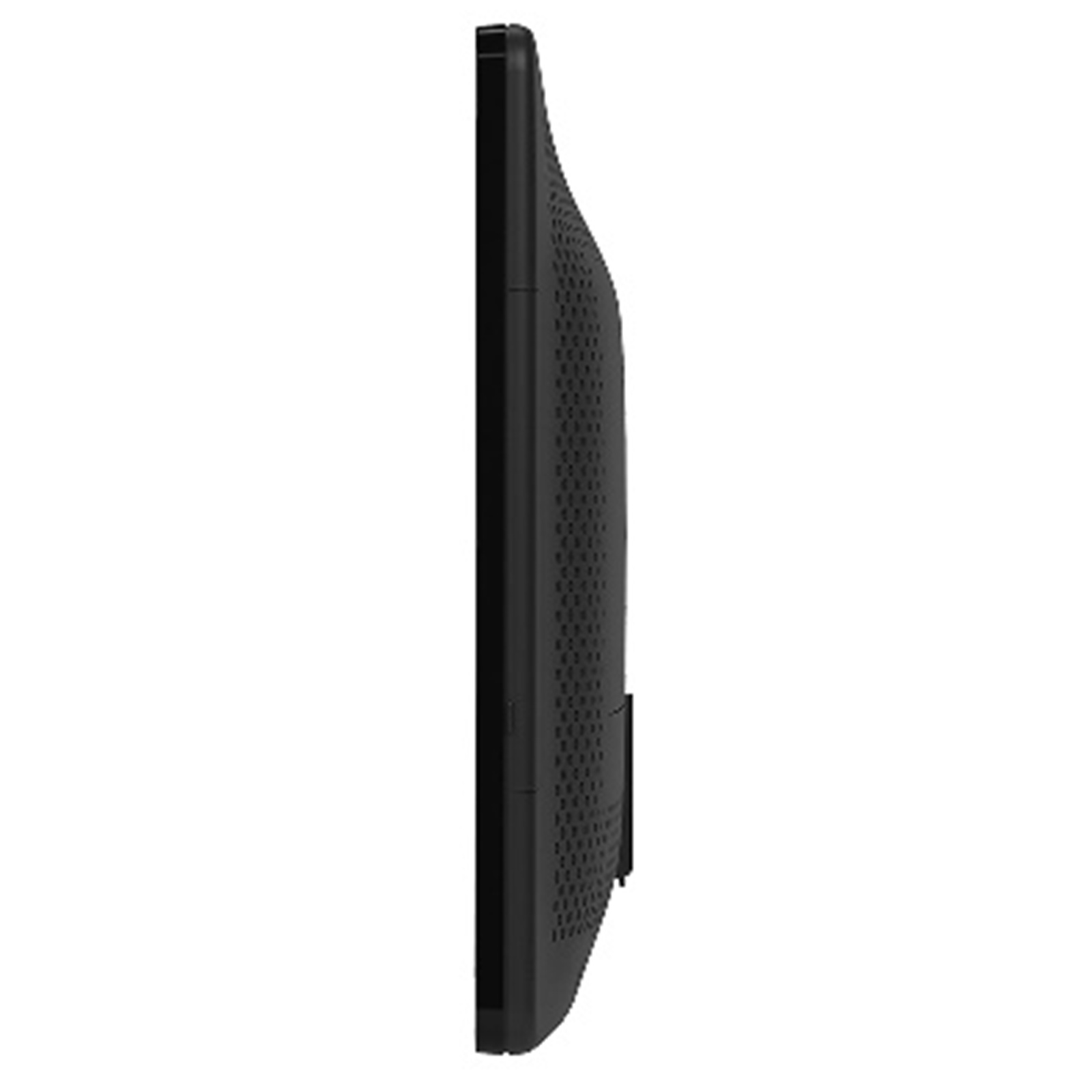

ELO E691852 I-SER 2.0 CEL FULLHD1920X10804GB RAM 128GB SSD 15.6I
- Brand: ELO
- MPN: E691852
- Part #: POSEL4636172

Product URL: https://www.pbtech.com/pacific/product/POSEL4636172/ELO-E691852-I-SER-20-CEL-FULLHD1920X10804GB-RAM-12
Features
Elo I-Series for Windows, 15.6-inch Widescreen LED, WW, Celeron J4105 Processor, 4GB 2666MHz DDR4, 128GB M.2 SATA SSD, Windows 10 IoT Enterprise LTSC 64-bit, Projected Capacitive 10-touch, Clear, Zero-bezel, Gray I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform-all in a sleek, yet durable fixed tablet form factor.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
- Self-Service
- Point of Sale
- Kitchen Display
- SystemsConference Room Management
- Industrial Automation
Specifications
MPN
Celeron (J4125), Win10, 4GB - E691852
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Celeron: Intel Celeron Processor J4125 (4M Cache, up to 2.7 GHz) or Intel Celeron G4900T Processor (2M Cache, up to 2.9 GHz)
Chipset
Celeron: N/A or Intel H310 Express
Graphics
Celeron: Intel UHD Graphics 600 or Intel UHD Graphics 610
BIOS
AMI
Memory (RAM)
Celeron: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum on 2 slots)
NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.
Storage
128GB M.2 SATA SSD 72 TBW
GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
TPM
2.0
Active Management Technology (AMT)
Celeron: N/A
Diagonal Size
15.6" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344.2 mm x 193.5 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
266,144
Brightness (typical)
LCD panel: 300 nits
TouchPro PCAP: 270 nits
Response Time-total (typical)
25 msec
Contrast Ratio
700:1
Viewing Angle
Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
USB Ports
1 x USB 3.0
4 x Micro USB 2.0 on edges for optional Elo Edge Connect peripherals
Ethernet Port
1 x LAN RJ45 (Gigabit)
Wireless
Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz
Bluetooth
Bluetooth 5.0
Audio Ports
1 x 3.5mm line out
Speakers
2 x 2W internal speakers
OS
No OS
Windows 10 IoT Enterprise LTSC 64-bit
Optional - Windows 10 Professional English 64-bit
ChromeOS Flex
Languages
Windows 10 - 36 Language groups
Power Supply
External USB-C power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 100W
Power Consumption (Typical)
Celeron: 30 W
Sleep: < 5W
Off: < 0.5W
Dimensions
15.13" x 9.7" x 1.72" / 384.2 mm x 246.4 mm x 43.8 mm
Weight (Unpackaged)
4.9 lbs / 2.2 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)
Real-Time Clock
CR2032 lithium metal battery
MTBF
50,000 hours demonstrated

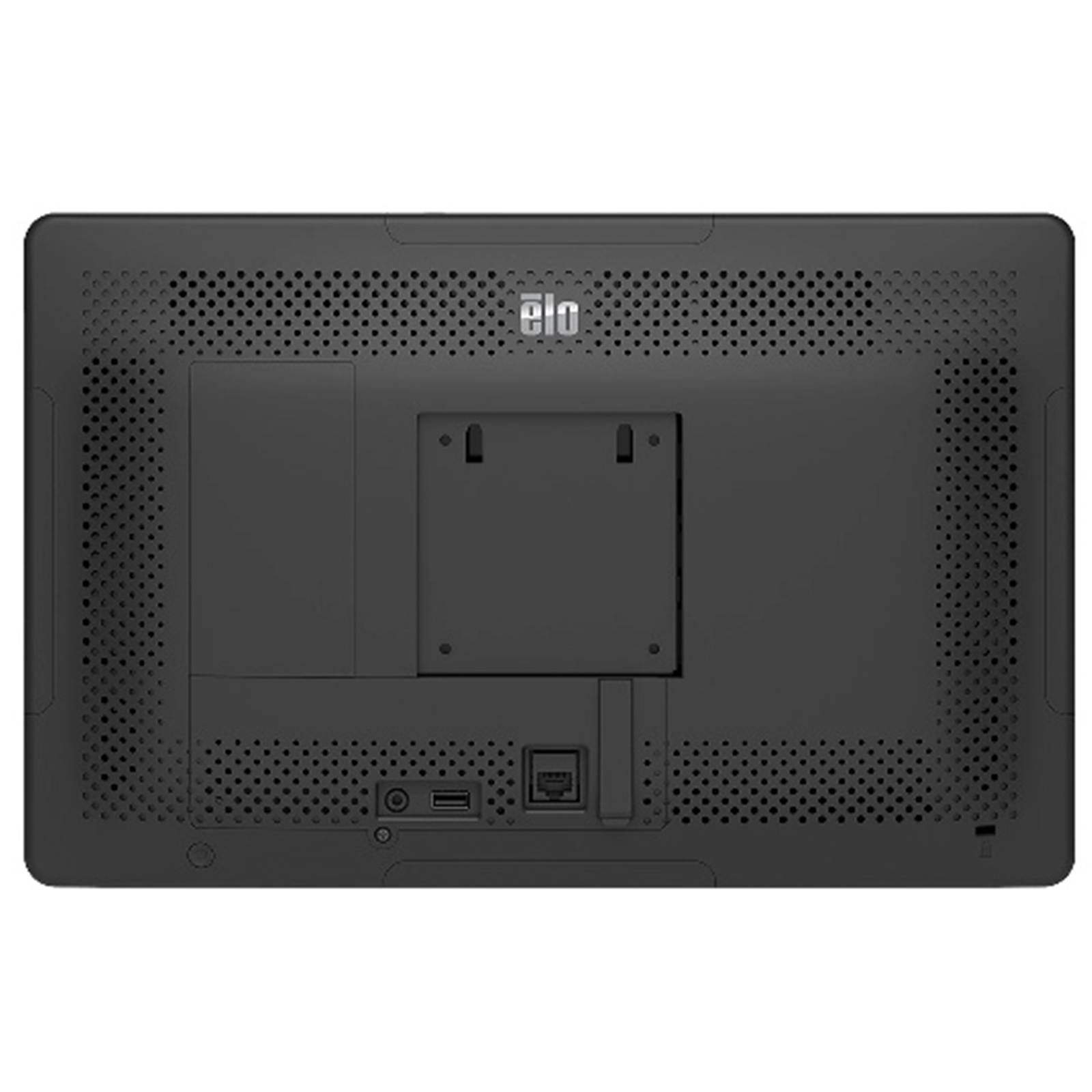

Mounting Options
75mm VESA mount
