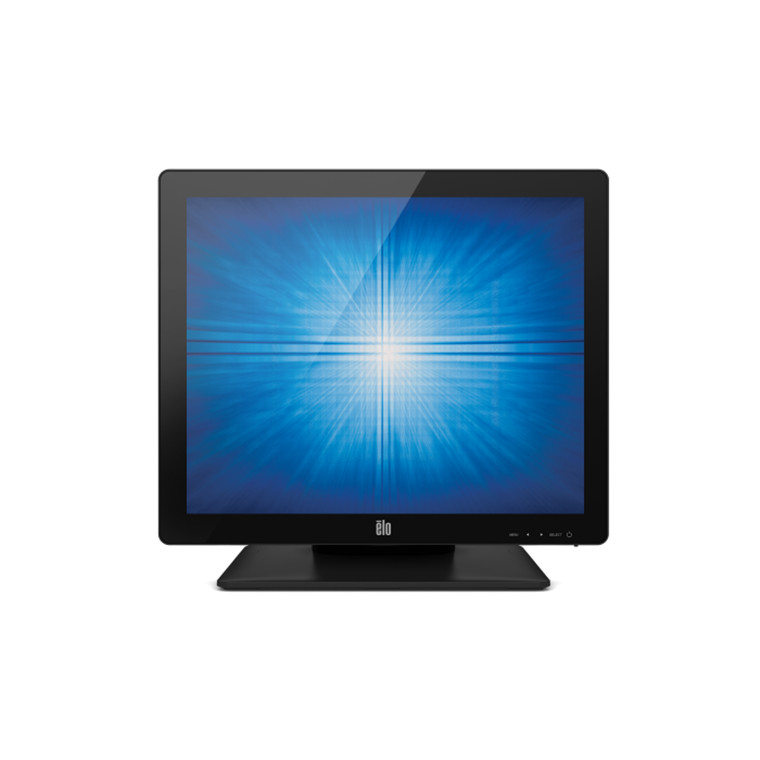

ELO D/TOP 1717L LED RESIST VGA SER/USB BLK

PB Tech price
PB Tech price
NZD $ 1,806 .09
$ 1,806 .09

Out of stock

ELO D/TOP 1717L LED RESIST VGA SER/USB BLK

  • Brand: ELO
  • MPN: E649473
  • Part #: POSELO1095
  • UPC:
PB Tech price
NZD $ 1,806 .09 $ 1,806 .09
Out of stock
Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: ELO
  • MPN: E649473
  • Part #: POSELO1095
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.


Integrated touch.

The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro™ PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.


MSR ready.

The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.


Flexible mounting.

The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

Specifications

Touch Technology & Capacity

5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
PCAP (Projected Capacitive) - 10 Touch

Diagonal Size

17'' diagonal, Active matrix TFT LCD (LED)

Monitor Thickness

1.7" / 43mm panel depth

Aspect Ratio

5:4

Active Area (mm)

13.3" x 10.64" / 337.92mm x 270.34mm

Resolution

1280 x 1024

Other Supported Resolutions

640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75Hz
1280 x 1024 @ 60Hz, 75Hz

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

Number of Colors

16.7 million

Brightness (typical)

LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
IntelliTouch ZB: 225 nits
PCAP: 225 nits

Response Time-total (typical)

5 msec

Contrast Ratio

1000:1

Input Video Format

Analog VGA on Female DB-15 connector

Input Video Frequency

Horizontal: 31.5-80 kHz
Vertical: 56-75 Hz

Touch Interface

Serial (RS232) and USB

Input Voltage

AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%

Input Connector

AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)

Adapter Input Connector

IEC 60320 C14

Adapter Input Voltage Range

100-240VAC, 50/60Hz

Power Consumption (Typical)

Monitor Only
ON: 16W
SLEEP: 0.7W
OFF: 0.5W

On Screen Display

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

Lockouts: OSD, Power

Monitor Dimensions (with Stand)

15.43" x 8.38" x 14.24" / 391.9mm x 215.4mm x 361.6mm

Shipping Box Dimensions

20.12" x 9.17" x 20.08" / 511mm x 233mm x 510mm

Weight (Unpackaged)

11.9 lbs / 5.4 Kg

Weight (Packaged)

18.3 lbs / 8.3 Kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 90%

Sealability

Touchscreen sealed to bezel; Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Mounting Options

75 mm VESA mount
Capped through-mount holes

Other Features

Security lock receptacle

Extended Warranty Options

1 Year Extended Warranty - Elo P/N: 758588-000
2 Year Extended Warranty - Elo P/N: 930057-000
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

Regulatory approvals and declarations

UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE, IMERC

What's in the Box

QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand base assembly, Filler Plate

Manufacturer Part No:
E649473
Brand:
ELO
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
POSELO1095
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
