ELO E326541 TOUCH MONITORS ELO ELO KIOSK 1991L OPEN FRAME ACCUTOUCH VGA/DVI/HDMI

PB Tech price
PB Tech price
NZD $ 1,862 .61
$ 1,862 .61
$1,862.61  +GST
$1,862.61

ELO E326541 TOUCH MONITORS ELO ELO KIOSK 1991L OPEN FRAME ACCUTOUCH VGA/DVI/HDMI

  • Brand: ELO
  • MPN: E326541
  • Part #: POSELO1200
  • UPC:
PB Tech price
NZD $ 1,862 .61 $ 1,862 .61


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,862.61  +GST
$1,862.61

Features

1991L, 19-inch LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, AccuTouch, USB & RS232 touch controller interface, Worldwide-version, Anti-Glare, No power brick

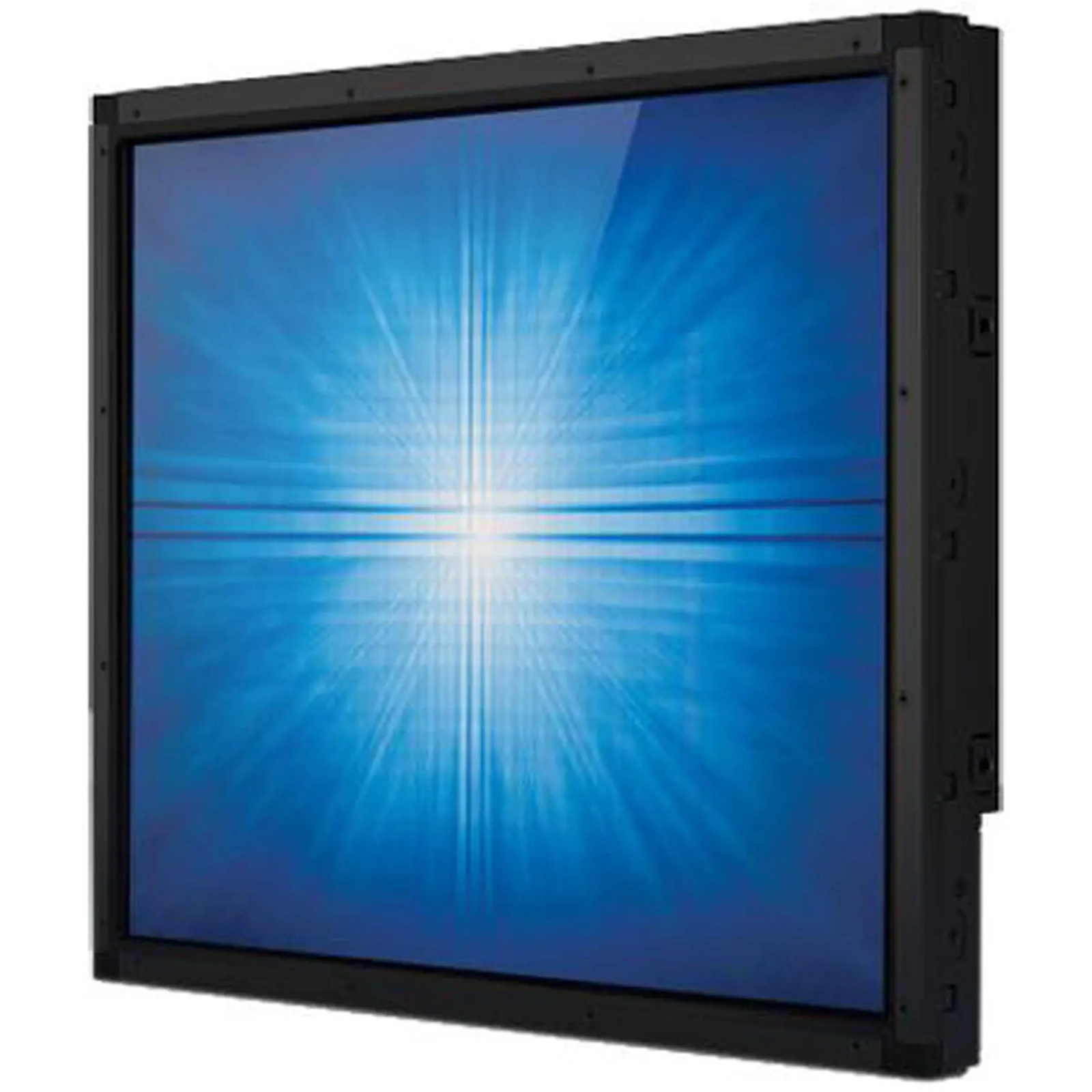

The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Specifications

MPN

AccuTouch (Worldwide) - E326541

Enclosure Color

Black

Touch Technology & Capacity

5-Wire Resistive (AccuTouch®) - Single-Touch

Touch Interface

TouchPro PCAP - USB 2.0
Dual serial/USB 2.0

Diagonal Size

19" diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

5:4

Active Area

14.76" x 11.80" / 374.78mm x 299.83mm

Resolution

1280 x 1024

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

AccuTouch: 200 nits

Response Time-total (typical)

14 msec

Contrast Ratio

1000:1

Input Video Format

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video input

Input Video Frequency

Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz

Input power connector (Monitor)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

Input Voltage

12VDC +/- 5%

Adapter Output Power Connector

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

Power Consumption (Typical)

ON (Default - 75% Brightness): 10.82 W
ON (Typical - 100% Brightness): 12.12 W
SLEEP (monitor + adapter): 1.5 W
OFF (monitor + adapter): 0.5 W

Dimensions

Bezel: 16.33" x 13.50" x 1.97" / 414.7mm x 342.7mm x 50mm
Zero-Bezel: 16.54" x 13.70" x 1.60" / 420.1mm x 348.1mm x 40.7mm

Weight (Unpackaged)

10.14 lbs / 4.6 Kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 10% to 95%

MTBF

50,000 hours demonstrated

Manufacturer Part No:
E326541
Brand:
ELO
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
POSELO1200
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
