Chief CSSLP15X10 Proximity Component Storage Slide-Lock

PB Tech price

NZD $ 368 .70

$ 368 .70

Chief CSSLP15X10 Proximity Component Storage Slide-Lock

Brand: Chief
MPN: CSSLP15X10
Part #: PRACHI1321
UPC:

PB Tech price

NZD $ 368 .70

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 15 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Chief
MPN: CSSLP15X10
Part #: PRACHI1321
UPC:

Be the first to review this product

Max Screen Size Supported

Max Weight Supported

Min Screen Size Supported

Returns & Warranty Bulk Quote Print Page

Features

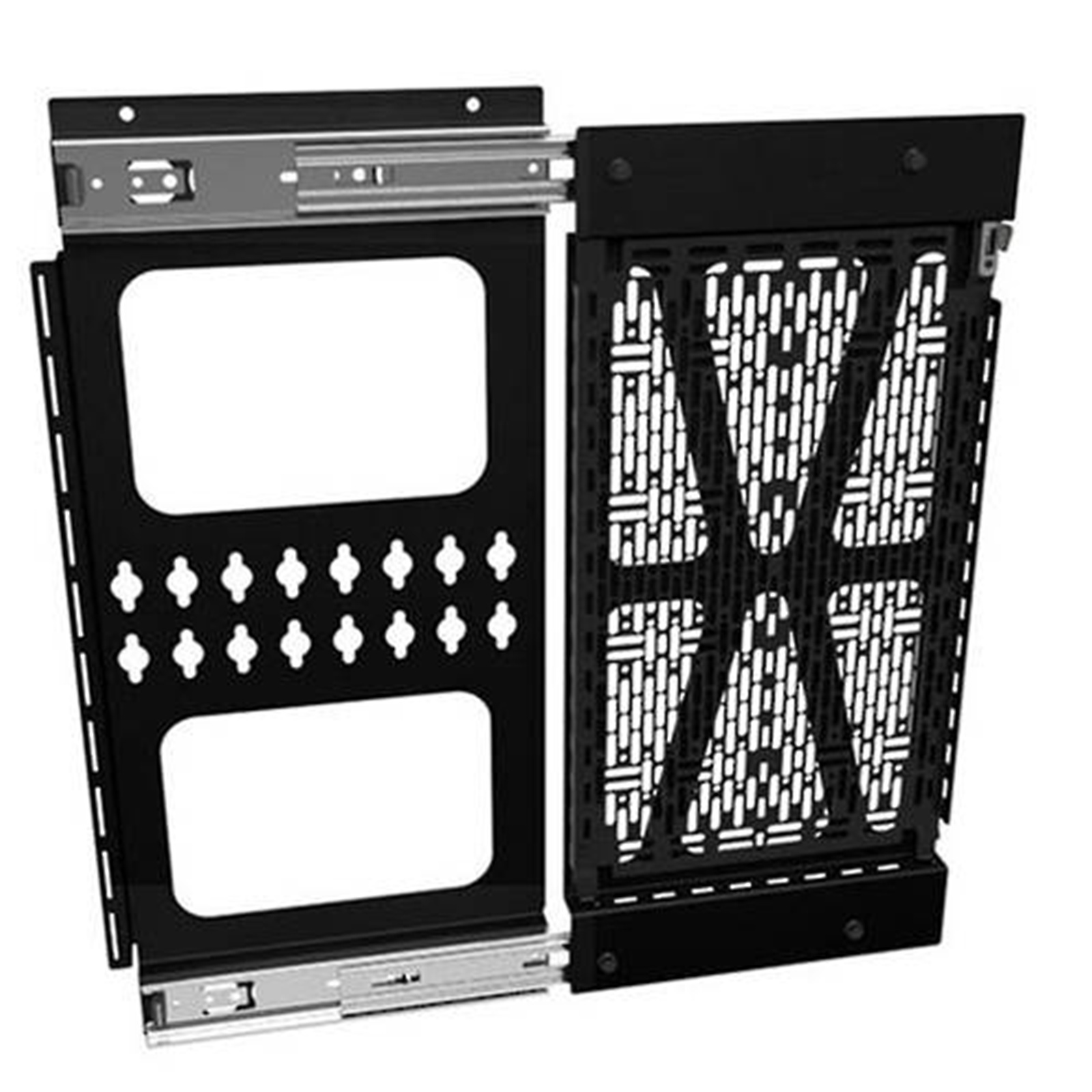

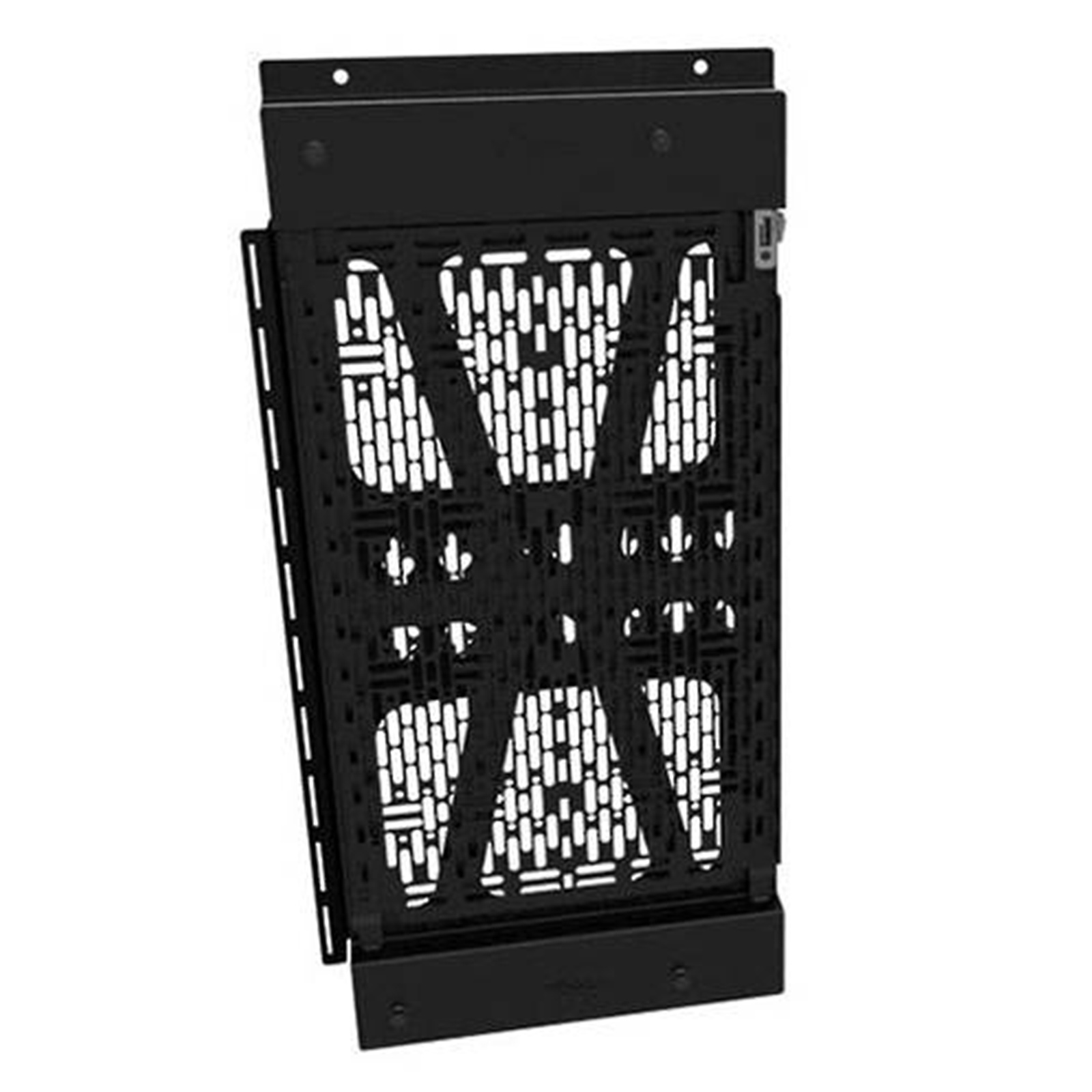

The Proximity® Component Storage Slide-Lock Panel facilitates easy, concealed mounting of AV equipment behind displays. To simplify service and accessibility to the equipment simply slide the storage panel out. Install on wall or attach to Fusion® mounts* left, right, or below the display. The built-in and tool-free 15" x 10" Lever Lock™ plate is easily removed and replaced from the slide-lock panel to service the equipment post-installation without touching the display. With a 15 lb. (6.8 kg) weight capacity, this storage panel will hold most small devices for AV installations.

The innovative slides on the CSSLP15X10 secure the storage panel and stop it from falling out or down with a push-to-open and push-to-close mechanism. This gives designers, consultants, and installers the flexibility to decide where to best position the storage panel behind the display.

The patented universal small device mounting pattern of the Lever Lock plate offers the versatility to mount devices with cable ties, hook and loop fasteners, or nuts and bolts. Use Forward accessories to speed up cable management and small device mounting.

- CSSLP15x10 supports a range of small devices and components on a 9.85" x 15.86" (25 x 40 cm) mounting plate footprint.
- Facilitate offsite integration and service with removable Lever Lock™ panel
- Compatible with Middle Atlantic Forward® small device mounting clips and cable management
- Plastic removable rivet included to secure the Lever Lock™ plate to the Slide-Lock Panel
- Simple push-to-open operation to extend and retract slide-lock panel behind displays
- Ultimate storage flexibility!
- Mounting options in portrait or landscape
- Install to the left, right or below display
- Attach to wall or Fusion mounts*

*The CSSLP15X10 can attach to Fusion ceiling mounts (including LCM & LWM menu boards) or carts and stands.

Notes: Small device mounting area is 15" x 10" (381 mm x 254 mm); Min. small device depth clearance is 0.74" (19 mm)

Specifications

Colour

Black

Extension

10" (254 mm)

Mounting Method

On-wall or Fusion Mount Extrusion

Overall Dimensions (H x W x D)

22.71" x 10.69" x 1.39" (577 mm x 272 mm x 35 mm)

Shipping Dimensions

26.25" x 15" x 2" (667 mm x 381 mm x 51 mm)

Shipping Weight

10.1 lbs (4.6 kg)

Typical Screen Sizes

50" and up

Weight Capacity

15 lbs (6.8 kg)

Orientation

Landscape, Portrait

Manufacturer Part No:

CSSLP15X10

Brand:

Chief

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

PRACHI1321

Product Model:

Warranty: 12 months *
