Vestel VW55X503B-6 Vestel 55" Extra Thin Video Wall Display
- Brand: Vestel
- MPN: VW55X503B-6
- Part #: PRAVTL1017

Product URL: https://www.pbtech.com/pacific/product/PRAVTL1017/Vestel-VW55X503B-6-Vestel-55-Extra-Thin-Video-Wall
Features
Real Ultra HD Resolution
With our videowall you can deliver real UHD resolution in a 2 x 2 arrangement. The videowalls are capable of combining 4 x FHD displays to create a single Real UHD image without the need of external processing or scaling devices.
Great Picture with Different Brightness Option
Create a seamless and striking visual experience with our Video Wall displays. Offering 500-700 Nit options, our monitors can display your content in picture perfect resolution, whatever the lighting conditions.
Landscape and Portrait Mode
Our Video Walls can be displayed in either landscape or portrait mode. Vestel's 24/7 professional displays not only allow for installation in portrait mode, but also for additional display protection. The displays' Pixel Shifting feature reduces the risk of any on-screen imagery sticking.
Ultra / Extra / Razor Narrow Bezel
Reducing the gap between each display area. Vestel's designs help create an almost seamless overall on screen image with 3.5 mm, 1.8 mm and less than 1 mm combined bezels.
OPS Compatibility
65" Videowall is the only Vestel Videowall with the OPS slot which can be connected in a daisy chain format without needing any external media players.
Daisy Chain with Display Port or HDMI Option
Reduce cost and maximize video quality with Vestel's Video Wall displays, using Display Port 1.2a-enabled or HDMI 2.0 screens, Vestel offers a daisy chain solution that cuts the cost of installation, cabling and maintenance. This daisychained monitor set up also ensures a more immersive viewing experience.
IPS Reliability
Vestel IPS displays present the most clear image in both landscape and portrait orientation without any image distortion. IPS also provides 178o ultra-wide viewing angle, displaying the most accurate image quality.
White color Calibration
For managing color uniformity with highest performance, color calibration has been made available for on-site maintenance. This results in a more uniform colour distribution and minimised colour distortion.
Higher Visibility
Vestel panels come with anti-reflective treatment to decrease glare under strong light exposure. Aside from glare protection, 700 Nits VWs ensure high visibility even under high levels of ambient light.
Longer Stability
Vestel VWs are able to tolerate longer hours of operation, equipped with pixel-shifting feature to prevent a fixed image from sticking on the screen.
Wall Mount Option
Vestel presents the Wall Mount option for landscape usage. Vestel Wall mounts are able to move in all possible directions making it easy to place and align the bezels perfectly.
Eco Design
Vestel VWs are made to operate at lower energy usage while performing at high levels. Also, Vestel follows the worldwide standards for limiting harmful substances and eliminating waste products.
Video Wall Controller Tool
This new software puts ease of use for Video walls by reaching Auto/Manual parameter setup on each/multi/all selected display, Remote control by IR Simulation or LAN/RS232 Control and Video and Picture rotation for Informal Layouts on one software.
Remote Control
Any number of Vestel VWs can be remotely controlled over RS232 Loop configuration. This eases the installation process of the VW displays, by controlling and configuring all the units via PC at the same time.
Specifications
Display
Screen Size
55"
Panel Technology
IPS
Backlight Type
DLED
Brightness (typical)
500 cd/m²
Native Resolution
1920x1080
Contrast Ratio (typical)
1400 : 1
Dynamic Contrast Ratio
500000 : 1
Life Time (typical)
60000hrs
Response Time (typical)
8 ms
Active Area (H x V)
1209.6(H) x 680.4(V)
Pixel Pitch (H x V)
0.630 x 0.630
PPI (pixel per inch)
40
Viewing Angle
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value
1.07 B (10-bit)
Screen Treatment
2H
Haze Level
3%
Refresh Rate
60 Hz
Front Type
Extra narrow bezel
Orientation
Horizontal / Vertical
Operation Hours
24/7 Panel
Area of Usage
Indoor
Built-in System
Mainboard Model
MB120DS

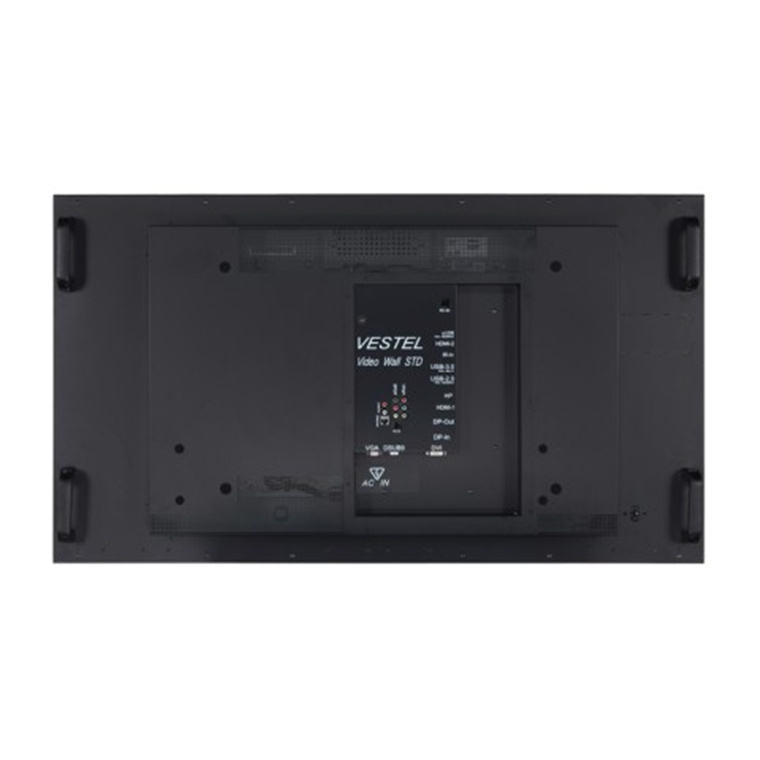

Rear I/Os
RGB Input
Dsub 15 PIN VGA CON., YPbPr
RGB Output
N/A
Video Input
2xHDMI2.0, 1xUSB3.0, 1xUSB2.0
Video Output
HDMI2.0
Audio Input
LINE IN JACK
Audio Output
LINE OUT JACK
External Control
DSUB9: UART TTL Loop Out, RJ12: UART TTL Loop In, Ethernet
External Sensor
N/A
Environmental Conditions
Operating Temperature
+50°C / 0°C
Operating Humidity
90%
Power
Power Supply
110 VAC - 240 VAC
Power Consumption
Typical
121W
Deep Standby
0.5W
Mechanical Features
Size
1211.4 (L) x 682.3 (H) x 54.1 / 104.6(D)
Shipping Size
1359(H) x 804(V) x 209(D)
Weight (kg)
29.50 kg
Shipping Weight (kg)
35.15 Kg
Vesa Mounting Size
400 x 600
Bezel Width
1.8 mm
Features
Main Features
Videowall setup with Daisy-Chain, Open Content Management Support, Manual Fine Color Calibration, Videowall Scheduler, Auto-Launch, Auto-switch on Failover, Panel Lock
Mechanical Features
ON/OFF Button, IR Extender, Carrying Handles
Speaker
N/A
Accessory
Standard
QSG, IB, Power Cord, Remote Control, RC Battery, Display Port Cable, USB to Rs232 Converter
Mounting Kit
Standard
Certification
Safety
Yes
EMC
Yes
CE
Yes
