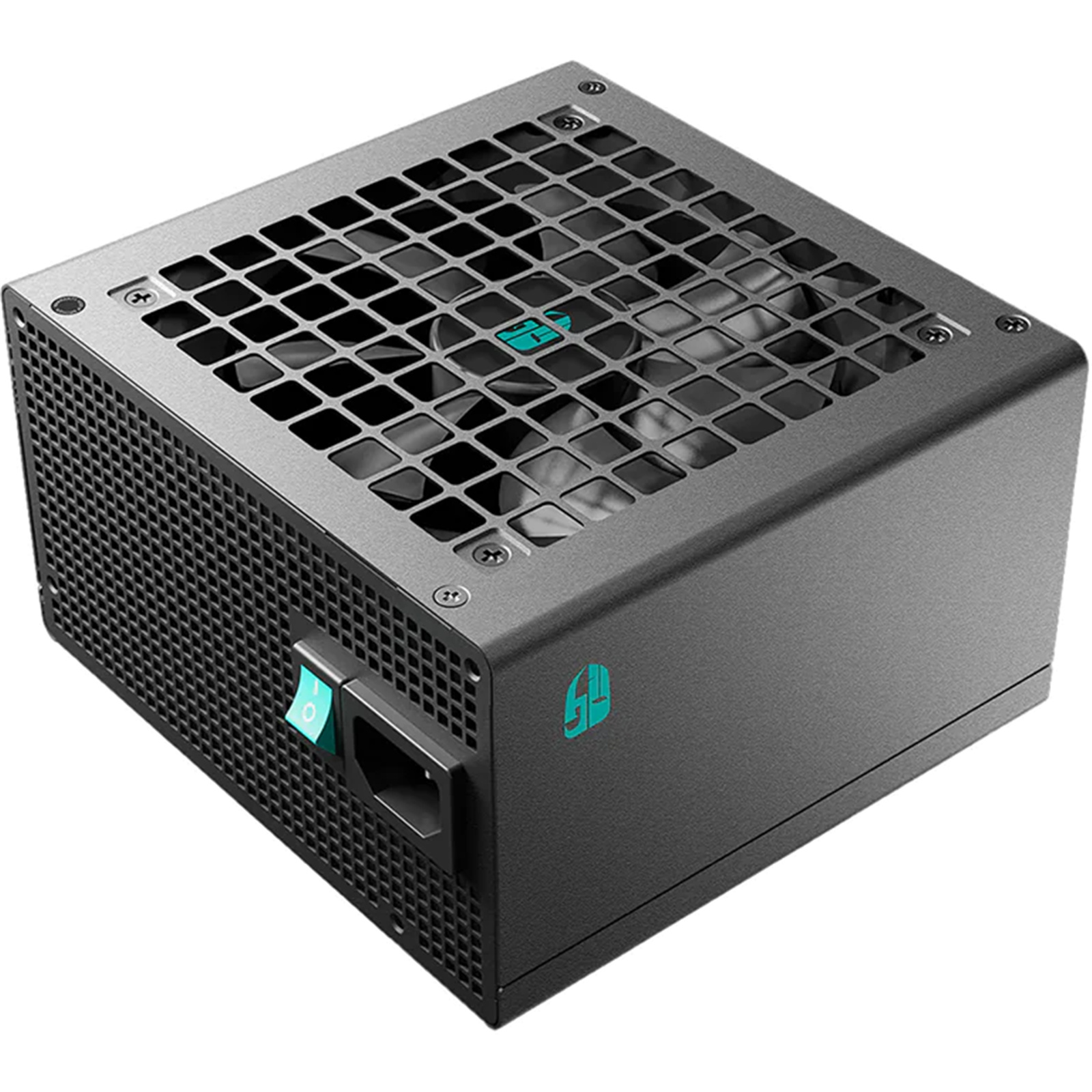

DEEPCOOL Gamer Storm PF600x 600W 80PLUS 230V Bronze Power Supply
MEPS Ready , 3 Years Warranty
DEEPCOOL Gamer Storm PF600x 600W 80PLUS 230V Bronze Power Supply
MEPS Ready , 3 Years Warranty
- Brand: DEEPCOOL
- MPN: R-PF600X-HD0B-JGAU
- Part #: PSUDPC0006
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Work as it should"
"Quiet power supply. Installs like any other. Does power supply things. Didn't burst into flames."
COMBO DEALS: Buy Together and SAVE!
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste...
$26.74
$26.74
$18.40
$18.40
DEEPCOOL AK400 ZERO DARK PLUS CPU Cooler 2 x 120mm Fan, 155mm Clearance, Support Intel LGA 1851/...
$58.20
$58.20
Features
MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS
The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.
*Due to the different testing standards between the institutions, all packaging and labels will use the Bronze badge to ensure uniformity and compliance.
TAIWANESE + JAPANESE PREMIUM CAPACITORS
By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.
RELIABLE TOPOLOGY
To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.
WIDE VOLTAGE ADAPTATION
Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown
(Due to safety requirements, the voltage parameters of the nameplate need to leave 10% redundancy, the above is the actual support working voltage)
Strict Safety Standard
Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.
40K HRS MTBF LONG-LIFE FAN
A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.
High-Grade Configurations
Equipped with GAMER STORM's custom-molded sleeved cables significantly enhances the installation and wiring experience.
Peace of Mind
The PF-X is equipped with eight protection IC providing comprehensive safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- Surge & Inrush Protection
- No Load Operation
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Desktop Power Supplies
Corsair RM850x 850W ATX 3.1 Power Supply Cybenetics Gold...
Phanteks AMP 750W ATX 3.1 80Plus Gold - White - Full Modular...
Corsair RM850e Black 850W Cybenetics Gold ATX 3.1 Power Supply...
DEEPCOOL PL650D 650W Power Supply 80 Plus Bronze - MEPS Ready - 5...
DEEPCOOL PL750D 750W ATX 3.1 Power Supply 80 Plus Bronze - MEPS...
DEEPCOOL Gamer Storm PF600x 600W 80PLUS 230V Bronze Power Supply MEPS Ready , 3 Years Warranty
- Brand: DEEPCOOL
- MPN: R-PF600X-HD0B-JGAU
- Part #: PSUDPC0006
Product URL: https://www.pbtech.com/pacific/product/PSUDPC0006/returns/category/cameras
Features
MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS
The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.
*Due to the different testing standards between the institutions, all packaging and labels will use the Bronze badge to ensure uniformity and compliance.
TAIWANESE + JAPANESE PREMIUM CAPACITORS
By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.
RELIABLE TOPOLOGY
To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.
WIDE VOLTAGE ADAPTATION
Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown
(Due to safety requirements, the voltage parameters of the nameplate need to leave 10% redundancy, the above is the actual support working voltage)
Strict Safety Standard
Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.
40K HRS MTBF LONG-LIFE FAN
A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.
High-Grade Configurations
Equipped with GAMER STORM's custom-molded sleeved cables significantly enhances the installation and wiring experience.
Peace of Mind
The PF-X is equipped with eight protection IC providing comprehensive safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- Surge & Inrush Protection
- No Load Operation
Specifications
Model
PF600X
Model No
PF600X-HD
Total Output
600W
Type
ATX12V V2.52
Product Dimensions
150×140×86mm (W x L x H)
Efficiency certification
80PLUS 230 EU Bronze/CYBENETICS Bronze /CYBENETICS A 230V/PPLP 230V Bronze
Fan Size
120mm
Fan Bearing
Longlife HYB
Topology
Active PFC+DC to DC
Capacitors
Taiwanese + Japanese Electrolytic Capacitors
Power Good Signal
100-150ms
Hold Up Time
≥16ms(75% Load)
Efficiency
≥88% Under Typical Load(50% Loading)
Protection
OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO
Operation Temperature
0-40°C
Regulatory
CE/TUV-RH/CCC/RCM/KC
Erp Regulation
ErP 2014
Environment Protection
WEEE/中国 RoHS/Triman
MTBF
40,000 Hours
