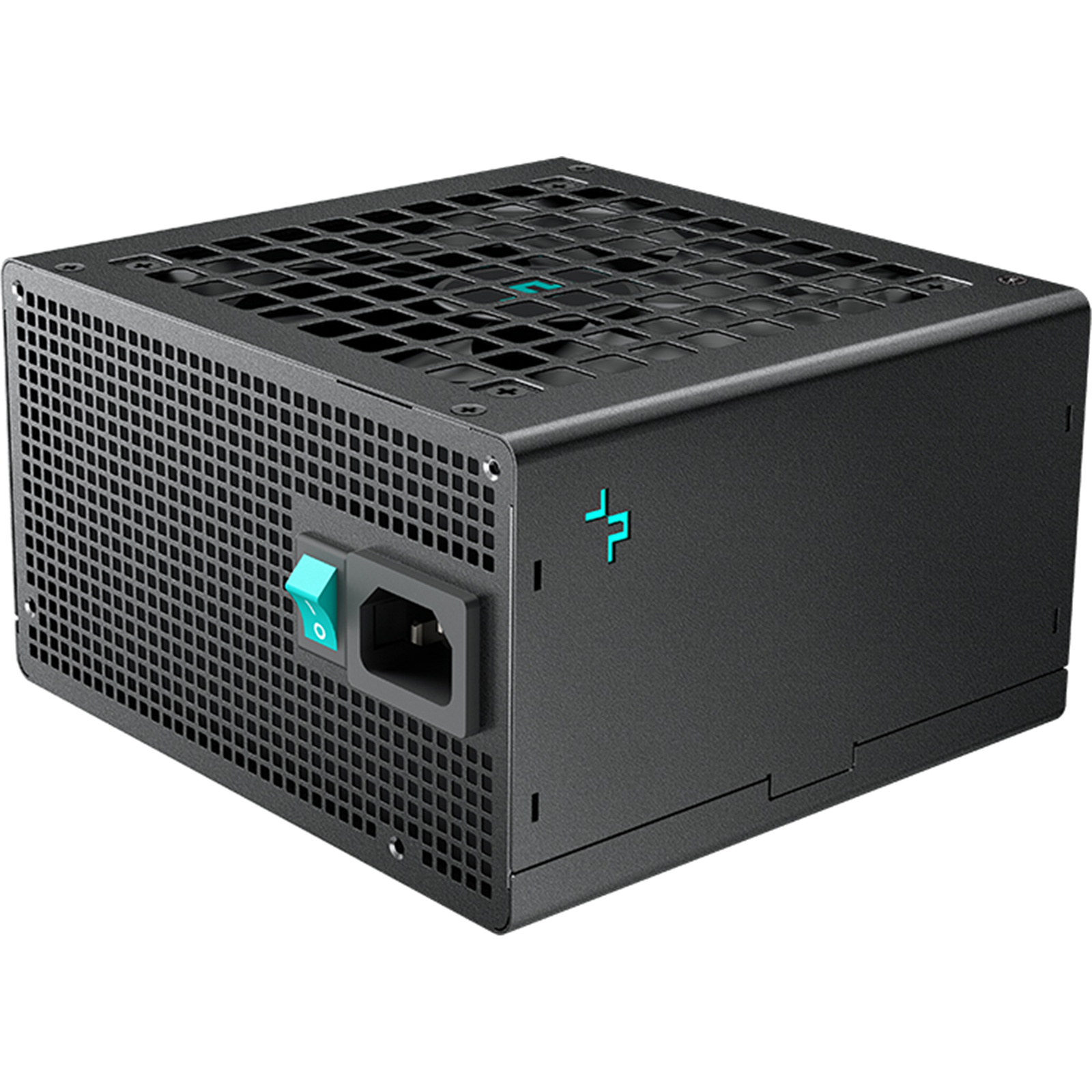

DEEPCOOL PL550D 550W Power Supply
80 Plus Bronze - MEPS Ready - 5 Years Warranty
DEEPCOOL PL550D 550W Power Supply
80 Plus Bronze - MEPS Ready - 5 Years Warranty
- Brand: DEEPCOOL
- MPN: R-PL550D-FC0B-AU-V2
- Part #: PSUDPC12551
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Not a whole lot to be said, it’s a power supply It in fact works exactly as needed, super quiet and handles my components well, would buy again should the need arise"
"Works well plugged her in and off she went"
"Works with an old DDR3 system. Looks like cable spaghetti but that's expected"
COMBO DEALS: Buy Together and SAVE!
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox...
$53.67
$53.67
$6.50
$6.50
Features
PL550D - Native ATX3.1 Power Supply

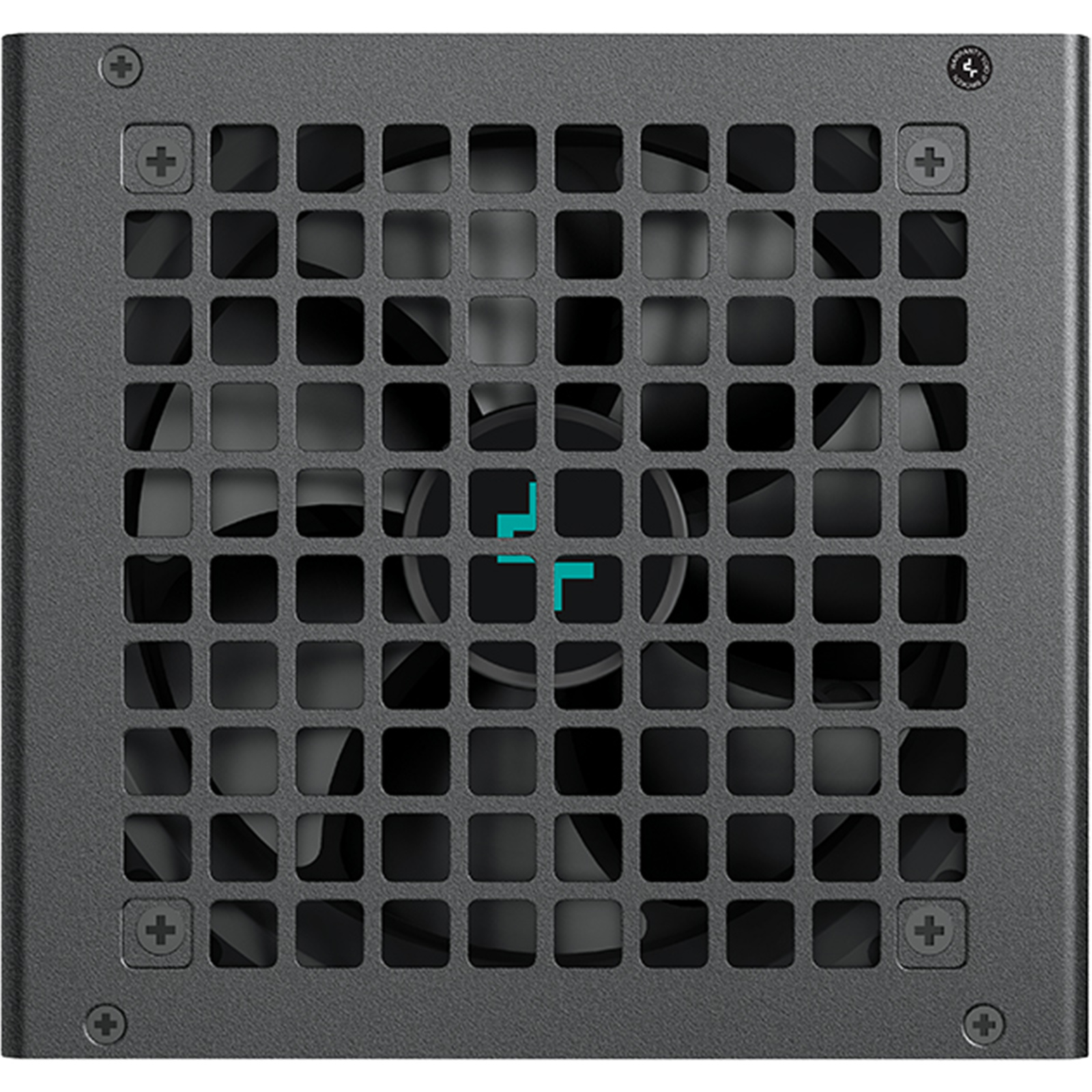

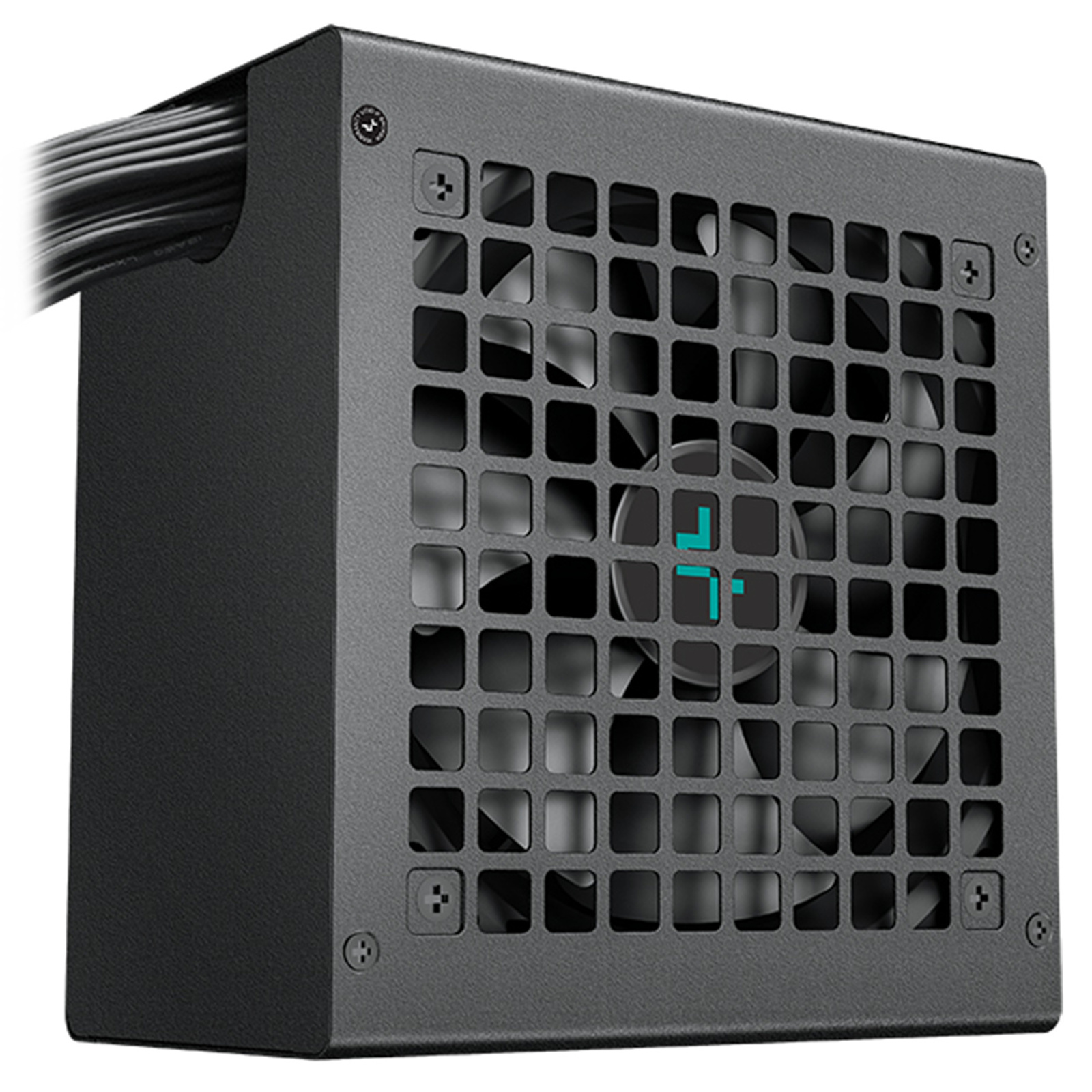

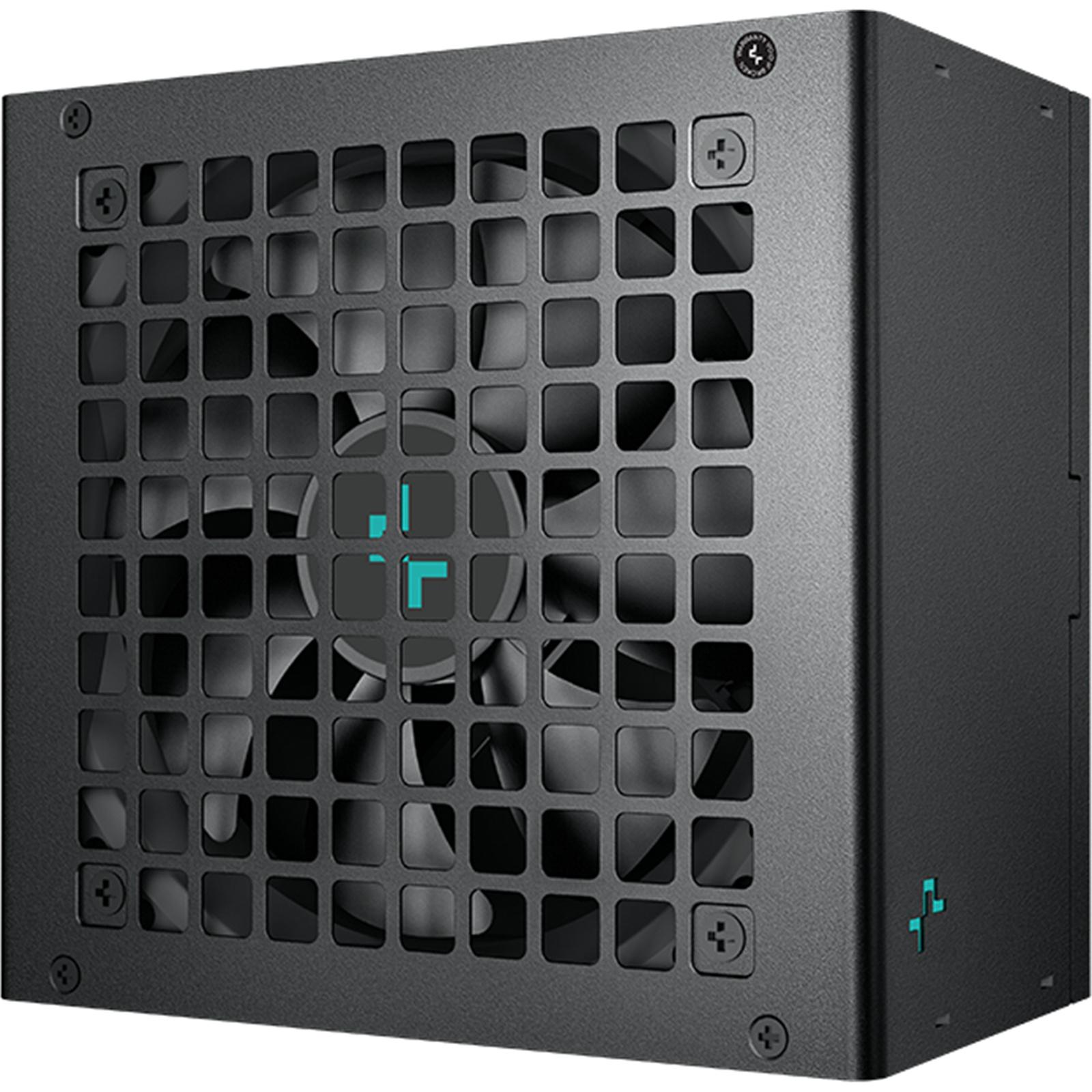

The PL550D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL550D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to = 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY

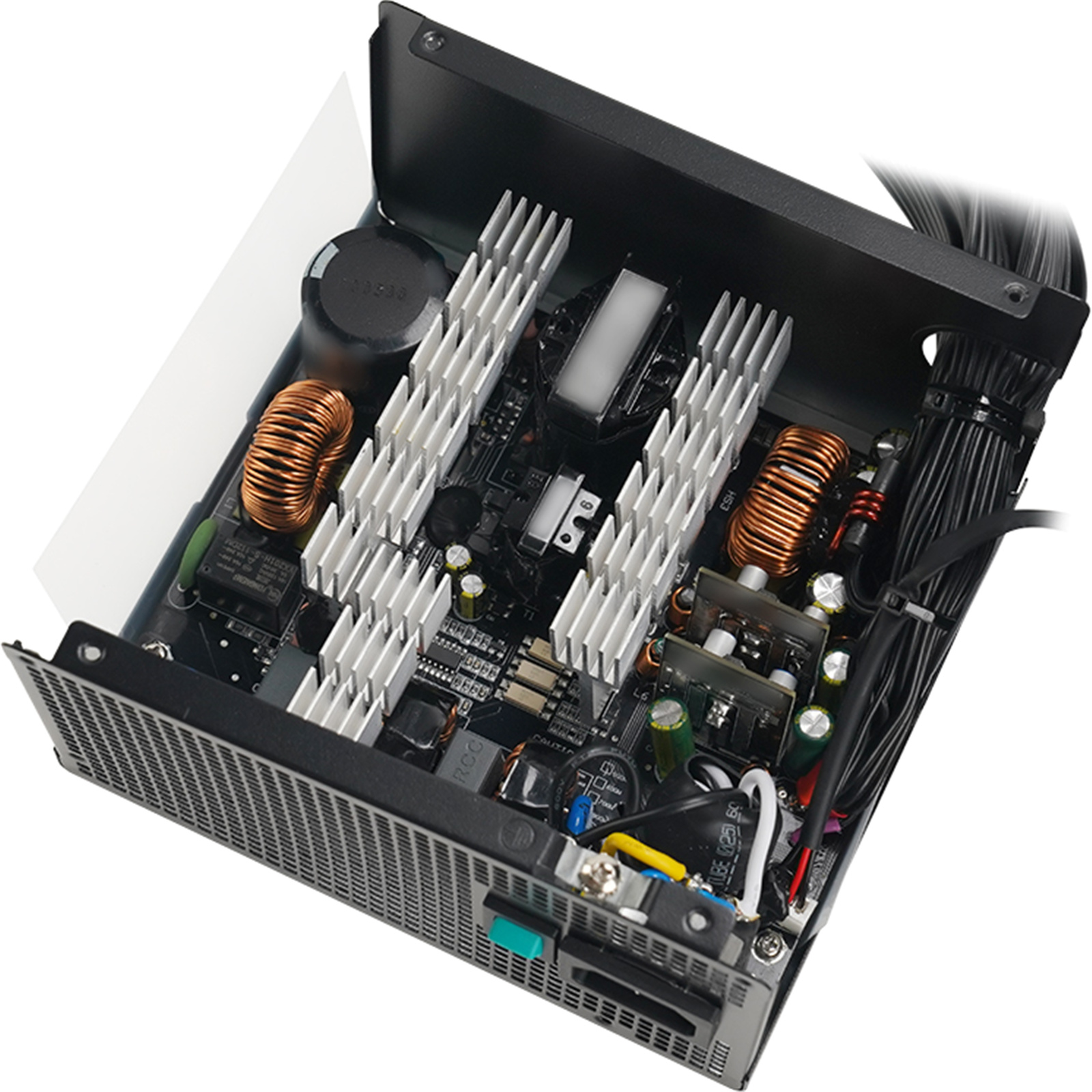

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE

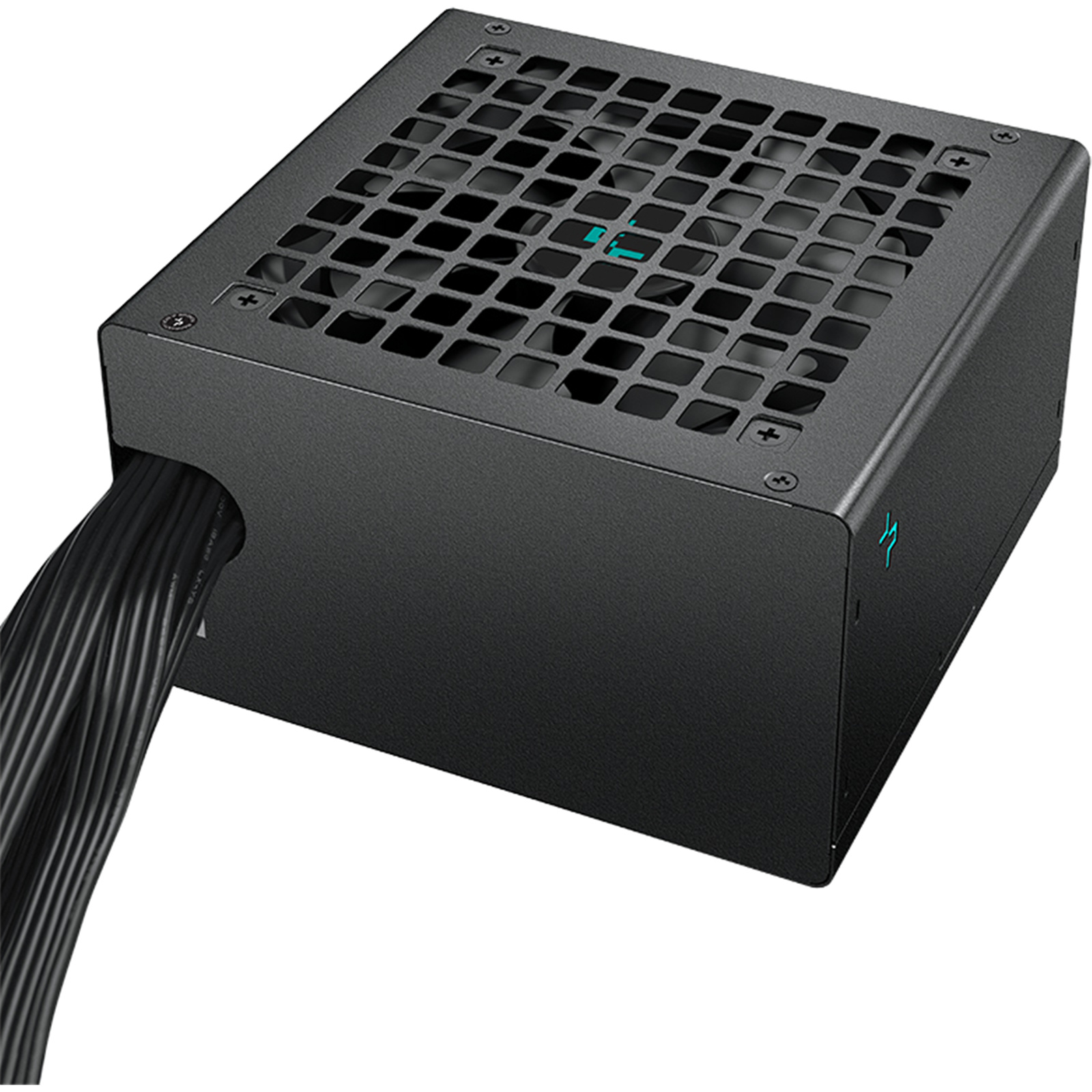

Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- Surge & Inrush Protection
- No Load Operation
Specifications
Reviews
Do you own this product?
Great purchase
Not a whole lot to be said, it’s a power supply
It in fact works exactly as needed, super quiet and handles my components well, would buy again should the need arise
Power on
Works well plugged her in and off she went
Works well
Works with an old DDR3 system. Looks like cable spaghetti but that's expected
Pretty good
Works well in budget build and is reliable for the amount of power provided.
Very happy
Hey it supplies the juice to my PC and does a good job at it what more can I ask for out of a PSU.
Affordable reliable psu
Had to change out my psu cause it blew up. This one was perfect for what I needed.
Good PSU
I don't know how this thing will work for RTX 4000 cards when this PSU is only 550w and the 4070s do require more than 550w. Despite having the 12VHPWR, I don't think it would be wise to get this PSU to power those cards. Bought it for a budget rig and so far it's working well. Cables are flat and hopefully this will have the same reliability as my budget server with 500w deepcool PSU running 24/7 for nearly 2 years now.
Delivery & Pick-up
Returns & Warranty
Popular Desktop Power Supplies
DEEPCOOL PL750D 750W ATX 3.1 Power Supply 80 Plus Bronze - MEPS...
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full...
MSI MAG 650W Power Supply 230V - 80 Plus Bronze - MEPS Approved -...
MSI MAG 850W Power Supply 80 Plus Gold - ATX 3.1 PCIe 5.0 Ready -...
Corsair RM750x 750W ATX 3.1 Power Supply Cybenetics Gold...
DEEPCOOL PL550D 550W Power Supply 80 Plus Bronze - MEPS Ready - 5 Years Warranty
- Brand: DEEPCOOL
- MPN: R-PL550D-FC0B-AU-V2
- Part #: PSUDPC12551
Product URL: https://www.pbtech.com/pacific/product/PSUDPC12551/DEEPCOOL-PL550D-550W-Power-Supply-80-Plus-Bronze
Features
PL550D - Native ATX3.1 Power Supply
The PL550D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
NATIVE ATX3.1
Based on INTEL's latest ATX3.1 standard, the PL550D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to = 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- Surge & Inrush Protection
- No Load Operation
Specifications
Type
ATX12V V3.1
Product Dimensions
150×140×86mm (W x L x H)
Efficiency certification
80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC II
Fan Size
120mm
Fan Bearing
HYB(Hydro Bearing)
Topology
Active PFC+DC to DC
Capacitors
Chinese Electrolytic Capacitors
Power Good Signal
100-150ms
Hold Up Time
=16ms
Efficiency
=85% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature
0 - 40C
Regulatory
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Erp Regulation
ErP 2014
Environment Protection
WEEE/RoHS/Triman/P65
MTBF
100,000 Hours
