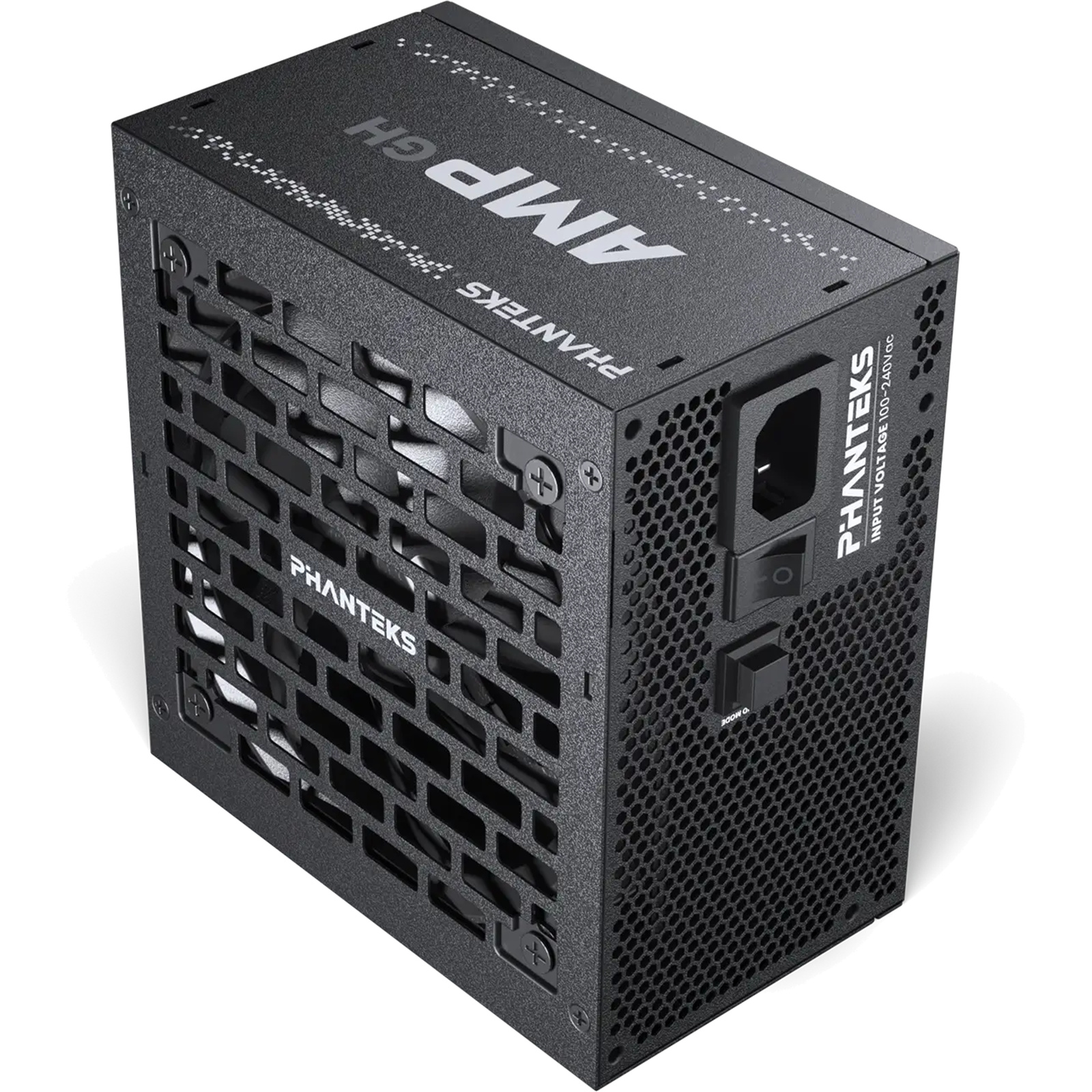

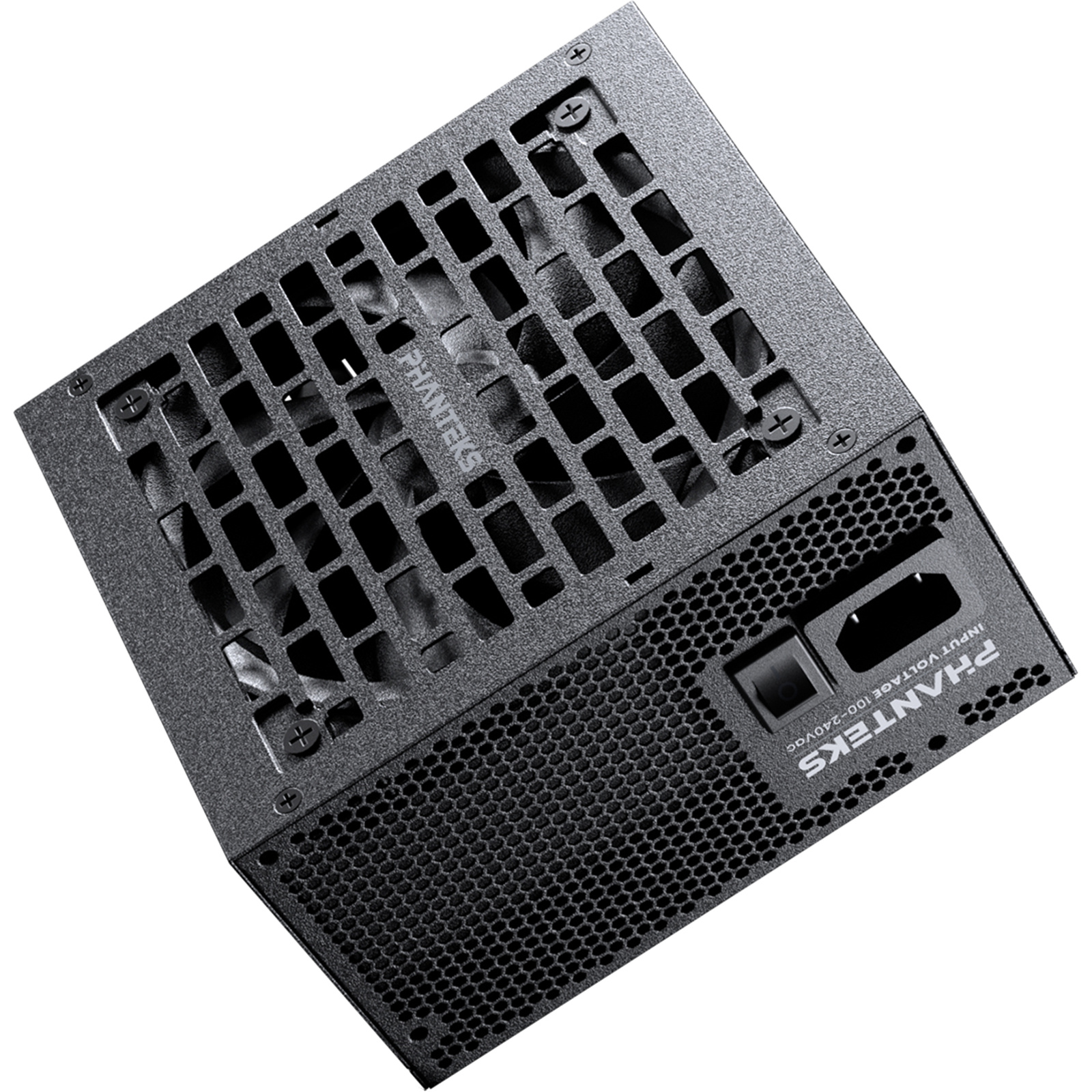

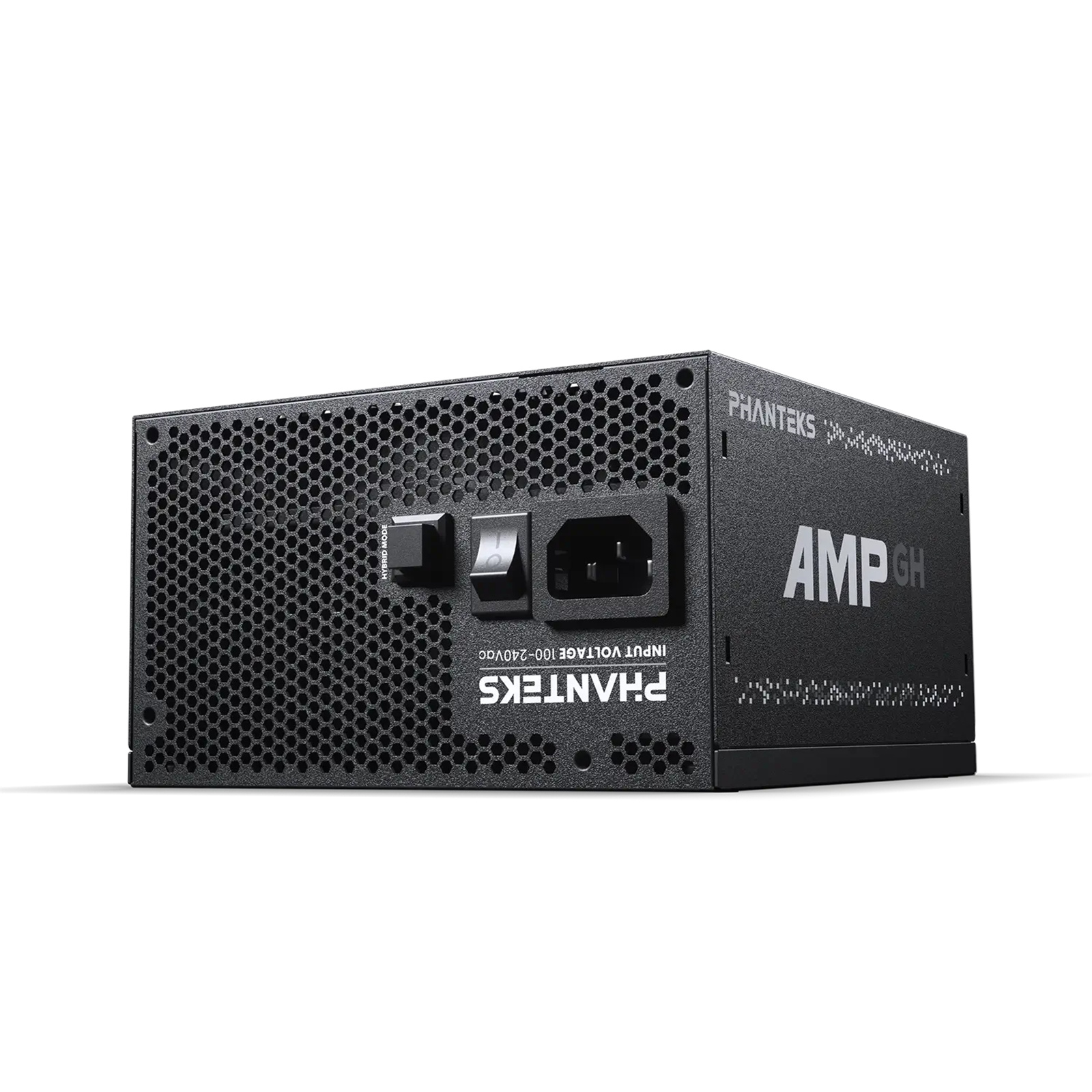

Phanteks AMP 650W ATX 3.1 80Plus Gold - Black - Full Modular Power Supply
Phanteks AMP 650W ATX 3.1 80Plus Gold - Black - Full Modular Power Supply
- Brand: Phanteks
- MPN: PH-P650GH_BK01_AU
- Part #: PSUPHA0010
- UPC: 886523511458
- Brand: Phanteks
- MPN: PH-P650GH_BK01_AU
- Part #: PSUPHA0010
- UPC: 886523511458
COMBO DEALS: Buy Together and SAVE!





ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox...
$53.67
$53.67


$6.50
$6.50
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Desktop Power Supplies





Phanteks AMP 650W ATX 3.1 80Plus Gold - Black - Full Modular Power Supply
- Brand: Phanteks
- MPN: PH-P650GH_BK01_AU
- Part #: PSUPHA0010
- UPC:886523511458

Product URL: https://www.pbtech.com/pacific/product/PSUPHA0010/Phanteks-AMP-650W-ATX-31-80Plus-Gold---Black---Ful
Features
AMP GH Fully Modular Power Supply
Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
Packed With Features
Ultra-High Power Density, Compact Size
Ultra-high power density with a small footprint of only 140mm depth.
Gold-Plated High Current Terminals
Reduces current transmission resistance for increased efficiency.
120 mm Hydraulic Dynamic Bearing Fan
The hydraulic dynamic bearing (HDB) improves the lubrication of the bearing for increased stability and longevity.
Cable-Free Connection Design
The back panel and PCB are connected by a copper plate to improve output power quality.
Multi-GPU Support
Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.
Premium Hybrid Mode
- Advanced fan control for smart thermal management.
- Operates completely fanless under 30% load for silent performance.
- Ideal for ultra-quiet system builds and noise-sensitive environments.
- Balances cooling efficiency with acoustic optimization.
Specifications
Model No.
PH-P650GH_BK01
Materials
Steel | ABS plastic
Color
Black
Dimensions (Length x Width x Height)
140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in
Power Output
650 Watt
80 Plus
Gold
Technical Details
Cooling Fan
120 mm Hydraulic bearing fan
Back Plate
Fully Modular
MTFB
> 100.000 hrs at 25˚C (Excluding DC fan)
Power Supply Output Connectors
1x Mainboard → 18+10 Pin
5x CPU | PCIe → 8 Pin
3x SATA | Molex → 6 Pin
Output Protection
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
DC Output Ratings
Output Voltage 12V 5V 3.3V -12V 5VSB
Maximum Output 54A 20A 20A 0.3A 2.5A
Maximum Capacity 648W 100W 3.6W 7.5W
DC Output 650W
AC Output 100-240Vac/15A ~ 7.5A 50-60Hz
Extra
Scope of Delivery
1x AMD GH power supply unit
1x C13 Power cord 1500 mm
Cables Textured
1x 18+10-Pin Mainboard 600 mm
2x 4+4-Pin CPU 700 mm
2x 6+2-Pin PCI-E 750 mm
1x 6-Pin 4-SATA 400 - 120 | 120 | 120 mm
1x 6-Pin 2-SATA + 2-Molex 400 - 120 | 120 | 120 mm
Accessory Box
1x User's manual
1x Installation guide
1x PSU bag
1x Zip tie bag
1x Screw pack
1x Velcro pack
1x PSU jumper
