Phanteks AMP 750W Power Supply

80 Plus Platinum - SFX - Full Modular

PB Tech price
PB Tech price
NZD $ 249 .00
$ 249 .00

Out of stock

Phanteks AMP 750W Power Supply

80 Plus Platinum - SFX - Full Modular

  • Brand: Phanteks
  • MPN: PH-P750PSF
  • Part #: PSUPHA10750
  • UPC: 886523500872
2
PB Tech price
NZD $ 249 .00 $ 249 .00


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
  • Brand: Phanteks
  • MPN: PH-P750PSF
  • Part #: PSUPHA10750
  • UPC: 886523500872

Max Output Power

750W

PSU Form Factor

SFX

80 Plus Rating

Platinum

Modular

Full

Colour

Black

16-Pin GPU Connector

No

PSU Length

100mm

PSU ATX Version

Not Specified

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews

"It's a Seasonic based supply, who are well known in the indu ...view more"

SH
By: SeanH582 26/10/23
Verified Owner

Features

REVOLT SFX PSU

The Phanteks Revolt SFX power supplies bring the powerful Revolt series to a smaller footprint. The super-compact SFX form-factor maximizes its versatility to fit small form-factor chassis and free up space in larger chassis for better cable management. Developed with renowned power supply manufacturer Seasonic to ensure the best possible endurance and stability.



Tech Specs

Specifications

80 PLUS

Platinum

Power

750W

Dimension

125 x 100 x 63.5 mm / 3.9 x 5.9 x 3.4 in

Color

Black

Output Protection

OPP (Over Power Protection)
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperation Protection)
No-Load Protection
Reset Protection

Back Plate

Fully Modular

MTBF

>100,000 hrs at 25°C, excluding DC Fan

Storage Temperature

-40°C to 85°C

Storage Humidity

To 95% relative humidity (non-condensing)

Operating Humidity

To 85% relative humidity (non-condensing)

Environmental Operating Temp.

0 to 50°C (The rated power will deviate from 100% to 80% from 40°C to 50°C Linearly)

Package Dimensions (LxWxH)

310 x 180 x 115 mm / 12.2 x 7.1 x 4.5 in

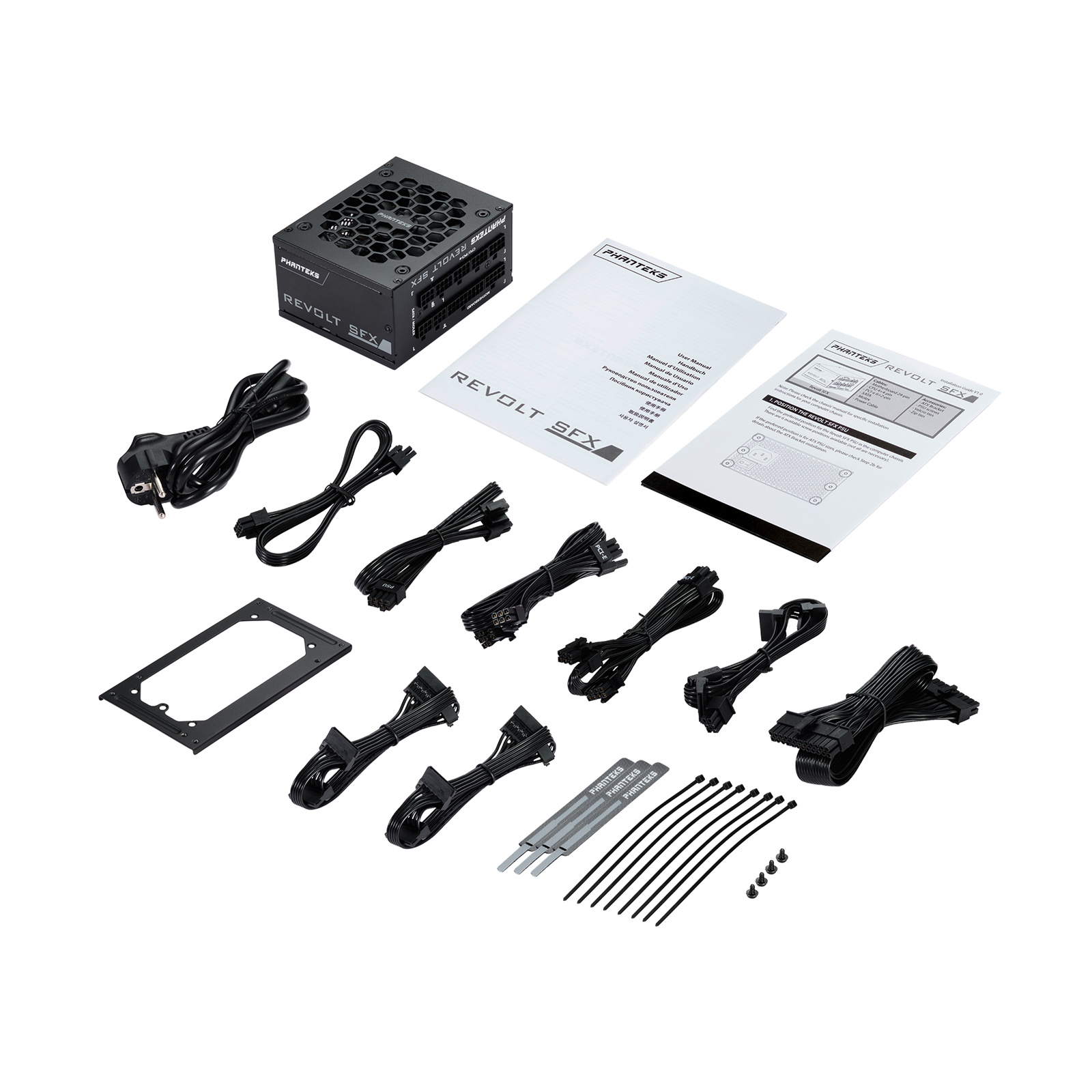

Package Contents

1x PH-P750PSF 80+ Platinum fully modular Power Supply
1x Power cord
1x SFX to ATX bracket

Cables:
1x 18Pin+10Pin MB 24P (350mm)
2x 8pin CPU 4+4P (400mm)
2x 8pin PCI-E 6+2P/6+2P (400mm/100mm)
2x 6pin 4SATA 90° (450mm-150/100/100/100mm)
1x 6pin 3SATA 90° + 1Molex 180° (250mm-150/100/100/100mm)

Accessories:
1x User's manual
1x Installation guide
1x PSU Bag
1x Cable Bag
1x Zip tie bag
1x Screw Pack
1x Velcro Pack

Manufacturer Part No:
PH-P750PSF
Brand:
Product Type:
Power Supply
UPC
886523500872
Product Family:
AMP
Shipping Weight:
2.05 kg
PB Part No:
PSUPHA10750
Product Model:
-
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4 out of 5 Stars Based on 2 reviews
5 Stars
1
4 Stars
0
3 Stars
1
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Seasonic-Powered Phanteks AMP 750W Power Supply: A Modular and Top-Quality Option with Shortcomings

I recently purchased the Phanteks AMP 750W Power Supply 80 Plus Platinum from PB Tech Glenfield, and I am thoroughly impressed with its build and quality. It is fully modular and comes with an SFX to ATX frame adapter, but the cables were a bit short for my ATX case. However, I quickly found a PSU cable extender from GGPC to make it work with my Phanteks Evolv X Case. The renowned Seasonic manufactures these power supplies, which indeed shows its performance. Although I was disappointed that it only comes with a 60-month warranty, compared to other high-end PSUs that typically offer a 10-year warranty, the product itself is top-notch, and I...view more

By: saputra 14/02/23
Verified Owner
1 out of 2 users found this review helpful
Did you find it helpful?

Small, quiet, efficient

It's a Seasonic based supply, who are well known in the industry for making great power supplies.

Platinum effenciency, quiet, and in a tiny form factor!

If you want custom cabling, the Cablemod RT Pro custom cabling kit is compatible with this power supply.

SH
By: SeanH582 26/10/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
