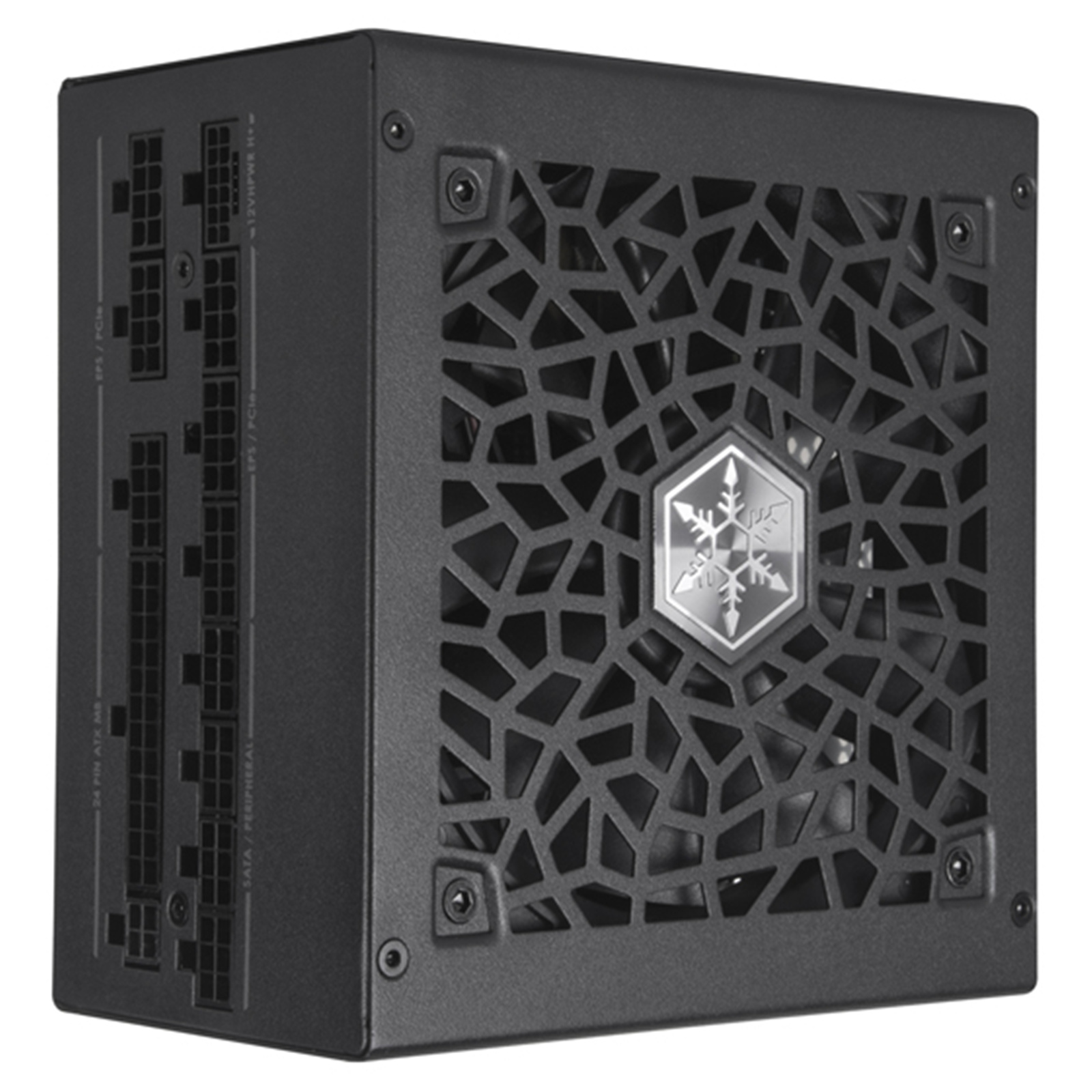

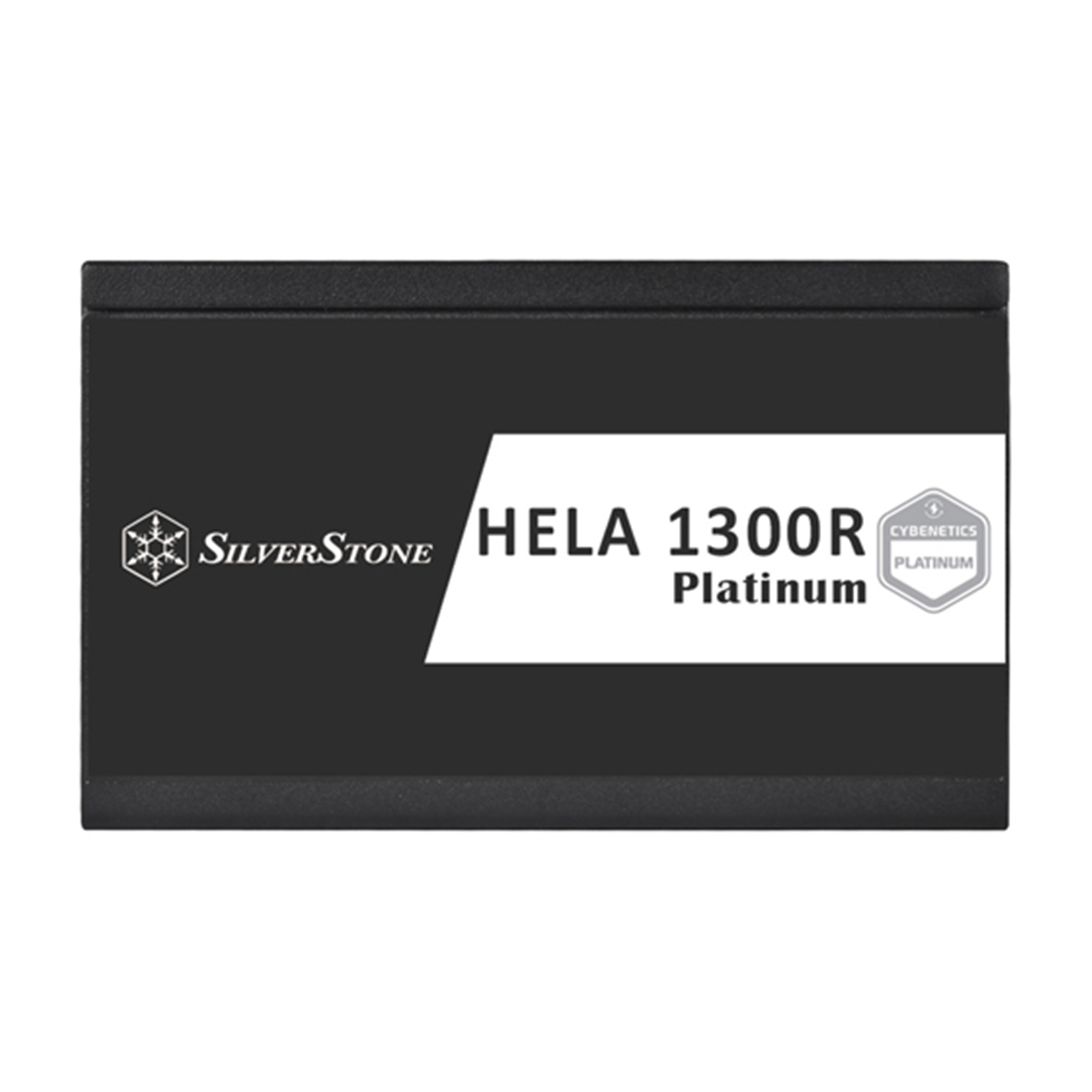

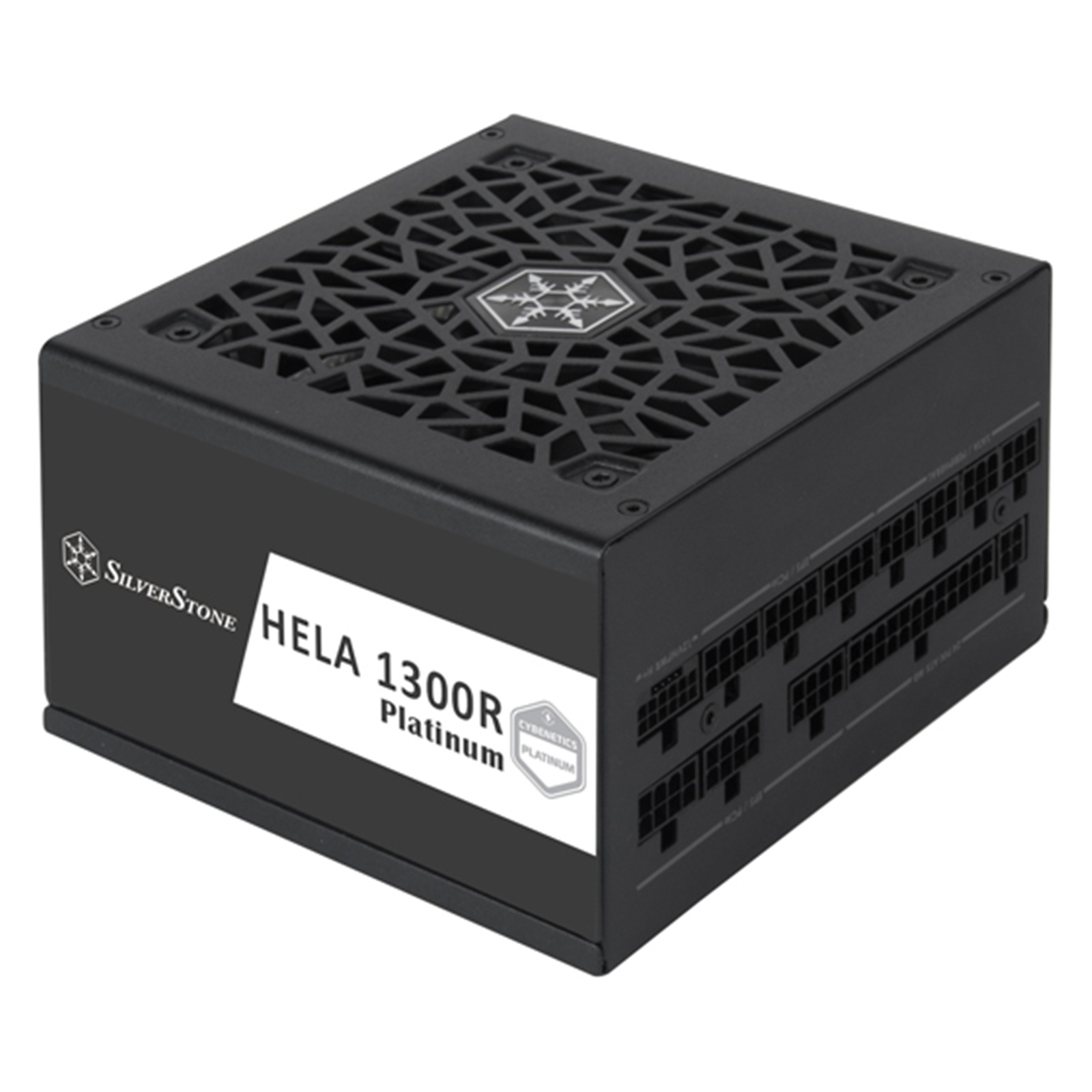

Silverstone HELA HA1300R 1300W ATX 3.0 Plantinum Power Supply

Cybenetics Platinum efficiency certification - Fully Modular

PB Tech price
PB Tech price
NZD $ 349 .00
$ 349 .00
$349.00  +GST
$349.00

Silverstone HELA HA1300R 1300W ATX 3.0 Plantinum Power Supply

Cybenetics Platinum efficiency certification - Fully Modular

Includes 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard!
  • Brand: Silverstone
  • MPN: SST-HA1300R-PM
  • Part #: PSUSVT18920
  • UPC: 844761025687
PB Tech price
NZD $ 349 .00 $ 349 .00
Hurry, only 4 units left!


Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$349.00  +GST
$349.00
  • Brand: Silverstone
  • MPN: SST-HA1300R-PM
  • Part #: PSUSVT18920
  • UPC: 844761025687

Max Output Power

1200W 1300W

PSU Form Factor

ATX

80 Plus Rating

N/A

Modular

Full

Colour

Black

16-Pin GPU Connector

1

PSU Length

150mm

PSU ATX Version

ATX 3.0

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Silverstone HELA HA1300R 1300W ATX 3.0 Plantinum Power Supply...
Silverstone HELA HA1300R 1300W ATX 3.0 Plantinum Power Supply Cybenetics Platinum efficiency certification - Fully Modular
Total:
NZD $ 409 .17
NZD $ 409 .17
Buy together and save $2.90 $2.90
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox Playstation Smartphone Repair Tools
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox Playstation Smartphone Repair Tools
$56.17 $56.17
NZD

$53.67

$53.67

Save 20% with code GIFT4DAD Save 20% with code GIFT4DAD
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
NZD

$6.50

$6.50

You save 5% You save 5%

Features

HELA 1300R Platinum

Cybenetics Platinum 1300W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply

- Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- Super flexible black flat cables
- 100% modular cables
- 24/7 continuous power output with 50? operating temperature
- All Japanese electrolytic capacitors
- Silent running 120mm FDB fan with semi-fanless and delayed shut-off function
- 180° angled SATA connectors designed for stack mounted hard drives

Includes 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard

Easily and efficiently power high-end systems with the latest graphics cards



Cybenetics Platinum Certified

Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity



Fully modular design with universal EPS / PCIe connector interface

Flat cables have much greater flexibility to allow for tighter folding and management of cable



All Japanese electrolytic capacitors

Ensure reliable power and long-life span



Silent 120mm FDB fan

Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use



Advanced protections for safety and security

- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection



This PSU's motherboard connector includes a 4pin sense wire that needs to be connected to the PSU's modular interface as shown. Sense wire helps improve PSU's regulation performance by around 1%-2%.

Specifications

Product No.

SST-HA1300R-PM

Model (safety certification)

SST-AX1300MCPT-A

Color

Black (lead-free paint)

Max. DC Output

1300W

Power density

720W per liter

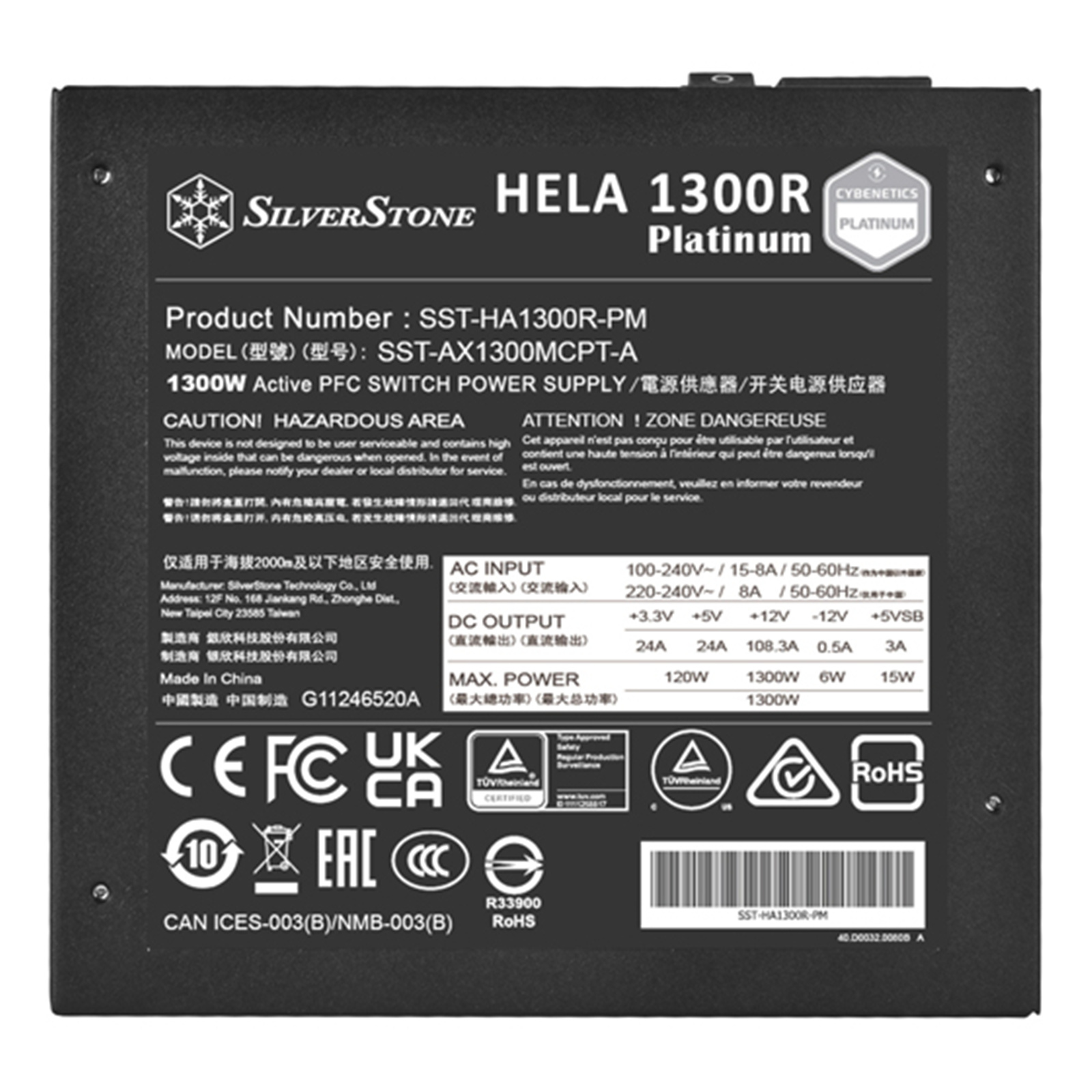

Load Range

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 24A 24A 108.3A 3.0A 0.5A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5/-7% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV

Combined +3.3V & +5V

120W

Combined +12V

1300W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

=89% & <91% overall efficiency

MTBF

100,000 hours

Operating temperature

0°C ~ 50°C

Protection

Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
No load operation

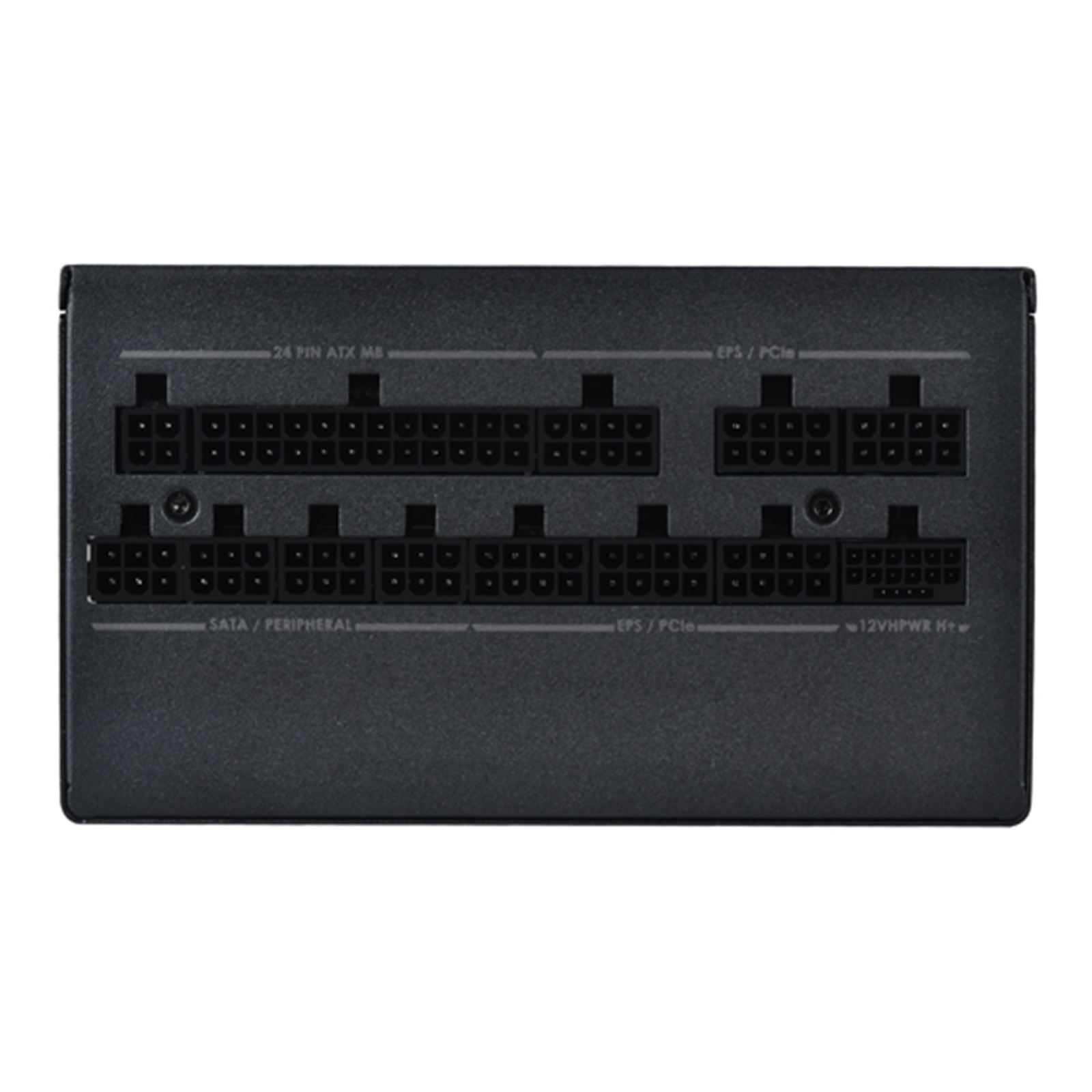

Connectors

1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connector
1 x 12+4-Pin 12VHPWR connector
8 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
6 x 4-Pin Peripheral connectors
2 x 4-Pin Floppy connectors

Cooling System

Silent 120mm FDB fan

Noise Level

0 dBA minimum

Certification

Cybenetics Platinum

Form factor

ATX (PS2)

Dimension

150mm (W) x 86mm (H) x 140mm (D)

Weight

2.93 kg

Manufacturer Part No:
SST-HA1300R-PM
Brand:
Product Type:
Power Supply
UPC
844761025687
Product Family:
HELA
Shipping Weight:
3.6 kg
PB Part No:
PSUSVT18920
Product Model:
HA1300R 1300W
Warranty: 60 months *
