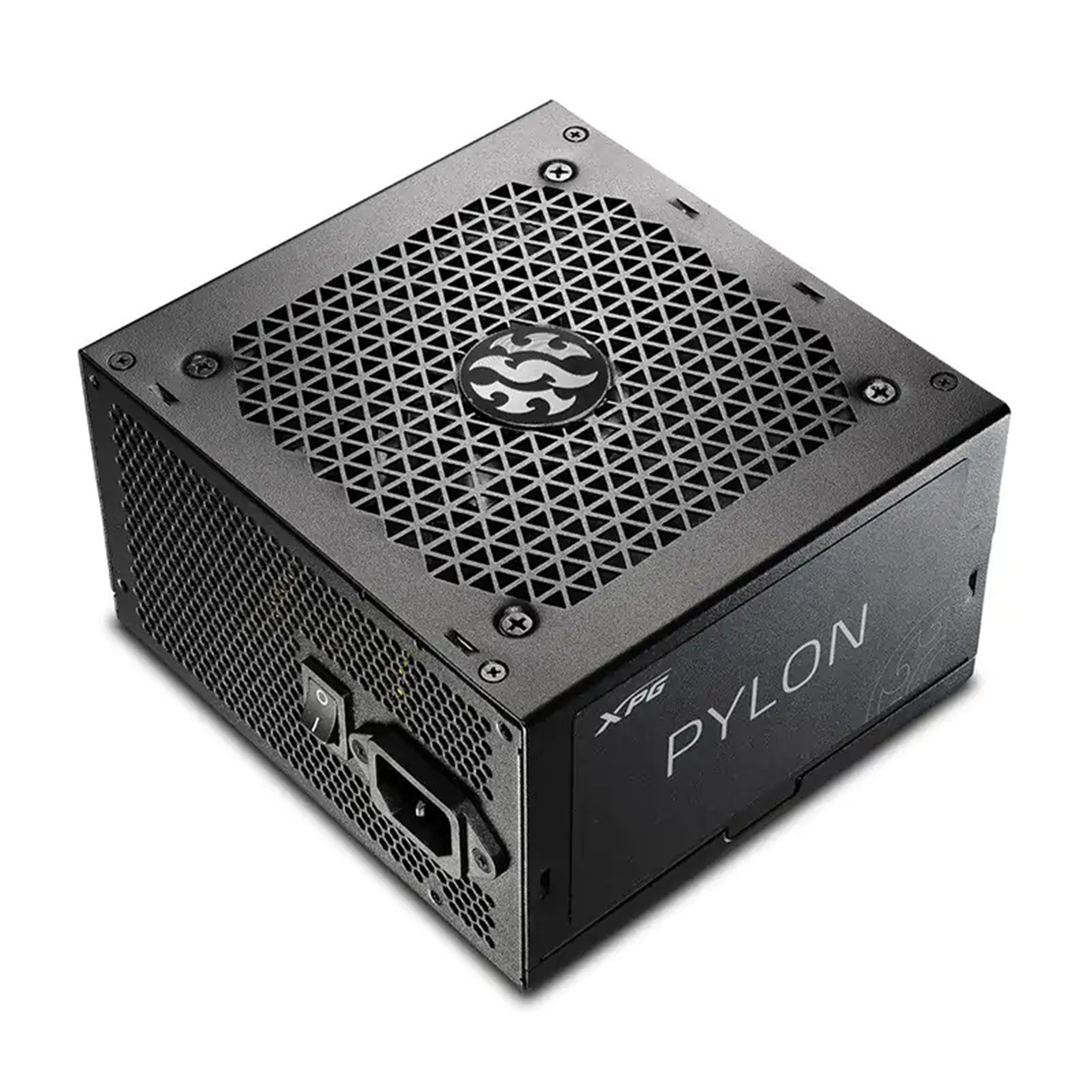

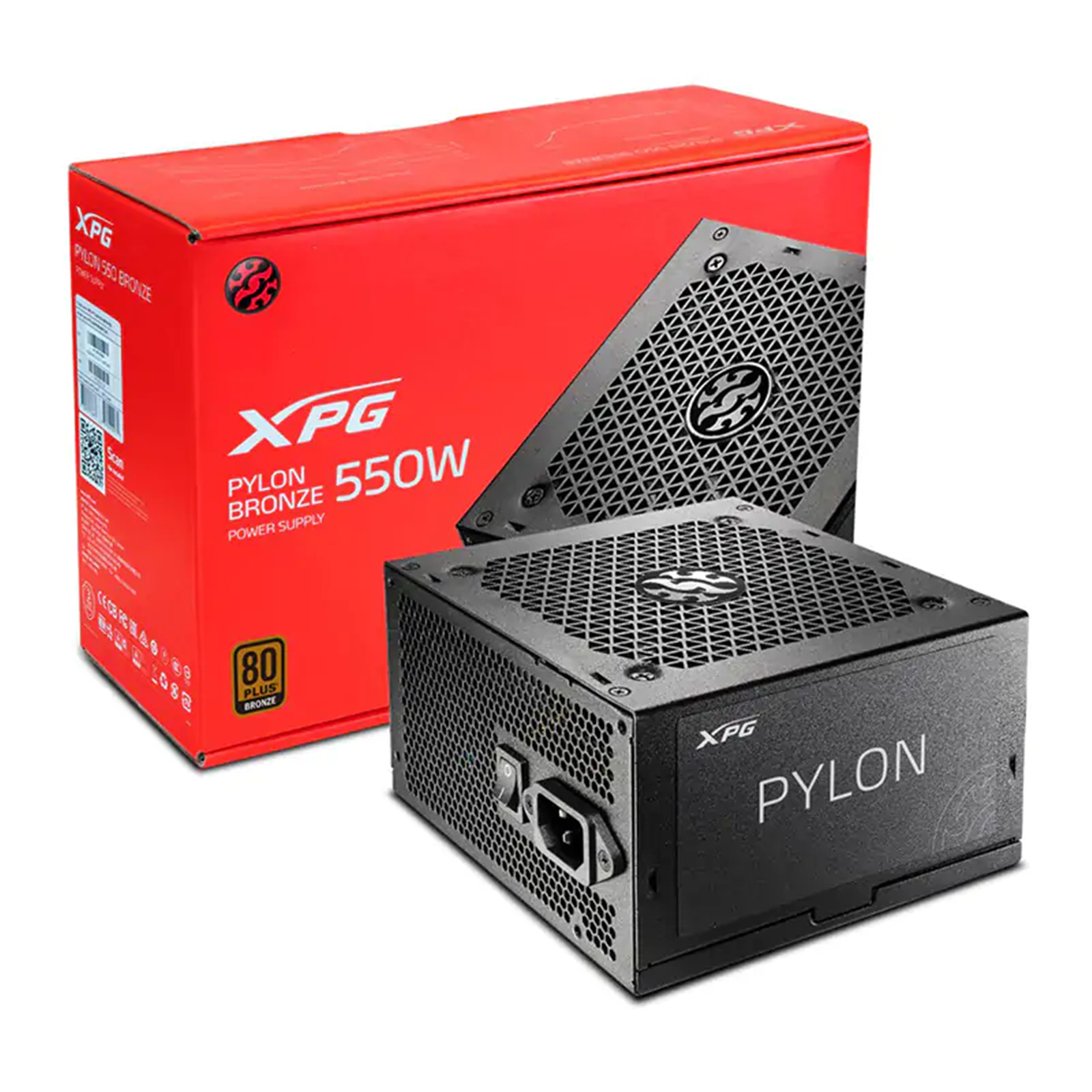

ADATA XPG PYLON 550W Power Supply
80 Plus Bronze - MEPS Ready - Fixed Cable - 3 Years Warranty
ADATA XPG PYLON 550W Power Supply
80 Plus Bronze - MEPS Ready - Fixed Cable - 3 Years Warranty
- Brand: ADATA
- MPN: PYLON550B-BKCAU
- Part #: PSUXPG0001
- UPC: 842243020762
What PB Tech customers are saying about this product...
See More Reviews"A very capable PSU. Plenty of cables for addons and a very quiet fan. A 3 year peace of mind warranty, you cannot ask for more."
COMBO DEALS: Buy Together and SAVE!





ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox...
$53.67
$53.67


$6.50
$6.50
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Desktop Power Supplies





ADATA XPG PYLON 550W Power Supply 80 Plus Bronze - MEPS Ready - Fixed Cable - 3 Years Warranty
- Brand: ADATA
- MPN: PYLON550B-BKCAU
- Part #: PSUXPG0001
- UPC:842243020762

Product URL: https://www.pbtech.com/pacific/product/PSUXPG0001/ADATA-XPG-PYLON-550W-Power-Supply-80-Plus-Bronze?is-review=1
Features
PYLON - RAW ENERGY
XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.
DC-to-DC Circuit in BRONZE Grade
XPG PYLON complies with Intel ATX Power Supply Design Guide's sleep mode function, featuring DC-to-DC 100% +12V Full Power(*) in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.
(*) DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components' life expectancy.
80 Plus Bronze Certification
XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.
Cybenetics ETA and LAMBDA Certified
XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.
120mm Fluid Dynamic Bearing (FDB) Fan*
The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.
The operating environment is kept quiet and efficient, and prolongs its life expectancy.
Main Japanese Capacitor at 105°C
High quality 105°C Main Japanese Capacitor in XPG PYLON Bronze Series ensures great durability and offer highest stability and reliability.
Specifications
Dimensions (L x W x H)
140 x 150 x 86mm
Cybenetics Rating
550W: BRONZE
80 Plus Rating
BRONZE
ATX Version
Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)
Protections
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification
CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC
PFC
0.99
Input Voltage
100-240V
Input Current
550W: 8A/4A
Input Frequency
50Hz - 60Hz
Operating Temperature
50°C
Fan Size
120mm
Fan Bearing
FDB (Fluid Dynamic Bearing)*
Fan Speed
2,000 RPM
MTBF
100K Hours at 25?
ATX 24 Pin Connector
1
EPS 8 (4+4) Pin Connector
550W : 1
EPS 8 Pin Connector
550w : 0
PCI-E 6+2 Pin Connector
550W : 2
Molex 4 Pin Connector
550W : 2
SATA Connector
550W : 5
Weight
550W:
Product: 1.77kg (3.9lb) ±5%
with Package: 28kg (5.0lb) ±5%
Floppy 4 Pin Connector
550W : 1
