Dynamix RJ-45PTC6-100-JR Cat6 RJ45 Connector - 100pc
UTP - Push Through - 3 Prong - 50u Gold - Max 1.05mm Conductor
Dynamix RJ-45PTC6-100-JR Cat6 RJ45 Connector - 100pc
UTP - Push Through - 3 Prong - 50u Gold - Max 1.05mm Conductor
- Brand: Dynamix
- MPN: RJ-45PTC6-100-JR
- Part #: RACDNX1132
- UPC:
- Brand: Dynamix
- MPN: RJ-45PTC6-100-JR
- Part #: RACDNX1132
- UPC:
COMBO DEALS: Buy Together and SAVE!





$43.29
$43.29


$7.56
$7.56
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network & Telephone Cables





Dynamix RJ-45PTC6-100-JR Cat6 RJ45 Connector - 100pc UTP - Push Through - 3 Prong - 50u Gold - Max 1.05mm Conductor
- Brand: Dynamix
- MPN: RJ-45PTC6-100-JR
- Part #: RACDNX1132

Product URL: https://www.pbtech.com/pacific/product/RACDNX1132/Dynamix-RJ-45PTC6-100-JR-Cat6-RJ45-Connector---100
Features

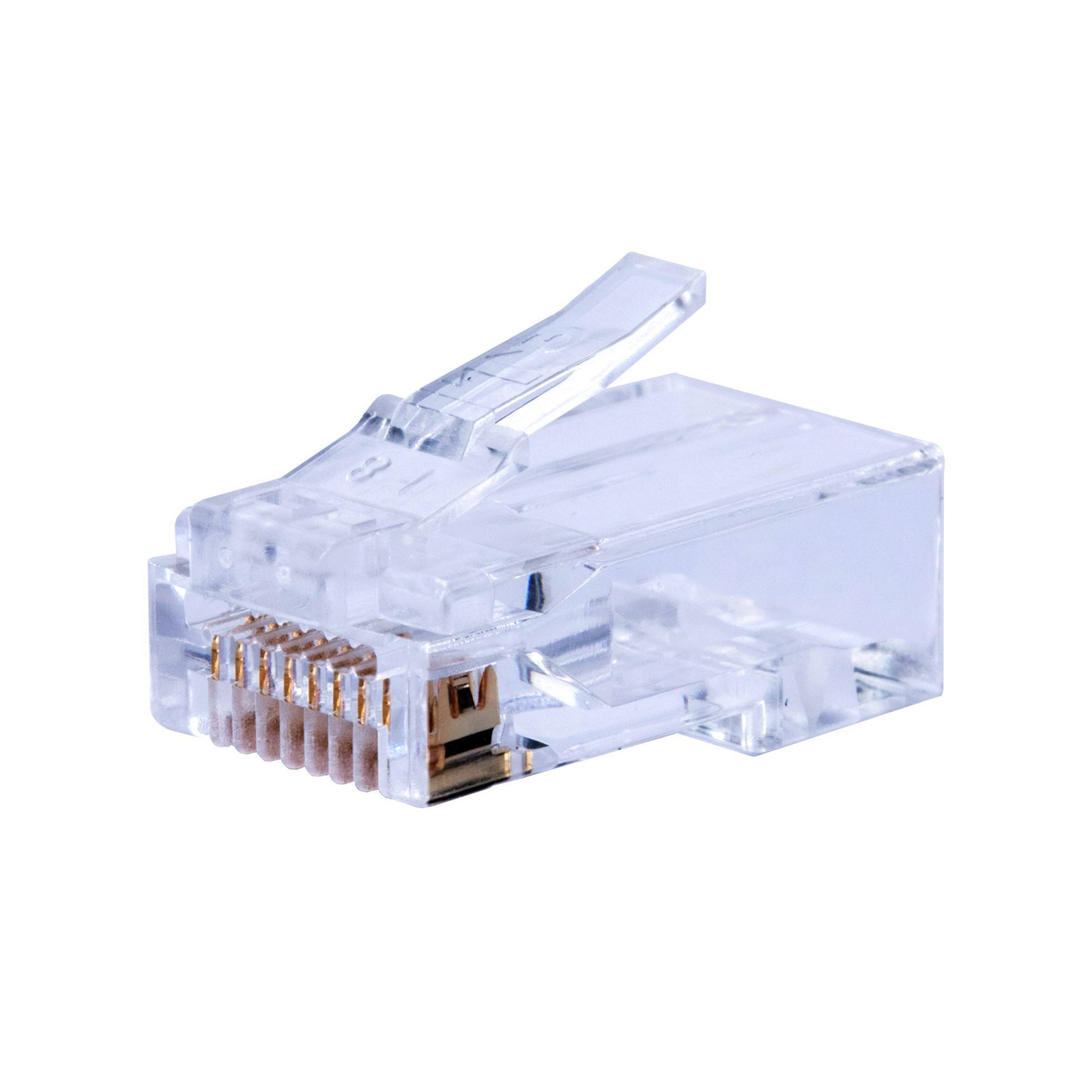

Dynamix RJ-45PTC6-100-JR Cat6 UTP Push Through Plug, 3 Prong 50 u" 100pc Pack - For Solid & Stranded cable, Max Conductor size : 1.05mm

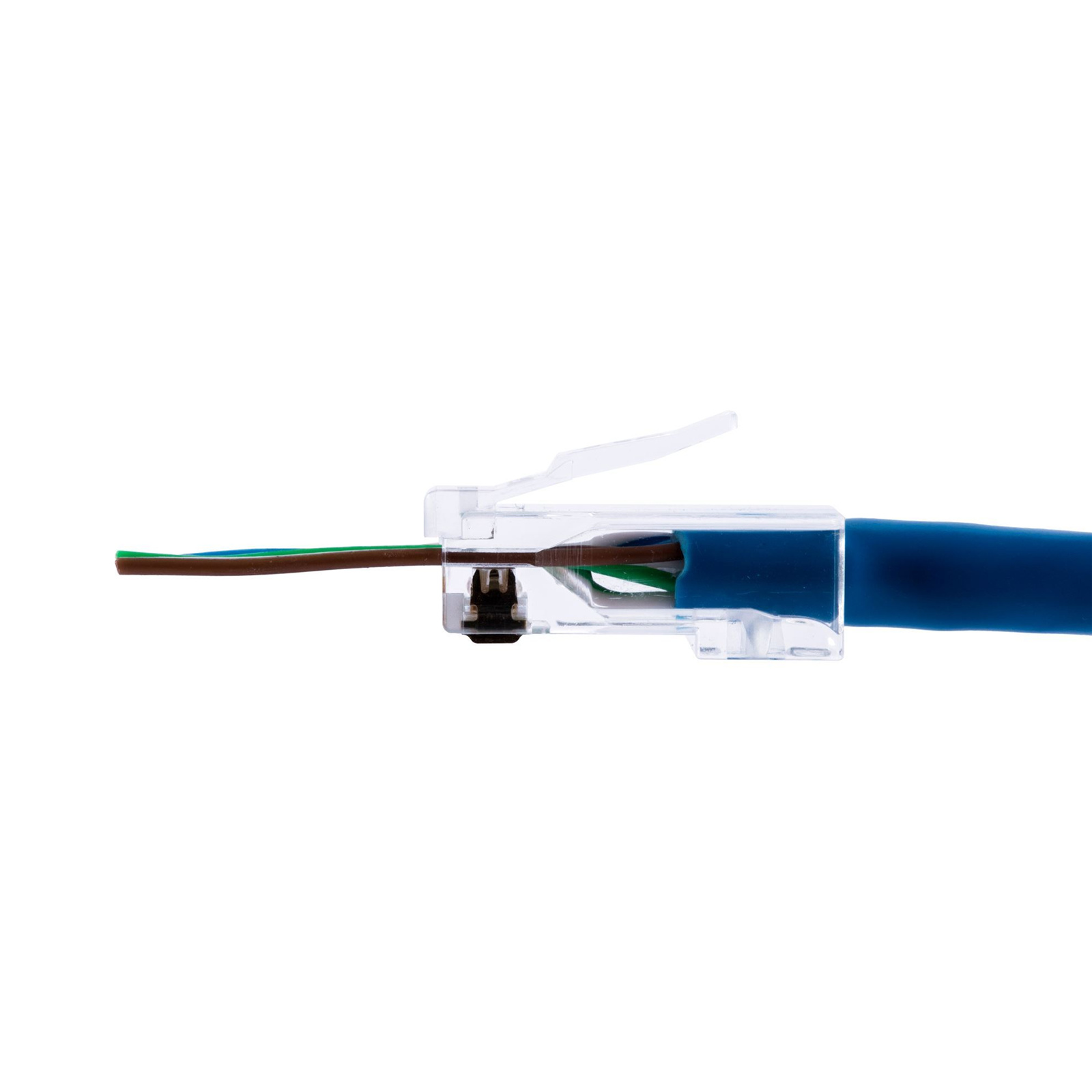

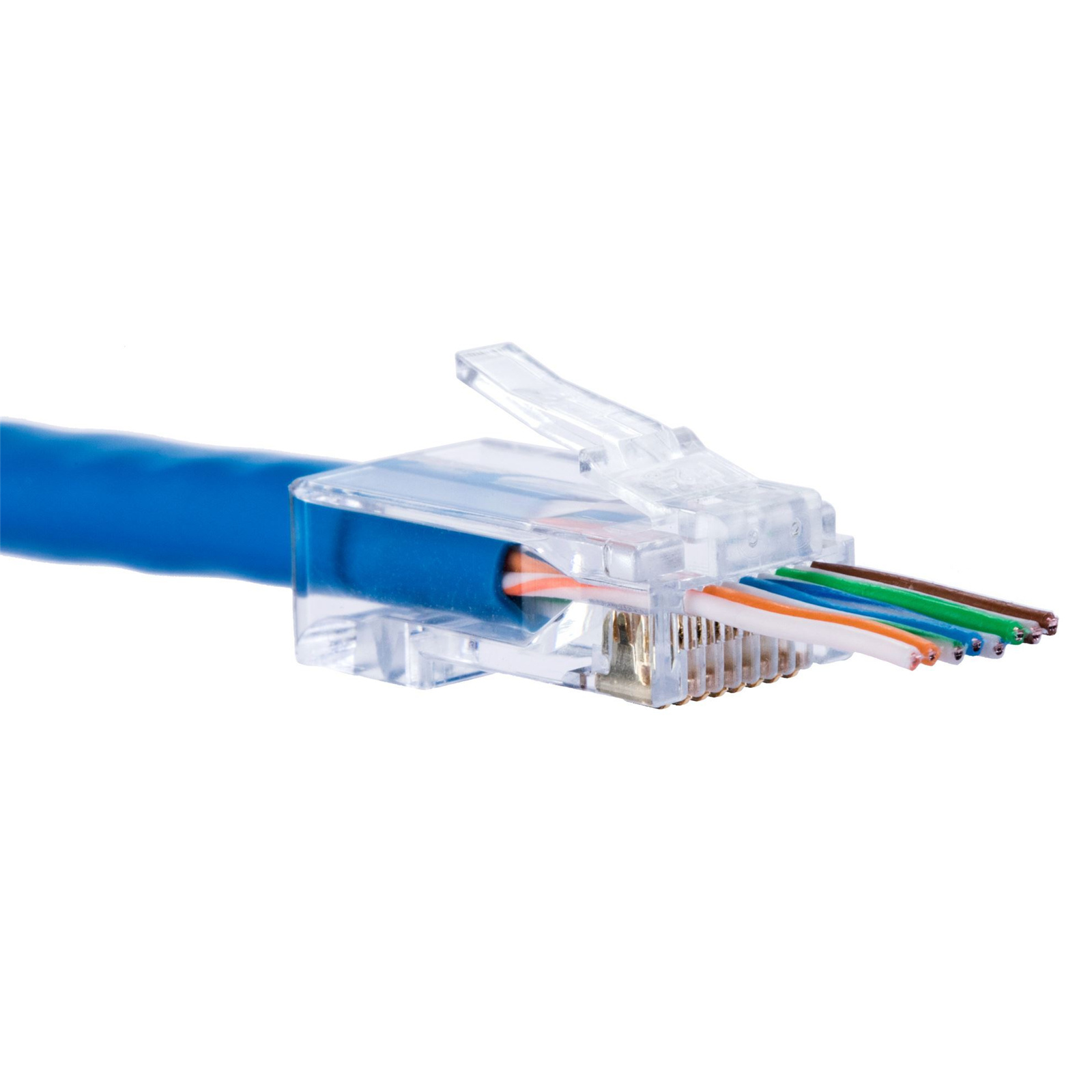

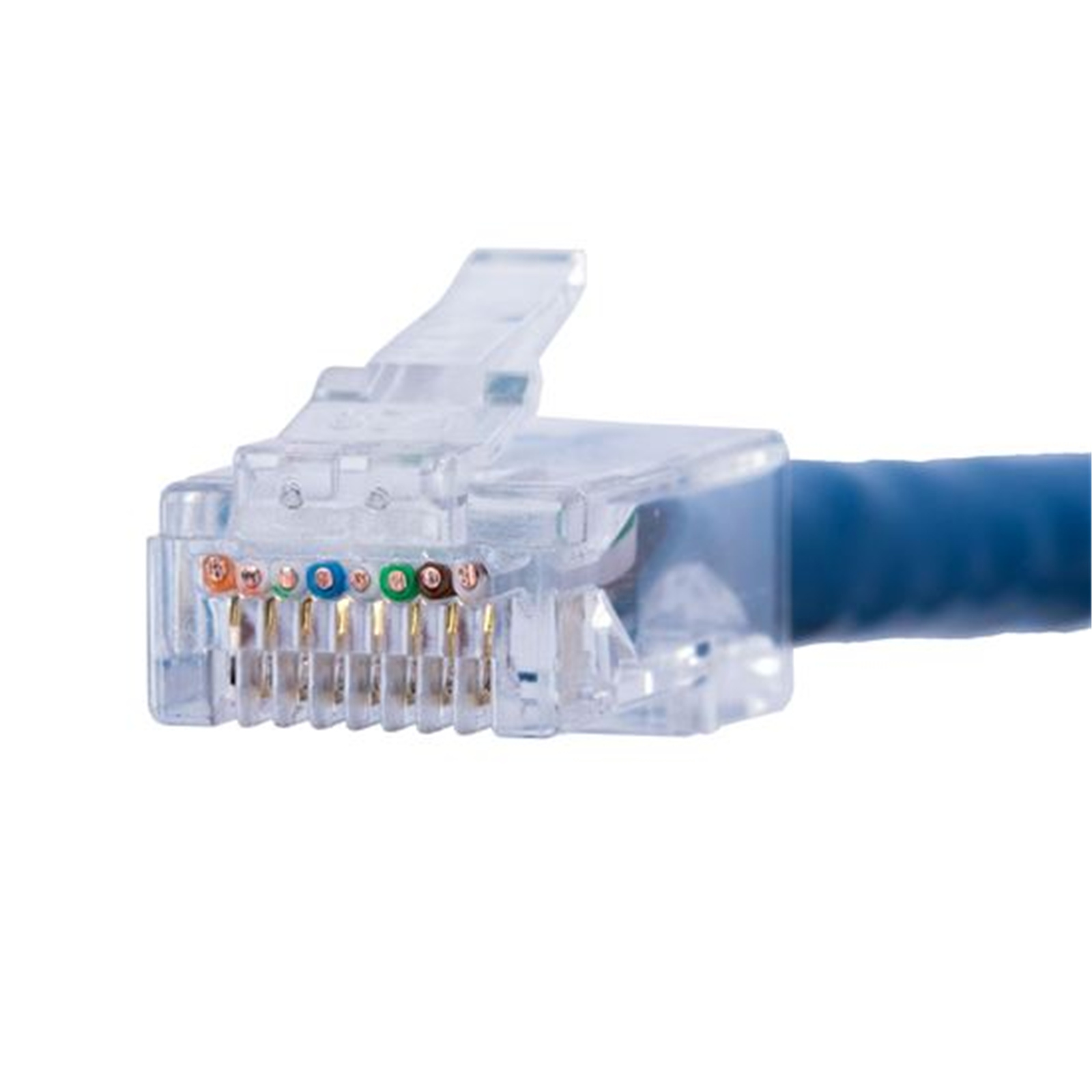

Our DYNAMIX RJ45 Pass-through modular plug connectors are designed to simplify the process of terminating RJ45 modular plugs, by allowing the wires to be inserted through the connector and out the front to easily verify the proper wiring order. Pulling the connector down over the cable jacket and seating it tightly in the rear of the connector this optimizes the performance of the termination.
- Wire conductor up to 23AWG
- Gold plated 50 Micron rated connectors
- Supports Solid and Stranded Cables
- Transparent polycarbonate
- Meets or Exceeds ANSI/TIA568-D.2; ISO/ IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
- Compatible with "Platinum Tools" crimping/cutting tools
Specifications
Wire Conductor
23AWG
Flame Auto-extinguish
UL94V-2
Shielded Material
Hard Brass (CAT6 STP Plugs Only)
Plug Material
Transparent Polycarbonate
Insertion Life
2000 Minimum cycles
Certification
ANSI/TIA568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
